Roller Shutter Industrial Doors
Roller Shutter Industrial Doors

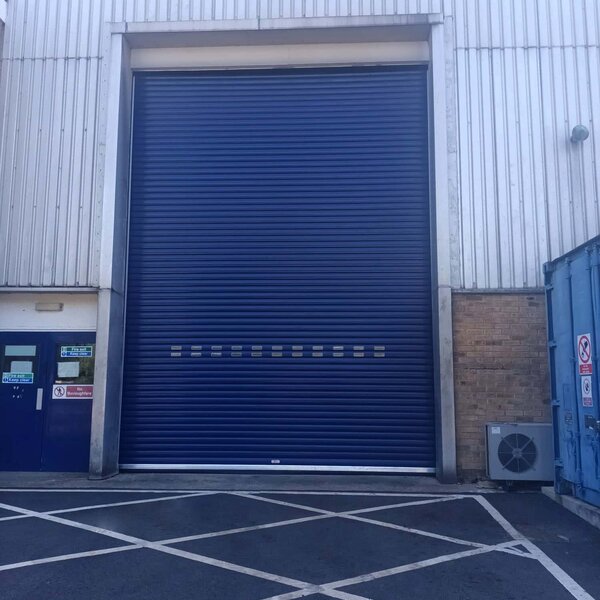

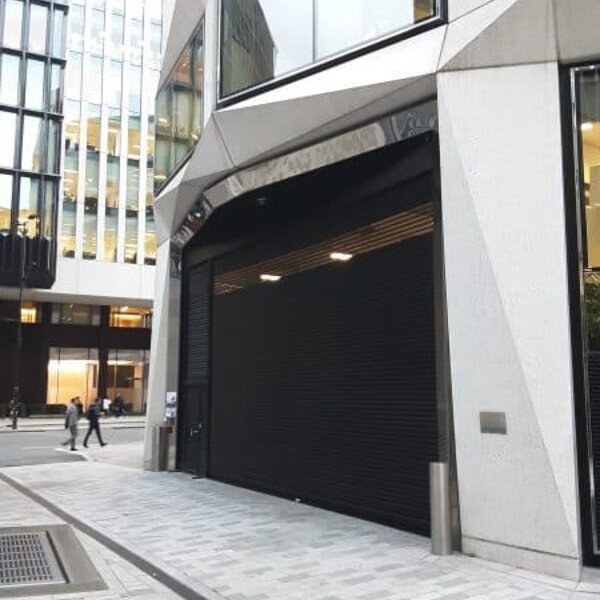

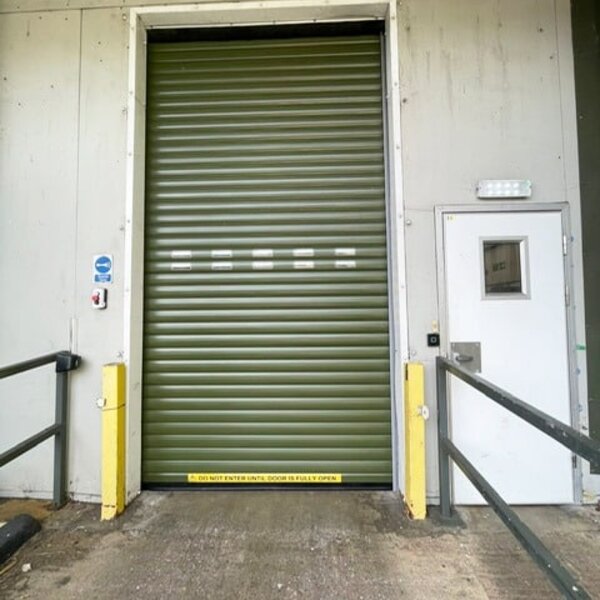

Industrial Roller Shutter Door can be customised for a wide range of users. When the time comes to invest in new doors, especially where space is tight and access is difficult, rolling doors are an excellent choice. These doors are modern, robust and cost-effective, provide a thermal and noise protection. Roller shutter doors are crucial for many businesses, offering versatile and efficient solutions for industrial and commercial environments. We combine our extensive experience with industry accreditations to deliver high-performance solutions designed to increase productivity and speed up daily operations.
Product Specifications

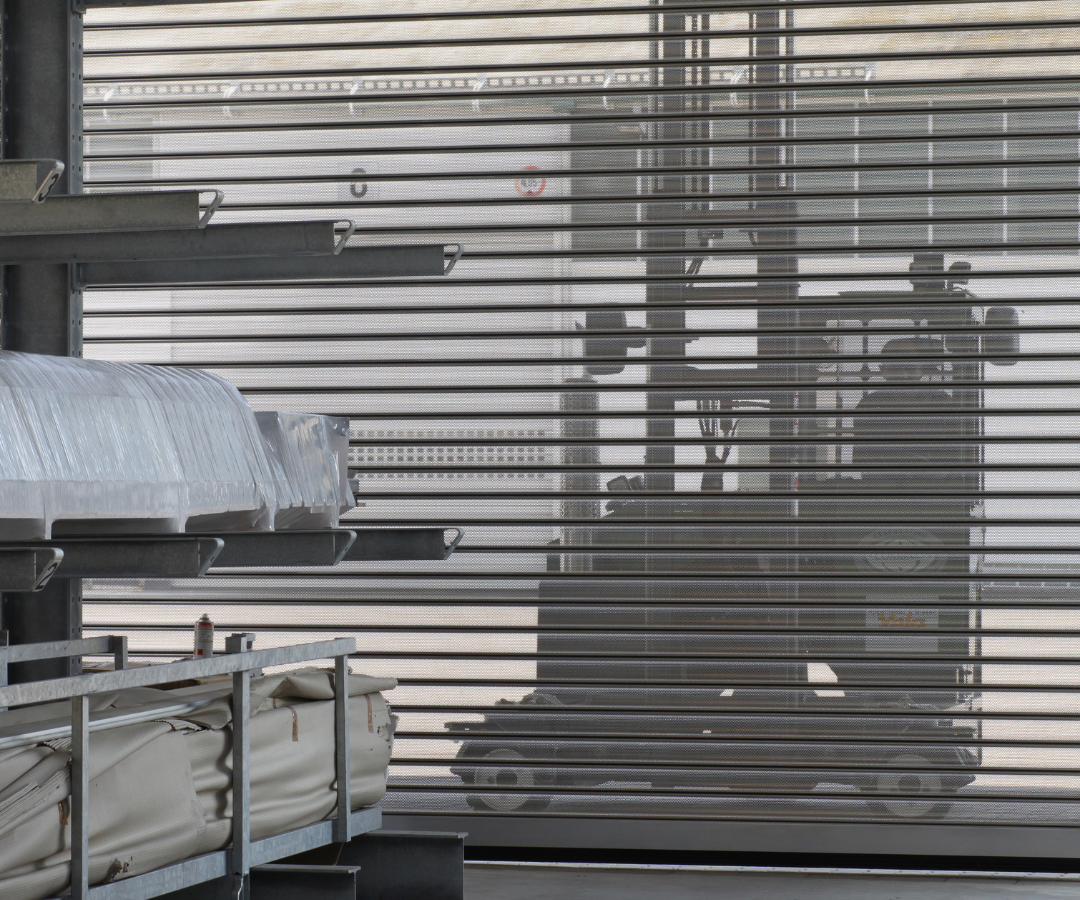

Single-walled roller shutter doors
Single-walled roller shutter doors
Single-walled roller shutter doors prove to be extremely robust and resistant to bending in everyday use. The selection includes curved and straight profiles in different materials, surfaces and colour coatings as well as perforated profiles, window and grid profiles.

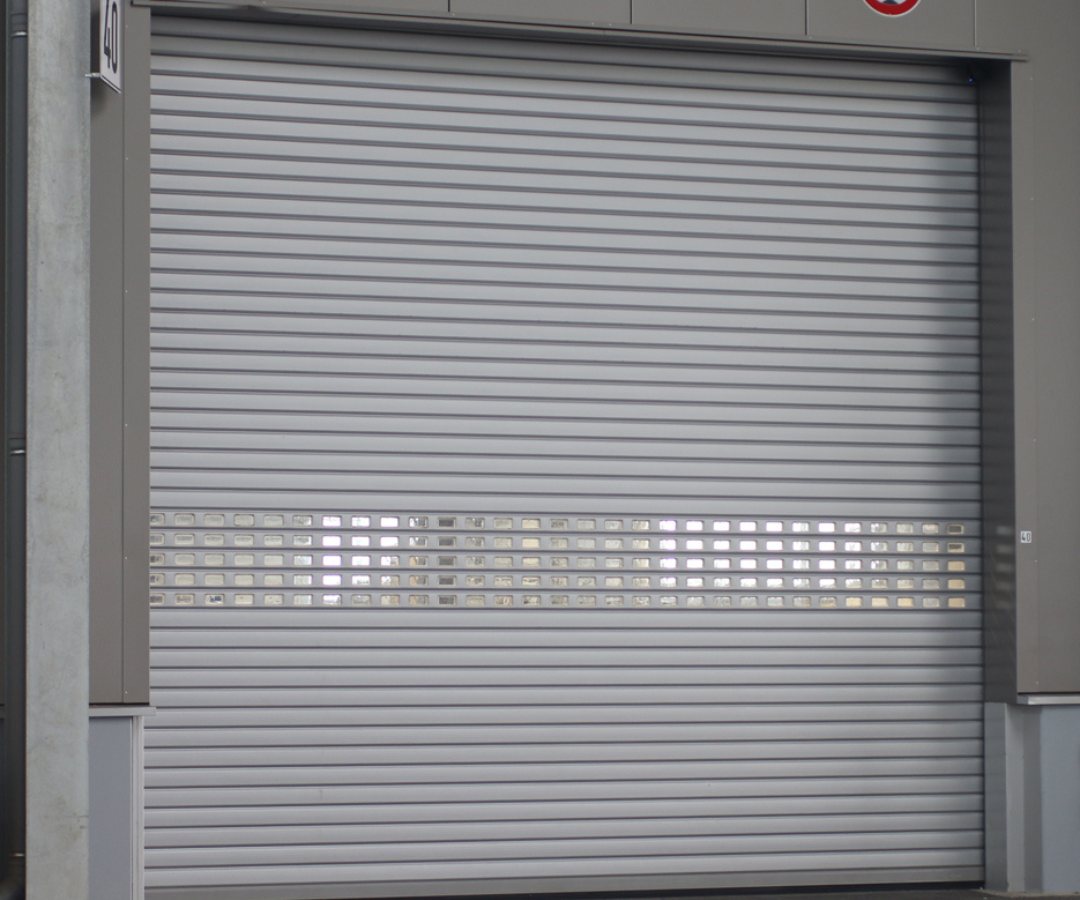

Double-walled roller shutter doors
Double-walled roller shutter doors
We recommend our double-walled roller door profiles where requirements for smooth operation and insulating properties are higher. Depending upon model, they are provided with polystyrene foam, mineral wool or filled with polyurethane foam in a modern production process and satisfy the highest demands for stability, resistance and safety. They are also available in different materials and colour coatings.

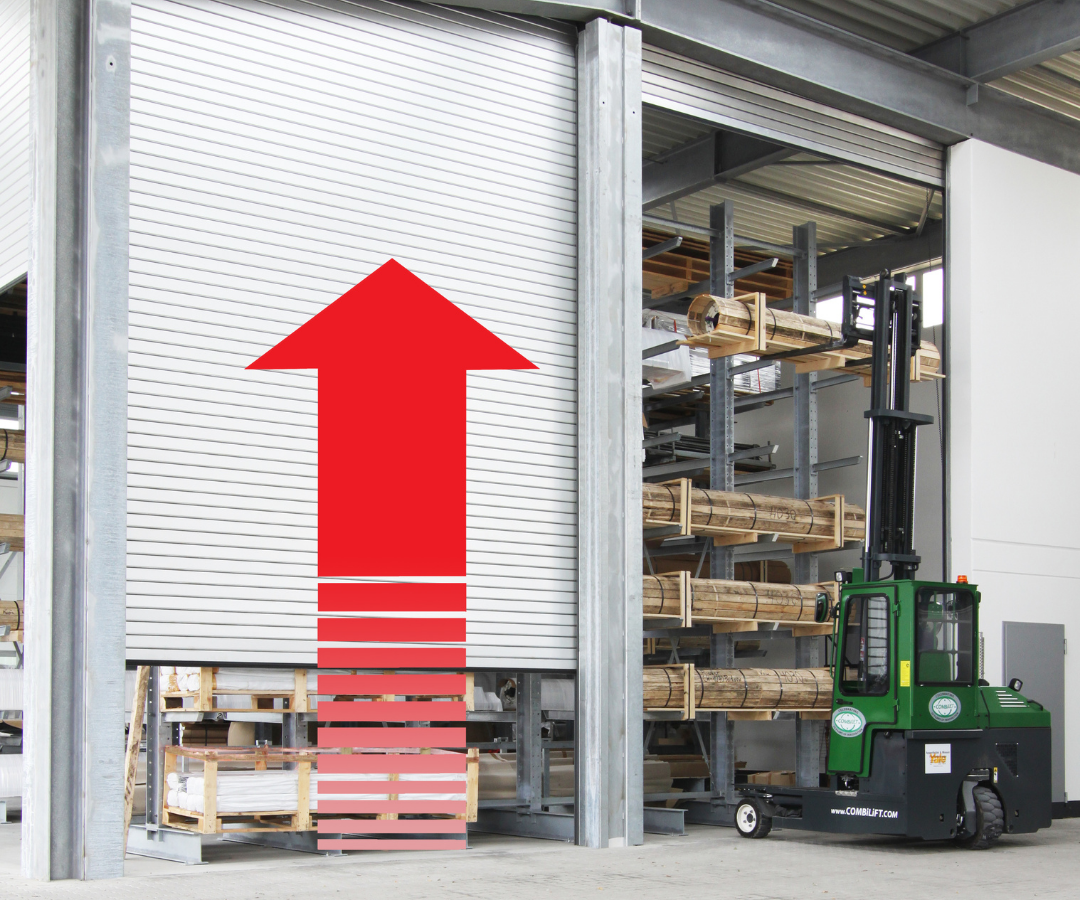

High speed roller shutter doors
High speed roller shutter doors
The significantly reduced opening times of the high speed roller shutter doors not only ensure optimal operational processes, but also reduce heat losses through doors standing open. A powerful microprocessor with inverter is available, providing smooth acceleration and soft braking to protect the materials as the door opens and closes. This allows the average opening speed to be increased up to 0.8 m/s, depending on the door height.

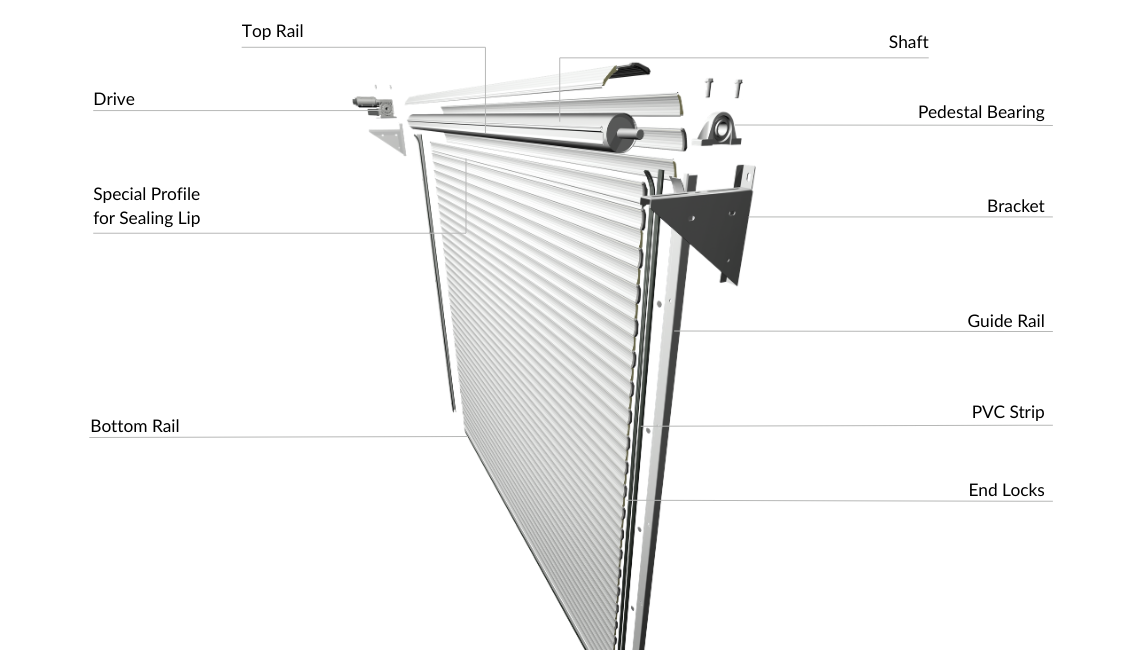

Door Structure
Door Structure
Industrial roller shutter doors are constructed from a small number of manageable components, which makes the assembly process fast and very economical.
The two brackets for the motor drive and the pedestal bearing are sized according to the weight of the roller shutter door and undergo testing according to the laws of static.
Statics is also used to determine the diameter of the shaft on the basis of the width and weight of the roller shutter. The circular blanks (two on each side) are expertly welded to the shaft pins.
The stability of the door under wind load is verified by a TÜV-certified program.
The galvanised steel guide rails have an integrated support, which can be enlarged with an extra rectangular profile.
The pre-drilled fixing holes are closed with sealing caps. The stability of the guide rails can be further increased with reinforced brackets.
Adhesive edgings are used to reduce and wear to the roller shutter profiles.
The roller shutter has a special profile to compress and EPDM sealing lip to the lintel.
The endlocks of the slats are usually riveted. If the doors is wider than 5750 mm, forged and hot dip galvanised wind hooks are also riveted on.
The bottom rail is made of extruded aluminium and designed to hold safety rubber bottom seal.
