Steel UP-AND-OVER DOORS
A RELIABLE DESIGN BUILT FOR EVERYDAY CONVENIENCE
Novoferm offers up-and-over garage doors that offer a classic and reliable solution, effortless operation and a compact design ideal for modern homes.
UP-AND-OVER GARAGE DOORS MADE OF STEEL
Up-and-over doors made of steel with hot-dip galvanised door leaves
Up-and-over garage doors are galvanised and polyester primed. For a harmonious appearance, the frame elements visible from the outside are painted in the door colour - in an attractive colour of your choice.
Up-and-over steel doors
Novoferm up-and-over doors made of hot-dip galvanised sheet metal and a base coat of electrostatic polyester-based stove enamel provide the door with double protection against corrosion. The door leaf frame, block frame, guide rails, lever arms and all components are galvanised. The elements themselves are designed to be harmonious with all externally visible components.
Large selection of designs / colours
With a Novoferm up-and-over door, you have the option of making the door your own with an almost endless number of customisation options. There are multiple rib and raised panel patterns to choose from, as well as up-and-over doors with solid filling. You can choose a multitude of features that include windows, light strips, handles, operators, remote controls and keypads.
Overhead operators / security
All our up-and-over doors feature the latest advanced technologies, all placed inside a modern casing and are available with Novomatic operators, which are mounted on the ceiling. In a special configuration, the door is available in combination with an operator with a 3-point locking system or 4 point locking systems, based on the safe principle for particularly high security.
Your plus points at a glance
- For private garages up to 5,000 mm wide
- High quality with 10-year guarantee (Made in Germany)
Pleasantly quiet running thanks to whisper-quiet plastic rollers and sliding strips in the block frame
High corrosion resistance thanks to primed, hot-dip galvanised door leaves and galvanised block frames
- Easy operation and high functional reliability thanks to stable multiple spring assemblies
- Available in many designs and colours
- High torsional rigidity thanks to continuously welded hollow frame profiles with cross struts
- Available with automatic drives
Product Specifications
Door Designs
Door Designs
STEEL UP-AND-OVER GARAGE DOORS
Give your up-and-over door your own personal touch. At Novoferm you have the choice between many variants of ribbed and raised panel designs.
Our Steel Up-and-Over Range
Novoguard - Secured By Design Police Initiative
Novoguard Secured By Design (SBD)
Novoguard - Secured By Design (SBD)
Novoguard Secured by Design doors are certificated to CS 5051 STS202 standards, that is approved by the ACPO Association of Chief Police Officers. SBD an official security initiative operated by the UK Police Service with the intention of lowering crime while protecting people and businesses. SBD focuses on the improvement of products that include doors, windows, locks and walling systems. Products that receive the ‘Secured by Design’ accreditation are certified as providing the highest levels of security.

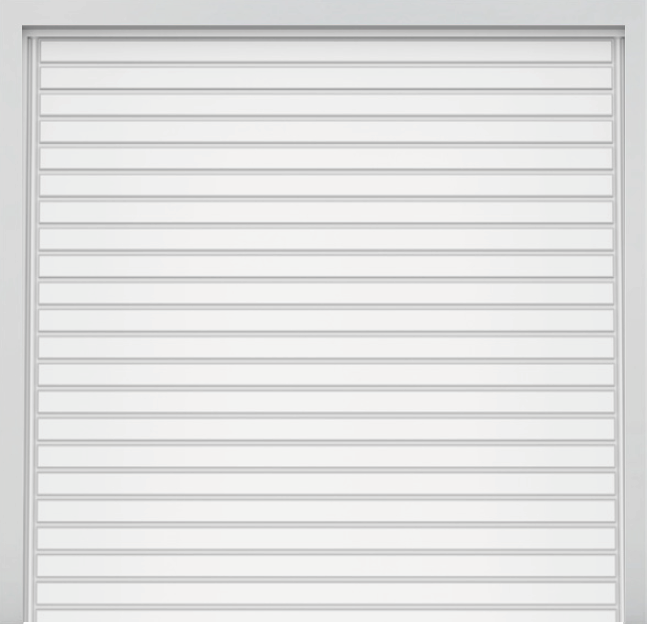

Our featured designs include our Retractable Vertical, Horizontal and Berwick designs that includes a 70mm steel fixing frame are available in any size up to and including 2438mm wide x 2134mm high.
For more information on Secured by Design, you can visit their website - https://www.securedbydesign.com/
COLOURS & FINISHES
COLOURS
Every steel up-and-over door supplied by Novoferm is designed to match your personal taste. In fact, one of the first choices you’ll be asked to make when selecting a solid steel door will be the colour. Traffic white, Jet Black & Anthracite Grey are a popular choice, but it is far from the only options we offer. With 27 colours across our steel door colour range, we give you the option to choose a colour that’s right for you.
ESSENTIAL COLOURS
STANDARD
ELITE
PREMIUM
In addition to our colour range, almost all individual RAL colour requests are possible for a small surcharge - with the exception of a few metallic, fluorescent and pearl effect colours and some particularly dark shades. Ask your specialist dealer.
GLAZING / WINDOWS - STYLISH GLIMPSES OF LIGHT INSIDE
GLAZING OPTIONS
Let light into your garage:
If you’re looking to create brighter, more spacious interiors, you’ll want to invest in glazing for your steel up-and-over doors. At Novoferm, we manufacture glazing panels in acrylic glass which are designed to provide illumination throughout.
Horizontal or vertical window cut-outs can be installed in ribbed garage doors, though this is dependent on the type of door. For raised-panel garage doors, you’ll only be able to choose vertical window cut-outs. Please note that all windows are available with either transparent or crystal 3mm acrylic double glazing. Dimensions: approx. 390 x 190 mm

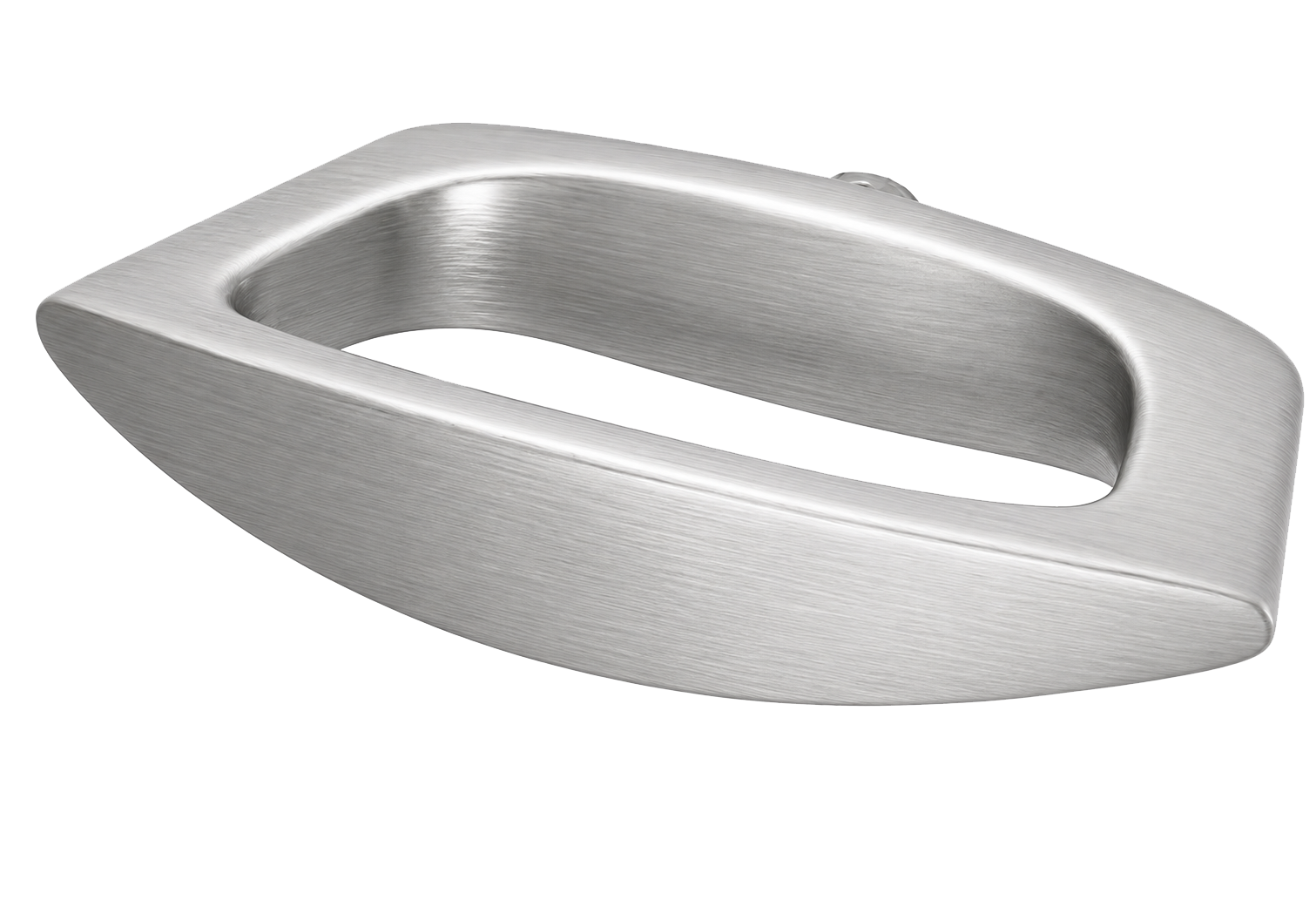

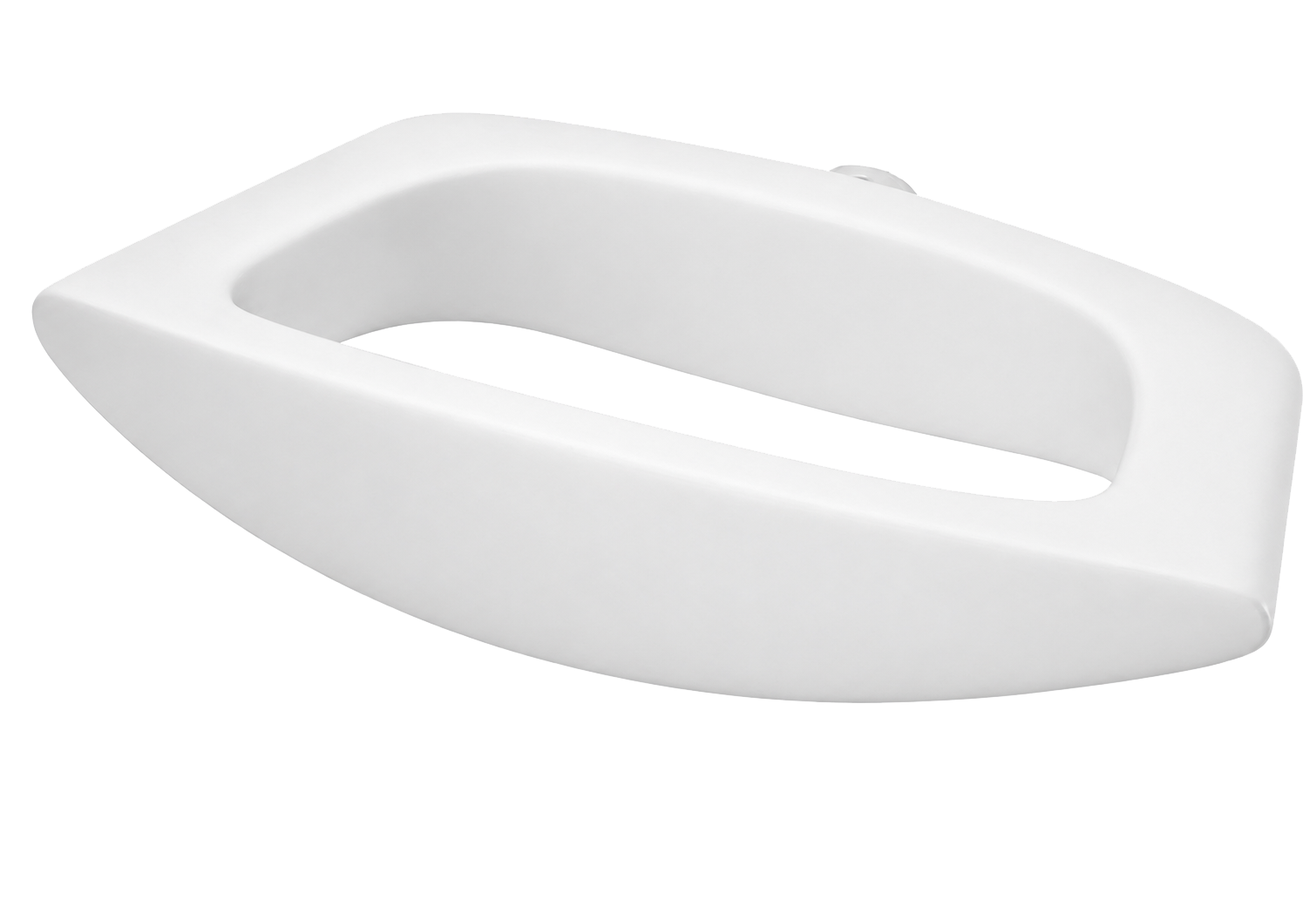

Door Handles
Door Handles
GARAGE DOOR OPENING WITH ELECTRIC OPERATOR
GARAGE DOOR OPENING WITH ELECTRIC OPERATOR
Selection of garage door openers and accessories
Select your electric door operator:
Gallery
Steel up-and-over garage door

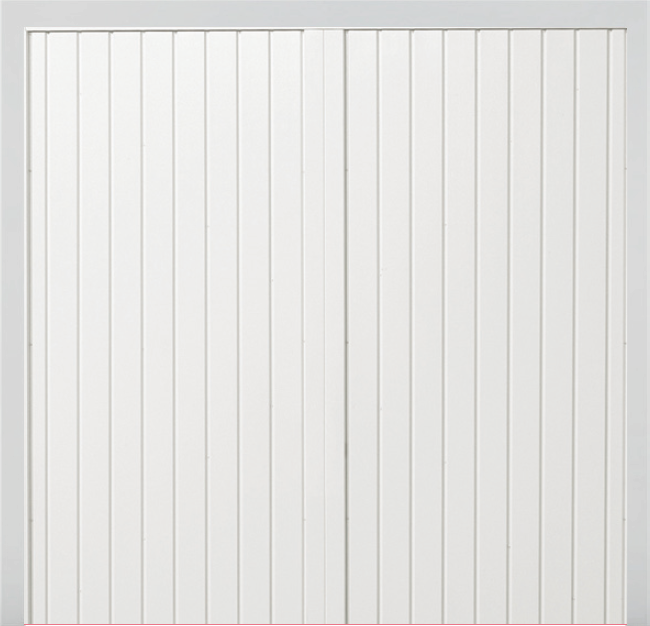

Door Design: Berkeley Vertical
Colour: Traffic White (RAL9016)
Steel up-and-over garage door

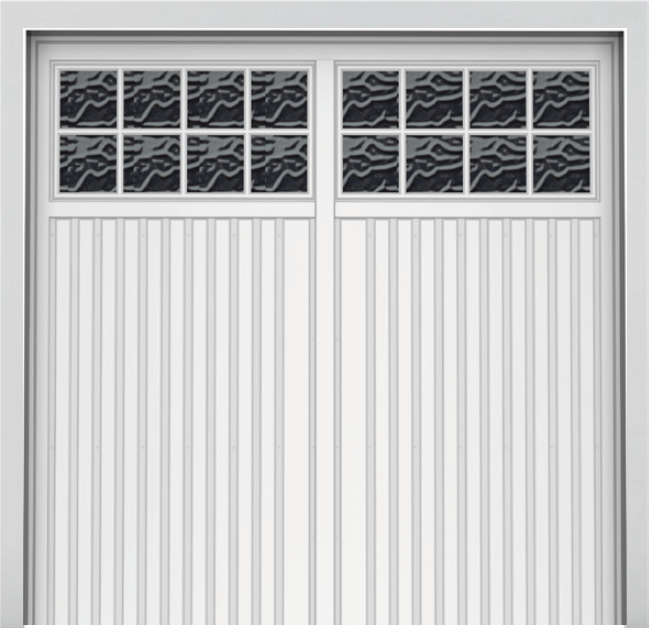

Door Design: Berwick
Colour: Agate Grey (RAL 7038)
Steel up-and-over garage door

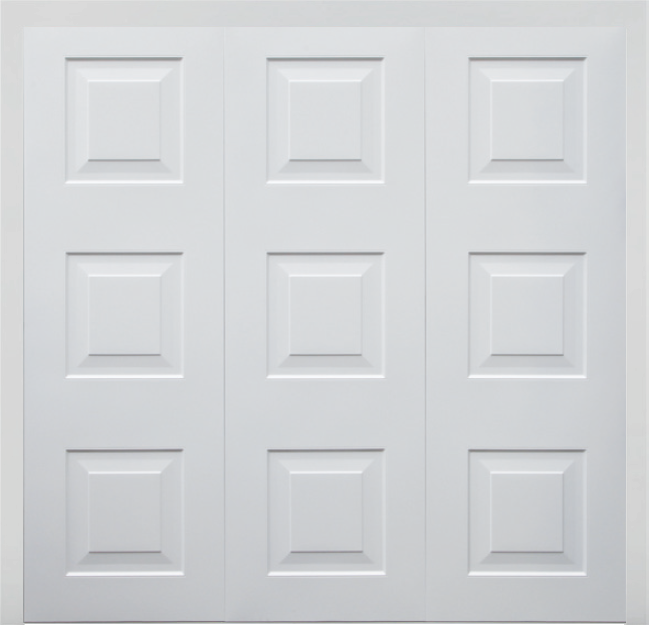

Door Design: Georgian
Colour: Traffic White (RAL9016)
Steel up-and-over garage door

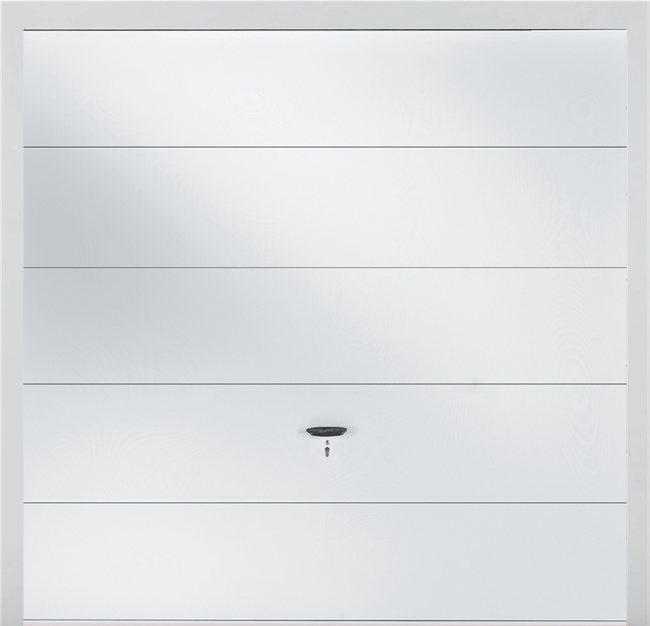

Door Design: Helios
Colour: Anthracite Grey (RAL 7016)
Steel up-and-over garage door

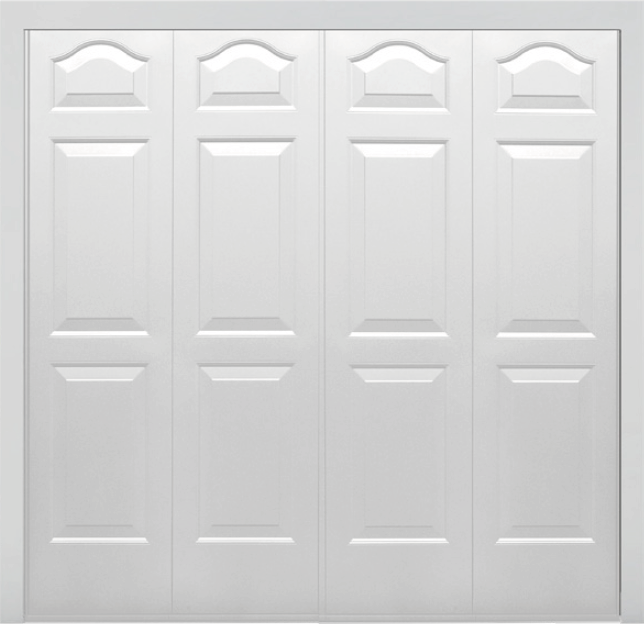

Door Design: Minster
Colour: Traffic White (RAL9016)
Steel up-and-over garage door

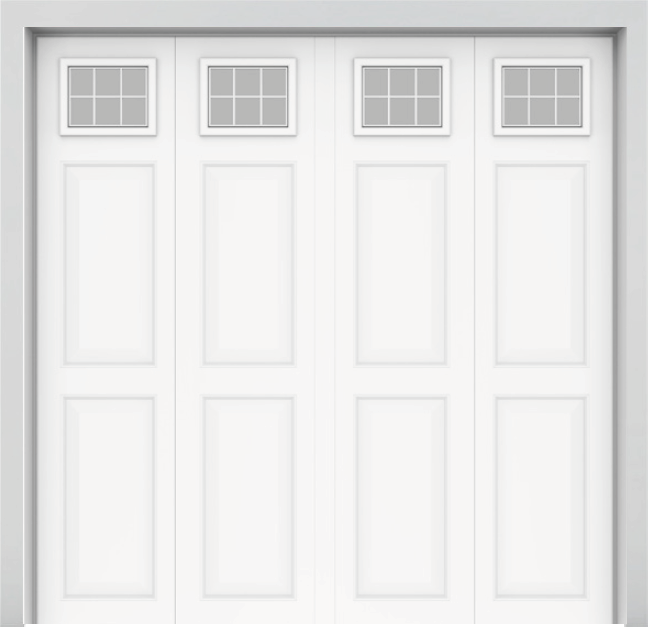

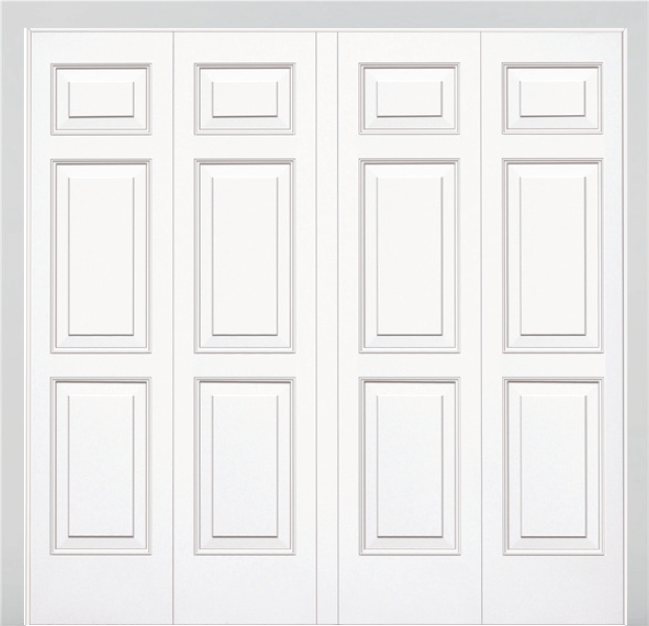

Door Design: Regency
Colour: Traffic White (RAL 9016)
Steel up-and-over garage door

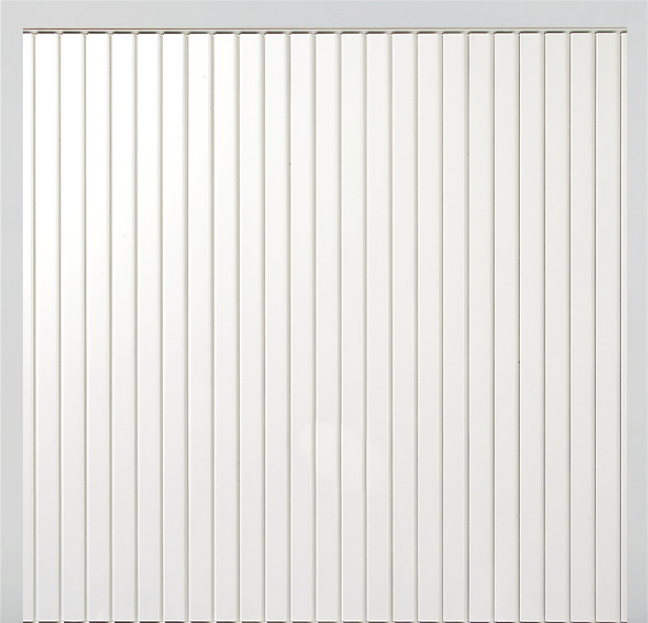

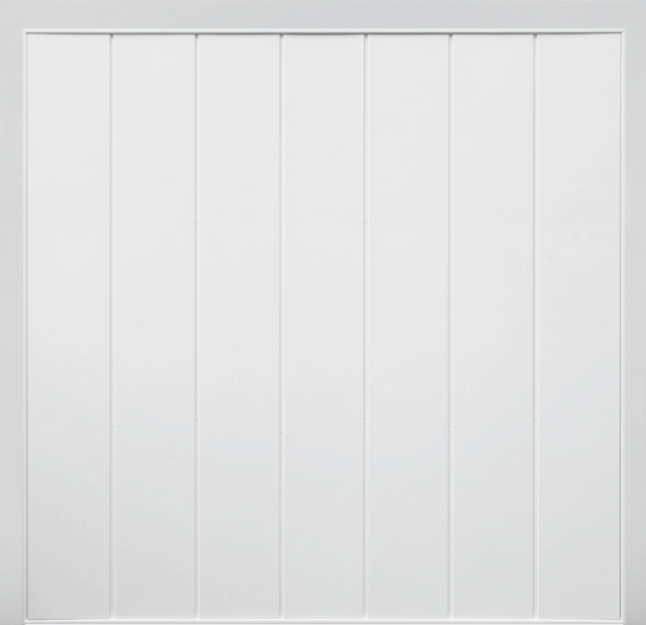

Door Design: Vertical
Colour: Anthracite Grey (RAL 7016)
Steel up-and-over garage door

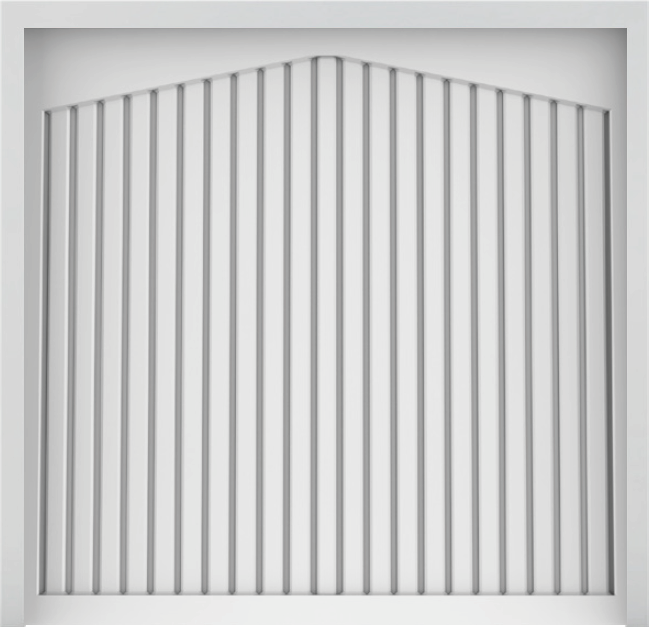

Door Design: Wentworth
Colour: Rosewood
Technology and details
Novoferm - Single Up & Over Canopy Gear Type (Height)
Novoferm - Single Up & Over Canopy Gear Type (Height)
Novoferm - Up & Over Canopy Gear Type (Height) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Door Height | =H1+50 | =H1-20 | =H1-90 | ||||||
Imp | mm | H1 | H2 | H3 | H4 | H5 | H6 | R | C |
6'4" | 1931 | 1931 | 1981 | 1911 | 1841 | 1300 | 49 | 675 | 625 |
6'6" | 1981 | 1981 | 2031 | 1961 | 1891 | 1300 | 49 | 725 | 657 |
6'10" | 2085 | 2085 | 2135 | 2065 | 1995 | 1300 | 49 | 825 | 775 |
7'0" | 2134 | 2134 | 2184 | 2114 | 2044 | 1300 | 49 | 880 | 825 |
For Maximum and Minimum Door Sizes, refer to our current price list.
H1 = Internal Frame Height
H2 = Minimum Height from floor to underside of ceiling
H3 = Minimum Brickwork Opening Height
H4 = Clear Drive Through Height (Internal Handle is the lowest point)
H5 = How far the door extends into the garage
H6 = Kick Up (The height above the Internal Frame Height the door panel rises during the opening cycle)
R = The Arc of travel of the bottom edge of the door
C = The canopy (How far the door protrudes from the frame front)
Note: The Kick up is greater than the frame Lintel Height and peeks above the Lintel at 1100mm into the garage from the frame front Frame Header Dimensions 45mm High x 40mm Deep
Novoferm - Double Up and over Over Retractable Gear Type (Width)
Novoferm - Double Up & Over Retractable Gear Type (Width)
| Standard sizes up-and-over door M® for double garages (depending on door motif) | |||||||||
Order size | Frame Outer dimension | Clearance Clearance dimensions | Installation behind the opening | Installation in the opening | |||||
width | Height | width | Height | width | Height | width | Height | width | Height |
4000 | 2000 | 4100 | 2070 | 3780 | 1870 | 4000 (3955-4070) | 2000 (1970-2035) | 4120 | 2060 |
2125 | 4100 | 2195 | 3780 | 1995 | 4000 (3955-4070) | 2125 (2095-2160) | 4120 | 2185 | |
4500 | 2000 | 4600 | 2070 | 4280 | 1870 | 4500 (4455-4570) | 2000 (1970-2035) | 4620 | 2060 |
2125 | 4600 | 2195 | 4280 | 1995 | 4500 (4455-4570) | 2125 (2095-2160) | 4620 | 2185 | |
2250 | 4600 | 2320 | 4280 | 2120 | 4500 (4455-4570) | 2250 (2220-2285) | 4620 | 2310 | |
5000 | 2000 | 5100 | 2070 | 4780 | 1870 | 5000 (4955-5070) | 2000 (1970-2035) | 5120 | 2060 |
2125 | 5100 | 2195 | 4780 | 1995 | 5000 (4955-5070) | 2125 (2095-2160) | 5120 | 2185 | |
