Industrial Gates
Industrial Gates
When it comes to securing industrial and commercial premises, choosing the right gate system is critical. Our range of industrial gates is designed to deliver robust security, seamless operation, and long-term reliability, tailored to meet the demands of busy environments.

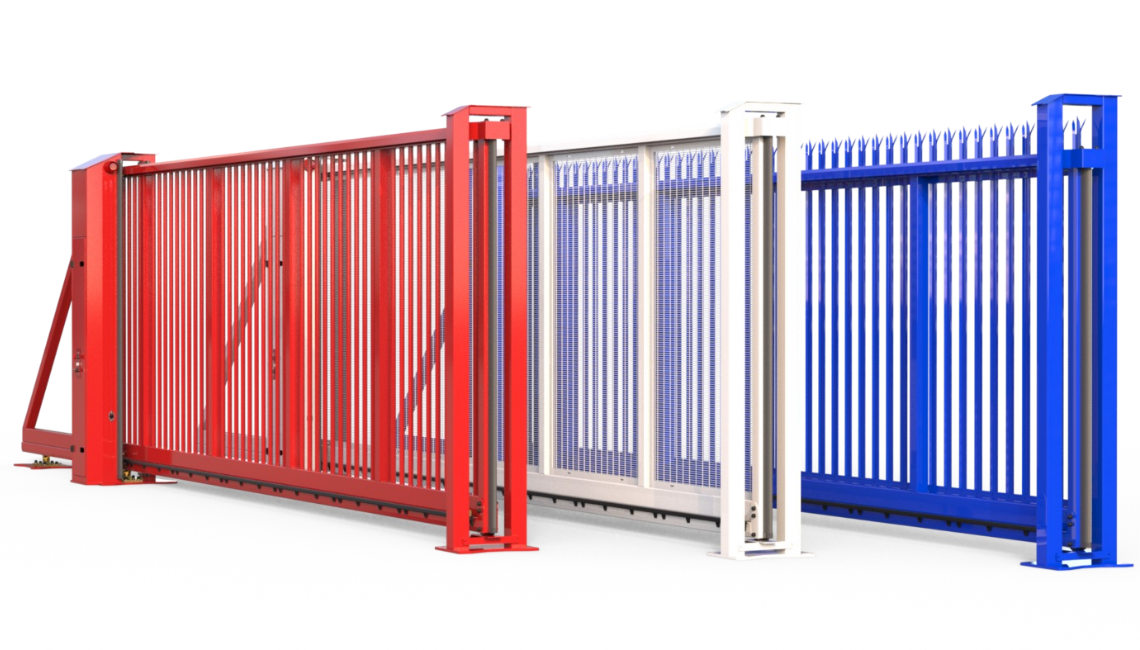

We offer a comprehensive selection of sliding gates, including both cantilever and aluminium cantilever sliding gate options. Cantilever sliding gates are ideal for sites requiring uninterrupted access, operating without the need for a ground track, perfect for uneven surfaces or high-traffic entrances. Our aluminium cantilever sliding gates provide the same smooth, efficient performance with the added benefits of lightweight construction, corrosion resistance and a modern finish.
For more traditional access points, our swing gates offer a versatile and cost-effective solution, suitable for a wide range of industrial applications and can be automated for enhanced convenience and security.
Where space is limited but performance cannot be compromised, our bifolding gates provide the perfect answer. Designed for rapid opening and closing, bifolding gates maximise usable space while maintaining high levels of security, ideal for sites with frequent vehicle movement or restricted entry areas.
Sliding Gates

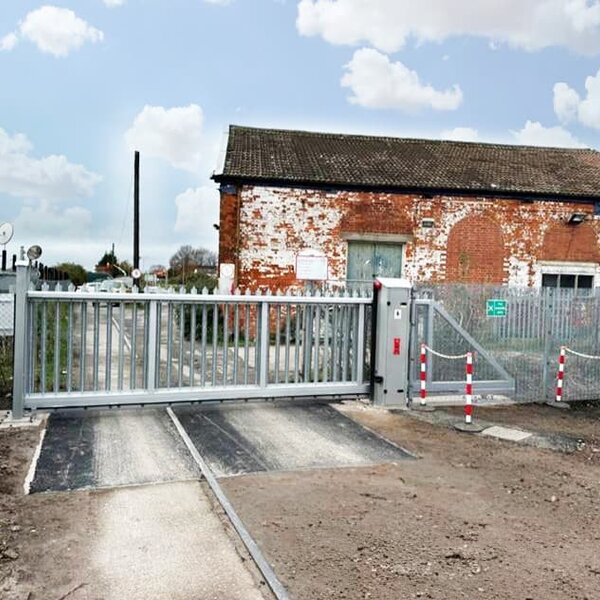

Cantilever Sliding Gate 5600
Cantilever Sliding Gate 5600
Introduction
Our 5600 range of cantilever sliding gates are designed to provide robust and reliable security at bey vehicle entrances, They are manufactured from high strength steel, which provides a more robust product that aluminium and ensures a much longer service life. These Cantilever Sliding gates are custom manufactured to the client’s individual requirements and are available in any size up to 6m clear width by 3.5m height.
Both manually operated and automatic versions are available. They have an attractive appearance, which may be enhanced with a choice of infill options ranging from vertical bar, palisade, weldmesh or timber. Automatic gates are powered by a three phase, inverter driven motor / gearbox, and safety systems which fully comply with all current and evolving safety legislation and best practice.
Product Specifications
MAXIMUM SPAN: 6.0M
MAXIMUM HEIGHT: 3.5m ( Depending on Span )
OPENING/CLOSING TIME: 5 seconds per metre (adjustable)
DRIVE UNIT: 3 Phase motor and wormed gearbox with rack and pinion final drive
SAFETY: 6 x Cat 3 edges, dual height photocells, Emergency Stop Button, Hold to run Keyswitch and a flashing beacon/sounder
CYCLES: 100% Duty Cycle
POWER SUPPLY: 230VAC 50Hz 16 Amp

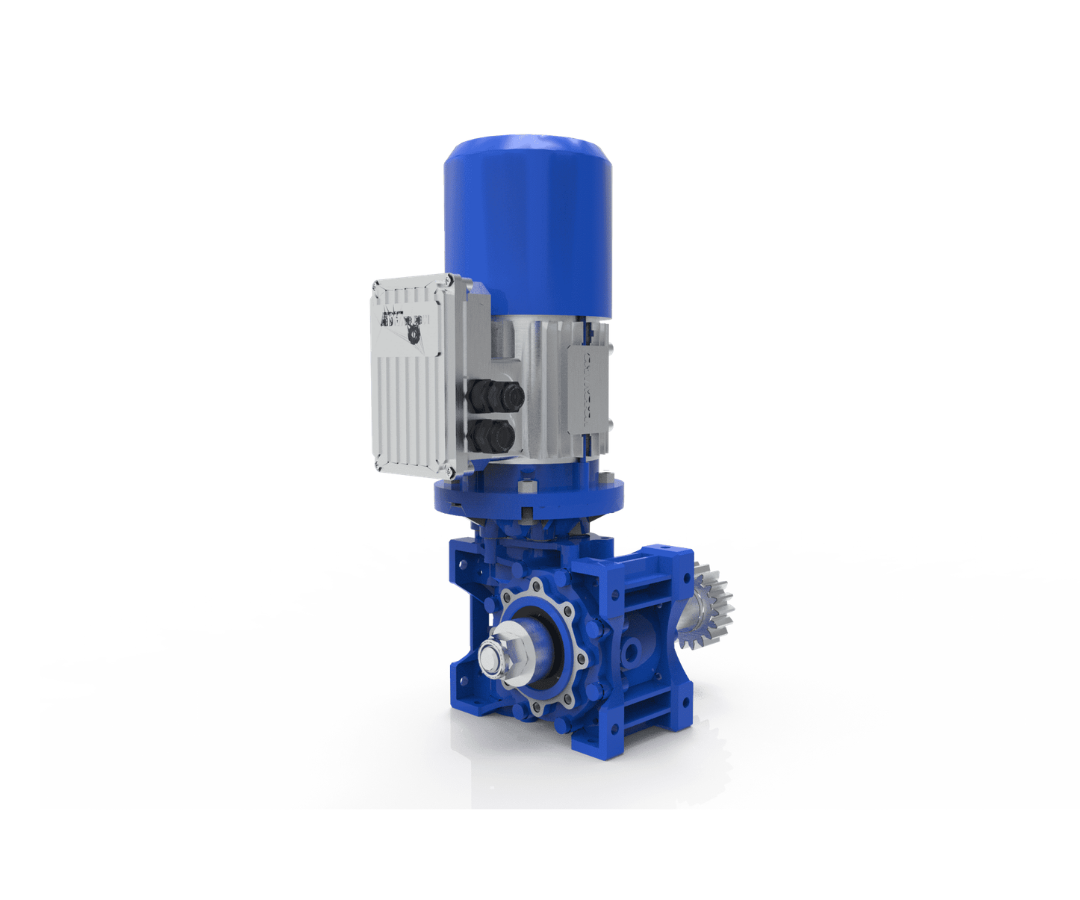

Gate Drive
Gate Drive
Reliable and almost silent in operation. The 5600 gates are powered via an inverter driven motor and gearbox, providing 3 phase controllability with single phase economy.

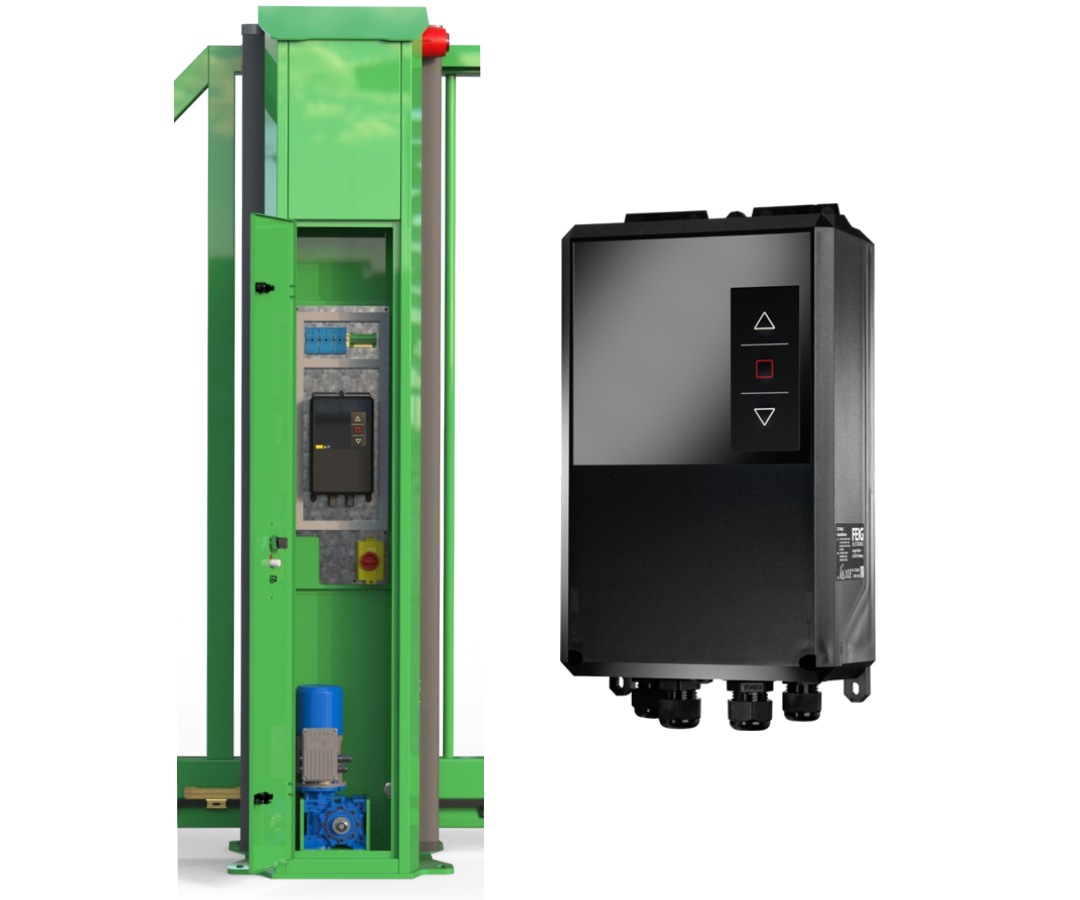

PLC
PLC
Plug and Play! All 5600 gates feature a Feig control system with inverter, all pre wired and factory tested ready for connection to your mains power supply.

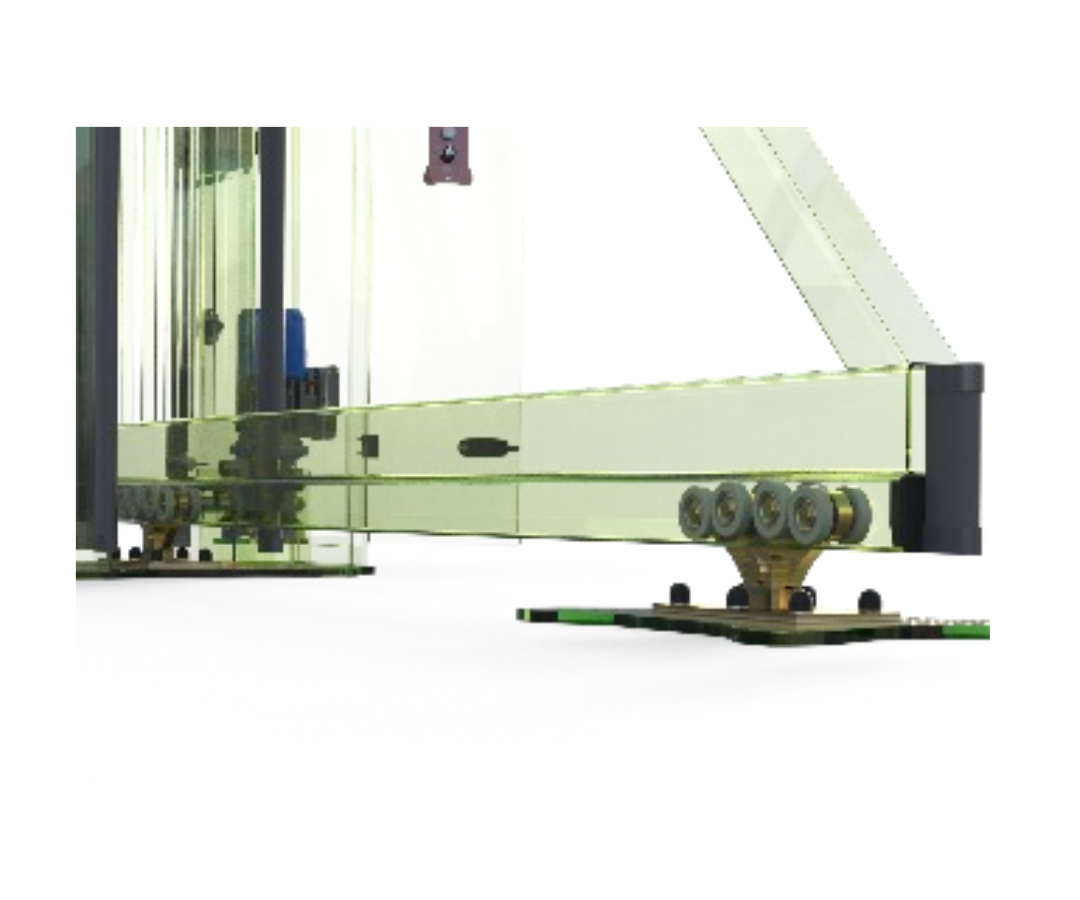

Heavy Duty Silent Rollers
Heavy Duty Silent Rollers
Our 8 wheeled Poliamide rollers provide silent operation whilst being able to carry gate weights Of up to 600kg.
Safety Systems
Safety Systems

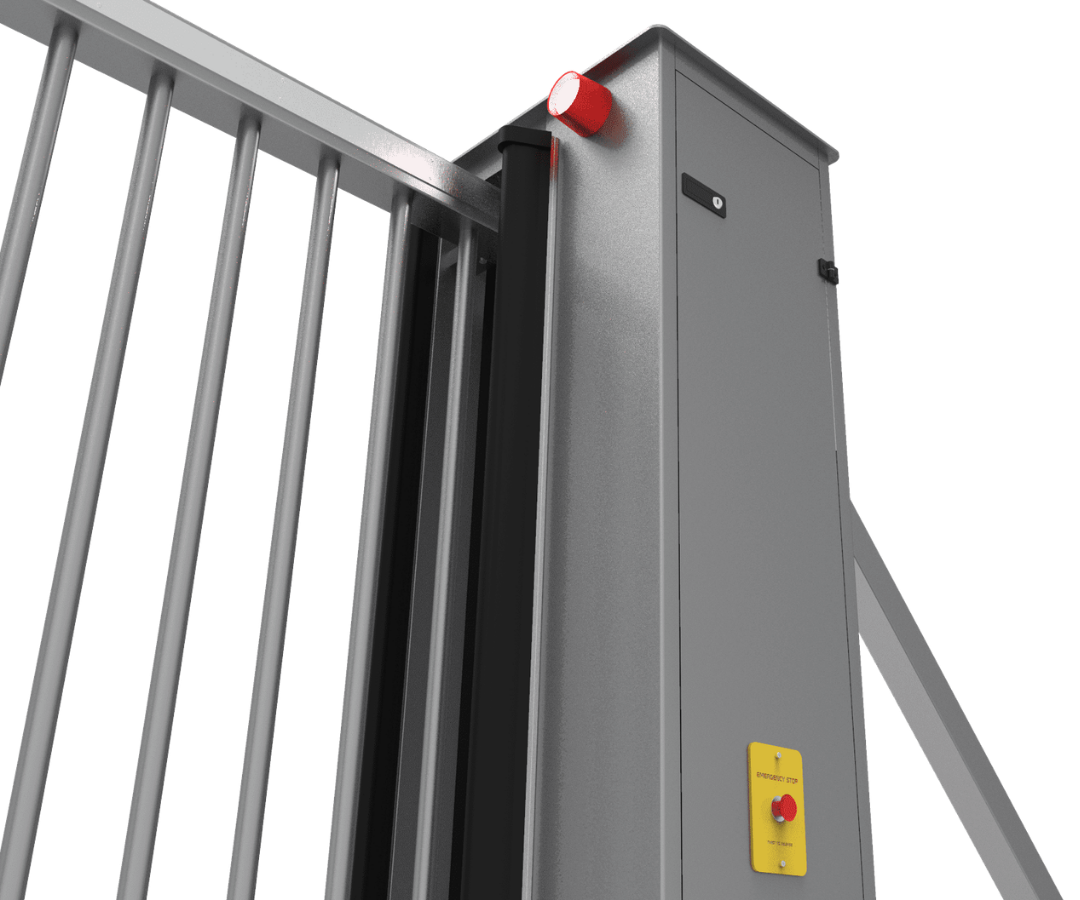

Safety first. All our powered gates are equipped with class leading safety systems as standard. For the 5600, this includes 6 x Cat. 3 safety edges, twin photocells at different heights, a cabinet mounted Emergency Stop button and a flashing beacon/ sounder. Working with our unique control software this provides the quickest response to a safety event in the industry.
Gate Designs
A wide range of gate infills are available, from our standard vertical tube, to weldmesh, palisade and timber cladding. We can even provide sheet steel with your logo cut out by water jet as shown. Also, if you specify vertical bar or sheet infill in a standard RAL reference, we don’t charge for nonstandard colours!

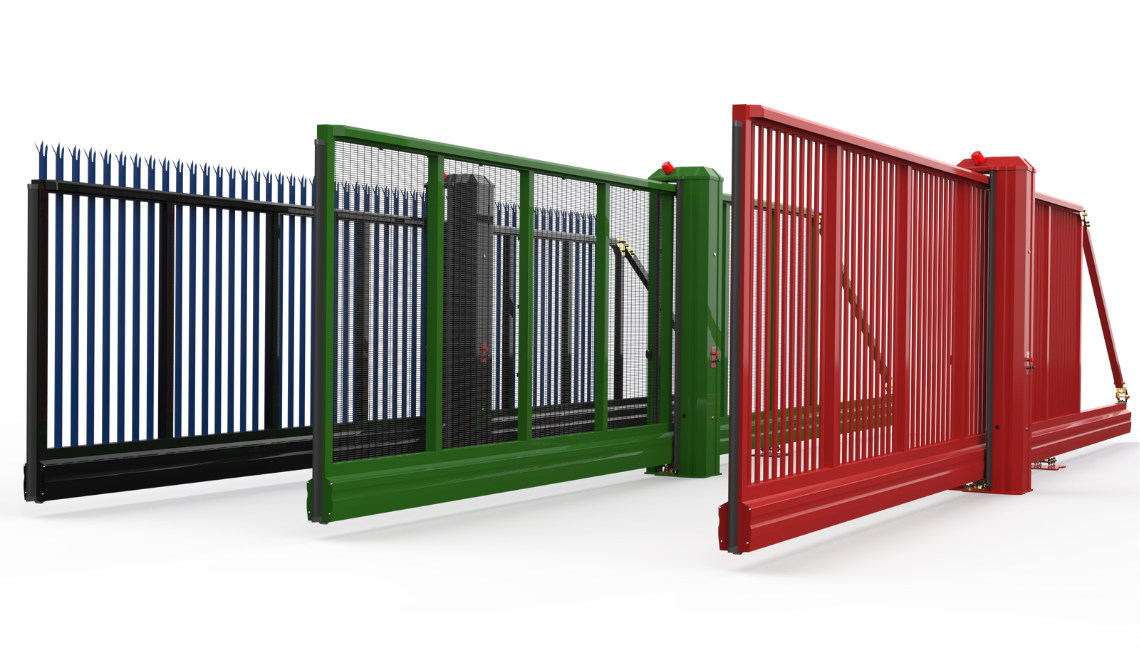

Aluminium Cantilever Sliding Gate 5700
Aluminium Cantilever Sliding Gate 5700
Introduction
The 5700 Aluminium Sliding Gate combines modern aesthetics with high-performance engineering, offering a lightweight yet robust solution for a wide range of security applications. Manufactured from high-grade aluminium, the 5700 delivers excellent corrosion resistance and a smooth, high-quality finish, making it ideal for long-term external use.
It’s reduced weight compared to steel allows for smoother operation, lower drive loads, and improved automation efficiency, while maintaining the strength and rigidity required for secure perimeter protection. Available in a wide range of infill options and finishes, the D5700 provides a versatile, low-maintenance sliding gate solution without compromising on durability, performance, or visual impact.
Product Specifications
MAXIMUM SPAN: 12.0M ( 8.5m at 3.0m High )
MAXIMUM HEIGHT: 4.0m ( Depending on Span/Infill )
OPENING/CLOSING TIME: 4 seconds per metre (adjustable)
DRIVE UNIT SAFETY: Button, Hold to run Keyswitch and a flashing Beacon/sounder
CYCLES: 100% Duty Cycle
POWER SUPPLY: 230VAC 50Hz 6 Amp
Gate Drive
Gate Drive

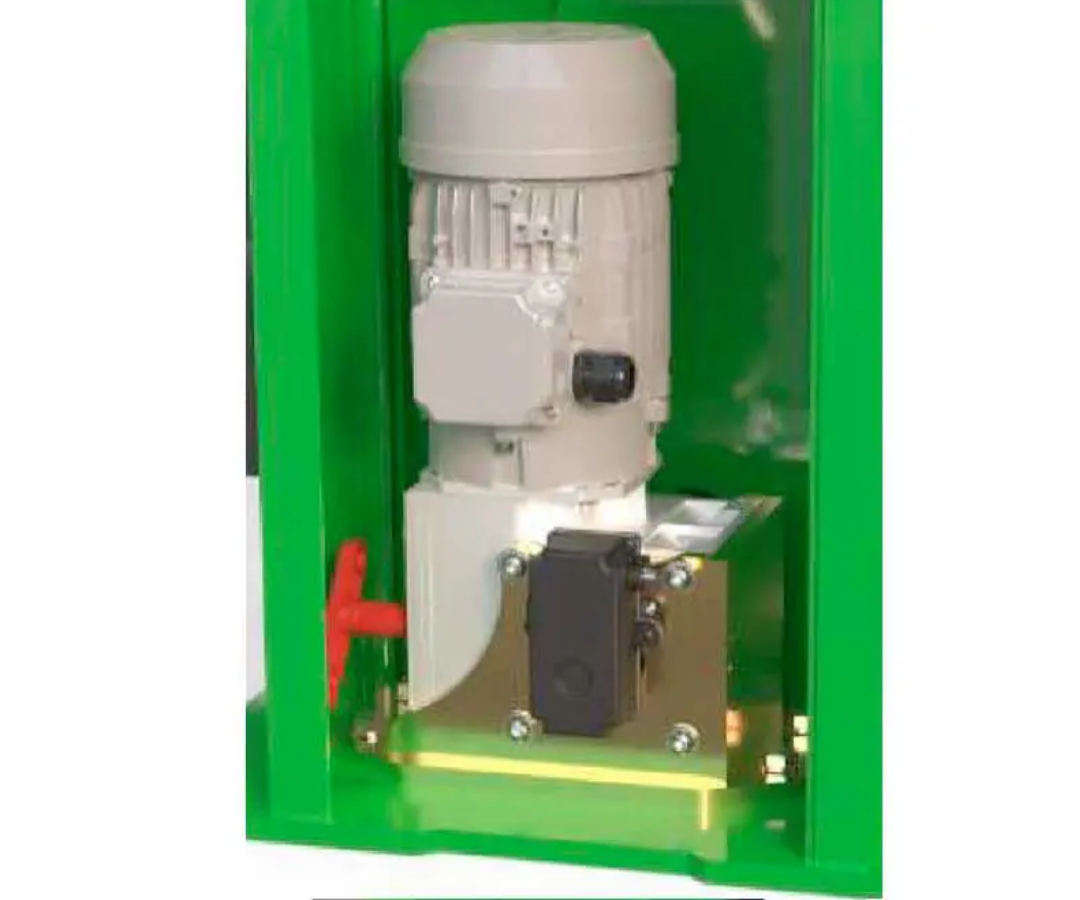

Reliable and almost silent in operation. 5700 Gates are powered via an inverter driven motor and gearbox. Providing 3 phase controllability with single phase economy. The gearbox has an encoder on for ultimate precision.

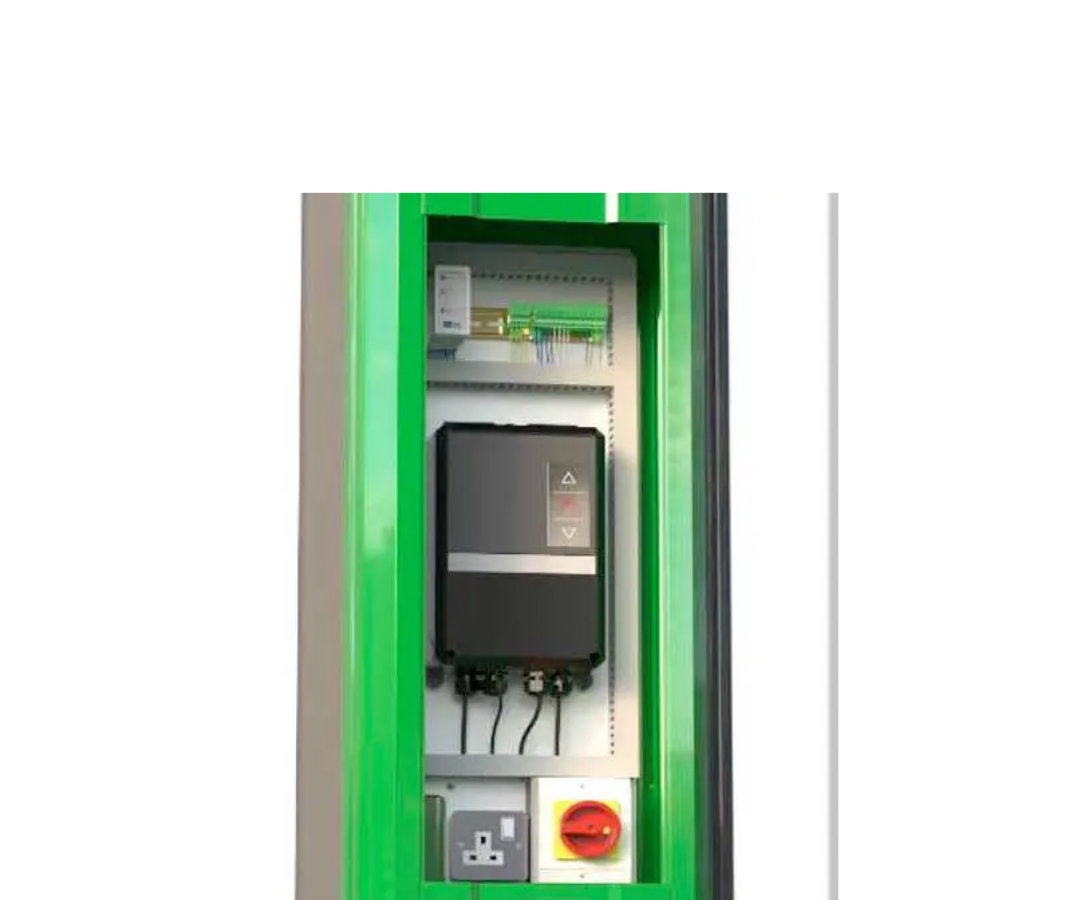

PLC
PLC
Plug and Play! All 5700 gates feature a Feig control system with inverter. All pre wired and factory tested ready for connection to your mains power supply.

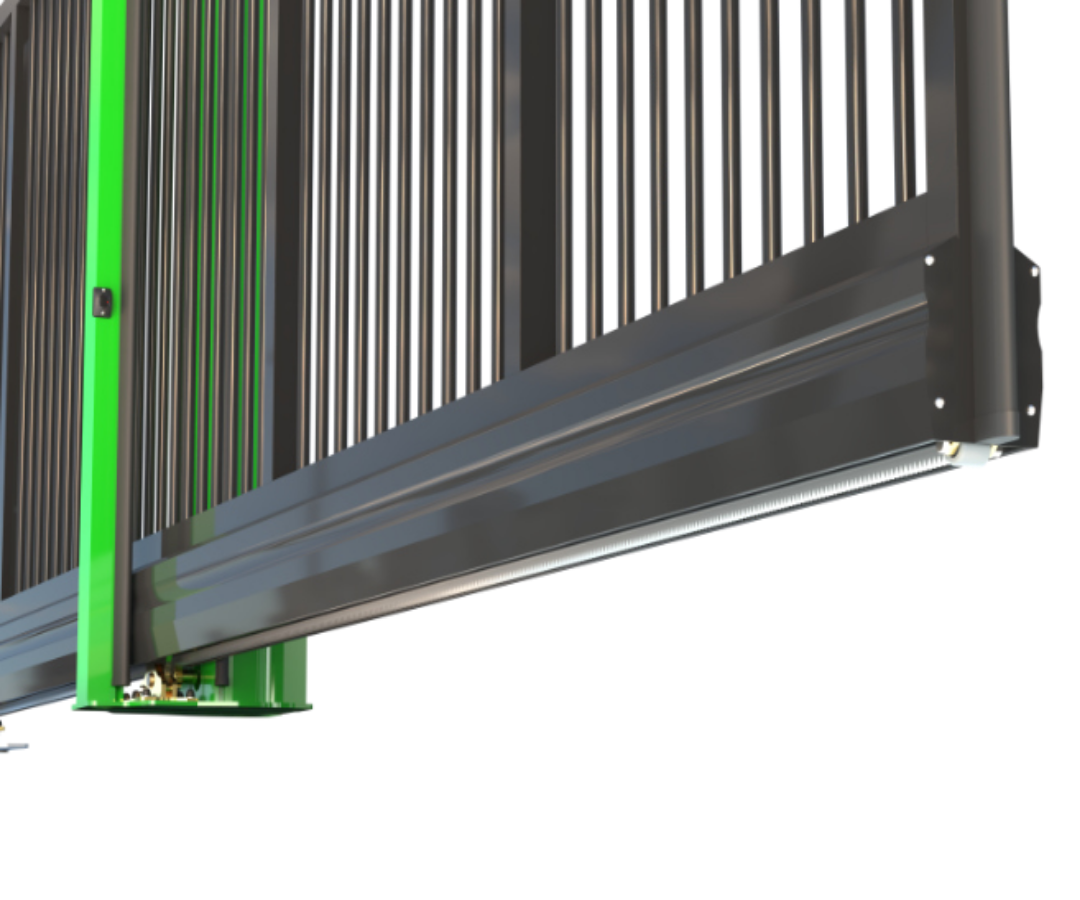

Heavy Duty Steel Drive Rack
Heavy Duty Steel Drive Rack
The 5700 incorporates a 22mm wide steel drive rack that bolts to the aluminium channel for ultra reliable operation.
Safety Systems
Safety Systems

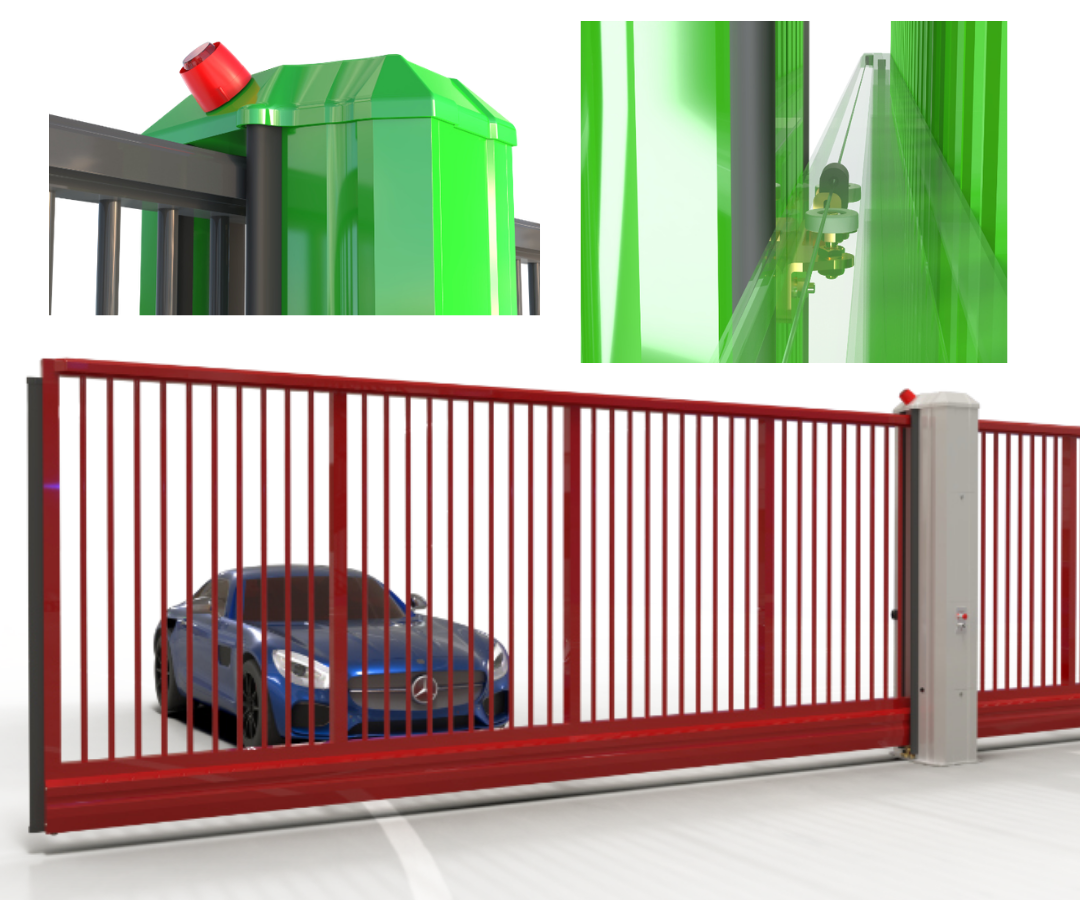

Safety First, All our powered gates Are equipped with class leading safety systems as standard. For the 5700, this includes 6 x cat 3 safety edges, twin photocells at different heights, A cabinet mounted emergency stop button, hold to run keyswitch and a flashing beacon/sounder. Working off the Feig controller the software provides the quickest response to a safety event in the industry.

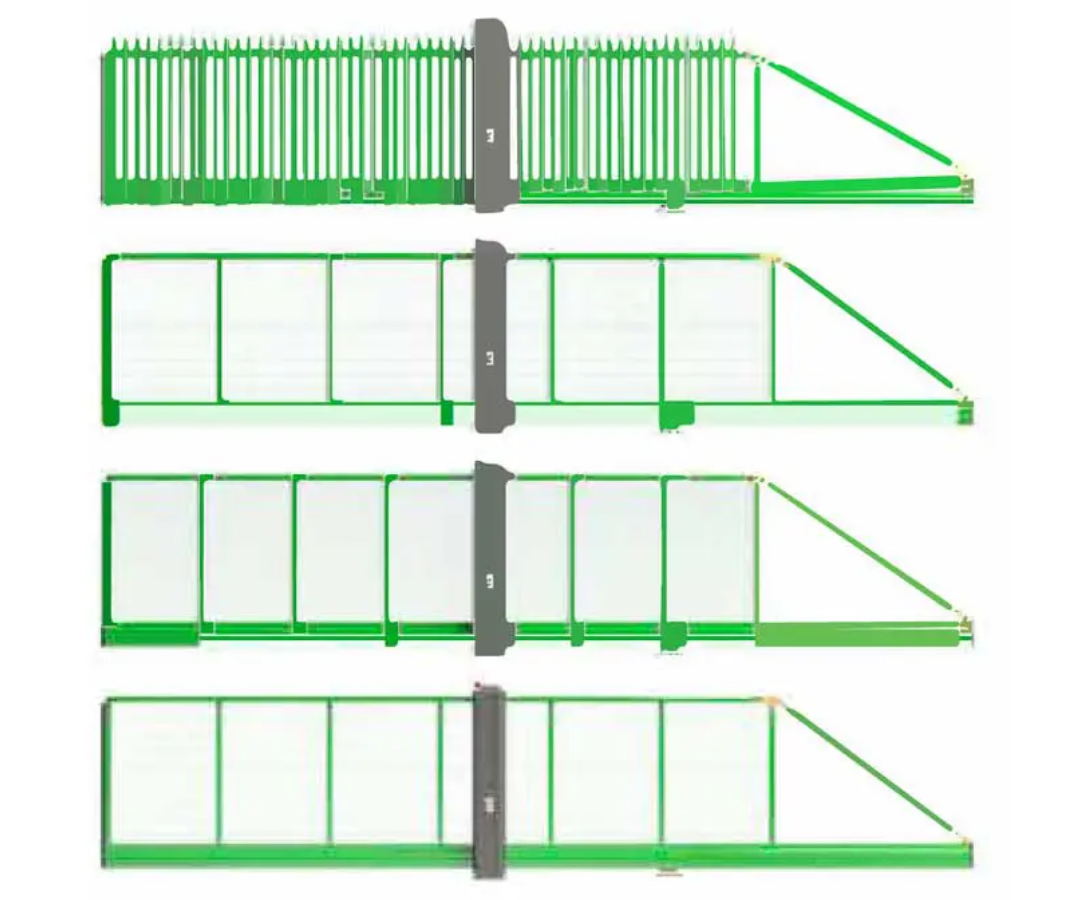

Gate Designs
Designed for you. A Wide range of gate infills are available. From out standard vertical tube, to weldmesh, palisade composite boards and timber cladding. We can even provide sheet steel With your logo laser cut In.

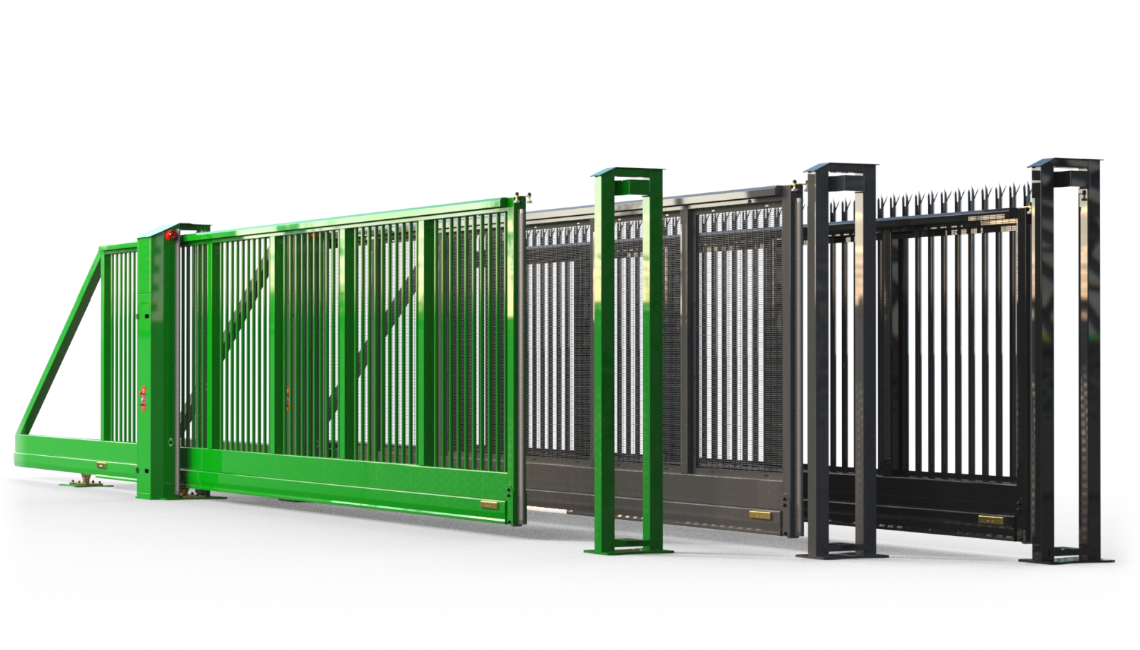

Heavy Duty Cantilever Sliding Gate 5800
Heavy Duty Cantilever Sliding Gate 5800
Introduction
5800 Heavy Duty Cantilever Sliding gates are a heavy duty version of our popular 5600 cantilevered automatic gates, and provide the optimum solutions for vehicle entrance control at high security locations or facilities which experience a high level of vehicle movements.
Heavy Duty Cantilever Sliding Gate Gates are manufactured to suit customer’s individual requirements and sizes up to 12m width and 3.5m height are available as fully automated or manually operated types. The infill design of gates can be modified to reflect the needs of individual projects.
Fully compliant safety systems are fitted as standard, including Cat 3 safety edges and twin photocells to maintain compliance with evolving legislation.
Product Specifications
MAXIMUM SPAN: 13.0M ( Depending on Height/Infill )
MAXIMUM HEIGHT: 5.0m ( Depending on Span/Infill )
OPENING/CLOSING TIME: 5 seconds per metre (adjustable)
DRIVE UNIT: 3 Phase motor and wormed gearbox with rack and pinion final drive
SAFETY: 6 x Cat 3 edges, dual height photocells, Emergency Stop Button, Hold to run Keyswitch and a flashing beacon/sounder
CYCLES: 100% Duty Cycle
POWER SUPPLY: 230VAC 50Hz 6 Amp
Gate Drive
Gate Drive

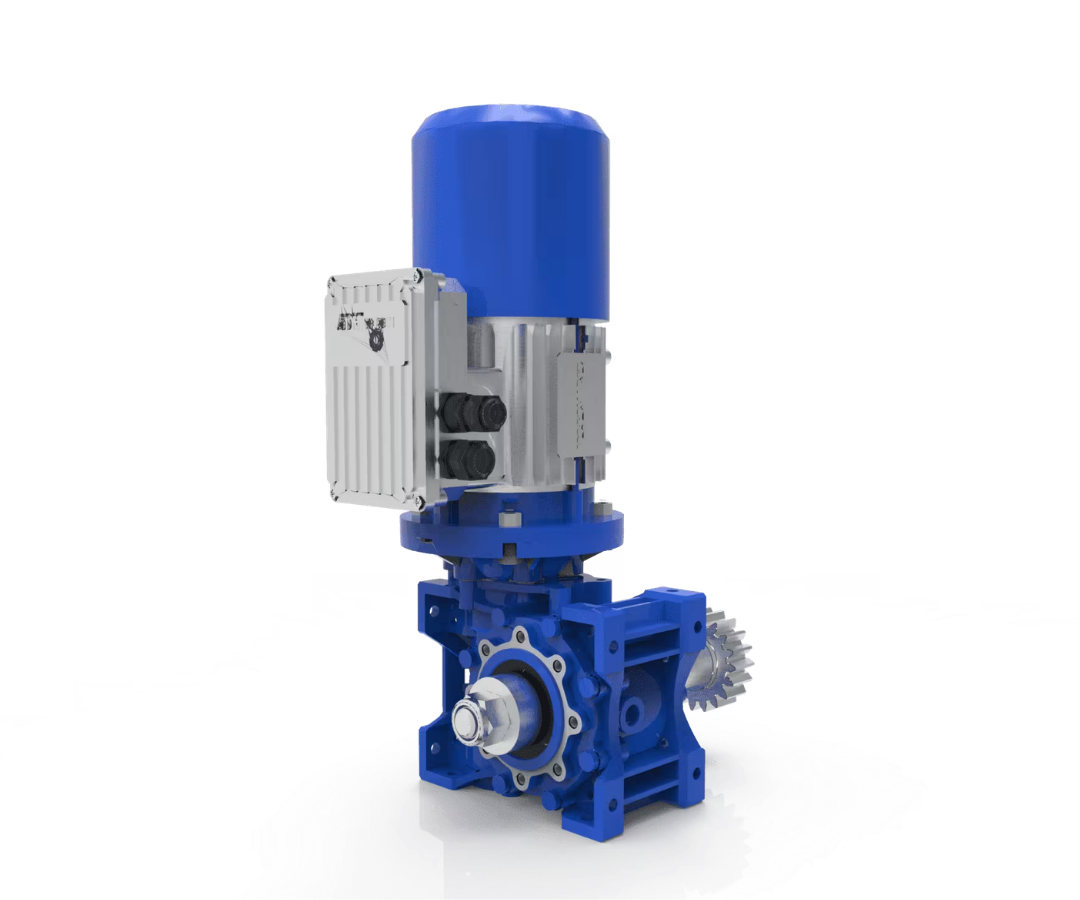

Reliable and almost silent in operation. The 5800 gates are powered via an inverter driven motor and gearbox, providing 3 phase controllability with single phase economy.

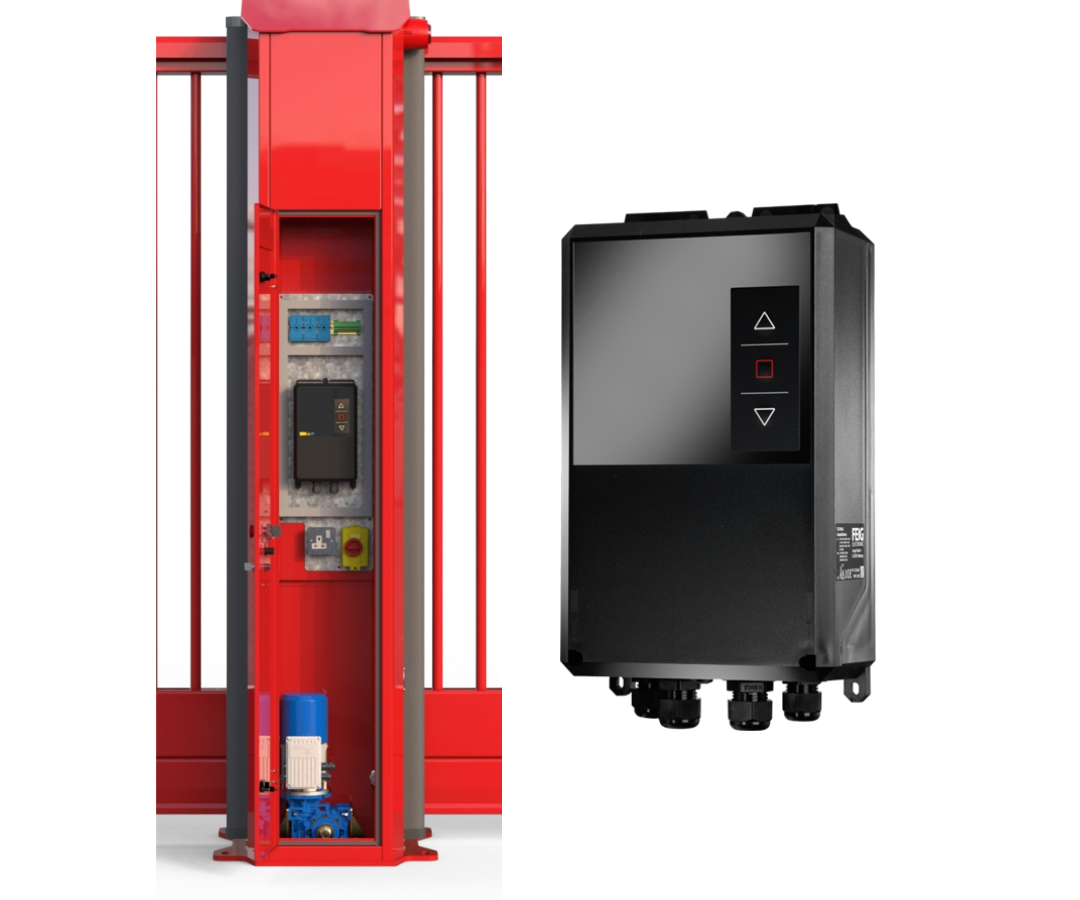

PLC
PLC
Plug and Play! All 5800 gates feature a Feig control system with inverter, all pre wired and factory tested ready for connection to your mains power supply.

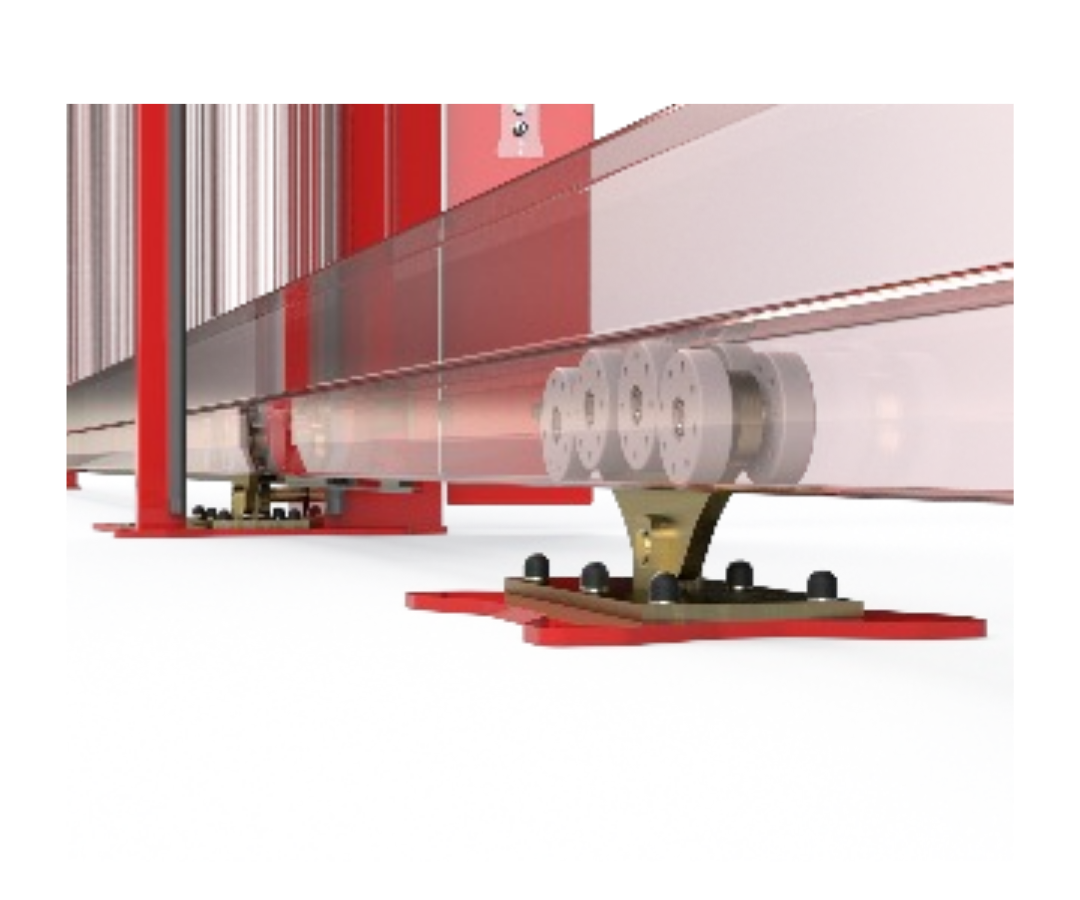

Heavy Duty Silent Rollers
Heavy Duty Silent Rollers
Our 8 wheeled Poliamide rollers provide silent operation whilst being able to carry gate weights Of up to 1200kg.
Safety Systems
Safety Systems
Safety first. All our powered gates are equipped with class leading safety systems as standard. For the 5800, this includes 6 x Cat. 3 safety edges, twin photocells at different heights, a cabinet mounted Emergency Stop button and a flashing beacon/ sounder. Working with our unique control software this provides the quickest response to a safety event in the industry. The 5800 also has flush fitted limit detectors and cantedin safety edges at the drive post to minimise trapping hazards. You won’t find a safer gate.
Gate Designs
Designed for you. A wide range of gate infills are available, from our standard vertical tube, to weldmesh, palisade and timber cladding. We can even provide sheet steel with your logo cut out by water jet as shown. Also, if you specify vertical bar or sheet infill in a standard RAL reference, we don’t charge for nonstandard colours!

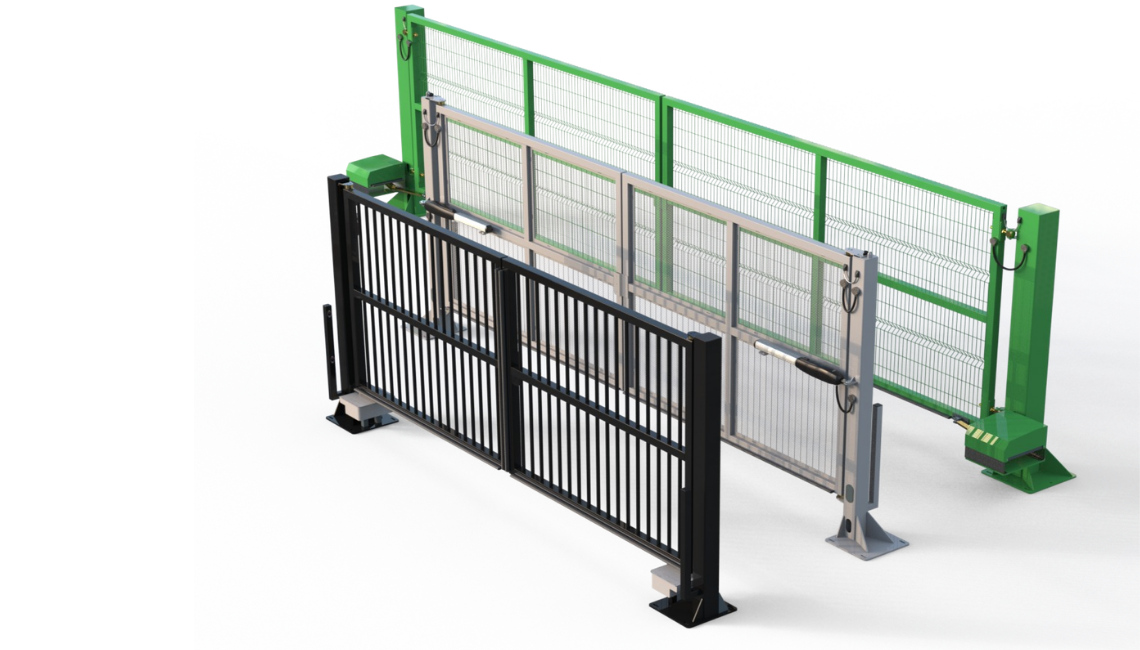

Swing Gates
Swing Gate 5600
Swing Gate 5600
Introduction
Our swing gates can be manufactured with a variety of infill options, from standard vertical bar, solid steel or timber, and decorative steel designs. We are able to design a gate to your exact requirements or match an existing fence or gate type.
All our automatic gates are equipped with Category 3 safety edges and dual Photocells as standard to ensure compliance with all current safety legislation.
Product Specifications
MAXIMUM SPAN: 16.0M (8m per leaf)
MAXIMUM HEIGHT: 5.0m (Depending on span)
CONSTRUCTION: Gate Frame - 80 x 80 Box section, 32mm Std Tube Infill
POSTS: From 120mm to 250mm box section, depending on gate leaf dimensions
OPENING/CLOSING TIME: 6 - 20 seconds (Adjustable)
DRIVE CHOICES: D380HD Above ground drives for leaves up to 8.0m Roger Smarty rams for leaves up to 4.0m Roger BR21 Underground drives up to 4.0m
SAFETY: Cat 3 Edges as standard with Dual Photocells and a flashing beacon/sounder
CYCLES: 100 % Duty Cycle on the D380 Drives High Intense use on the Roger Rams
POWER SUPPLY: 230vac 50hz 6Amp

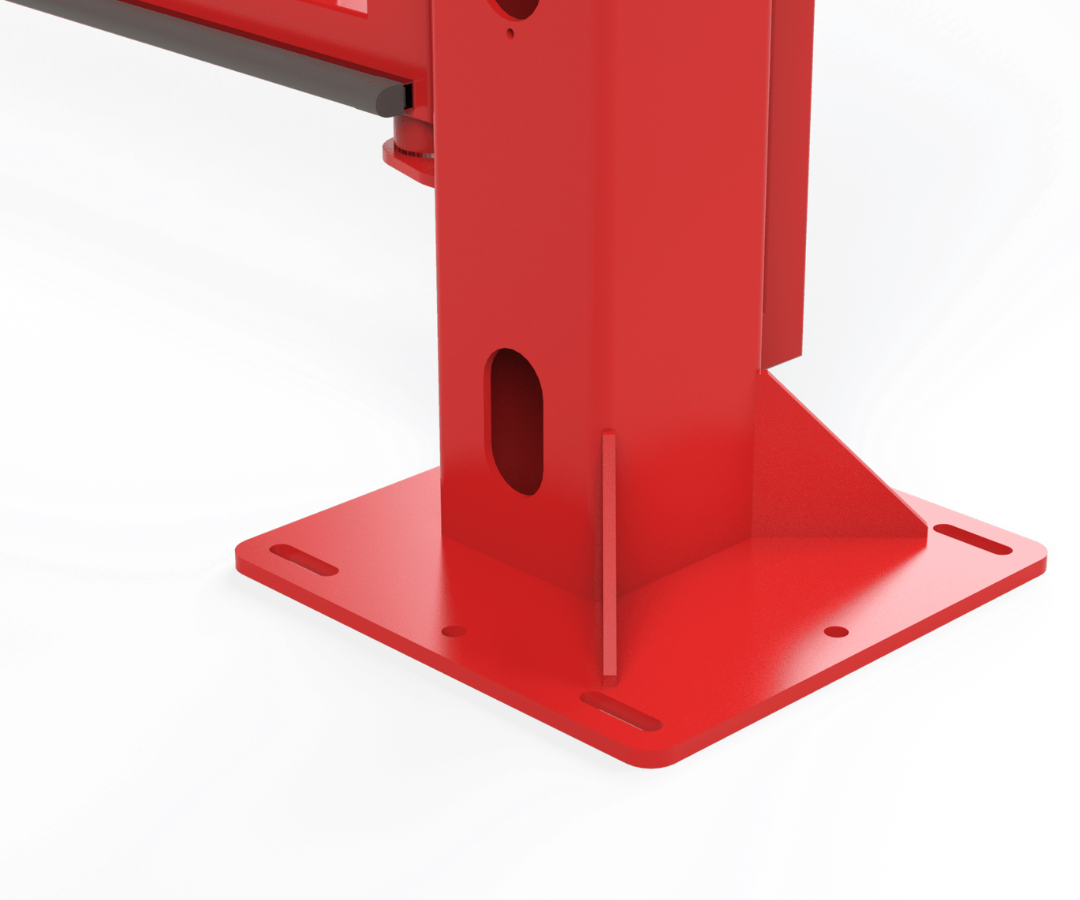

Fixing Options
Fixing Options
Gates can be supplied with dig-in or bolt down posts.

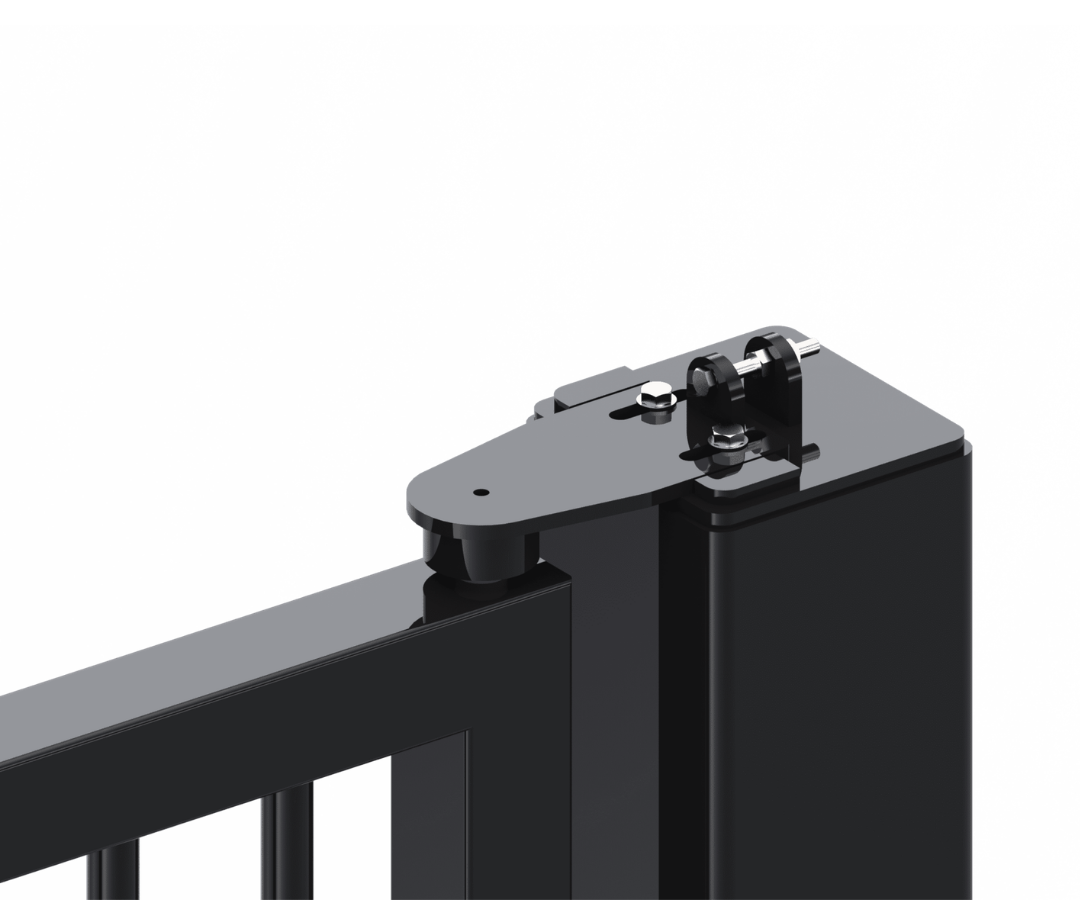

Heavy Duty Bearing Hinges
Heavy Duty Bearing Hinges
High load bearing equipped hinges are fitted which rotate on the pivot point to minimise closing up of the gate leaf to the post, and so enhancing safety.

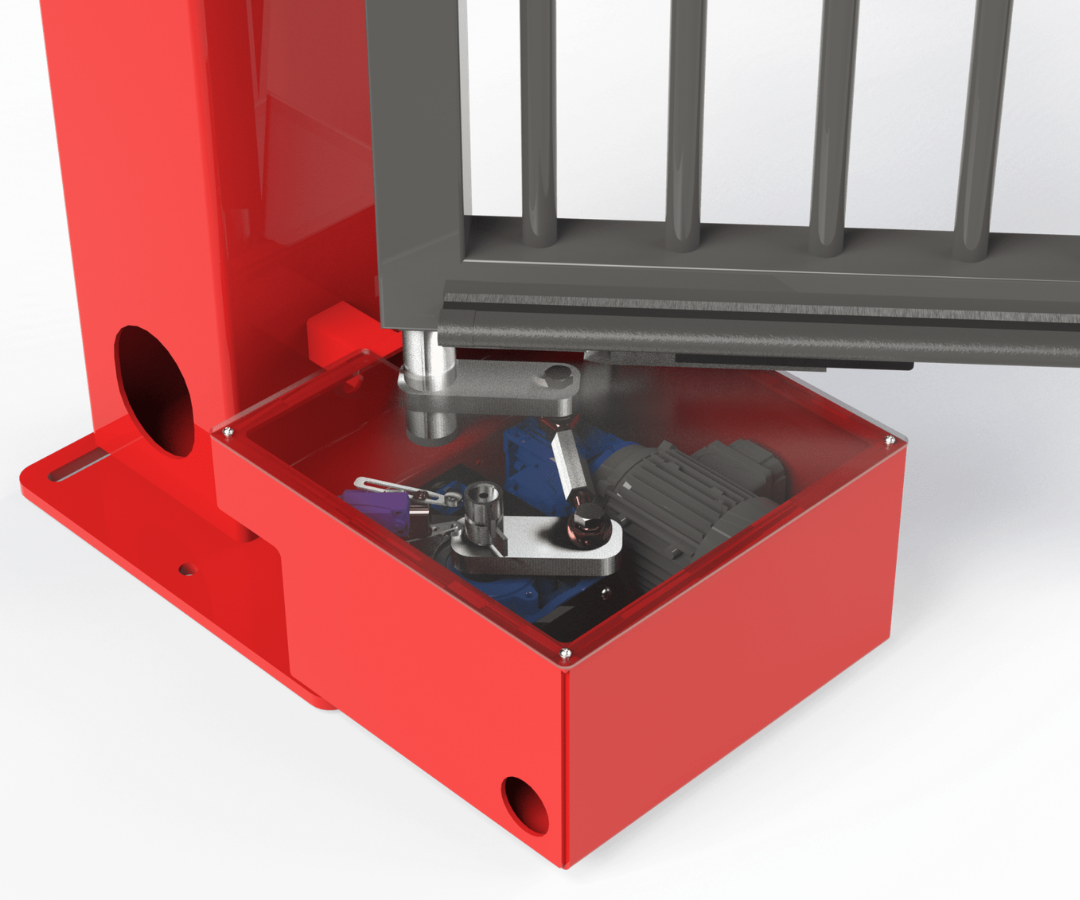

Automation Options
Automation Options
A range of drive options is available including Rams, underground drives and heavy duty above ground D380HD drive units.

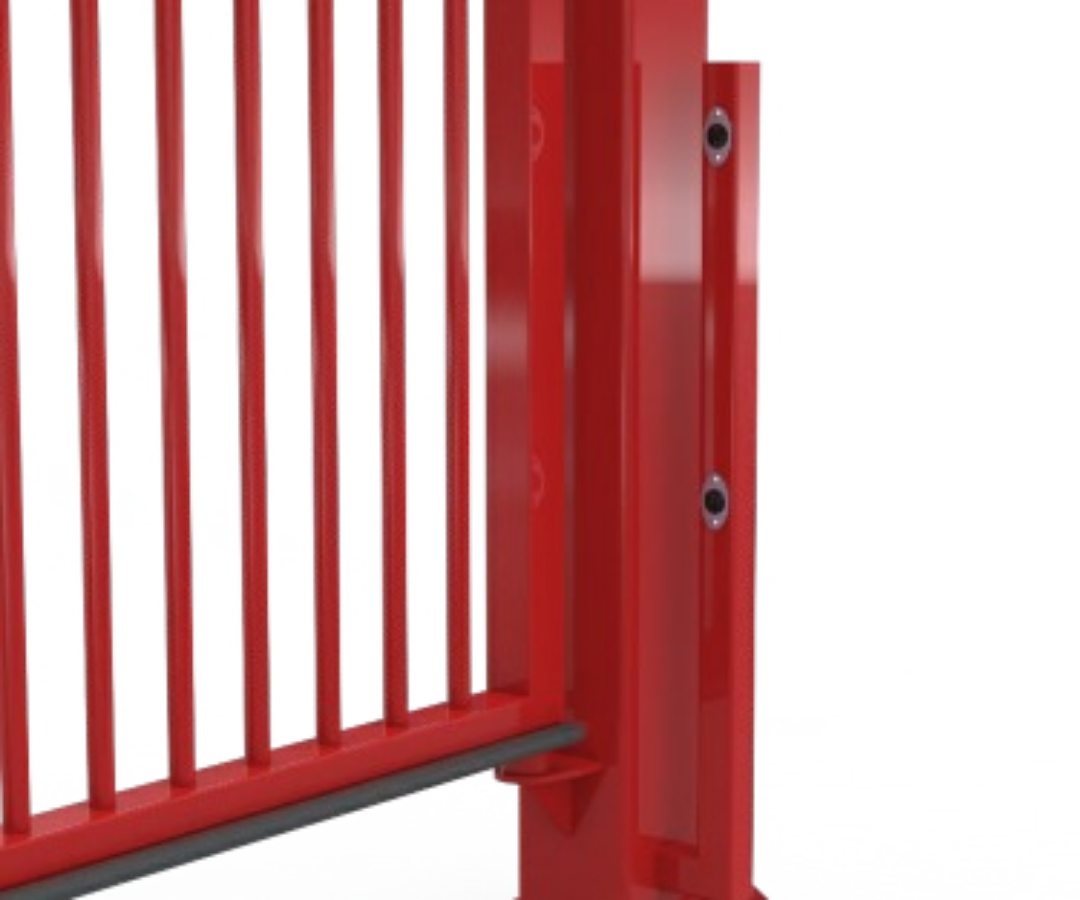

Twin Photocells
Twin Photocells
Safety first. All our powered gates are equipped with class leading safety systems as standard. For the 6000, this includes 6 x Cat. 3 safety edges, twin photocells at different heights, a cabinet mounted Emergency Stop button and a flashing beacon/ sounder. Working with our unique control software this provides the quickest response to a safety event in the industry.
Infill Options

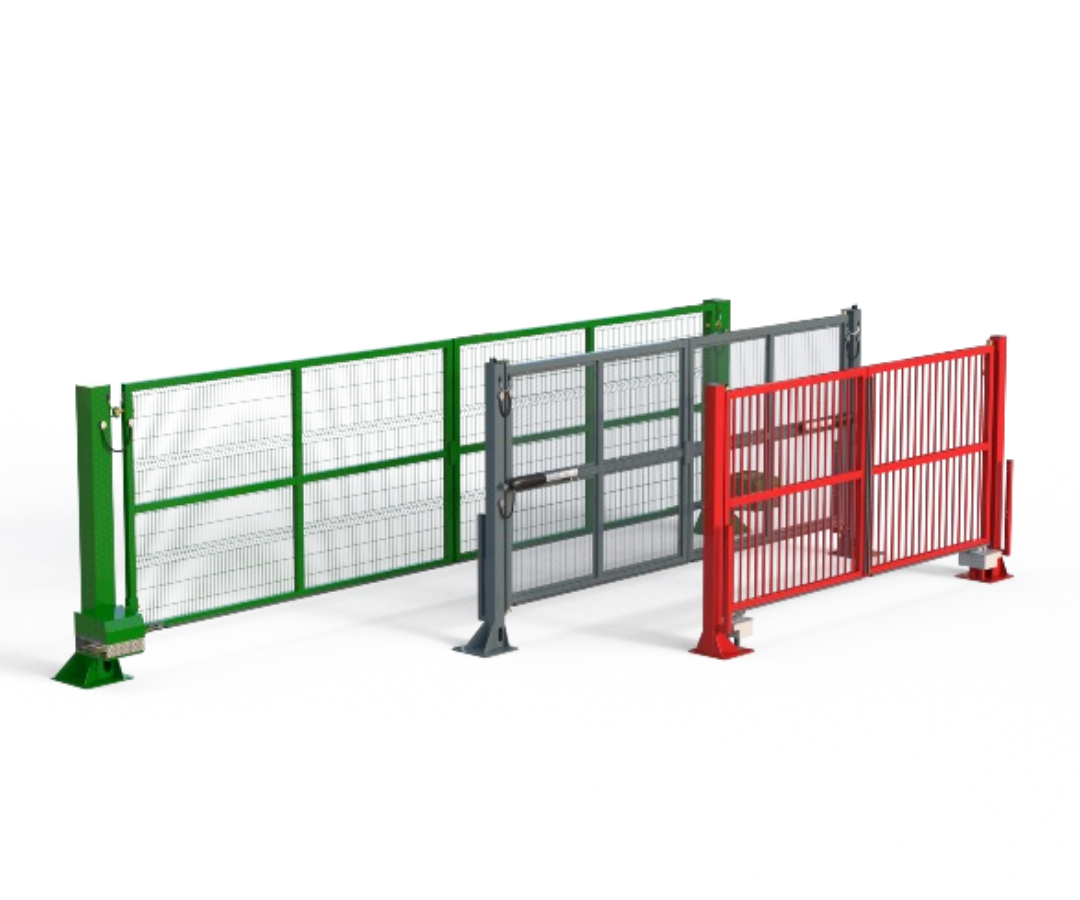

Many Infills and designs available such as Tube, V Mesh, Palisade, 358 Mesh, Twin wire mesh, Composite, Etc. Company Laser cut Logo Plates are also available with Back lighting.

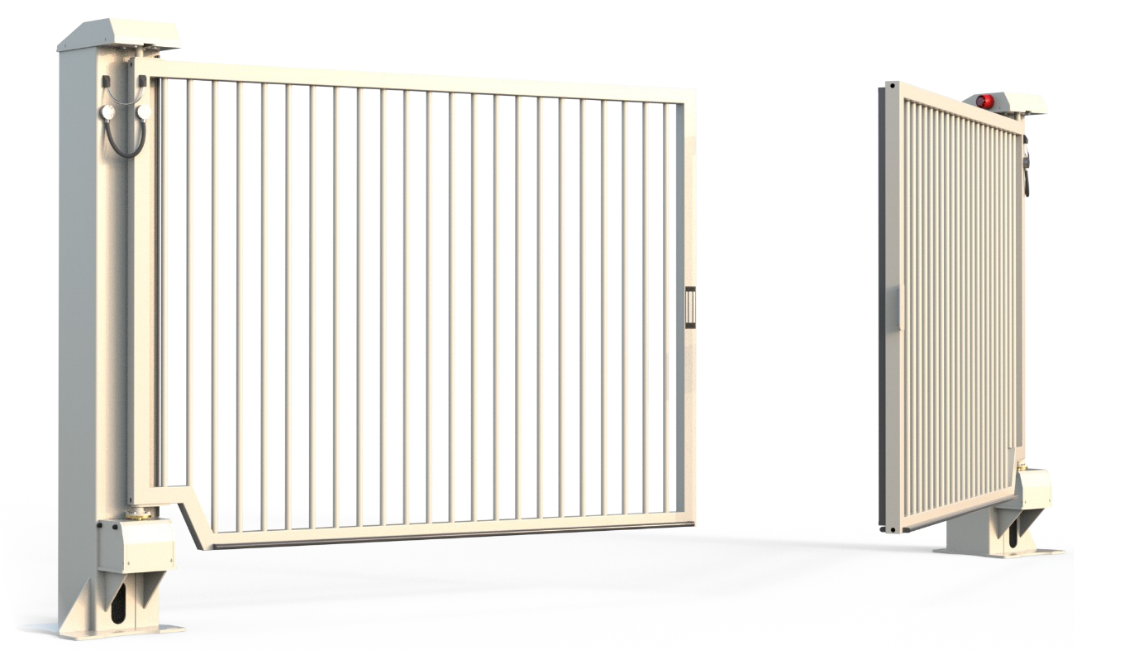

Swing Gate 5600i
Swing Gate 5600i
Introduction
The 6000I swing gate system offers a sleek, fully integrated automation solution, with all drive components discreetly housed within the gate posts. This design provides a clean, unobtrusive appearance without compromising on performance or durability.
Engineered for strength and reliability, the 6000I is capable of operating double leaf gates with spans of up to 10 metres. All automated systems are fitted with Category 3 safety edges and dual photocells as standard, ensuring full compliance with current safety legislation.
Product Specifications
MAXIMUM SPAN: 10.0M ( 5.0m Single Leaf )
MAXIMUM HEIGHT: 3.5m (dependent upon span)
OPENING/CLOSING TIME: 8 - 12 seconds ( Adjustable span depending )
DRIVE SYSTEM: 3 phase (inverter driven) motor and wormed gearbox mounted Inside the posts.
SAFETY: 8 x Cat 3 edges, dual height photocells, Emergency Stop button and a flashing beacon/sounder
POWER SUPPLY: 230VAC 50Hz 6 Amp ( To both Posts )

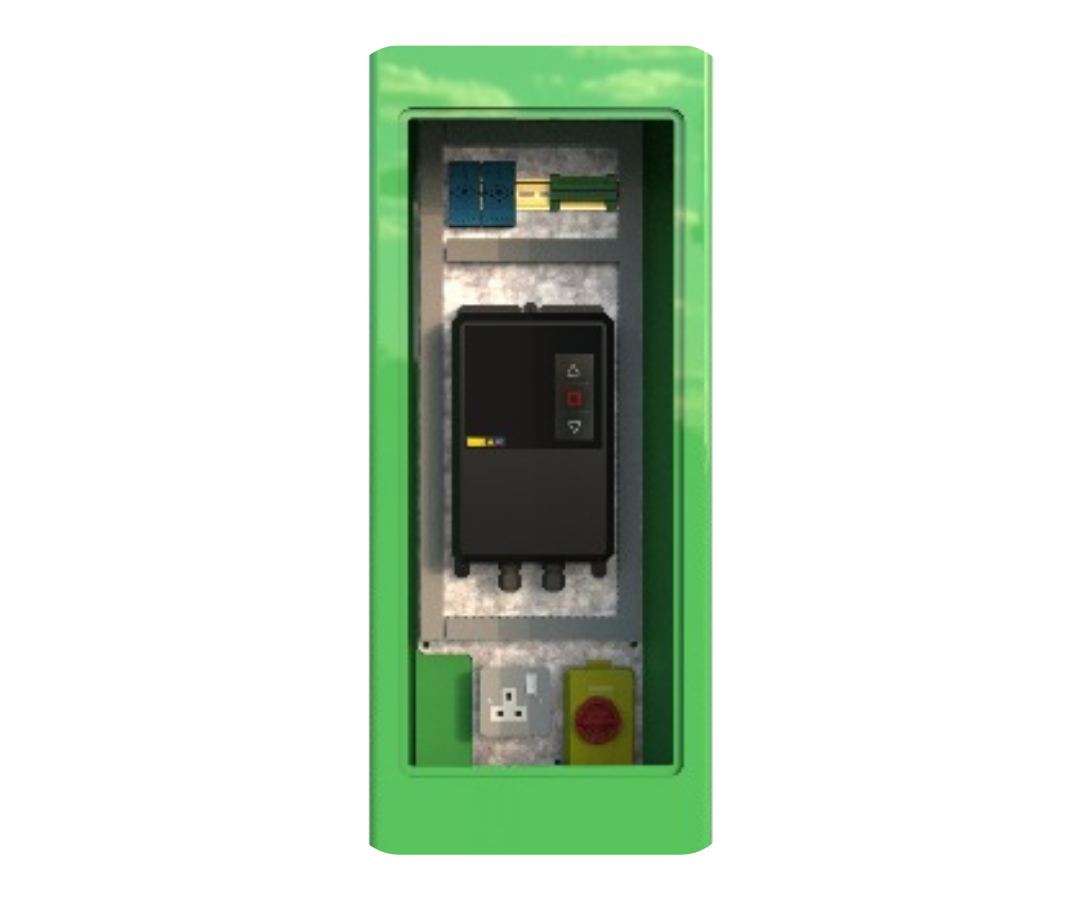

Controller
Controller
Our 5600i is controlled Using a State of the art Feig controller that Incorporates a 3 - Phase Inverter, This Controls all the speeds Of the motor for Ultimate Control and efficiency. This also includes an Encoder fitted to the Motor for Total Precision
Heavy Duty Bearing Hinges
Heavy Duty Bearing Hinges
High load bearing equipped hinges are fitted which rotate on the pivot point to minimise closing up of the gate leaf to the post, and so enhancing safety.
Gate Drive
Gate Drive
Reliable and almost silent in operation, our 3 phase motor and wormed gearbox drive is located inside the post, With a Lockable removable door that allows Easy access for manual over ride.

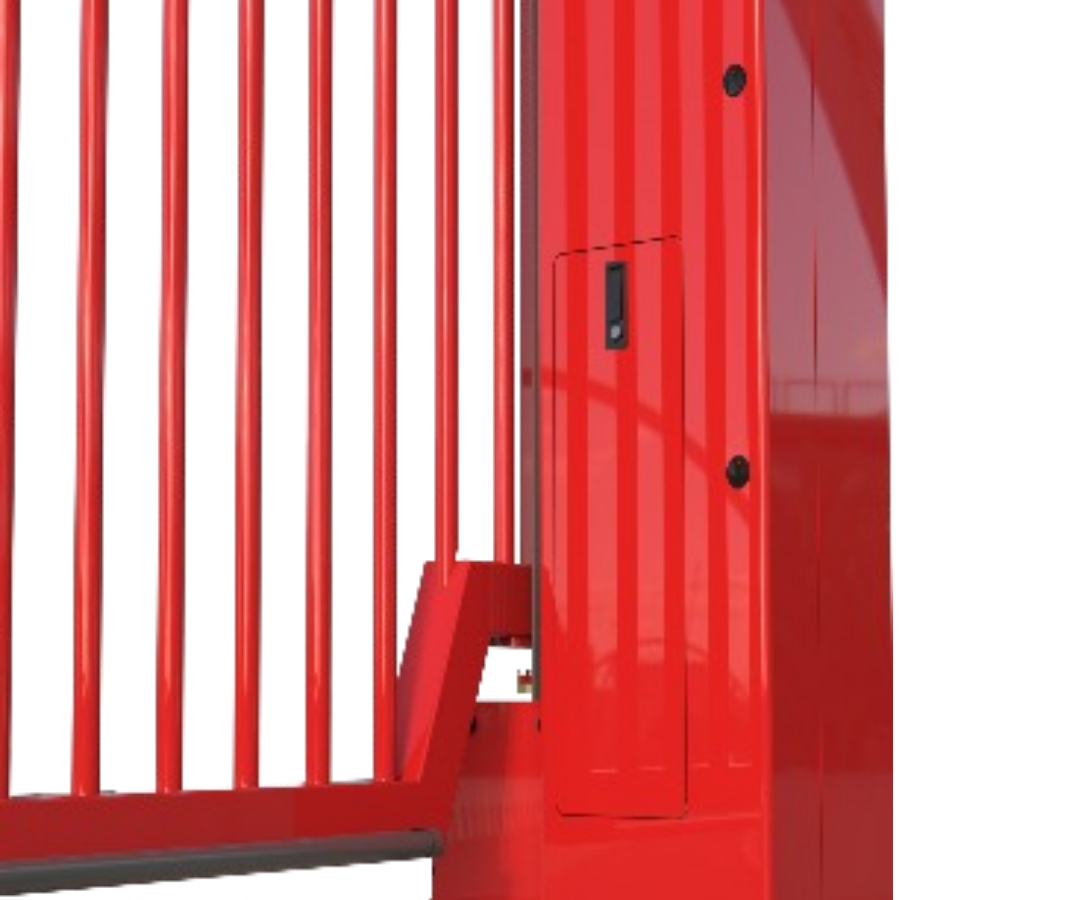

Safety Systems
Safety Systems
All our powered gates are equipped with class leading safety systems as standard. includes 8 x Cat. 3 safety edges, twin photocells at different heights, and a flashing beacon/sounder. Working with our unique control software this provides the quickest response to a safety event in the industry.

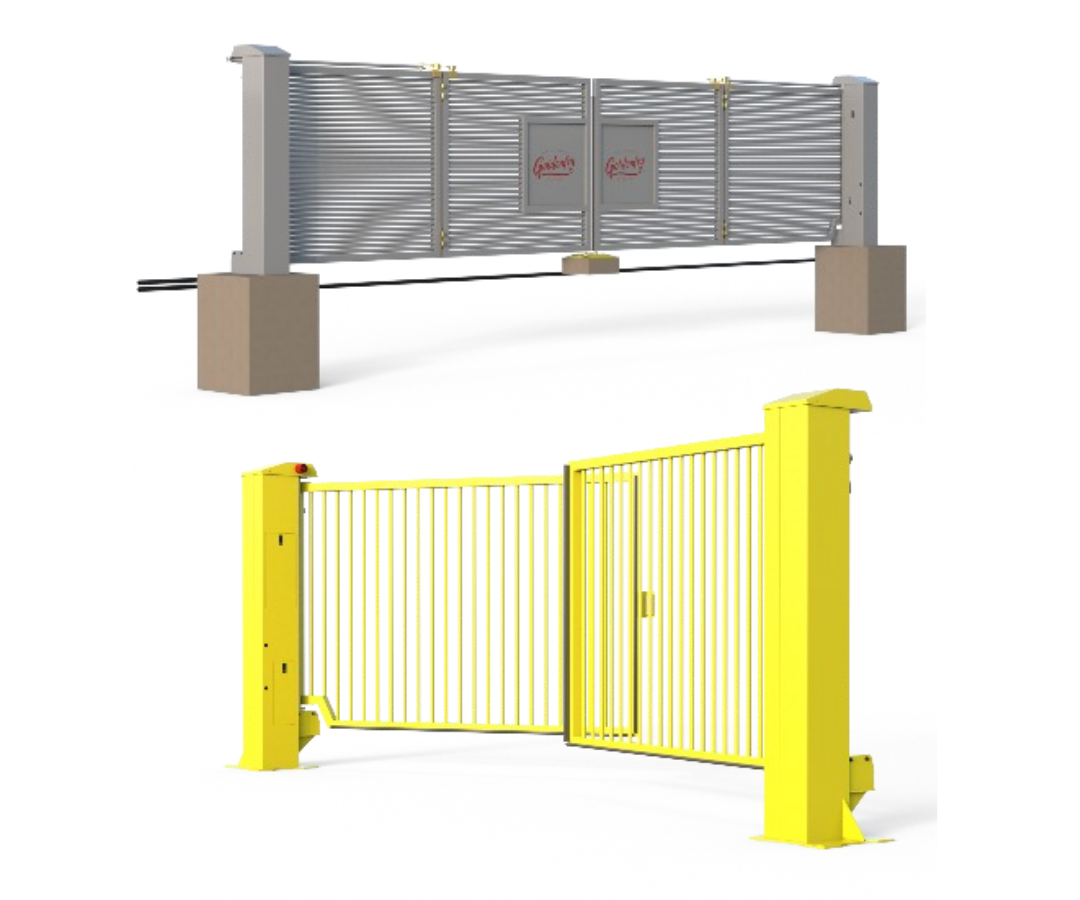

Gate Design
Designed for you. A wide range of gate infills are available, from our standard vertical tube, to weldmesh, palisade and timber cladding. We can even provide sheet steel with your logo cut out by water jet as shown. Also, if you specify vertical bar or sheet infill in a standard RAL reference,

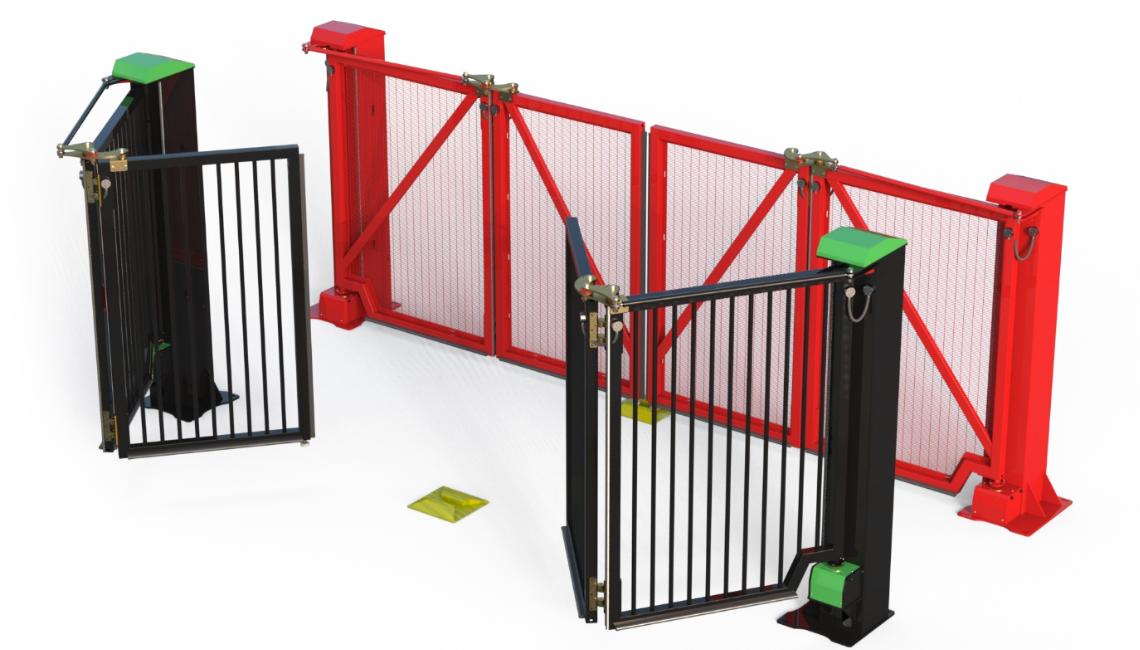

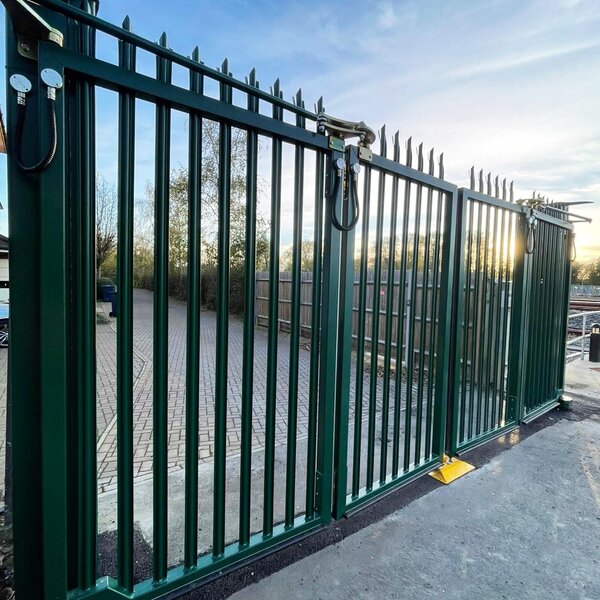

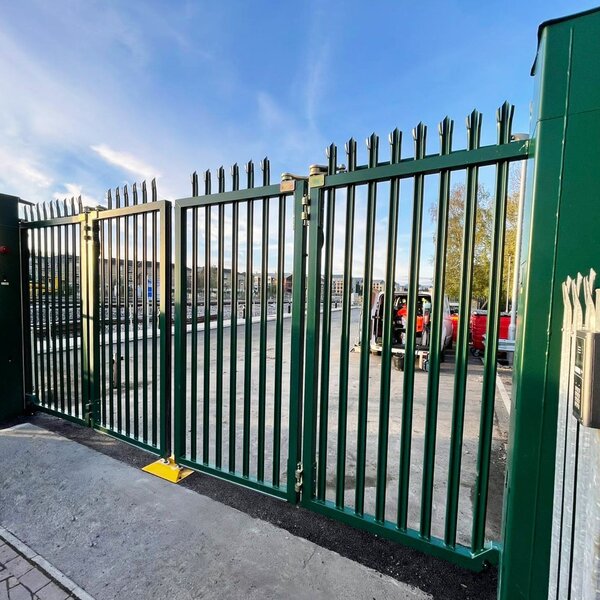

Bi-Folding Swing Gate
Bi-Folding Swing Gate
Introduction
Bi-folding gates provide the perfect solution for security in confined locations, or where speed of opening is important. The Bi-Folding Gates design incorporates two mechanically connected leaves per side, which swing open together thus providing a greater speed of operation that other automated gate systems.
The small swing arc needed by the dual gate leaf system allows these Bi-Folding gates to be located in situations which would rule out the installation of conventional gates. They are engineered to allow bolt down fixing to suitable concrete pads, and are compatible with all current access control systems.
Product Specifications
MAXIMUM SPAN: 10.0M
MAXIMUM HEIGHT: 3.5m (dependent upon span)
OPENING/CLOSING TIME: 10 seconds
DRIVE SYSTEM: 3 phase (inverter driven) motor and wormed gearbox mounted Inside the posts.
SAFETY: 6 x Cat 3 edges, dual height photocells, Emergency Stop button and a flashing beacon/sounder
POWER SUPPLY: 230VAC 50Hz 6 Amp
Controller
Controller
Our Bi-folding gates are controlled using a state of the art Feig controller that incorporates a 3 -phase inverter, this controls all the speeds of the motor for ultimate control and efficiency. This also includes an encoder fitted to the motor for total precision

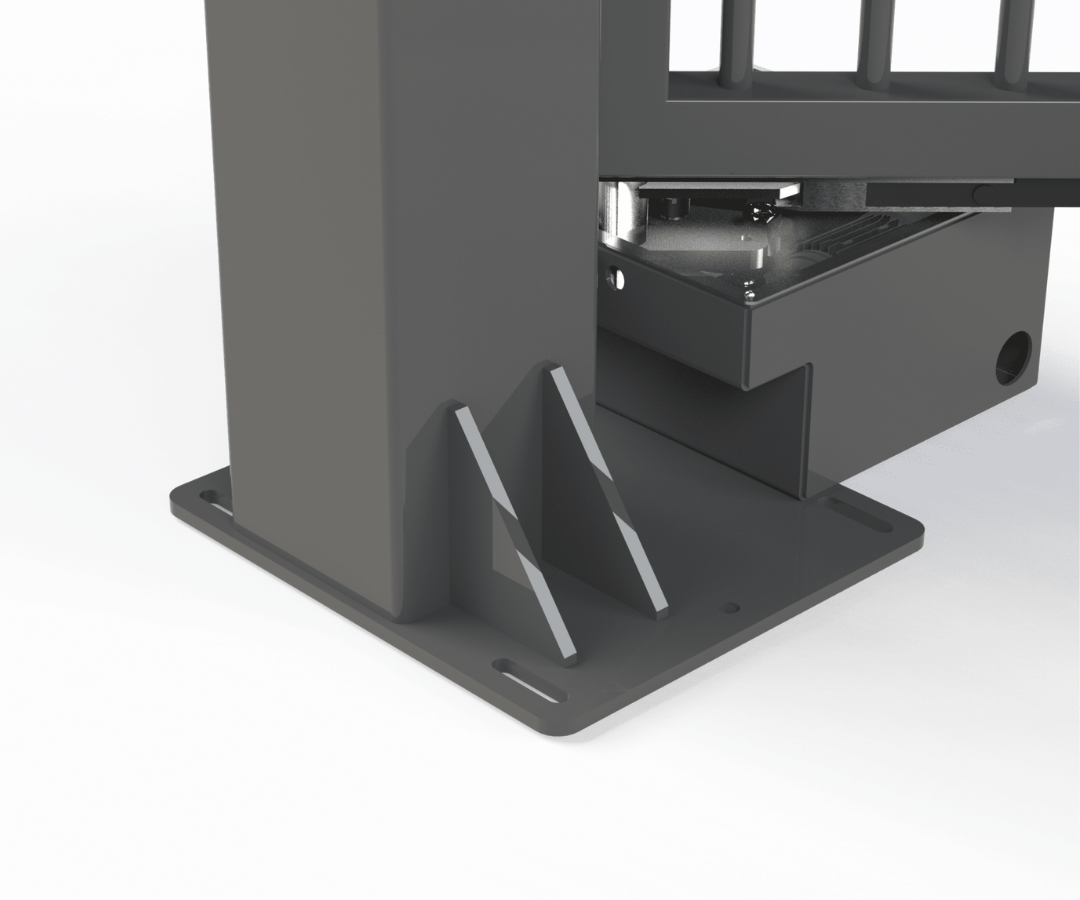

Gate Drive
Gate Drive
Reliable and almost silent in operation, our 3 phase motor and wormed gearbox drive is located inside the post, with a lockable removable door that allows easy access for manual over ride.

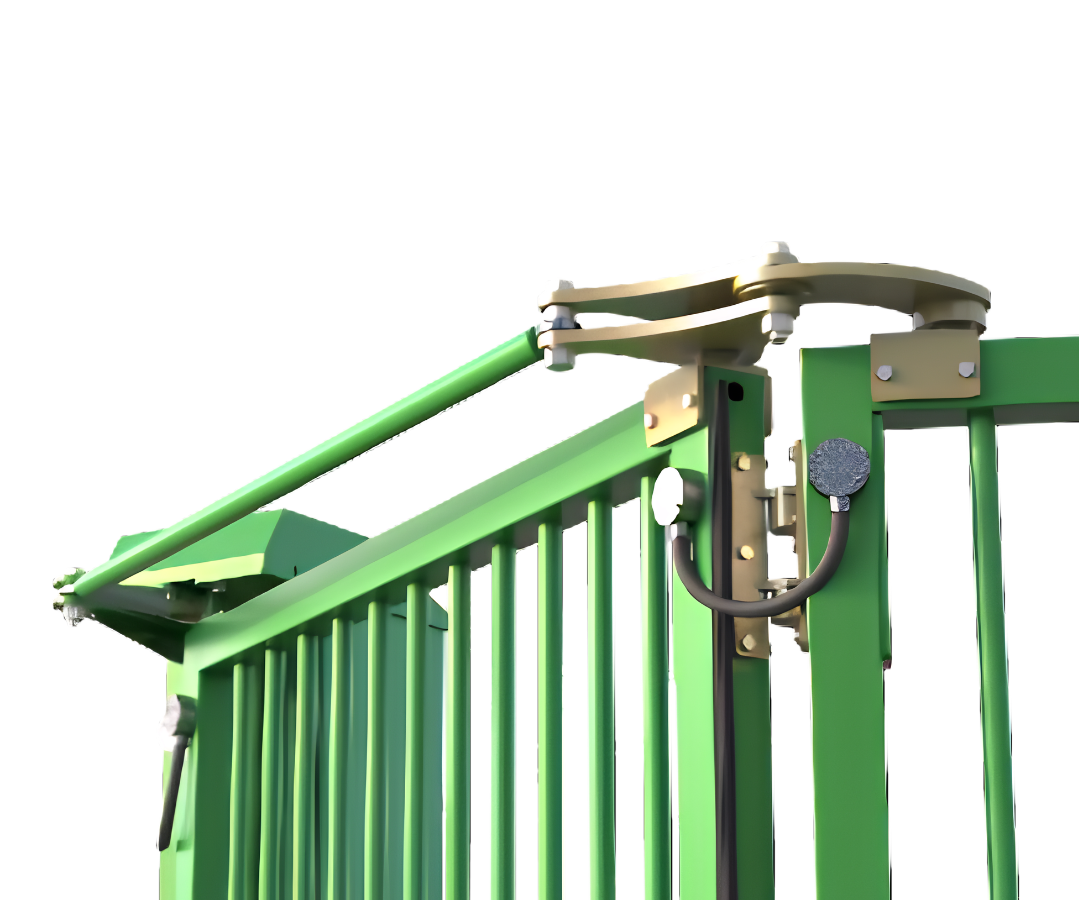

Bi-Folding Linkage
Bi-Folding Linkage
The linkage allows the smooth folding of both gate leaves, and provides the speed of operation that our bi-folding gates are known for. Leaves retract fully behind the gate post for maximum vehicle clearance.

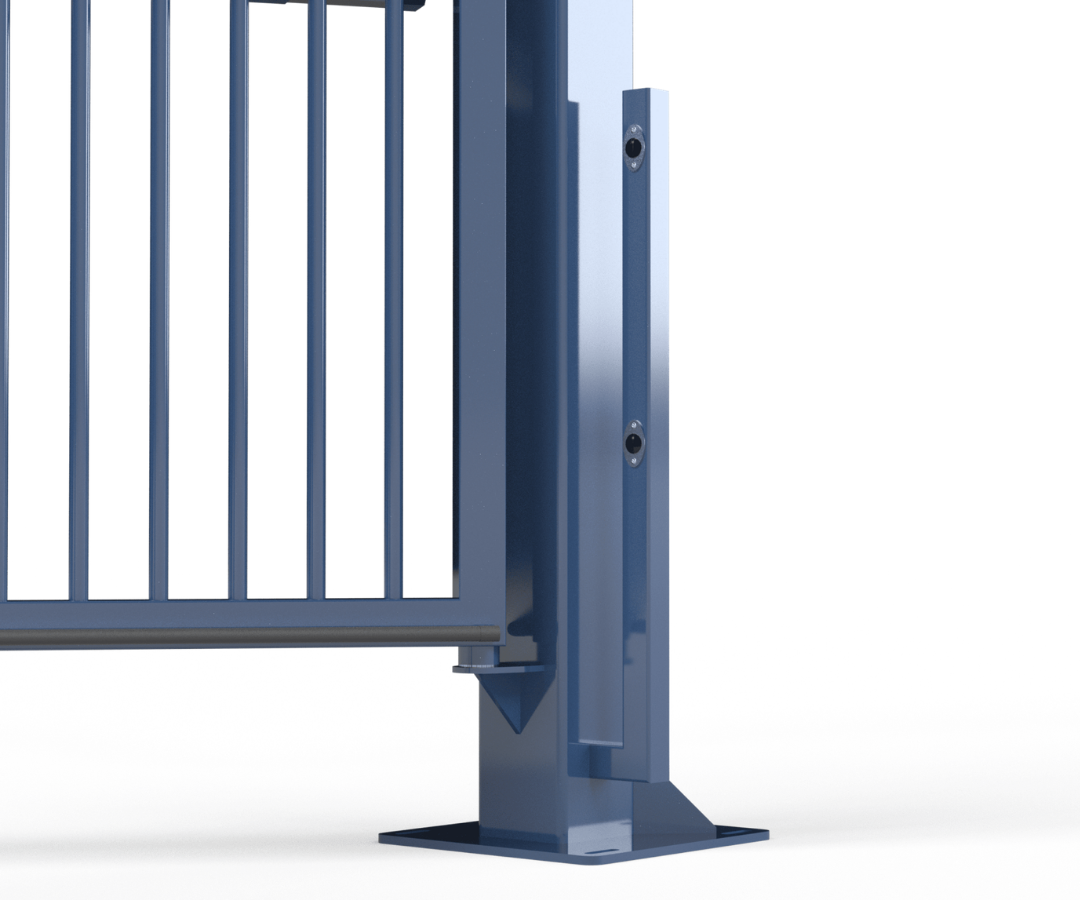

Safety Systems
Safety Systems
All our powered gates are equipped with class leading safety systems as standard. For the Bi-folding gates, this includes 12 x Cat. 8 safety edges, twin photocells at different heights, and a flashing beacon/sounder. Working with our unique control software this provides the quickest response to a safety event in the industry.

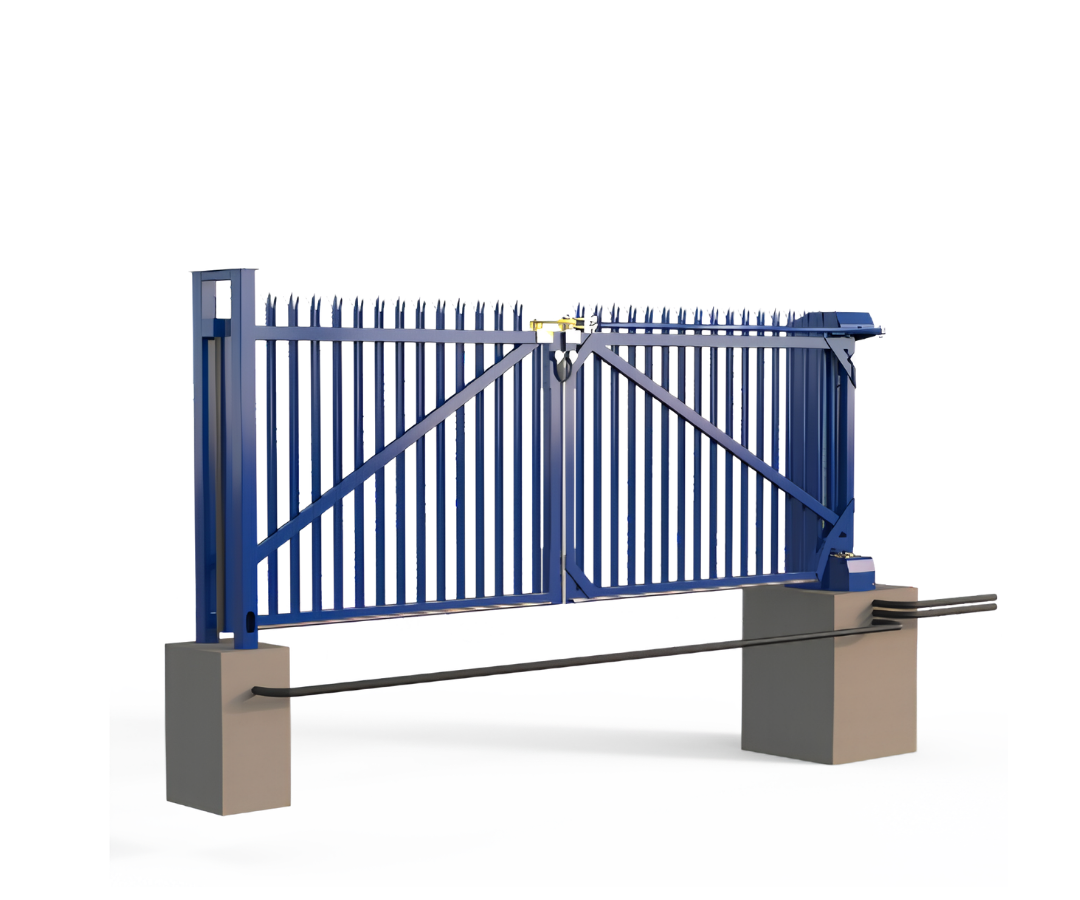

Gate Design
Designed for you. A wide range of gate infills are available, from our standard vertical tube, to weldmesh, palisade and timber cladding. We can even provide sheet steel with your logo cut out by water jet as shown. Also, if you specify vertical bar or sheet infill in a standard RAL reference,
