ISO 20 Sectional garage doors by Novoferm are constructed of 20mm insulation, making them an ideal choice for contemporary residential properties compared to traditional designs and opening styles.
A large selection of designs and colours? At an attractive price? High quality, great convenience, high security and energy efficiency?
Then choose sectional garage doors with 20 mm insulation from Novoferm!
Door with high insulation / renovation

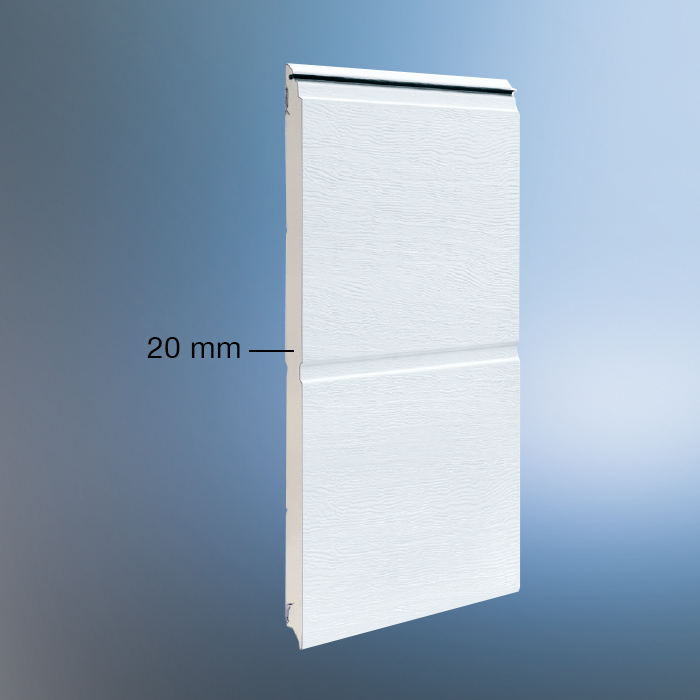

Novoferm sectional garage doors in the 20 mm version have a 20 mm thick insulating hard foam core for high thermal insulation. Ideally suited for renovation.
Large selection of motifs / colours

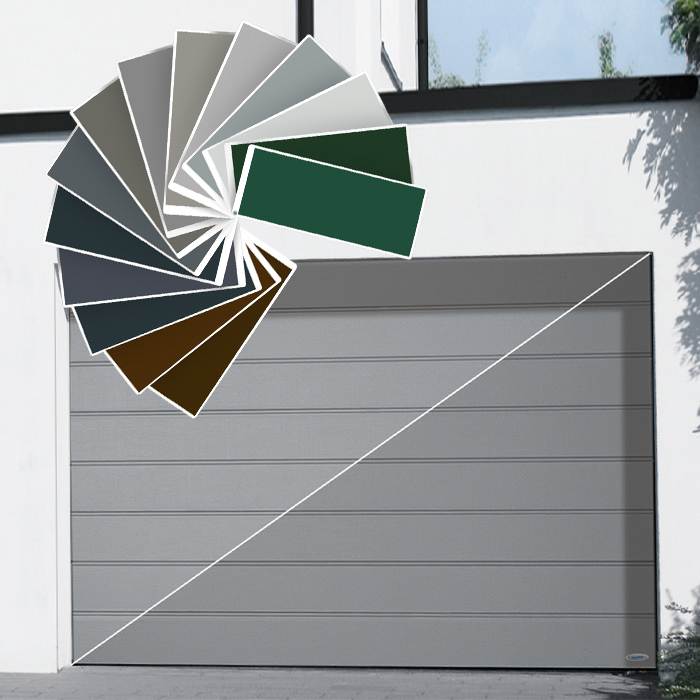

These sectional doors are available in four door designs, two surfaces and 16 modern and popular industry preferred colours - to match your house architecture.
SmartHome-capable / Innovative

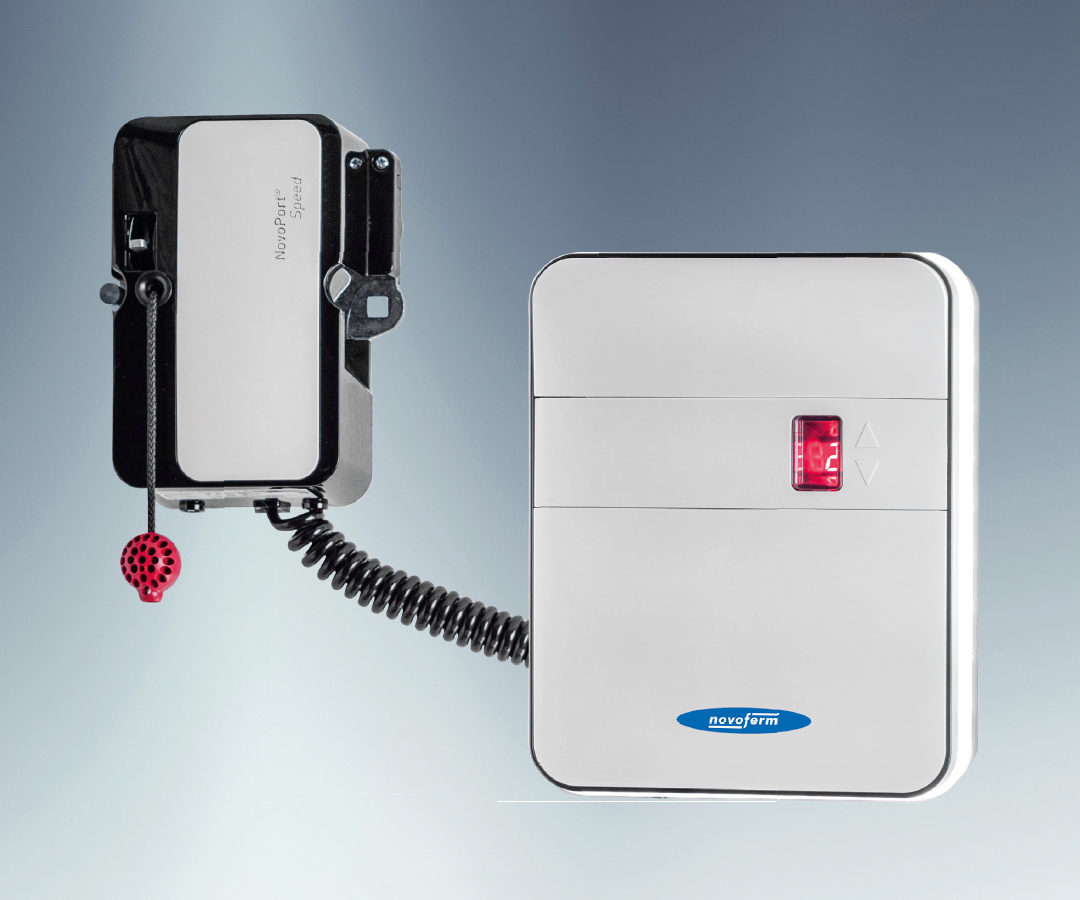

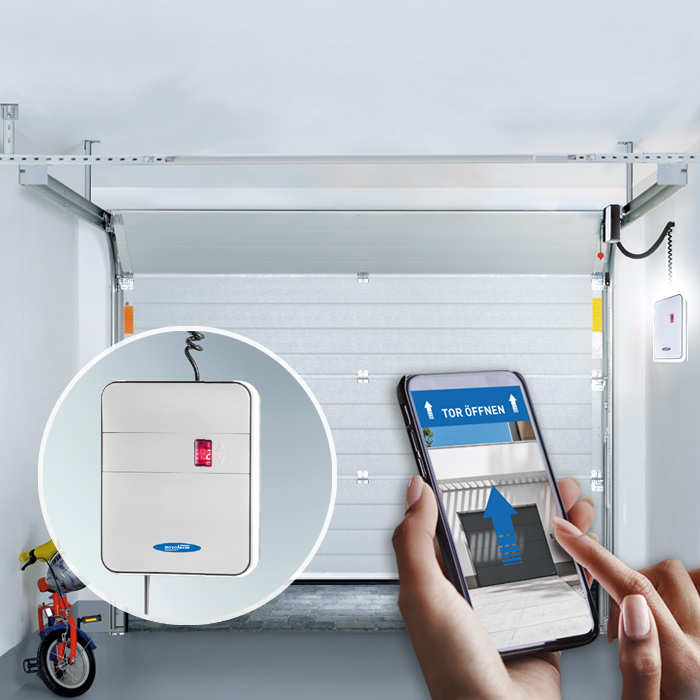

Compatible with the Novoport Speed, side mounted operator. Instead of being fixed to the ceiling, this is integrated into the side door track.

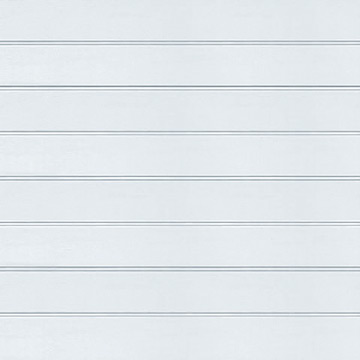

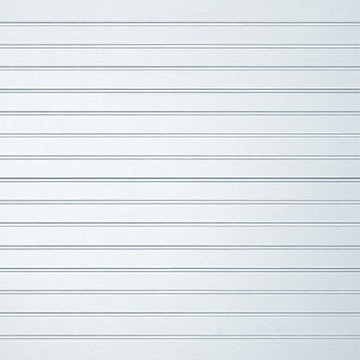

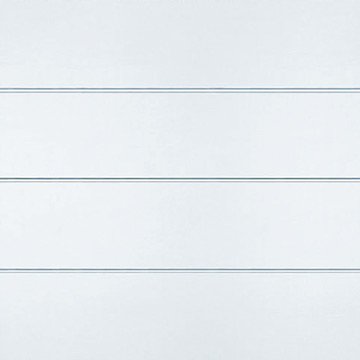

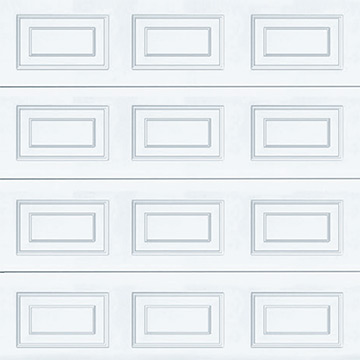

Add the finishing touch to the look of your home or project. With sectional doors in 20 mm thickness, you can choose between our timeless and traditional Panelled design or our modern horizontal ribbed designs in multiple styles.
Have you already considered a door in a certain design and colour, but it's not yet individual enough for you?
Then take a look at our attractive glazing options. They not only draw attention to your garage, but also let natural light in. This is particularly convenient if you also use your garage as a hobby room or workshop.
All Novoferm glazing is made of weather-resistant acrylic glass or impact-resistant polycarbonate and is characterised by maximum light transmission.

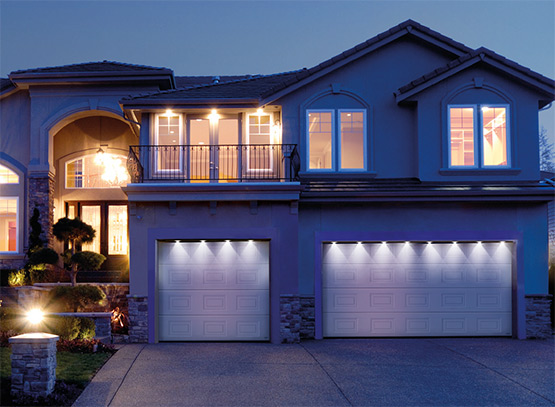

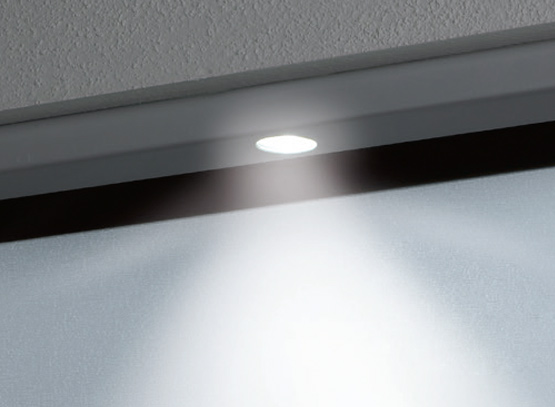

To put your garage door in the right light even after sunset and also to deter unauthorised personnel, we recommend the LED lighting kit. It creates an exciting dialogue with other light sources, e.g. illuminated windows, and sets the scene for the overall architecture of your home. Depending on the door width, the lighting kit consists of four, six or eight LEDs, which are evenly distributed across the entire width of the door in a U-shaped track. They can be controlled either via the hand-held transmitter, which you also use to operate your operator, via a separate timer or a motion detector.
Saves space and energy
The flat, aluminium coloured LED lighting kit (40 x 20 mm) is installed under the garage lintel to save space, so that almost the full clearance height is retained. Long-life LEDs ensure very bright illumination with minimal power consumption. Depending on the door width, the lighting units can be easily shortened on both sides to achieve exact symmetrical illumination of the door.

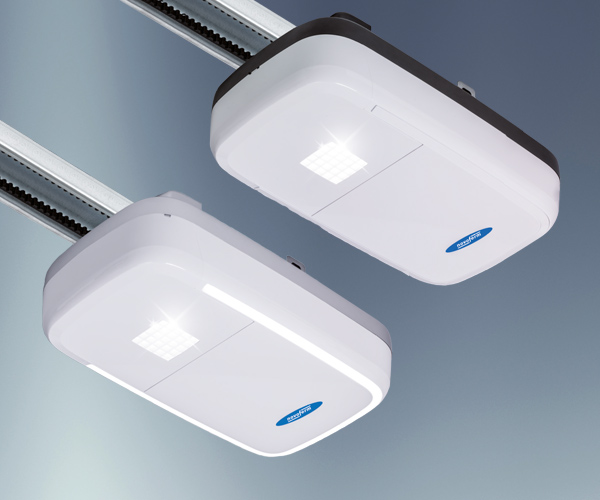

Novoferm recommends buying a garage door together with a garage door opener, because anyone buying a new garage door today not only wants it to look good, but also wants it to open easily. With an electric operator, you can raise the comfort level of your garage at the touch of a button and eliminate inconvenience - simply by clicking on the radio remote control or control with an app.
All Novoferm operators are tested in combination with Novoferm doors. This guarantees maximum functional reliability and durability. And thanks to the practical emergency release, you can always get in even if the power fails.
Select your electric door operator:

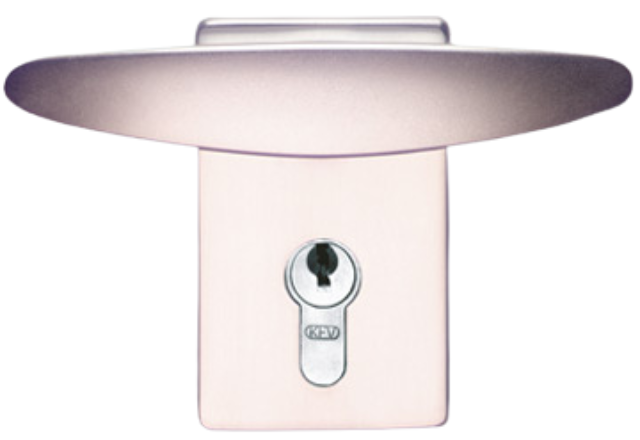

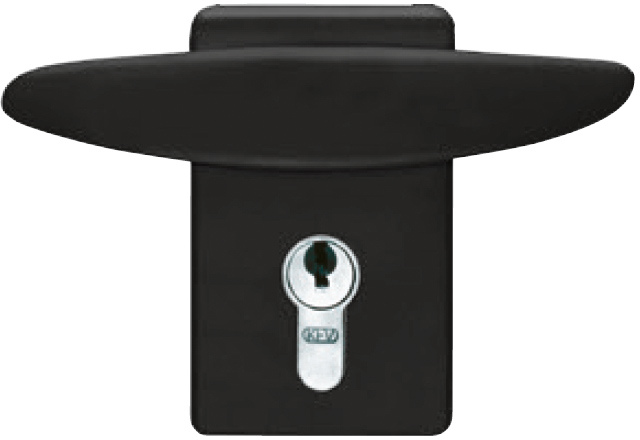

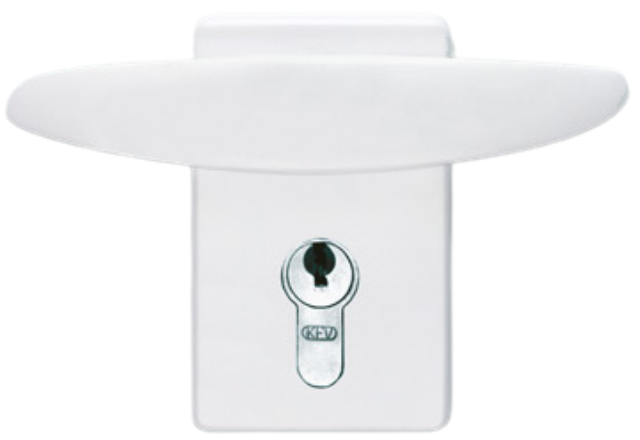

The right accessories are also part of the desired equipment.
Because people have different wishes and because the structural conditions of a garage or sliding door are not always the same, we offer a comprehensive range of accessories with which you can equip our systems to suit your individual requirements.

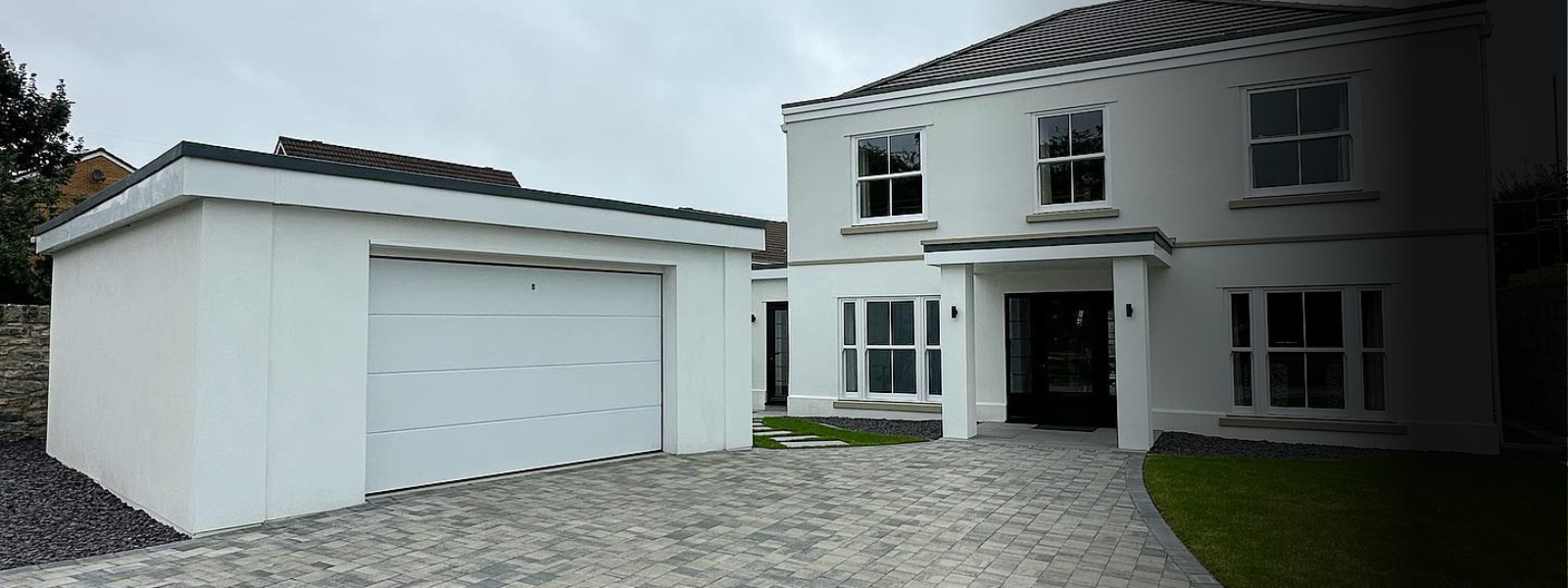

ISO 20 Sectional garage door
Door Design: Flush Smooth
Colour: Traffic White (RAL9016)

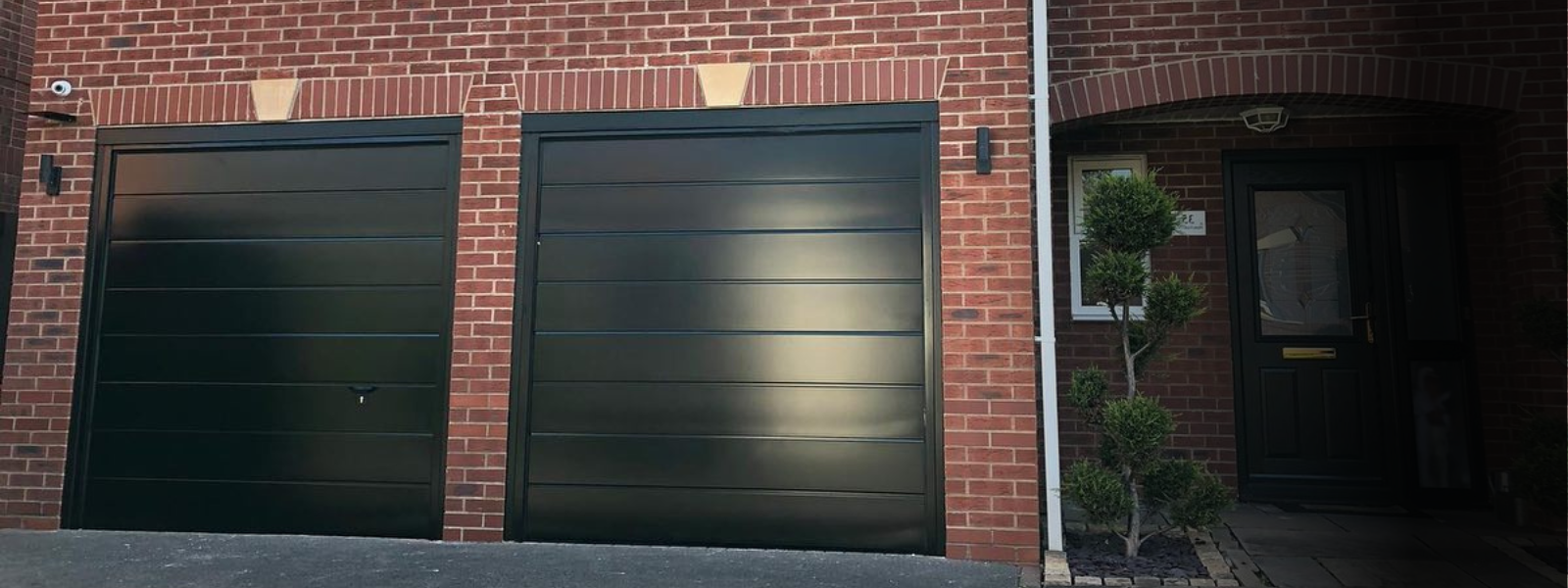

ISO 20 Sectional garage door
Door Design: Large Rib Smooth (x1 Manual x1 Automated)
Colour: Anthracite Grey (RAL 7016)

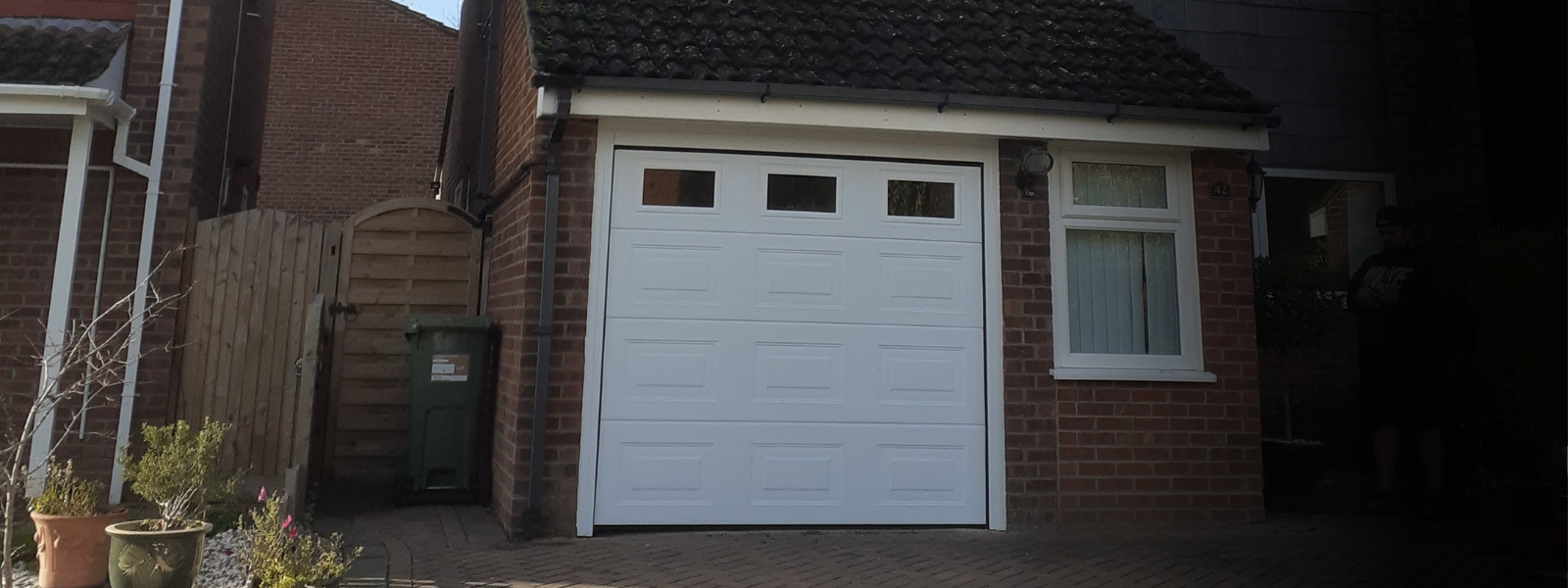

ISO 20 Sectional garage door

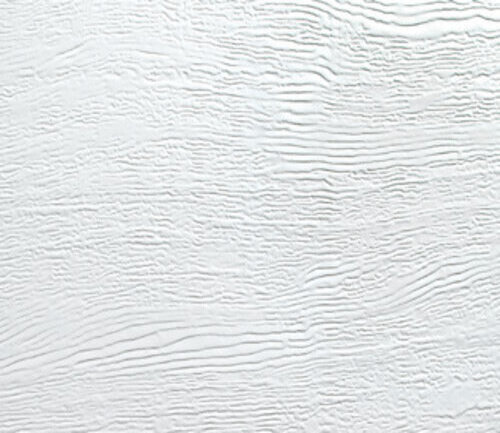

Door Design: Woodgrain Panelled Glazed
Colour: Traffic White (RAL9016)

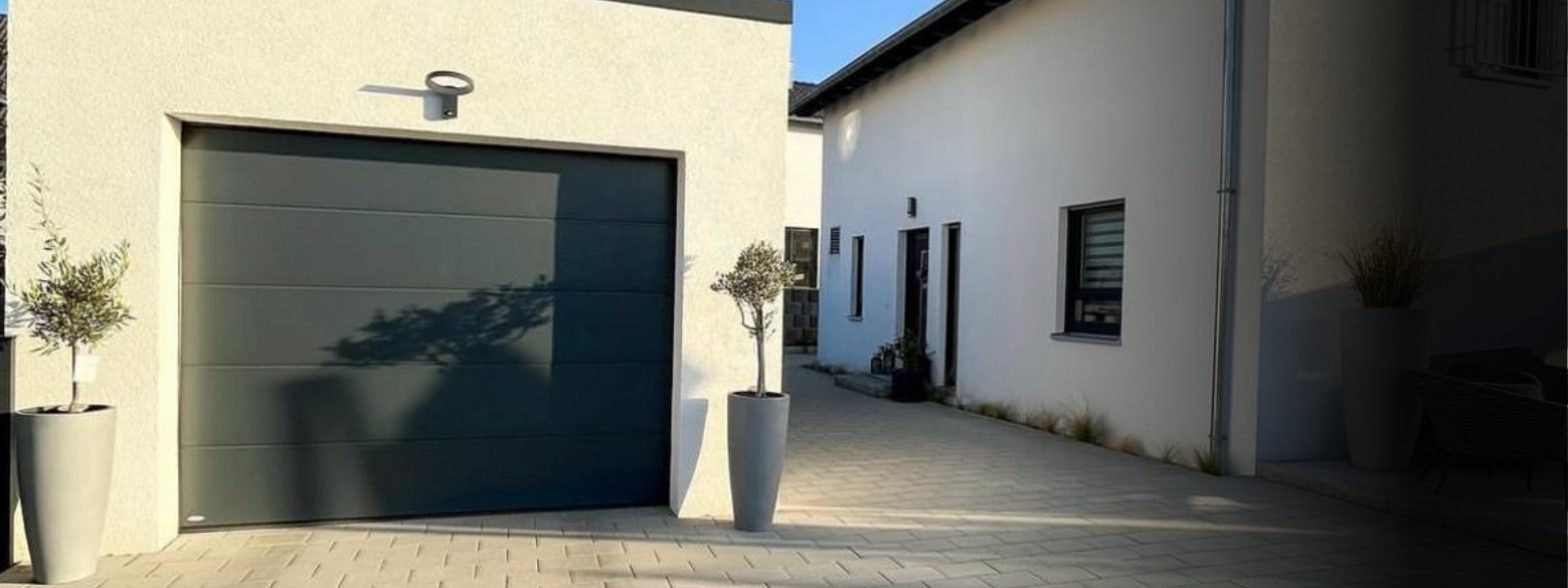

ISO 20 Sectional garage door
Door Design: Flush Smooth
Colour: Anthracite Grey (RAL 7016)

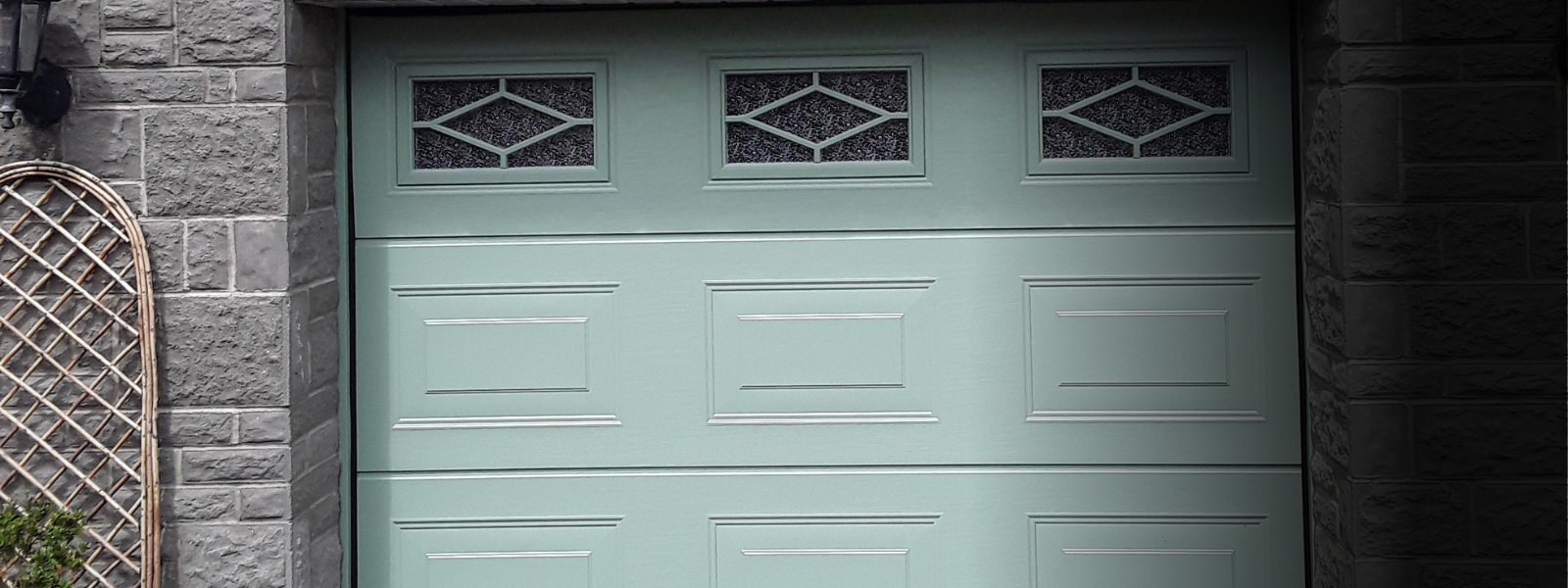

ISO 20 Sectional garage door
Door Design: Panelled Glazed
Colour: Chartwell Green (BS 14C 35)
ISO 20 Sectional garage door
Door Design: Large Rib Smooth (x1 Manual x1 Automated)
Colour: Anthracite Grey (RAL 7016)

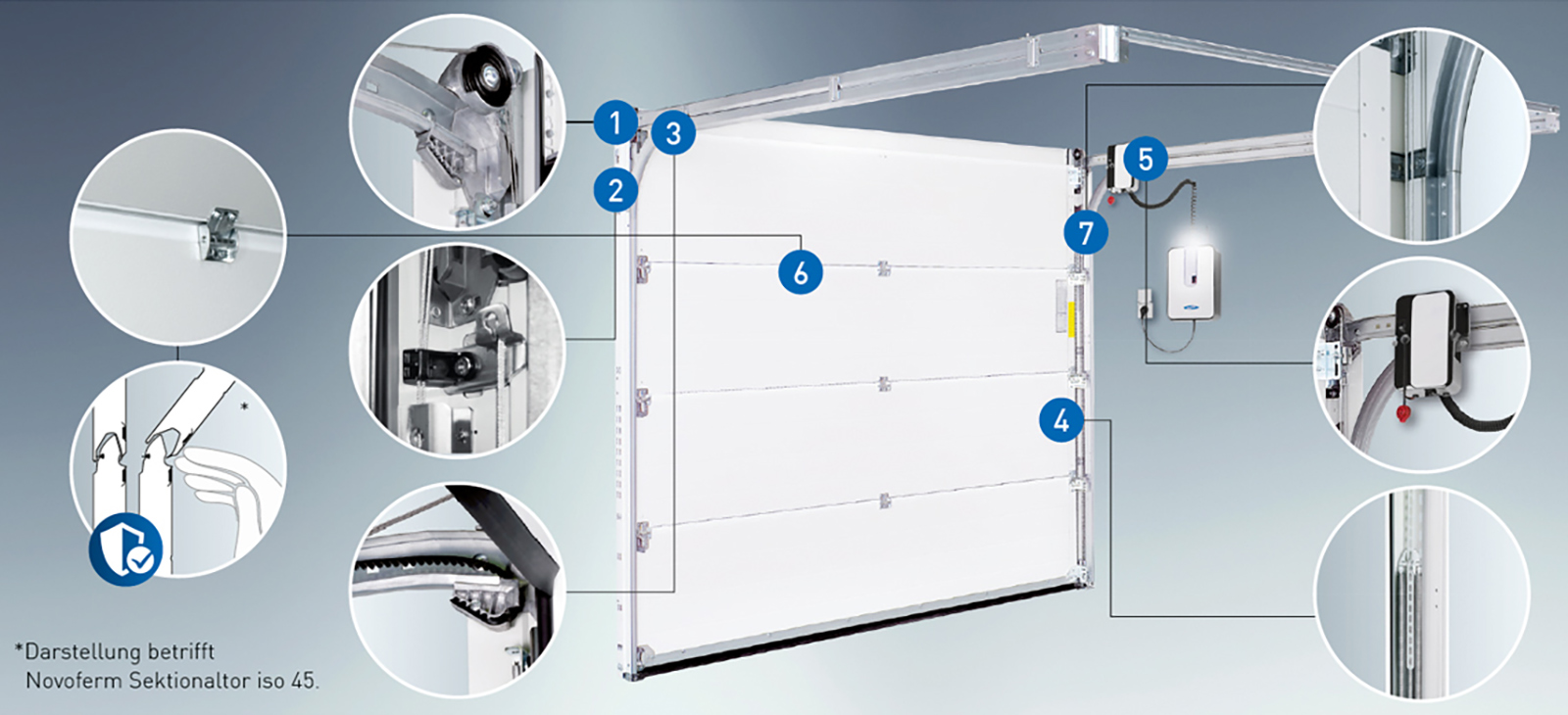

Our iso 20 sectional garage doors with vertical tension spring system are equipped with multiple safety tension spring assemblies.
The sectional garage doors ISO 20 and ISO 45 with widths of up to 3,000 mm and a height of 2750 mm are available with a vertical tension spring system. With the ISO 45, doors over 2750mm will come with torsion gearing. Heights between 2125mm and 2225mm have cut top panels. For made to measure heights, panel height may vary. Please contact before ordering.
(1) ENTRY PROTECTED DIVERTING ROLLER
The steel cables run vertically into the angled frame via ball bearing-mounted deflection rollers with U-shaped pulley holders. This saves space in height, in contrast to the torsion spring in front.
(2) ROPE HOLDER
The wire rope holder ensures a secure rope run in the angled frame without the ropes touching the insulated section. The door leaf guide guarantees an optimum closing position of the door leaf.
(3) INTEGRATED TOOTH BELT FASTENING
The mould end piece includes a secure fastening for the maintenance-free NovoPort® toothed belt.

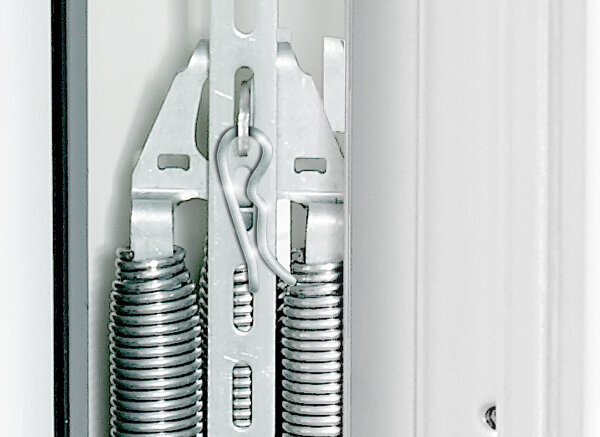

(4) MULTIPLE TENSION SPRING PACKAGES
For tension spring doors: The spring is adjusted at the upper end of the spring package. Vertical extension springs allow low installation depths and require little space.
(5) NOVOPORT® - UNIQUE & FLEXIBLE
The NovoPort® operator system ensures maximum convenience during operation and installation. The motor is not fixed to the ceiling like conventional operators, but is simply integrated into the side door track - on the right or left, depending on the structural conditions.
(6) FINGER PINCH PROTECTION
The design of the sections and hinges prevents pinch points on the door leaf from the outset - from the inside and outside.
(7) ENTRAPMENT PROTECTION AND INSIDE CABLE GUIDANCE
The angled frames largely prevent fingers from reaching between the door leaf and frame. Internal suspension cables minimise the risk of injury and ensure maximum functional safety.
Number Of Door Panels Based On Height | |||||
|---|---|---|---|---|---|
MM | 2125 | 2250 | 2625 | 2750 | 3125 |
No Of Panels | 4 | 5 | 5 | 6 | 6 |
Number Of Windows Based On Height | |||||
|---|---|---|---|---|---|
MM | 2250 | 2750 | 400 | 4500 | 5500 |
No Of Windows | 3 | 4 | 5 | 6 | 6 |
Evolution premium sectional doors
Do you have the highest demands? Do you always want to get the best out of everything?
With the Evolution premium sectional door, that's exactly what you get: the new door offers you maximum energy efficiency, security, quality and the widest choice of finishes and colours in a package that makes you happy. We present the Evolution premium sectional door with 45 mm insulation and thermal break in detail: with all the details, benefits and design options.
