Sectional Garage Doors
The Smart Way Into Your Home
Are you looking for a garage door that offers you perfect convenience, the best possible security and optimum space saving? Then the Novoferm sectional door is the correct choice. Sectional garage doors also leave nothing to be desired in terms of appearance.
High-quality materials, first-class workmanship, quality insulation benefits and a wide range of customisable options give every garage a contemporary, individual look to match the architecture of your property and your personal taste.
How do Sectional doors operate with a NovoPort Speed Operator?
Click on the animation on the left to view an animated version of how sectional garage doors operate with a NovoPort Speed Operator.
Detailed animations / videos on the advantages, installation and programming of Novoferm garage doors can be found on the Novoferm YouTube channel:
https://www.youtube.com/@novofermukltd
How do Sectional doors operate with a Novomatic Motor?
Click on the animation on the right to view an animated version of how our sectional garage doors operate with a Novomatic operator.
Detailed animations / videos on the advantages, installation and programming of Novoferm garage doors can be found on the Novoferm YouTube channel:
https://www.youtube.com/@novofermukltd
Selection of sectional garage doors
Choose your sectional door:
Why Choose A Sectional Garage Door?
Door Operation
Door Operation
Vertical opening allows 'park-right-up' convenience, whilst the extension or torsion spring operation gives a super smooth mechanism. Enclosed moving parts and push away joints to the panels make for finger safe operation.
Functionality of sectional doors
The sectional door principle
A sectional garage door is made up of several horizontal panels (sections) that are hinged together. These doors open vertically and slide along tracks that curve and run parallel to the ceiling when fully opened.
More space in front of the garage
Unlike the Up & Over doors, a Sectional does not swing outwards, therefore you can use every last centimetre of the space in front of the garage, for example to park your car, as this door type assists to maximise your driveway space.

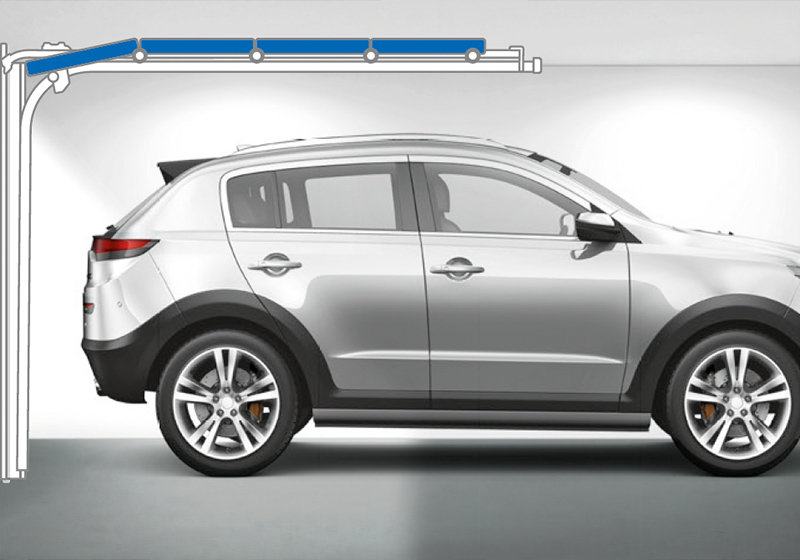

Openings for different vehicles
As the sections are pushed under the ceiling to save space, there is also more room in the garage - ideal for tall vehicles such as off-road vehicles or vans.
More space in front of the garage

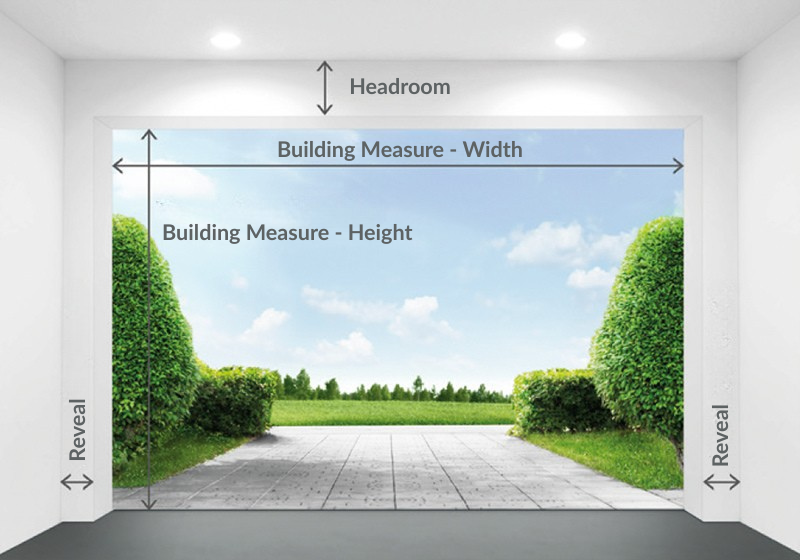

With a sectional door with an electric operator, you always have the full clearance height at your disposal. When replacing an up-and-over door with a sectional door, the passage is even wider, as the sectional garage door can be installed behind to maximise width. The use of the Novoport Speed, side mounted operator also assists with no taking up additional ceiling space.

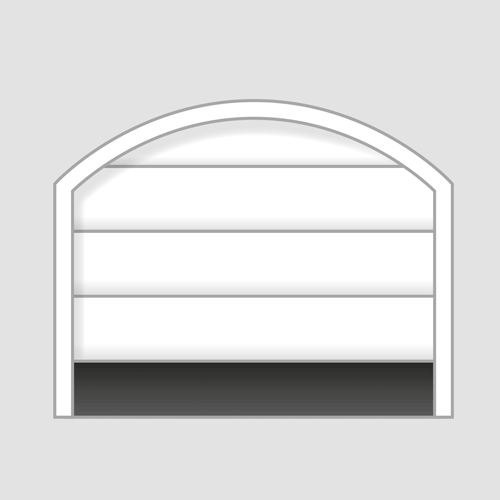

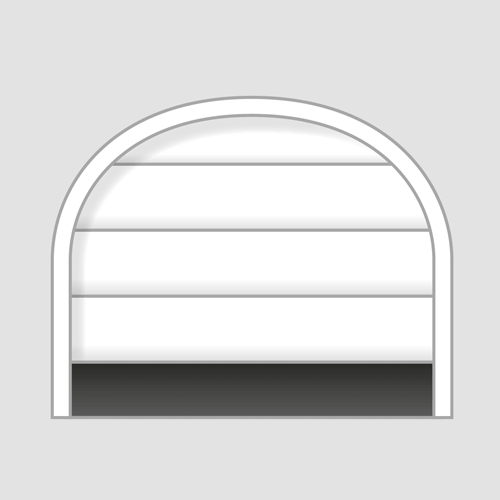

Open For Every Opening
A sectional garage door from Novoferm always fits:
your plus points at a glance
For private garages up to 5,500 mm wide.

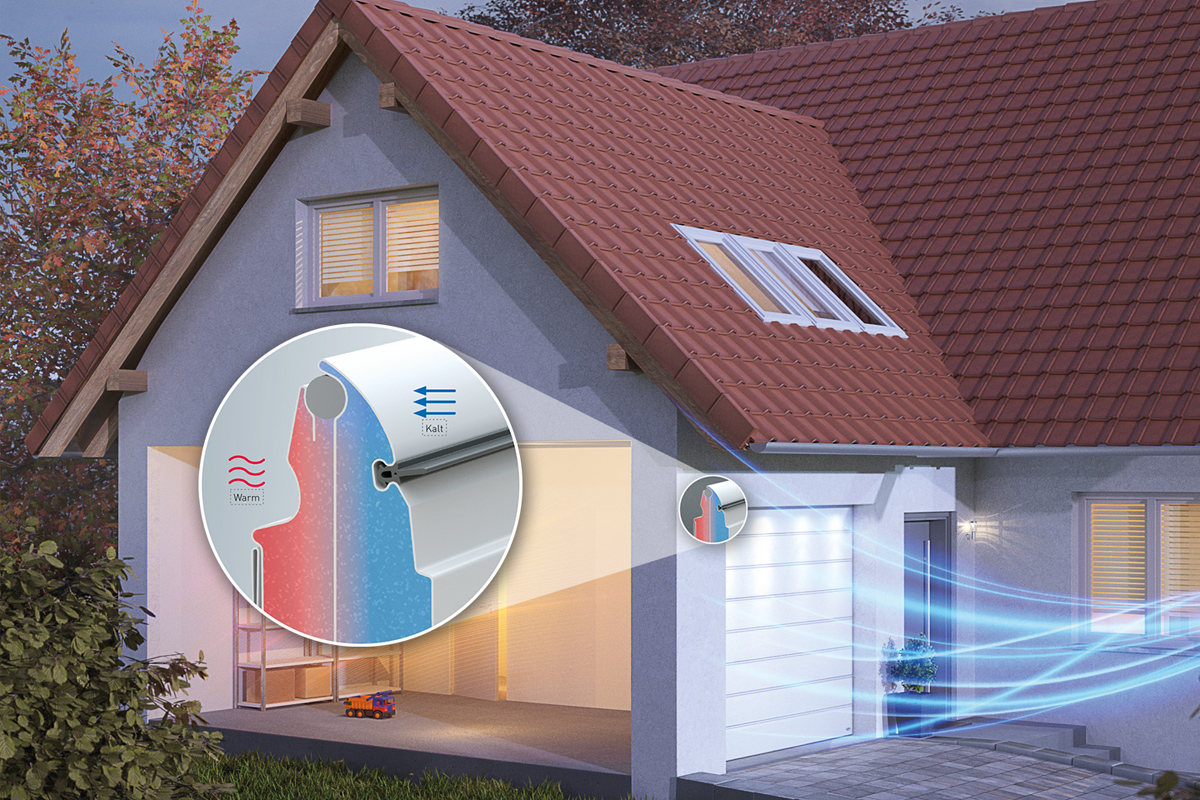

Available with 20 or 45mm insulation.
Large selection of modern and end-coated surfaces and colours.
High quality with up to 10-year guarantee.
- Tested security in accordance with resistance class RC 2. Only available when supplied with a burglar resistance kit.

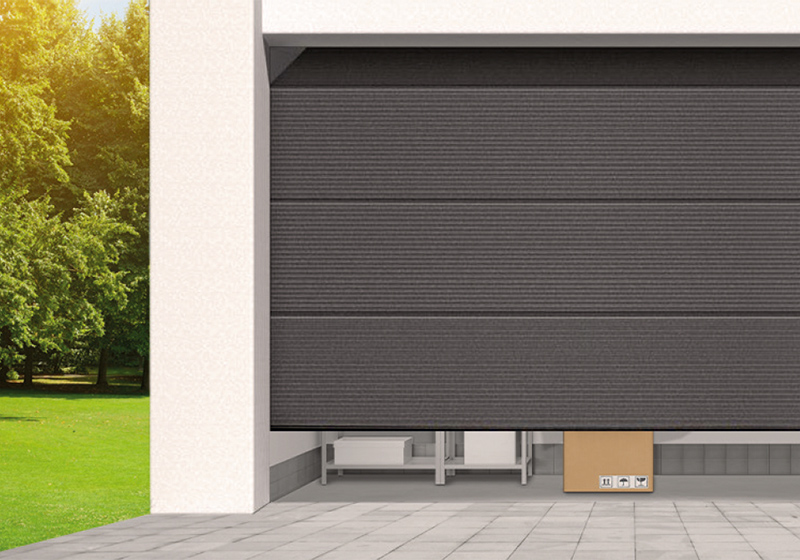

Maximum personal safety thanks to finger pinch protection inside and outside.
Spring technology optionally with vertical tension spring system or with horizontal torsion spring shafts with spring breakage protection on both sides.
High level of convenience thanks to Smart Home-compatibility and whisper-quiet garage door openers.
- Only from Novoferm: the NovoPort Speed automatic operator system with a high level of convenience.
Door Comparison
Comparison With Other Garage Door Types
COMPARISON WITH OTHER GARAGE DOOR TYPES
Up-and-over doors | Sectional doors | Side-Hinged | Roller shutters | |
Functional principle | Up-and-over doors consist of a door leaf as a unit, supported by two lateral lever arms (retractable) or spring mechanism at the top (canopy). | Sectional doors consist of sections that are connected to each other and are pushed vertically under the ceiling | Side Hinged doors can be opened with two swing doors that swing inwards or outwards | Door slats roll up into the roller shutter box provided for this purpose to save space, similar to the window roller blinds used in domestic applications |
Space in front of the garage | Compared to sectional or roller doors, the door leaf swings outwards when opened | Space in front of the garage can be used for parking a car, for example (no swinging space in front of the garage) | The space required in front of the garage must be taken into account for outward swinging hinged doors | Space in front of the garage can be used for parking a car, for example (no swing space in front of the garage) |
Overall dimensions | Up to 5 m wide | Up to 5.50 m wide | Steel - Up to 2.438m wide Duoport – Up to 2.520m | Up to 5 m wide |
Insulation | None | 20 mm or 45mm insulation | Steel - None Duoport - 45 mm insulation | Low insulation |
Thermal separation | - | - | - | - |
TÜV tested burglar resistance | - | Yes | - | - |
Tested security according to resistance class RC 2 | - | - | - | - |
Surface finish | - Smooth surface | - Woodgrain - Smooth surface - Wood effect finish - Satin surface - Microline | - Woodgrain - Smooth surface - Wood effect finish - Satin surface | - Smooth surface - Laminated finish. |
Door Designs | - Steel Vertical & Horizontal - Steel Panelled - Steel Larger Rib - Timber - GRP | Horizontal Rib - Large Rib - Flush - Panelled | - Steel Vertical & Horizontal - Steel Panelled - Steel Larger Rib - Timber - Horizontal Rib - Large Rib - Flush - Panelled - GRP | - Aluminium slats 77 & 55 |
Colours | - 26 attractively priced preferred colours - Golden Oak & Rosewood available on selected designs - RAL colours of your choice 9 Timber Finishes | - 16 attractively priced preferred colours - RAL colours of your choice - 4 wood finishes - 6 satin surfaces | - 26 attractively priced preferred Steel colours - Golden Oak & Rosewood available on selected Steel designs. - 16 attractively priced preferred colours 9 Timber Finishes - RAL colours of your choice - 4 wood finishes (DuoPort Only) - 6 satin finishes (DuoPort Only) | - 24 attractively priced preferred colours - 3 High Grade Woodgrain Laminate Finishes |
Glazing | Available on selected designs | Available | Available on selected designs | Vison Laths available |
Spring technology | Tension spring | - Tension spring - Torsion spring (in front) - Torsion spring (rear) | - | - |
Wicket door | - | - Without wicket door - With wicket door (opening outwards) - With wicket door (opening inwards) | - | - |
Opening method | - Manually operated (with handle) canopy or retractable. - Electric (with operator) retractable only. | - Manually operated (with handle) - Electric (with operator) - Electric (with app) | - Manually operated (with handle) | - Electric (with operator) - Electric (with app) |
