Automated Swing Entrance Doors
Automated Swing Entrance Doors
Our swing door applications are used across a wide range of commercial, retail, transport, educational and healthcare settings. The products within our range are offered in a variety of configurations, to enable our customers to tailor our products to the specific requirements of their projects – aesthetically designed with functionality, endurance, and robustness at the forefront.
Folding Access® Operator
The innovative folding design maximises passage width within a restricted structural opening, combined with a minimal swept area it is an ideal solution for entrance lobbies and corridors where space is at a premium. Folding doors have an increased wind-load capacity compared to swing doors.
Applications: Commercial premises, education, healthcare, leisure facilities, transport and retail.
Product Specifications
Design
Constructed using full frame sections for resilient operation in high traffic applications. Drive controls and operators are unseen, mounted within the extruded aluminium transom. Options include double glazing, midrails, fixed side screens and threshold free installations. Available as two or four leaf versions.
Finishes
Aluminium surfaces polyester powder coated to RAL/BS colour applied in our own facility. Anodised and bespoke finishes also available.
Operation
Controlled opening and closing movement is achieved with powerful DC motors and a microprocessor based control system. Door functions, settings and service routines are directly accessible to engineers without additional devices.
• Power: 240VAC, 50hz, 250W
• Hold open time: adjustable 0 to 30sec
• Adjustable door speed and torque
• Operation to BS EN 16005
Dimensions
Bespoke manufacture to meet project requirements.
Secure
All drives are designed to meet requirements of BS EN 16005. The folding design incorporates the built-in safety of a low closing force, threshold safety beams, presence sensing safety sensors and anti-finger trap design at all hinge points. Barriers ensure a safe approach to doorway.
Quality
Manufactured in the UK to accredited BS EN ISO 9001 quality management system and installed by BS EN 16005 accredited authorised engineers.
Emergency Breakout
Emergency Breakout
Emergency breakout allows doors to swing outwards at any point during door movement for emergency escape or movement of bulky goods.
Fully Automatic
Controlled opening and closing movement is achieved with powerful DC motors and a microprocessor based control system. Door functions, settings and service routines are directly accessible to engineers without additional devices.
Bi-Folding Options
Four Leaf Bi-folding
• Max Unit Width - 2.5M
• Passage Height - 2.1 to 2.5M
• Passage Width - unit with less ~500mm
• Break-out Opening - unit width less ~320mm
Two Leaf Folding:
• Max Unit Width - 1.3M
• Passage Height - 2.1 to 2.5M
• Passage Width - unit with less ~300mm
• Break-out Opening - unit width less ~200mm

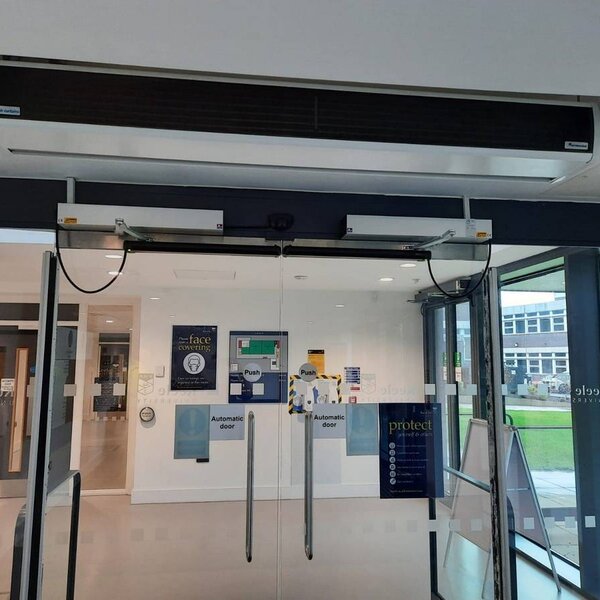

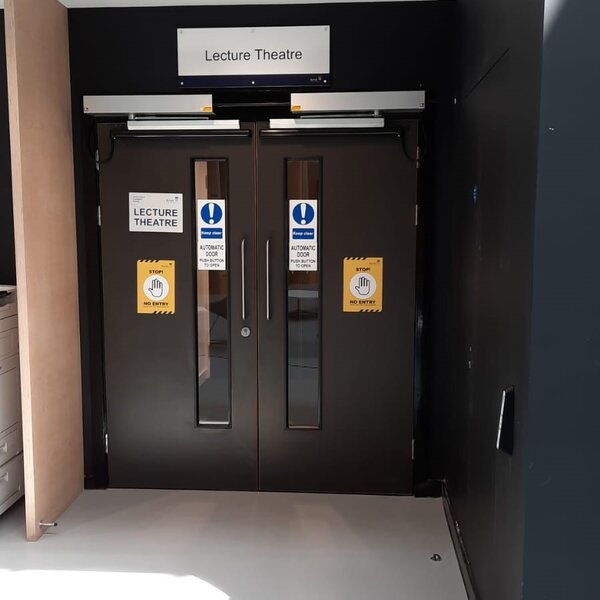

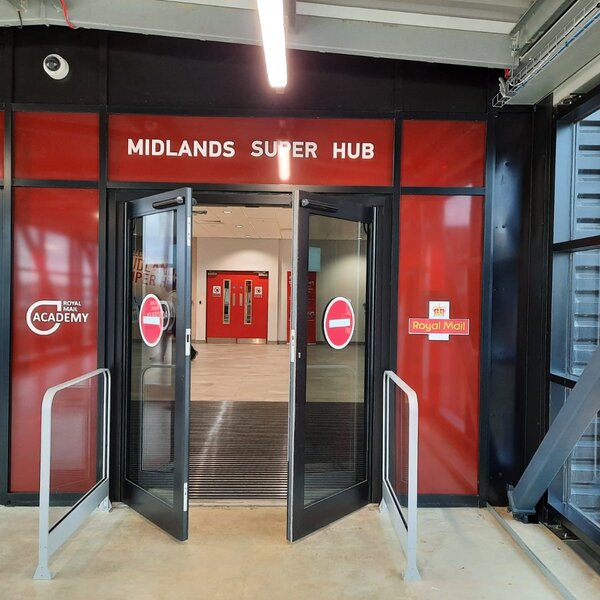

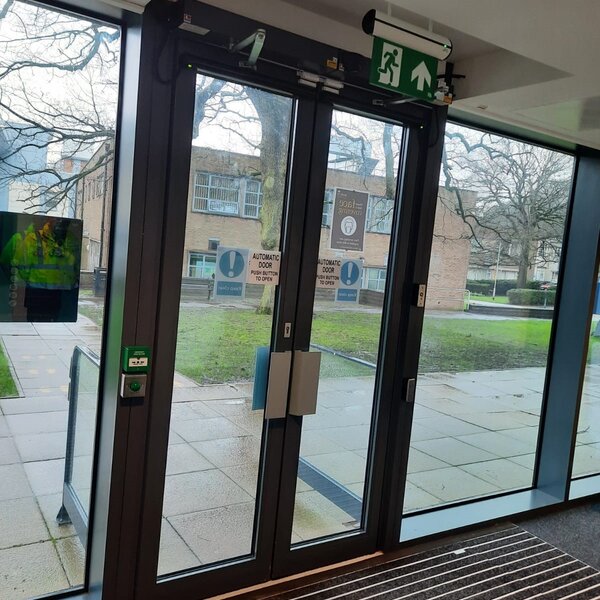

Thermal Commercial Swing Door Systems
Our 4100-Plus swing door system is a thermally efficient product. Typically for use on high footfall entrances – swing doors are the most widely used form of entrance door in the UK. Outward opening configuration ideal for escape routes. Cost effective,
Versatile and can be used in almost any entrance setting. Suitable for smaller structural openings where other door types are impractical. Swing door automation can also be retrofitted to internal doors, and existing external doors – providing a value for money solution for providing DDA friendly access into and around the building.
Applications: Commercial premises, education, healthcare, leisure facilities, transport and retail.
Product Specifications
Product Specification
Single Door | Double Door | |
|---|---|---|
Maximum Width | 1100mm | 2200mm |
Maximum Height | 2500mm | 2500mm |
Jointing | Mechanical | Mechanical |
Internally Beaded Option | Yes | Yes |
Glazing Options | Will accept insulating glass units and Infill panels 28-47mm thick | |
Finishes | Mill Finish / SAA Polyester Powder Coat Paint Finish | |
Option | Single or Dual Colour to any RAL/BS Colour | |
Design Standards | BS EN 12020-2:2001 Aluminium and aluminium alloys, extruded precision profiles. BS 3987:1991 Specification for anodic oxide coatings. BS EN 12206-1:2021 Paints and varnishes, coating of aluminium and aluminium alloys. BS 4873:2016 Specification for aluminium alloy windows and doorsets. BS EN 14351-1:2006+A2:2016 Windows and doors, performance characteristics. BS EN ISO 10077-2:2017 Thermal performance of windows, doors and shutters. PAS 24:2016 Enhanced security performance requirements for doorsets and windows | |
Applications | Manual or automatic (With the 4100-Plus Operator) | |
Manual Locking | Single or multi-point manual locking | |
Electric Locking | Single or double maglocks ES8000 Trimec V-Lock (PAS24 Compliance on a single door in the electrically locked state). Single electric strike lock | |
Automatic Options | Radar, Push button, Touchless switches, Access Control compatible | |
Safety Barriers | Available supplied & fitted: Aluminium powder coated with glass Infill panel, freestanding or wall to floor mounted. Stainless steel with glass Infill panel, freestanding or wall to floor mounted. Bollards with integral push to open buttons also available | |
Energy Efficiency
The use of thermal breaks in an aluminium frame reduces the heat transfer, resulting in a more energy efficient building.
Durability
Aluminium is a heavy-duty, lightweight material able to withstand hard weather conditions, ensuring longevity and robustness.
Aesthetics
Aluminium doors are versatile, able to be customised to fit any design style, with the option of a range of colours and finishes.
Accessibility
Aluminium doors are easy to operate and can be fitted with a variety of hardware options, such as automatic operators to provide ease of access to all users.
Sustainability
Aluminium is a highly recyclable material, making it an eco-friendly option for buildings.
Systems
Manual swing: Thermally broken manual swing door systems in single and paired configurations
Automated swing: Thermally broken automated swing door systems combining the heavy-duty kestrel doors with our 4100-Plus automation. Available in single and paired configurations
