Sectional Overhead Doors
Sectional Overhead Doors

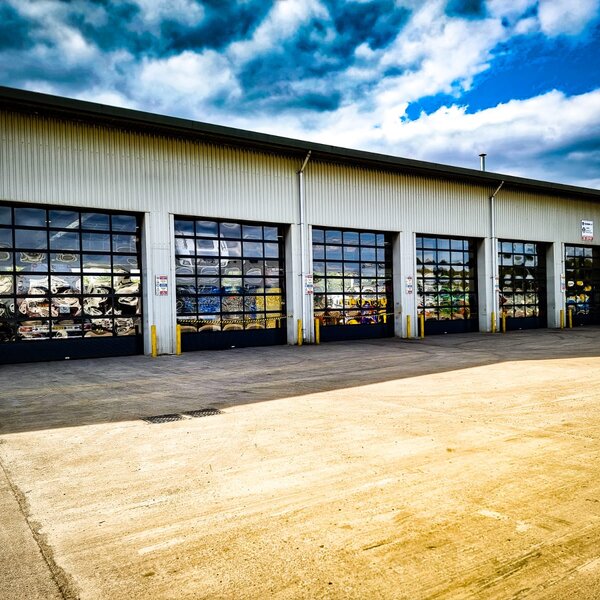

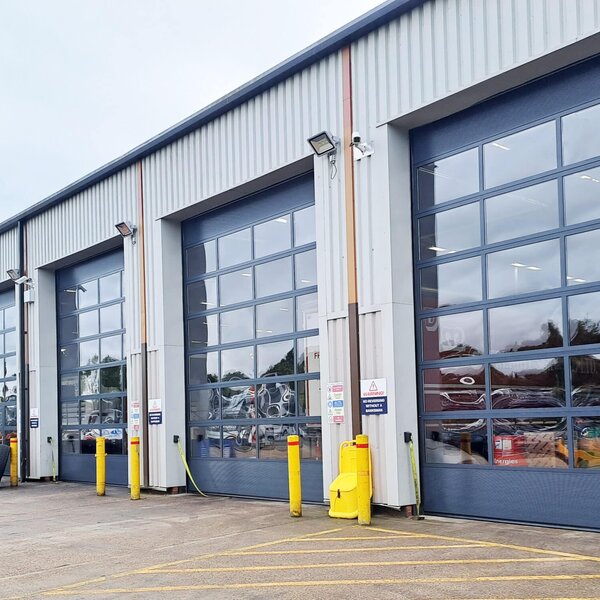

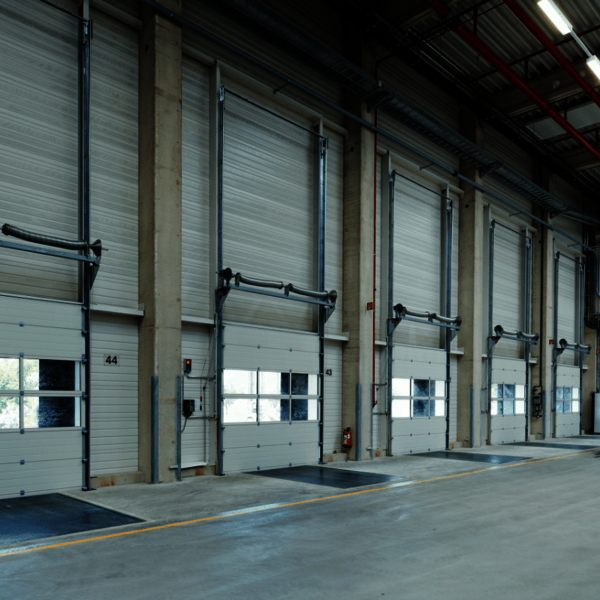

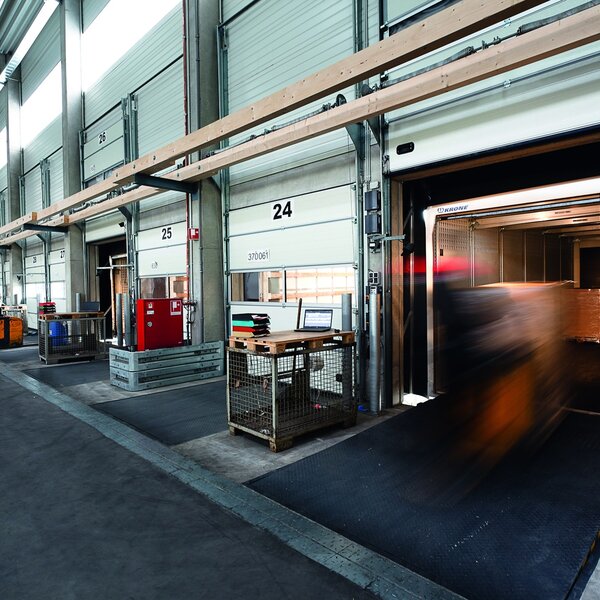

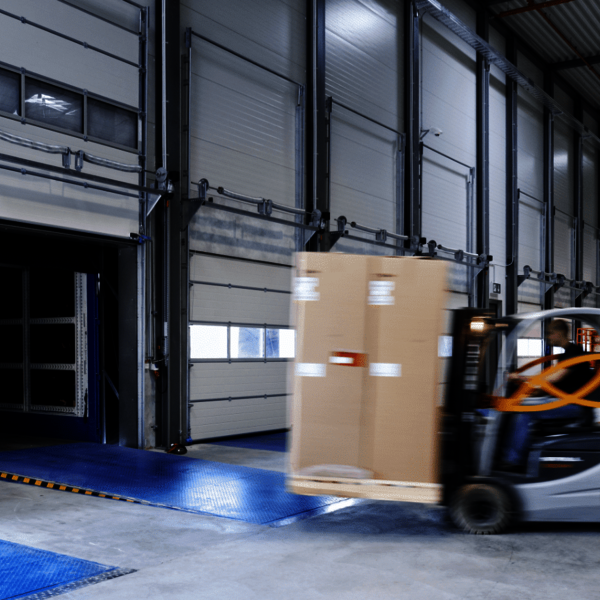

Sectional overhead doors are a vital part of any commercial or industrial setup. Not only are they important for providing quick and convenient access, but also for keeping out intruders and maintaining the internal environment.

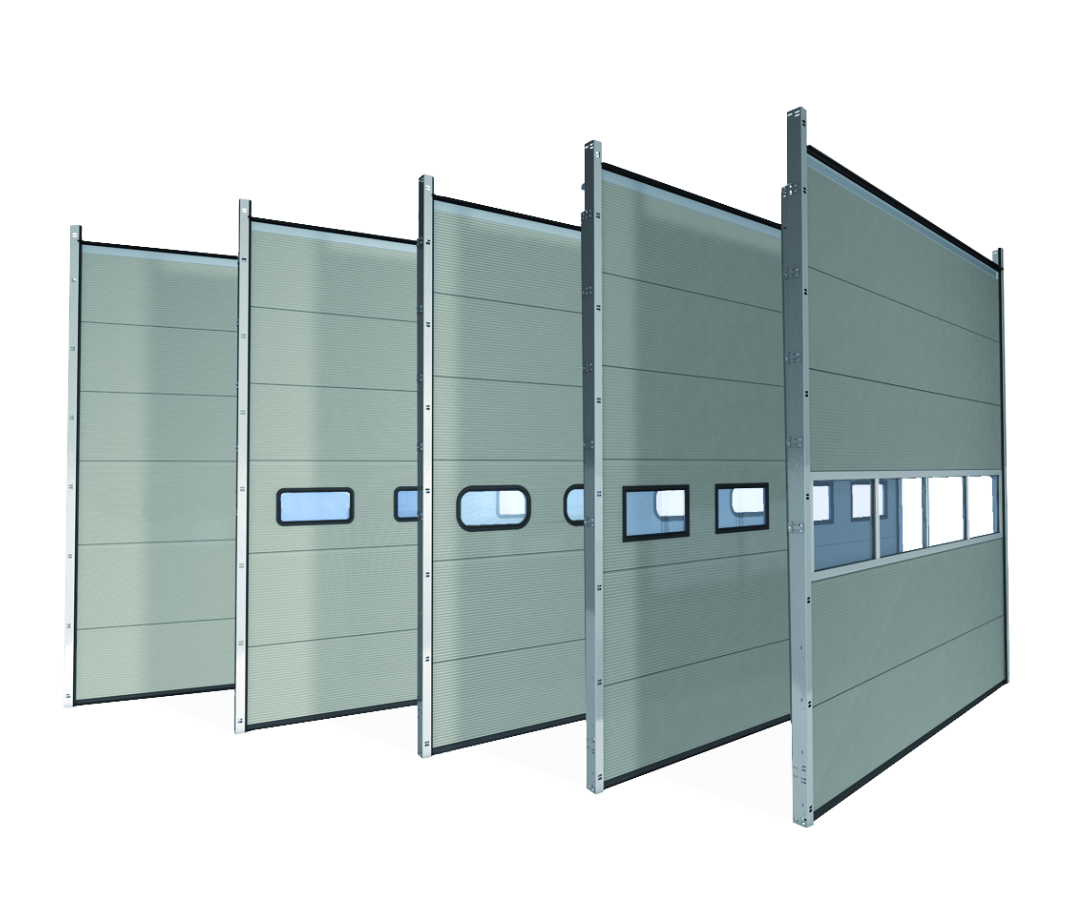

ISO 40 mm sectional doors are engineered with cutting-edge technology to deliver exceptional durability and attention to detail. Metal or aluminium end caps, integrated reinforcement profiles, and concealed anodized aluminium sub-profiles ensure a robust construction and refined finish. The versatile manufacturing approach prioritises flexibility, resulting in a product that excels as a true all-rounder, balancing competitive pricing, high performance, and broad application possibilities.

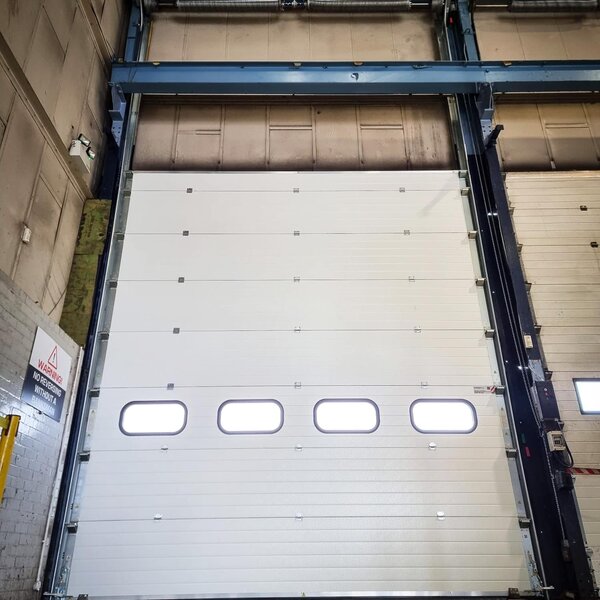

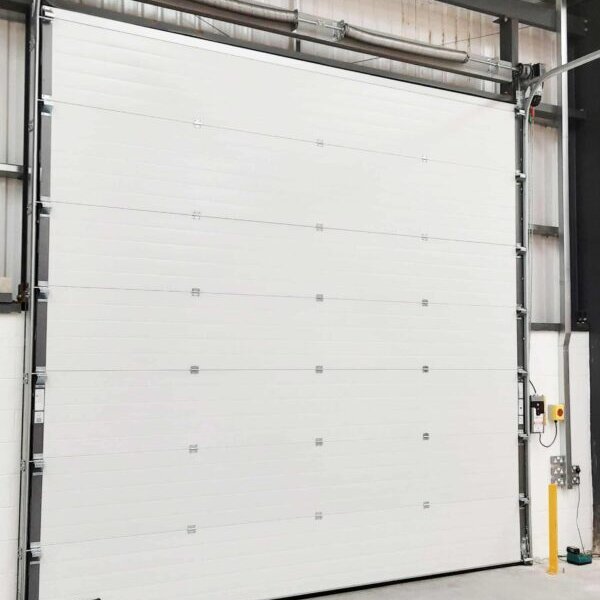

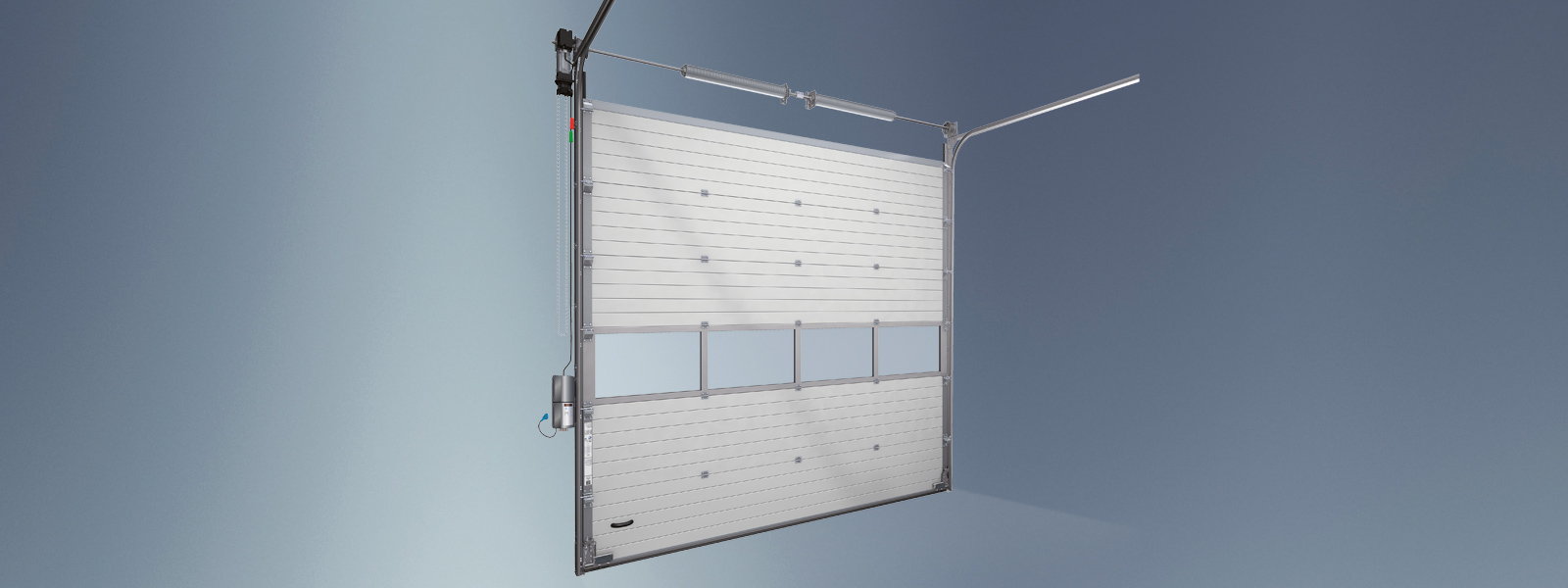

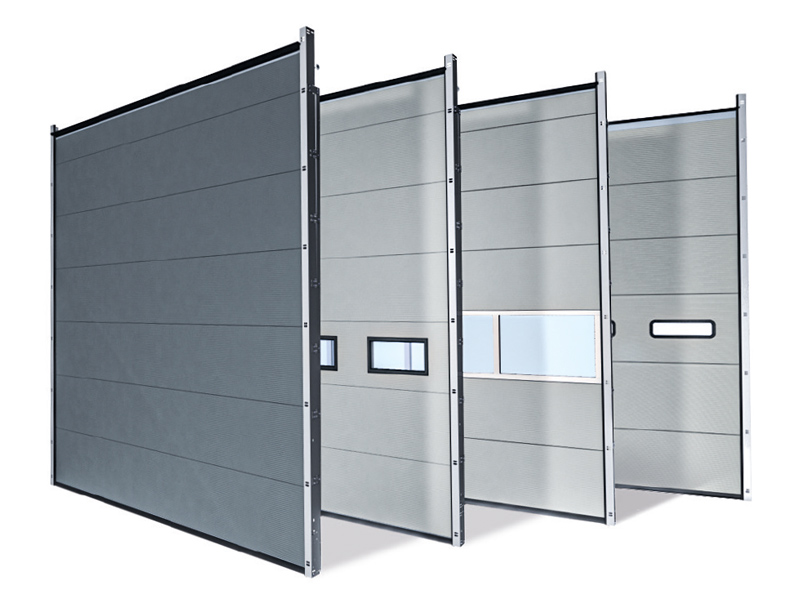

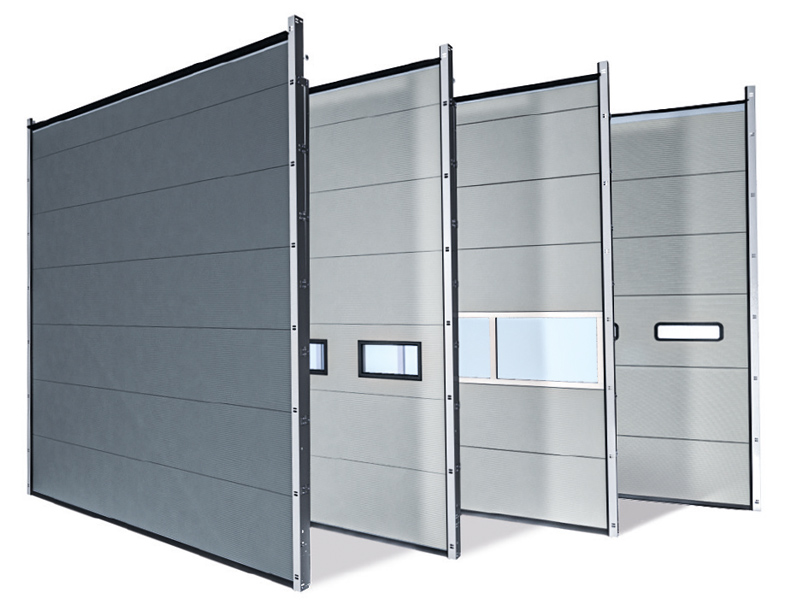

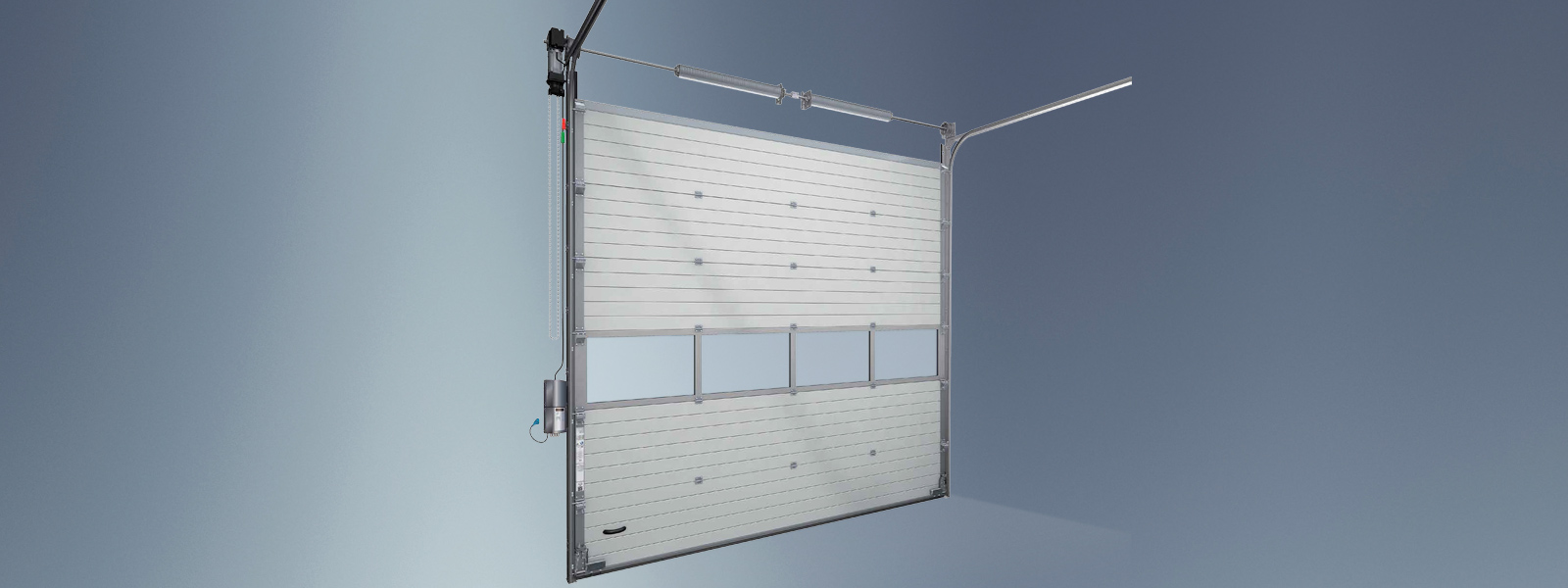

The ISO 40 mm industrial sectional door, combines excellent heat-insulation and sound-absorbing properties with modern design.
Product Specifications
Product Specifications

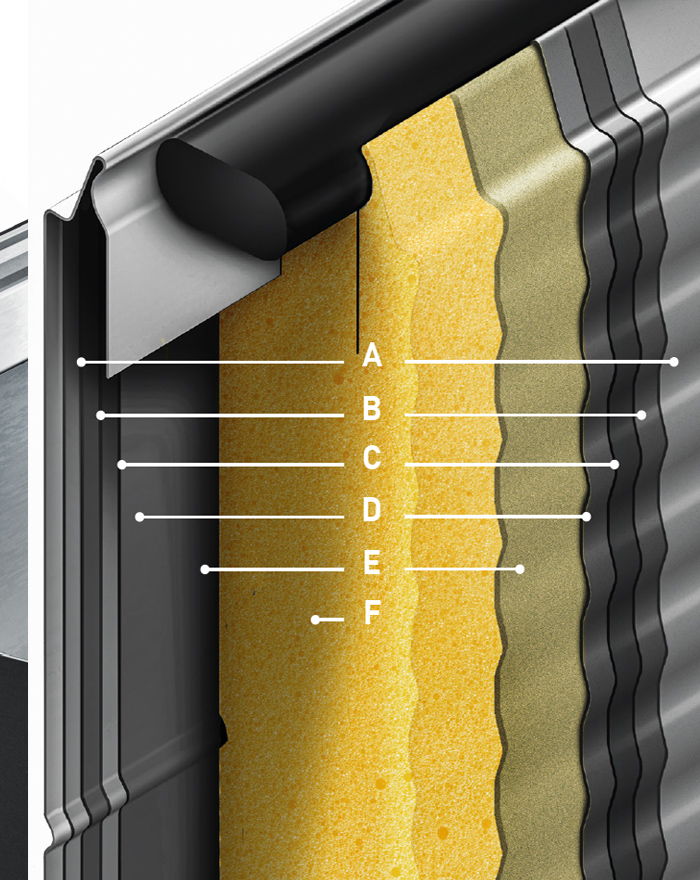

Product Specification | |
|---|---|
Panel Thickness | 40mm |
Insulation Value | U = 0,52 W/m²K |
Specific Density PU Foam | 40 kg/m³ |

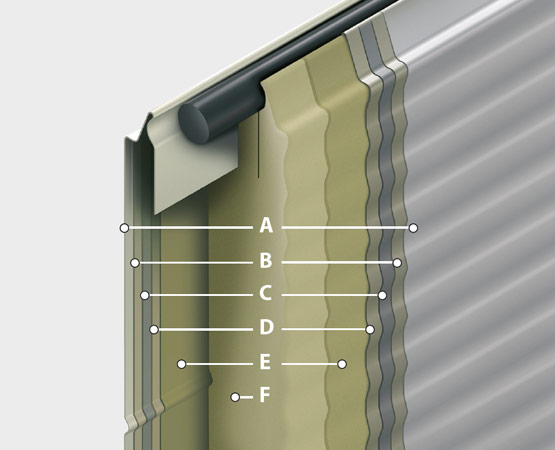

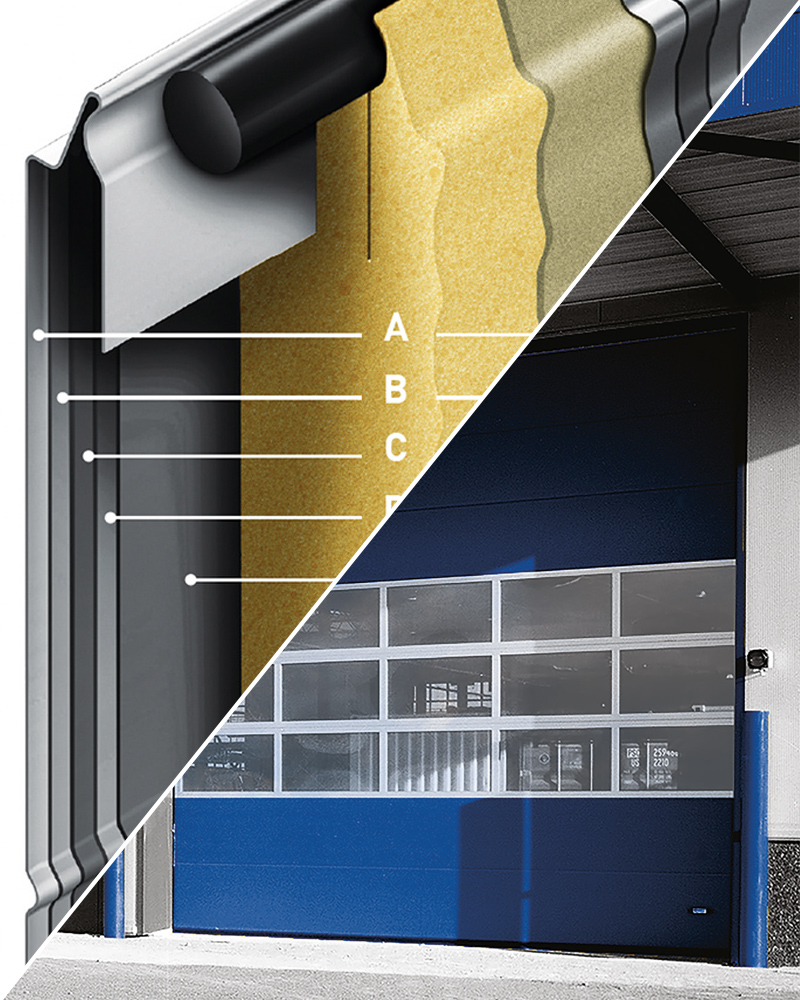

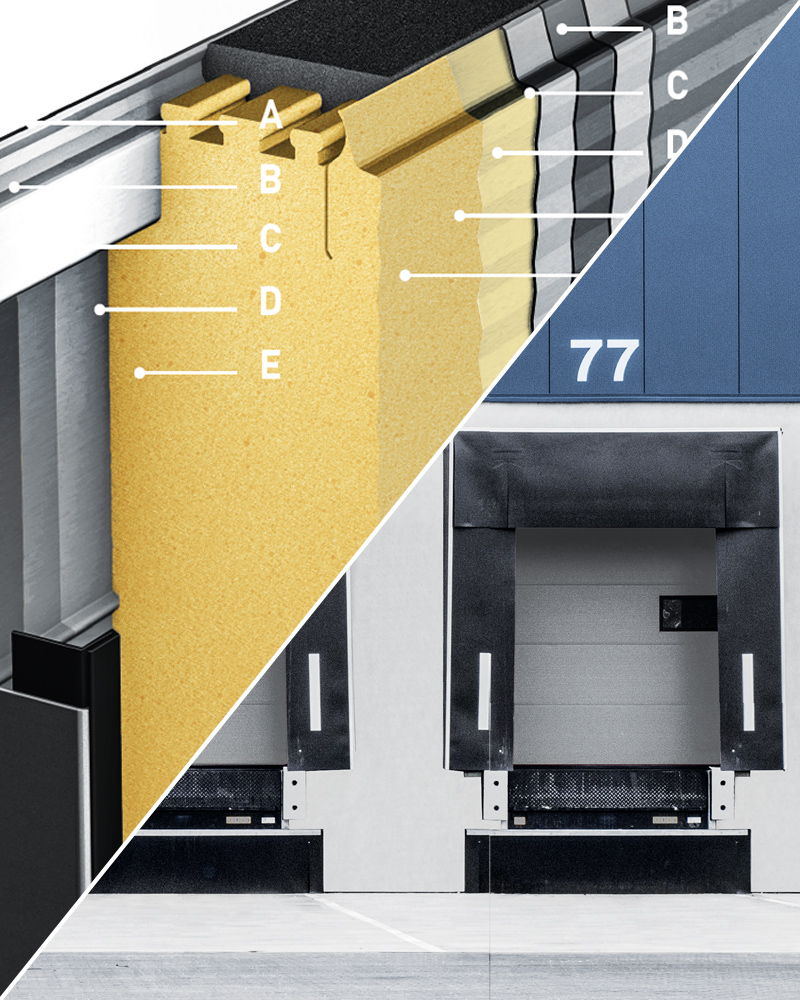

(A )Paint Layer | 19 standard colours (outside) |
(B) Zinc Coating | 275 g/m² |
(C) Steel Sheet | 0.5 mm |
(D) Zinc Coating | 275 g/m² |
(E) Primer coating |
|
(F) PU High Density Foam | g = 40 kg/m³, CFK and H-CFK free |
(A) Paint Layer | RAL 9002 (outside) |

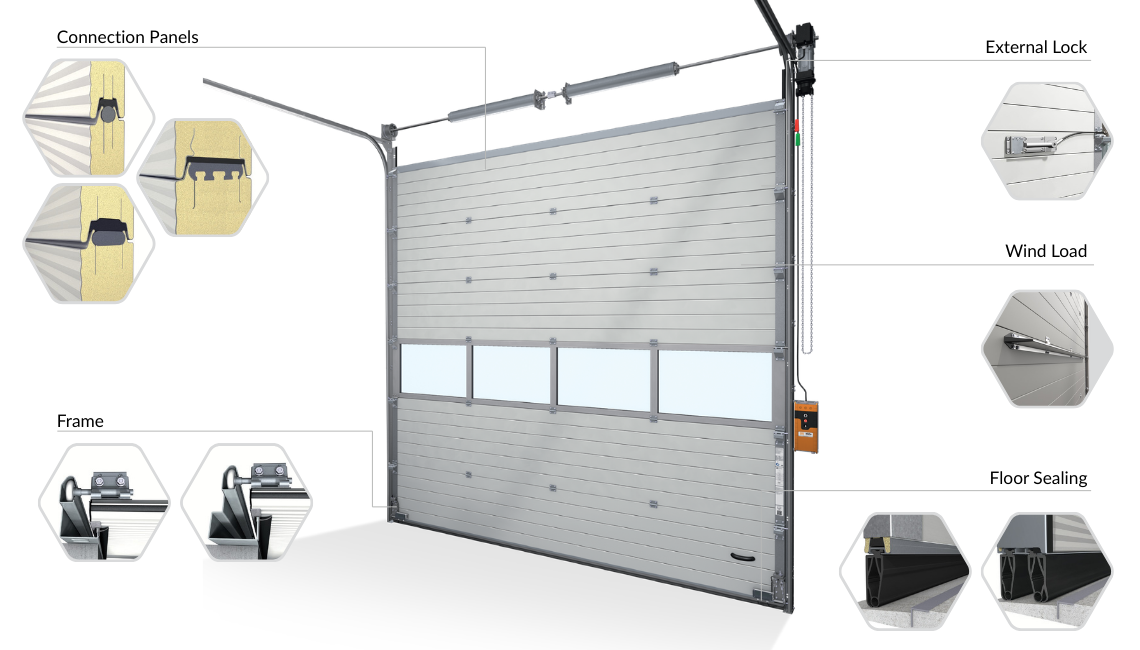

Door Structure
ISO 40 - External Lock
External lock for every situation. Depending on the panel thickness, the type of cylinder, and the desired locking position, an external lock can be customised to meet these specific requirements and preferences.
Connection Panels

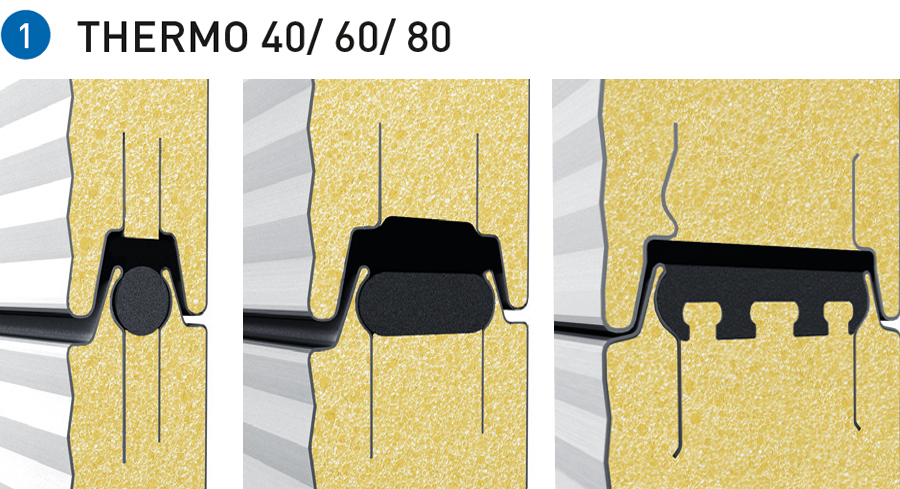

The connection joint between the panels of ISO 40 doors is both wind and watertight, thanks to a foam rubber cord placed between the panels. This design ensures that the inner plate of the door remains separated from the outer plate, which contributes to optimal insulation.

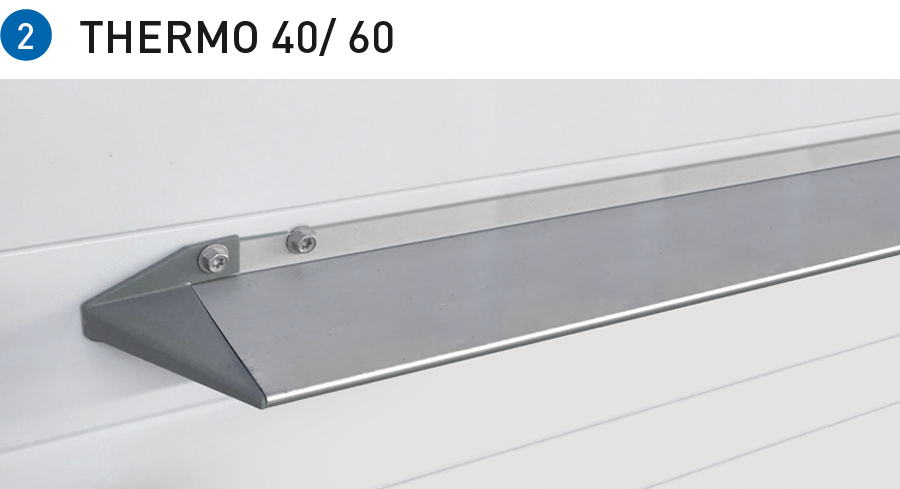

ISO 40 - Wind Load
Depending on the door’s width, Novoferm has reinforced it with specialised proles. These reinforcement proles ensure that the door meets all relevant regulations and standards regarding resistance to heavy wind loads.

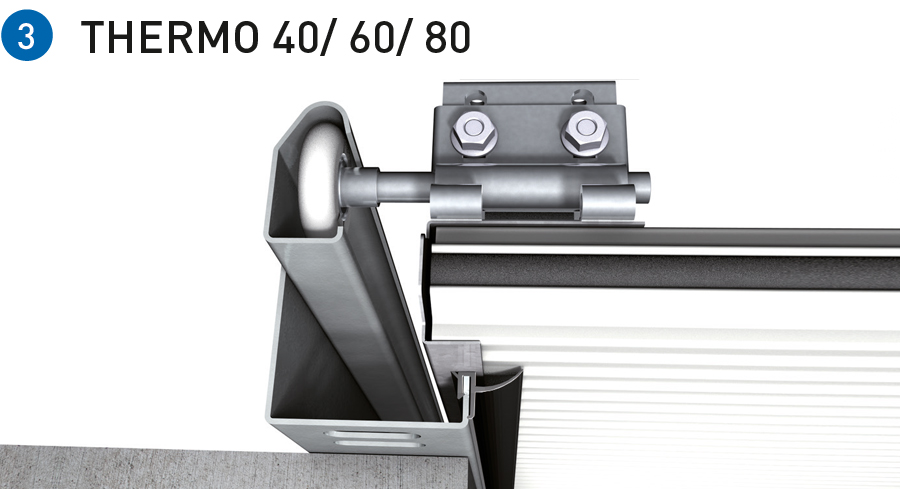

ISO 40 - Standard Frame
The connection between the door leaf and the vertical tracks in a standard corner frame ensures a strong, tight seal between the side of the door and the building. This design prevents gaps and enhances the overall durability and insulation of the door system.
ISO 40 - Heavy-duty Frame
This frame is used for doors with dark colours to prevent the door from warping due to sun exposure. When heated by the sun, the door can bow outward, potentially impacting the upper lintel. The heavy corner frame effectively prevents this from happening, maintaining the door‘s structural integrity.
