ISO 45 Sectional garage doors by Novoferm are constructed of 45mm insulation and provides energy efficiency, safety, design and quality, all in a single, wish-fulfilling product, making them an ideal choice for contemporary residential properties.
Do you have the highest demands? Do you always want to get the best out of everything?
With the Evolution premium sectional door, that's exactly what you get: the new door offers you maximum energy efficiency, security, quality and the widest choice of finishes and colours in a package that makes you happy.
Then opt for Evolution premium sectional doors with 45 mm insulation from Novoferm!
Premium door with thermal break
Novoferm ISO 45 sectional garage doors have a 45 mm thick insulating hard foam core for particularly high thermal insulation. It has up to 17% better insulation* compared to doors in a similar series (only from Novoferm).
Large selection of door designs / finishes
Novoferm Evolution premium sectional doors are available in all 5 door designs, numerous surfaces and in almost all modern and industry popular RAL colours - to match your house architecture.
SmartHome-capable / Innovative
Compatible with the Novoport Speed, side mounted operator. Instead of being fixed to the ceiling, this is integrated into the side door track. Smart home compatibility is available with this product.
Novoferm Evolution premium sectional doors are available in all 5 door designs, numerous surfaces and in almost all modern RAL colours to match your house architecture.
Our ISO 45 Evolution premium sectional doors are available on request in a discreetly grained woodgrain finish and in an elegant smooth surface finish, in 16 super colour finishes from our colour range, in four wood effects, six modern satin surface finishes, four Microline finishes and any RAL Colour.
Experience more colour and variety

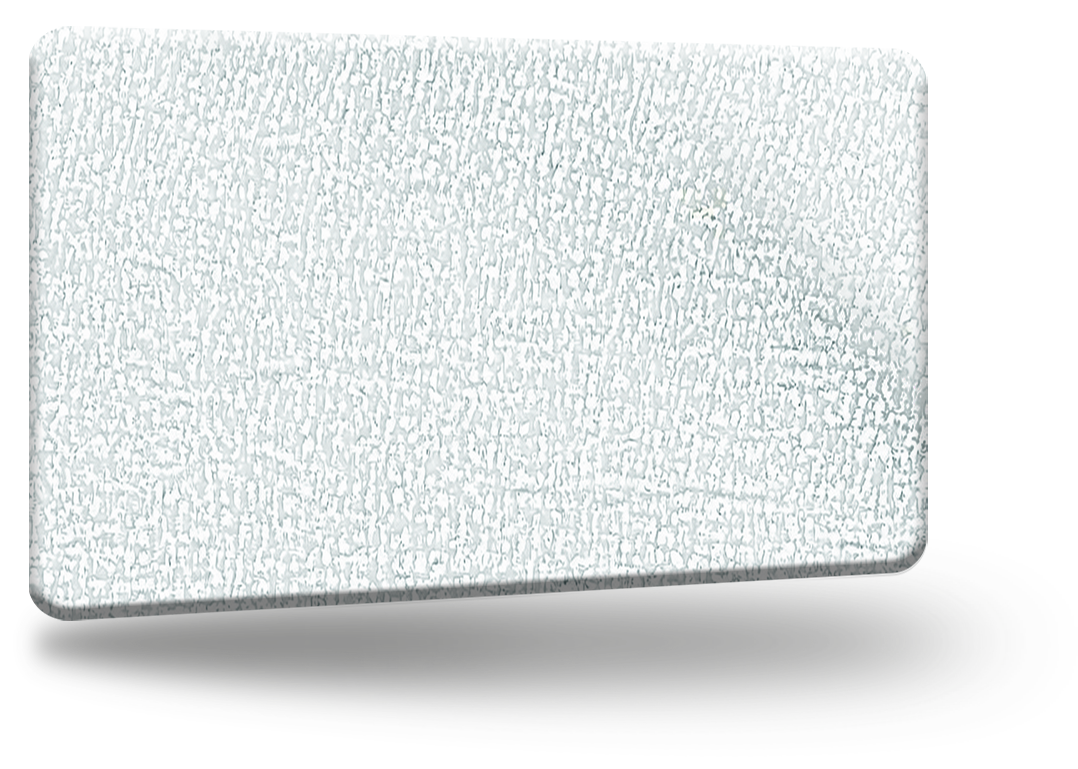

With our surfaces in a discreetly grained woodgrain texture or the elegantly smooth surface, you can choose between 16 attractively priced preferred colours and almost all RAL colours for further customisation.
Our ISO 45 Evolution premium sectional doors are also available on request in 4 surfaces with an authentic rustic timber look. The surfaces are end-coated and weather-resistant. The wood finishes are available in the door designs Large Rib & Flush.
Our Evolution ISO 45 sectional garage doors are also available in six decorative, end-coated, semi-gloss satin surfaces with low soiling tendency and special weather resistance.

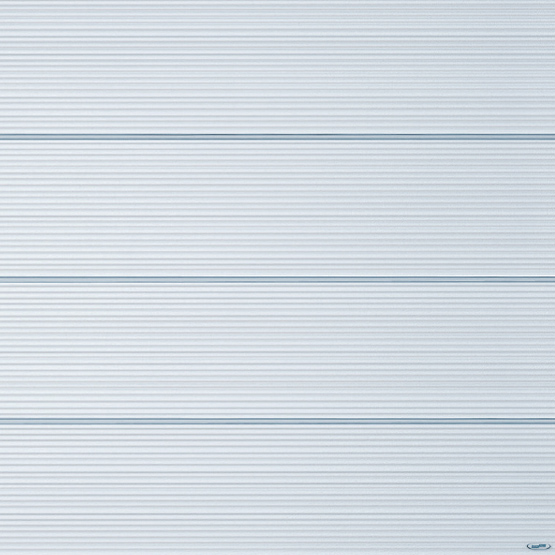

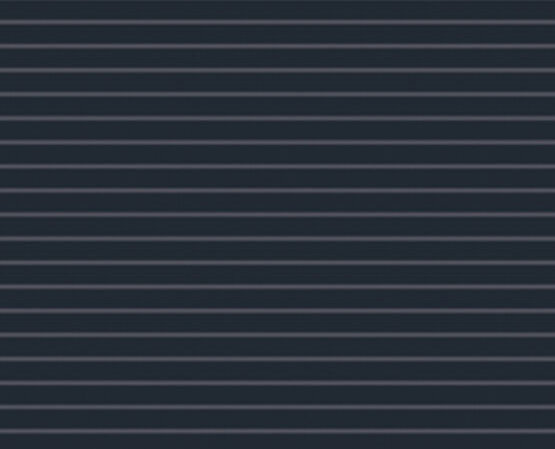

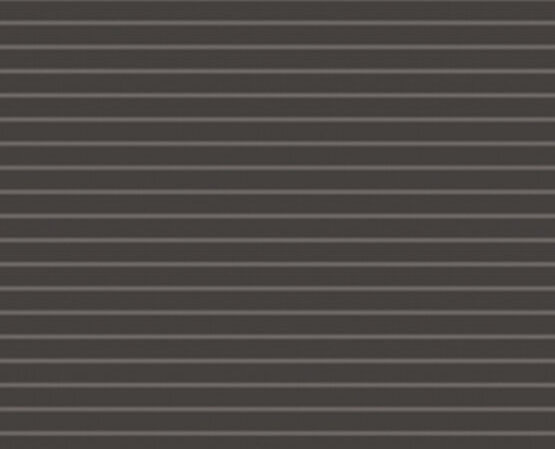

Our popular Microline door design in satin white, satin grey, satin dark grey and satin window grey is available exclusively for the Flush style on Evolution premium sectional doors with 45 mm insulation.
This is a modern, profiled wave structure that stands out with an expressive light/shadow effect.
DO YOU WANT MORE LIGHT IN YOUR GARAGE?
Have you already considered a door in a certain style and colour, but it's not yet individual enough for you?

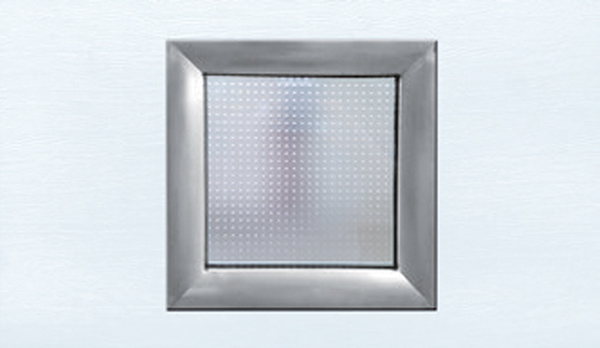

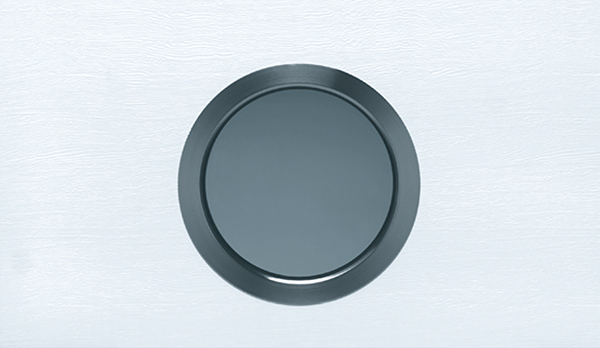

Then take a look at our attractive glazing options. They not only draw attention to your garage, but also let the light in. This is particularly convenient if you also use your garage as a hobby room or workshop. All Novoferm glazing is made of weather-resistant acrylic glass or impact-resistant polycarbonate and is characterised by maximum light transmission.
To put your garage door in the right light even after sunset and also to deter unauthorised personnel, we recommend the LED lighting kit. It creates an exciting dialogue with other light sources, e.g. illuminated windows, and sets the scene for the overall architecture of your home. Depending on the door width, the lighting kit consists of four, six or eight LEDs, which are evenly distributed across the entire width of the door in a U-shaped track. They can be controlled either via the hand-held transmitter, which you also use to operate your operator, via a separate timer or a motion detector.
The flat, aluminium-coloured LED lighting kit (40 x 20 mm) is installed under the garage lintel to save space, so that almost the full clearance height is retained. Long-life LEDs ensure very bright illumination with minimal power consumption. Depending on the door width, the lighting units can be easily shortened on both sides to achieve exact symmetrical illumination of the door.
We believe that burglary protection and energy efficiency belong together. That's why the Novoferm Evolution premium sectional doors are now also available in a burglar-resistant version (resistance class RC 2 in accordance with DIN/TS 18194:2020-07). It has been proven that mechanical security systems on garage doors successfully ward off burglary attempts: Well over a third of all break-ins get stuck at the attempt stage because the door cannot be forced open quickly enough. So if you want to protect your garage with an appropriate door, you are on the safe side with burglar-resistant sectional garage doors from Novoferm. In combination with the Novomatic 423 or Novomatic 563 S overhead openers, the sectional garage door can achieve resistance class RC 2.
*BR2 security rating is only available when supplied with a burglar resistance kit.
Novoferm recommends buying a garage door together with a garage door opener, because anyone buying a new garage door today not only wants it to look good, but also wants it to open easily. With an electric operator, you can raise the comfort level of your garage at the touch of a button and eliminate inconvenience - simply by clicking on the radio remote control or control with an app.
All Novoferm operators are tested in combination with Novoferm doors. This guarantees maximum functional reliability and durability. And thanks to the practical emergency release, you can always get in even if the power fails.
Select your electric door operator:

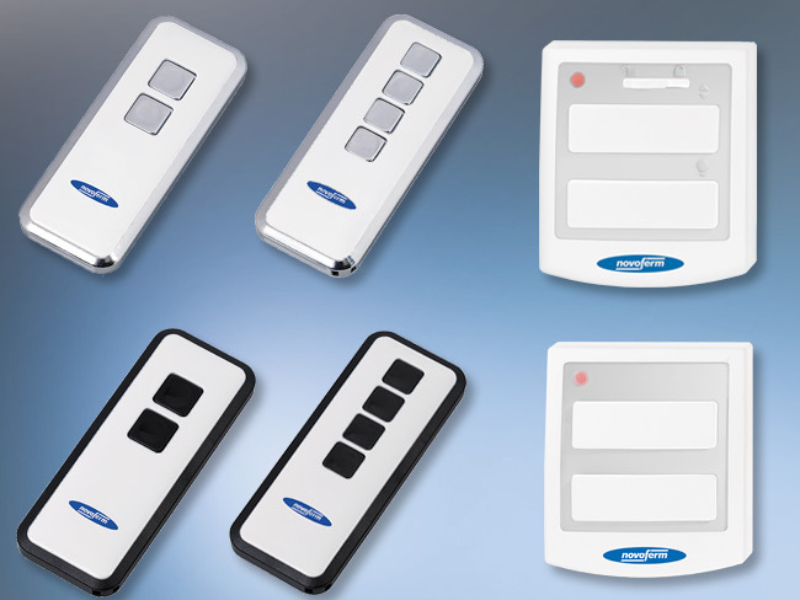

The right accessories are also part of the desired equipment.
Because people have different wishes and because the structural conditions of a garage or sliding door are not always the same, we offer a comprehensive range of accessories with which you can equip our systems to suit your individual requirements.

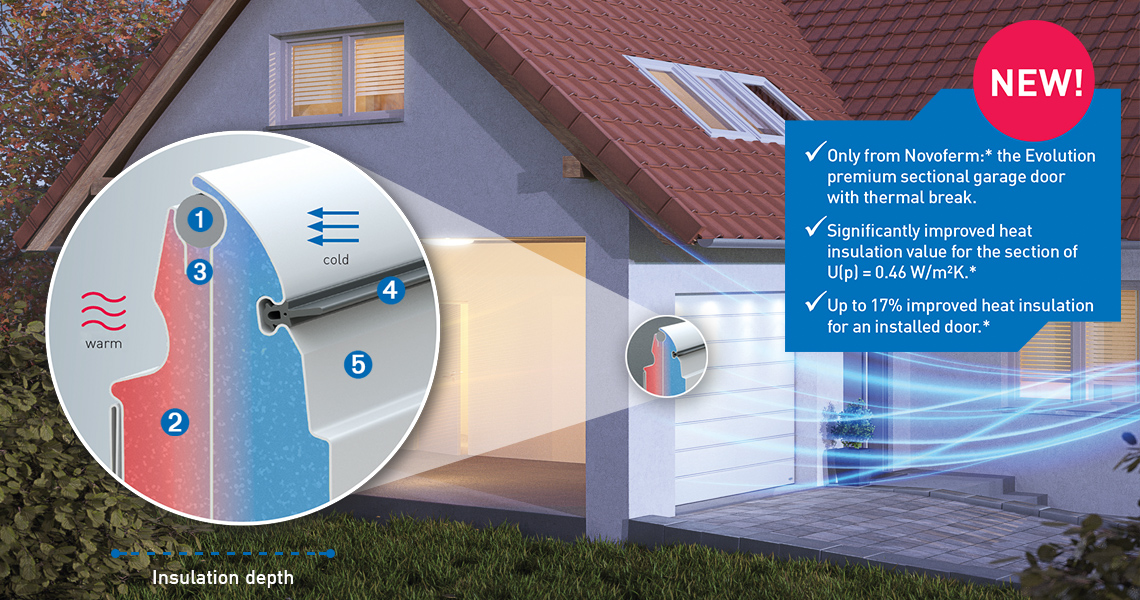

(1) Additional seal in the section head.
(2) The new, optimised steel sections are manufactured exclusively in double-walled, thermally separated sandwich construction with a thickness of 45 mm.
(3) Thermal separation of the outer and inner shell of the door. This minimises heat loss.
(4) Additional insulating seal between the sections for even better thermal insulation.
(5) High-quality coated outer shell in thousands of colour, surface and motif combinations.
*With respect to door solutions with comparable section thicknesses. Performance dependent on door pattern and size

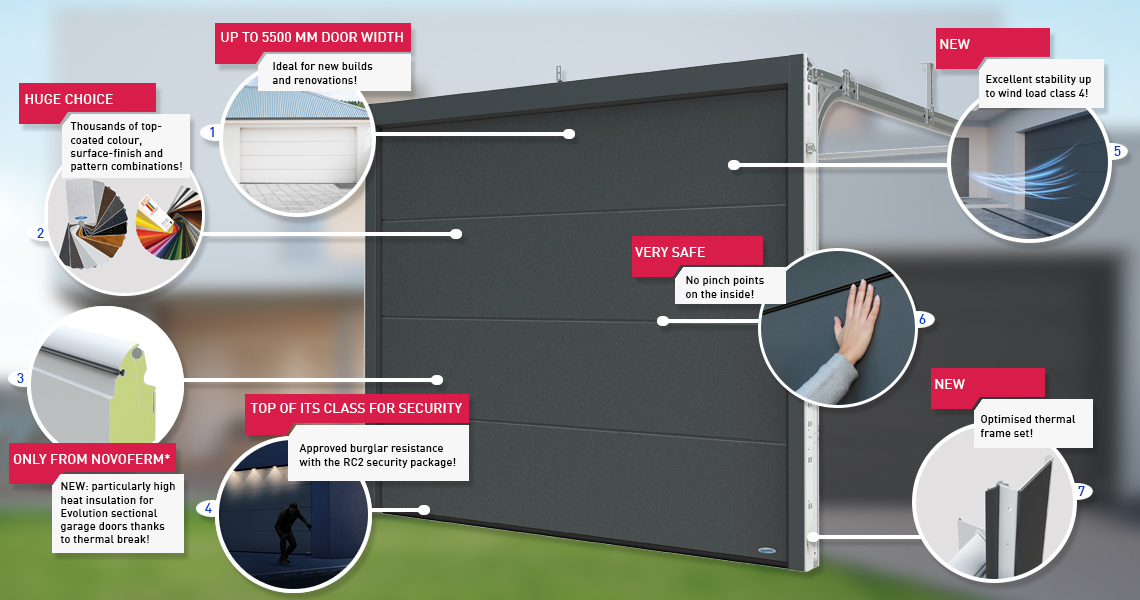

(1) For modern private garages up to 5,500 mm wide
The Evolution premium sectional door is ideal for private garages and double garages up to a width of 5.50 m for new builds and renovations.
(2) Largest selection and variety of features
Choose between all motifs, surfaces, colours (RAL of your choice) and many other features from the Novoferm range! The majority of surfaces and colours are end-coated. This makes them less sensitive to external influences.
(3) New: double-walled and thermally optimised
The new, optimised steel sections are manufactured exclusively in a double-walled, thermally separated sandwich construction with a thickness of 45 mm.
This enables them to achieve a particularly high thermal insulation value of U(p) = 0.46 W/m2Kin the range of door solutions with comparable section thicknesses.
(4) Approved burglar resistance with the RC2 security package
With the Evolution premium sectional door, you can protect your home even better:
The premium door is optionally available in a burglar-resistant version with resistance class RC 2 in accordance with DIN/TS 18194:2020-07.
(5) New:
Quality that stands the test of time
High-quality materials, first-class workmanship and coordinated components characterise the Evolution premium sectional door - naturally "Made in Germany"!
The high manufacturing quality guarantees a high level of stability that can withstand a class 4 wind load (144 km/h).
(6) Finger pinch protection inside and outside
The special design of the sections and hinges prevents pinch points on the door leaf from the outset.
(7) New:
Thermo frame set in new design
The new, optimised thermo frame set improves thermal insulation by up to 15 % (when installed behind the opening) thanks to the 3-sided thermal optimisation and the double seals. This performance value depends on the door motif and size.
The new thermal frame set therefore actively supports the optimisation of the performance balance of the entire building.

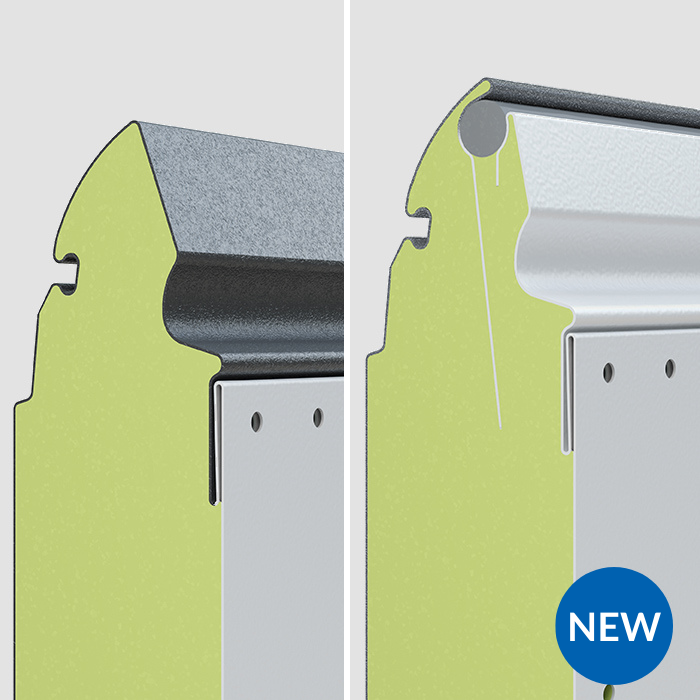

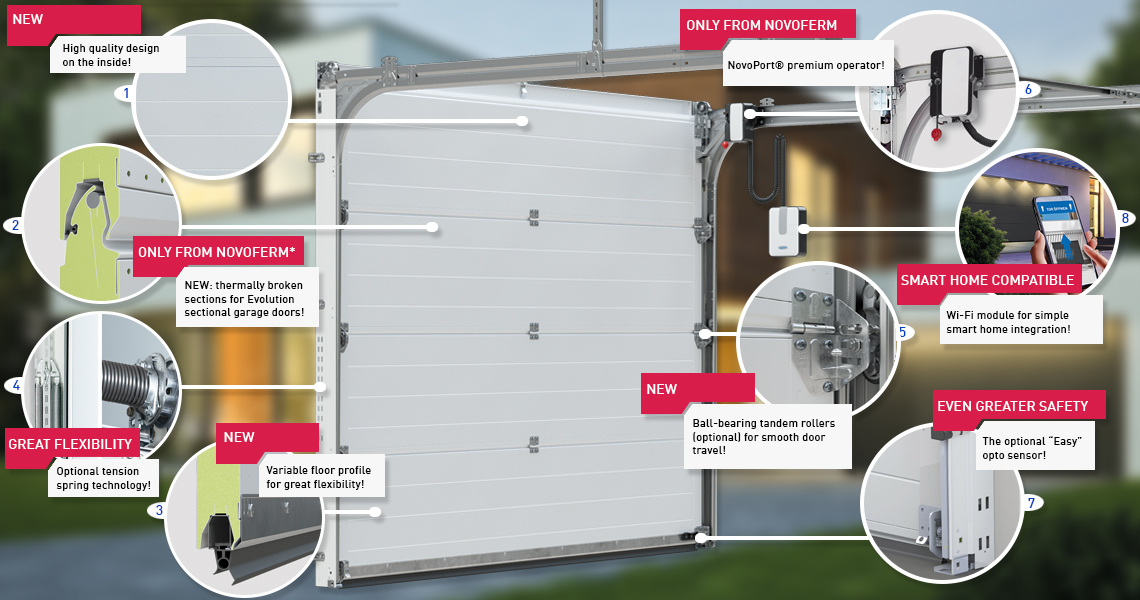

(1) New: Harmonious appearance of the inside of the door
The Evolution premium door offers a visual highlight with its harmonious appearance on the inside of the door. The surface is finished in traffic white (similar to RAL 9016). In addition to the profiles and section end caps in RAL 9016, the outer colour of the door is no longer visible on the inside at the door transition.
(2) New: thermal separation
The exclusive, thermally separated sections with insulating hard foam core and additional seals between the sections ensure even greater thermal insulation*.
(3) New: variable floor profile
The new floor profile on the bottom edge of the door compensates for minor unevenness in the floor of up to 10 mm and ensures high flexibility during installation thanks to slotted holes.
(4) High flexibility: Optional spring technology
The Evolution premium door can be fitted with either multiple tension spring packages or torsion springs. The vertical tension springs enable a low installation height (in combination with a low lintel) and offer many options where space is limited. For large sizes, the door is fitted with torsion spring shafts, either at the front or rear.
(5) New: tandem rollers with ball bearings
High-quality tandem rollers with ball bearings optionally ensure extremely smooth and even door operation.
(6) Only from Novoferm: NovoPort® premium operator
The NovoPort® operator system with integrated internal pushbutton and door status display via hand-held transmitter ensures maximum convenience. The innovative, flexible side installation, optionally on the right or left, eliminates installation obstacles from the outset. This leaves the ceiling free.
(7) Even more safety: "Easy" photocell.
The optional "Easy" safety photocell detects obstacles and people and interrupts the door closing process in case of doubt.
(8) SmartHome compatible
In combination with the new Novoferm WiFi modules, the SmartHome-compatible garage door openers from Novoferm enable easy integration of the door control unit into your existing SmartHome system. Our technology is compatible with common systems. The functions can be controlled via app or voice control via Amazon Alexa and Google Home.**
* In the area of door solutions with comparable section thicknesses.
** Hardware and functions depend on SmartHome systems, components and release.
The surface of the inside of the door is finished in traffic white, similar to RAL 9016. In addition to the profiles and section end caps in traffic white, similar to RAL 9016, the outer colour of the door is no longer visible on the inside at the door transition.
The picture on the right shows the uniform colour gradient on the inside of the new EVOLUTION ISO 45 premium sectional door using the head section as an example in comparison to conventional door solutions.
The new optimised steel sections are manufactured exclusively in a double-skinned, thermally broken sandwich construction with a thickness of 45 mm.
With additional seals between the sections, they achieve a particularly high heat insulation value of U(p)= 0,46 W/m2K with respect to door solutions with comparable section thicknesses.

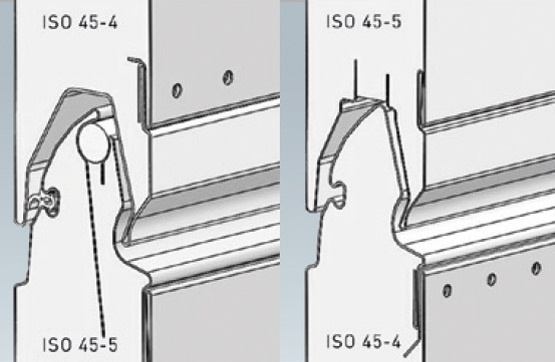

The new, thermally separated sections are compatible with the ISO 45 sections of the previous series.
Backwards compatibility is guaranteed thanks to the proven ISO 45 section geometry.

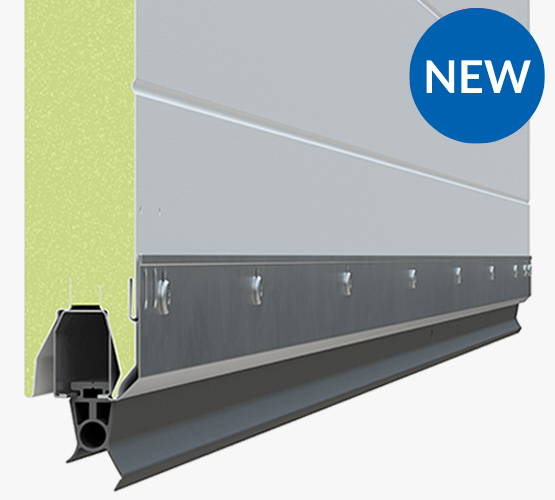

The new factory-fitted floor profile compensates for uneven floors of up to 10 mm, making it easier to install the door safely.
The 15 slotted holes in the bracket ensure a high degree of flexibility in the event of slightly uneven floors.

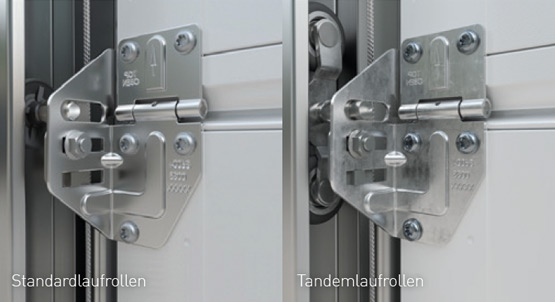

As an optional variant, the EVOLUTION ISO 45 premium sectional door can be fitted with high-quality, ball-bearing tandem rollers for smooth running for a small additional charge.

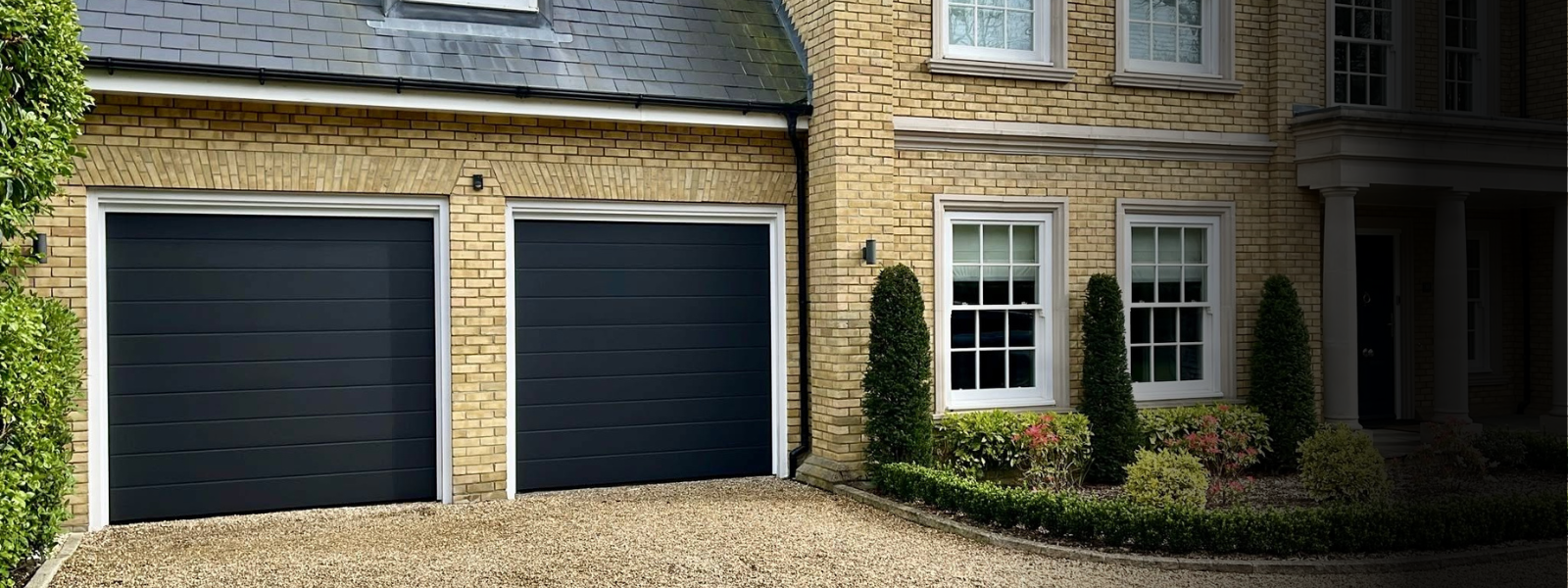

ISO 45 Sectional garage door
Door Design: Large Rib Smooth
Colour: Satin Black

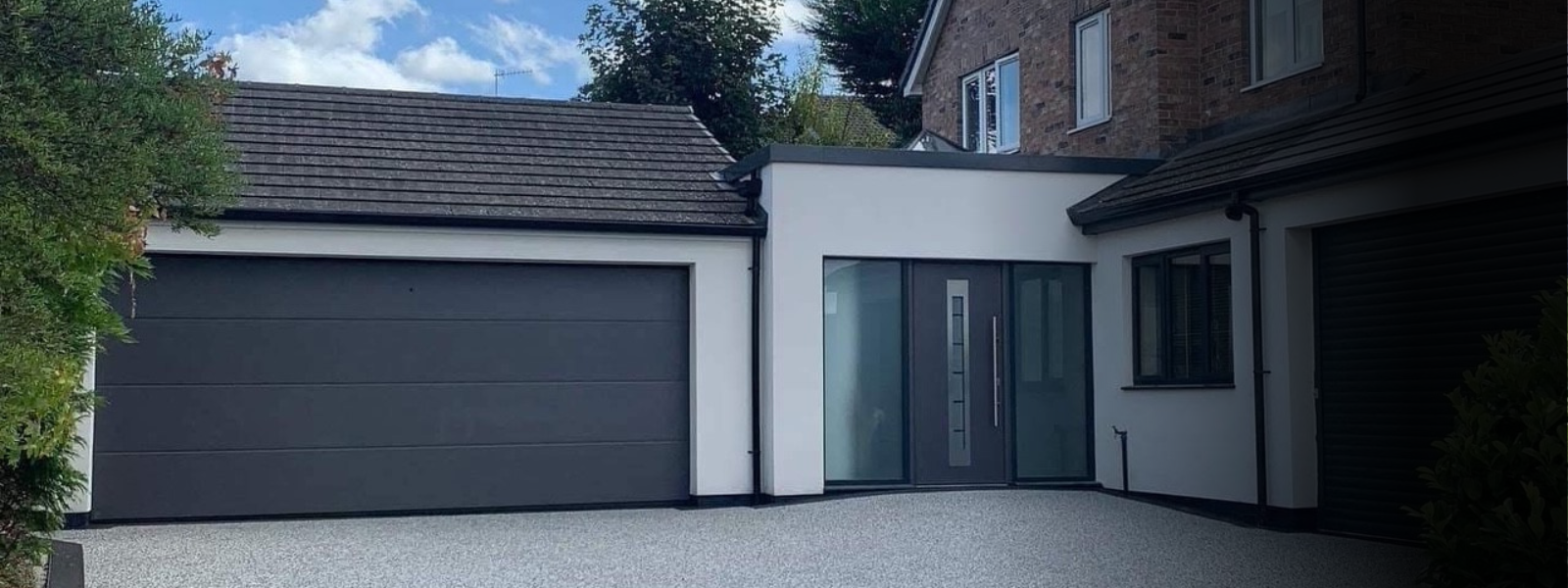

ISO 45 Sectional garage door
Door Design: Double Flush Smooth
Colour: Anthracite Grey (RAL 7016)

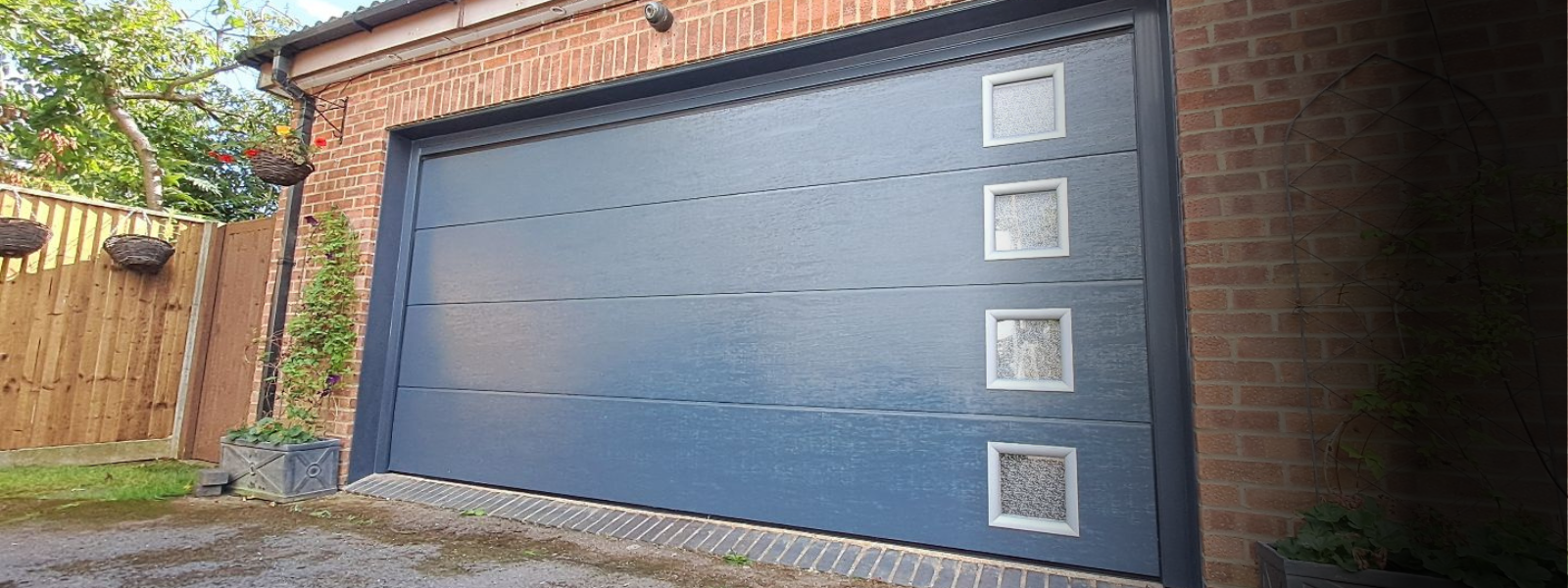

ISO 45 Sectional garage door
Door Design: Double Flush Woodgrain with Square Glazing
Colour: Anthracite Grey (RAL 7016)

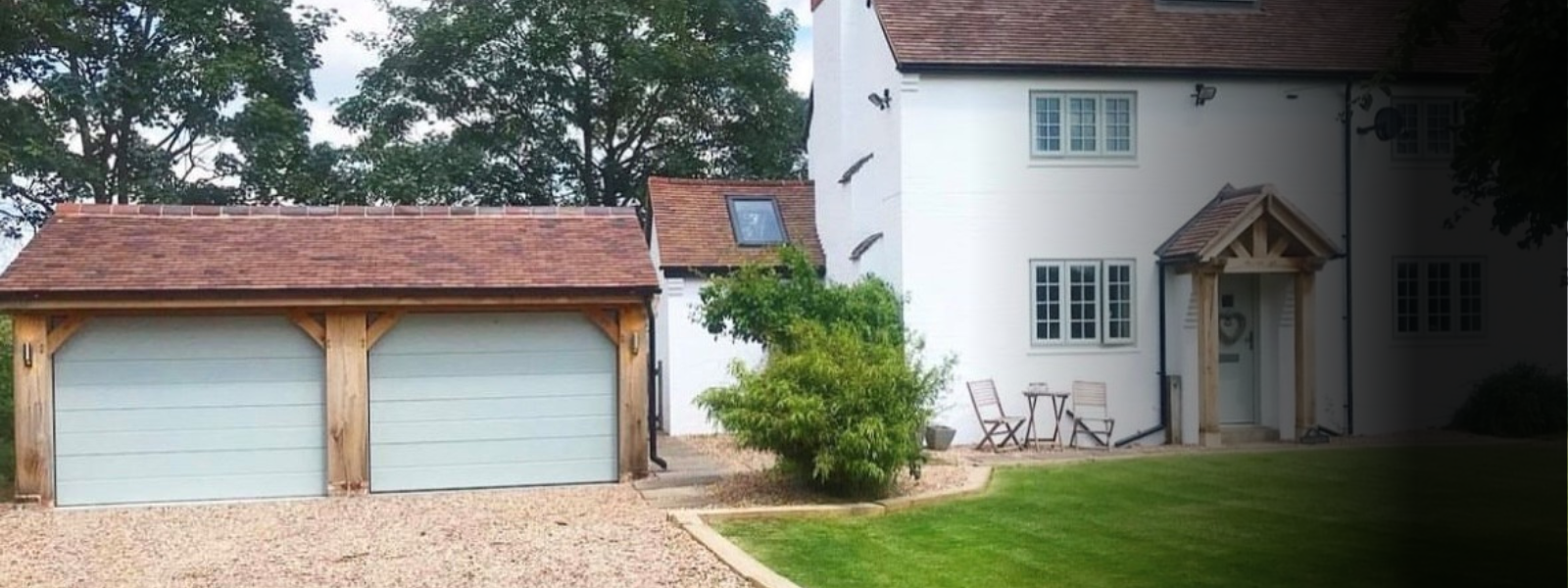

ISO 45 Sectional garage door
Door Design: x2 Large Rib Smooth
Colour: Chartwell Green (BS 14C 35)

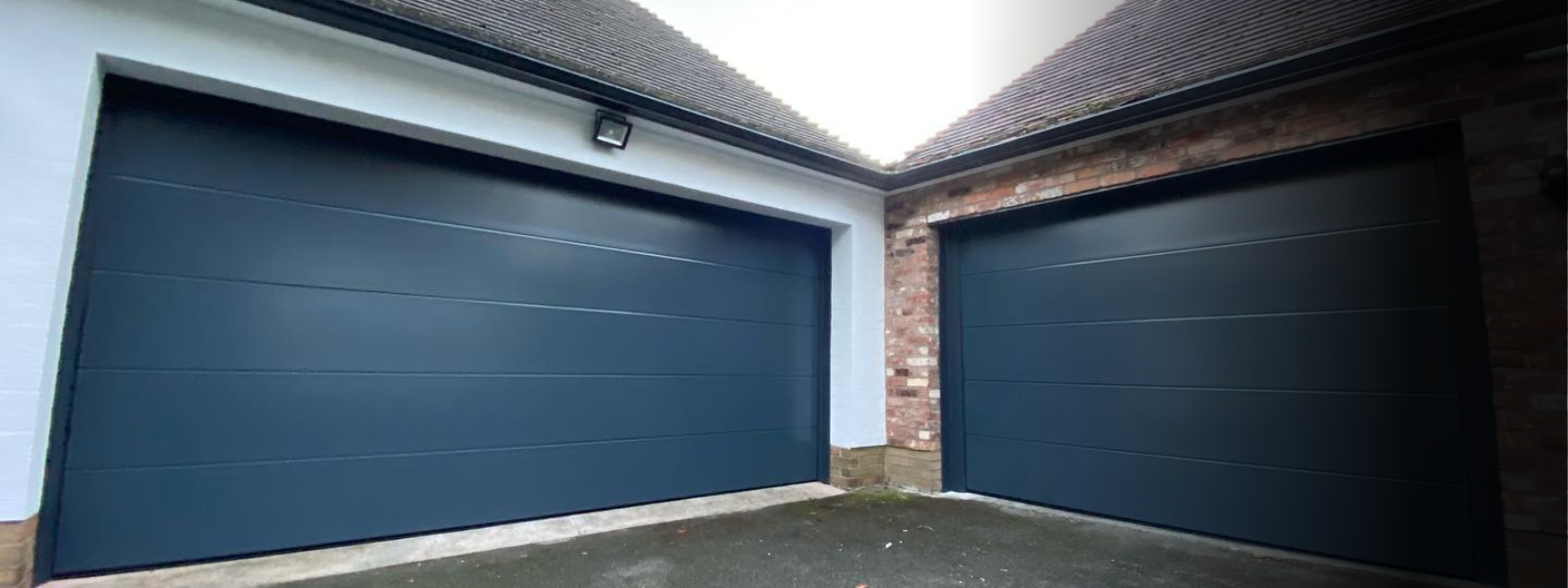

ISO 45 Sectional garage door
Door Design: Double Flush Smooth
Colour: Anthracite Grey (RAL 7016)

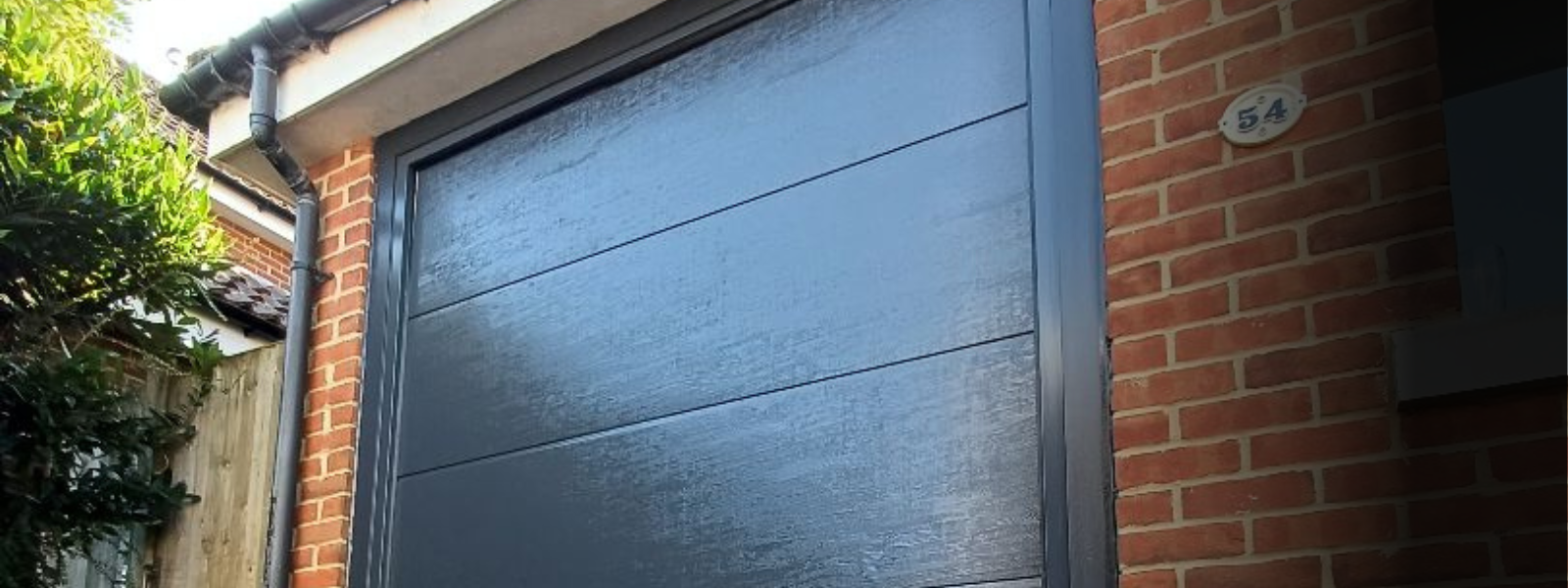

ISO 45 Sectional garage door
Door Design: Flush Woodgrain
Colour: Anthracite Grey (RAL 7016)

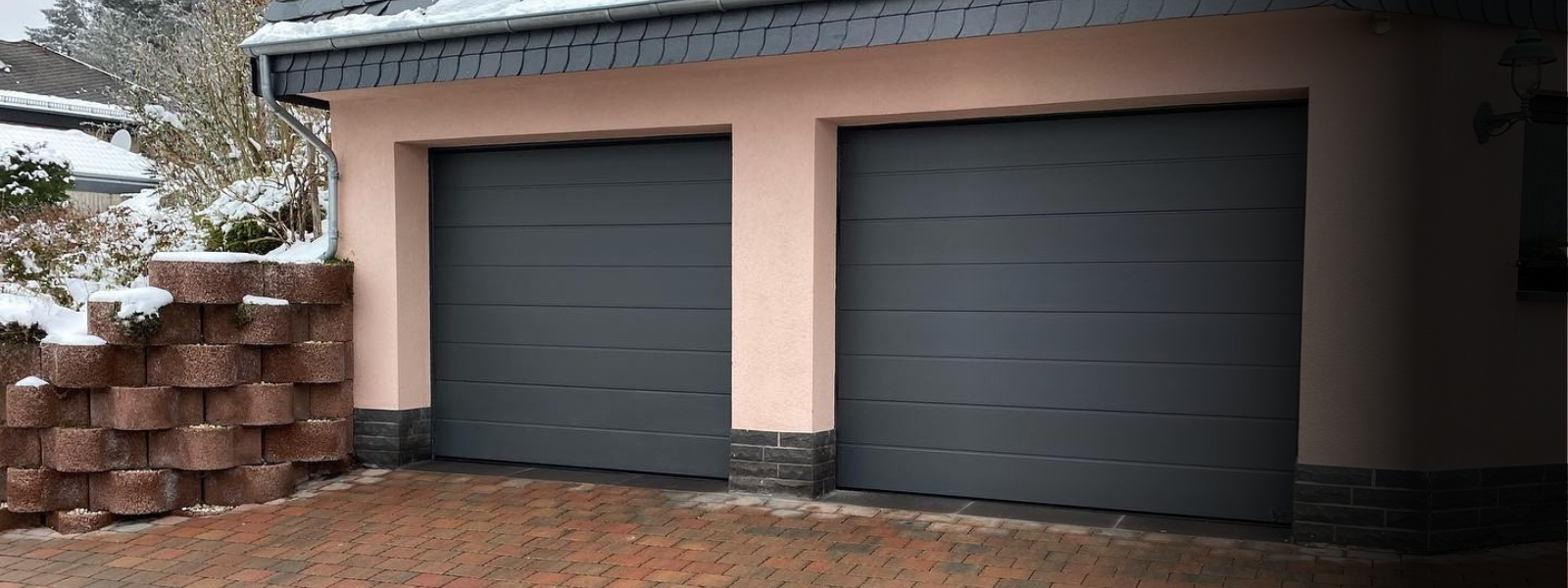

ISO 45 Sectional garage door
Door Design: Large Rib Smooth
Colour: Satin Grey

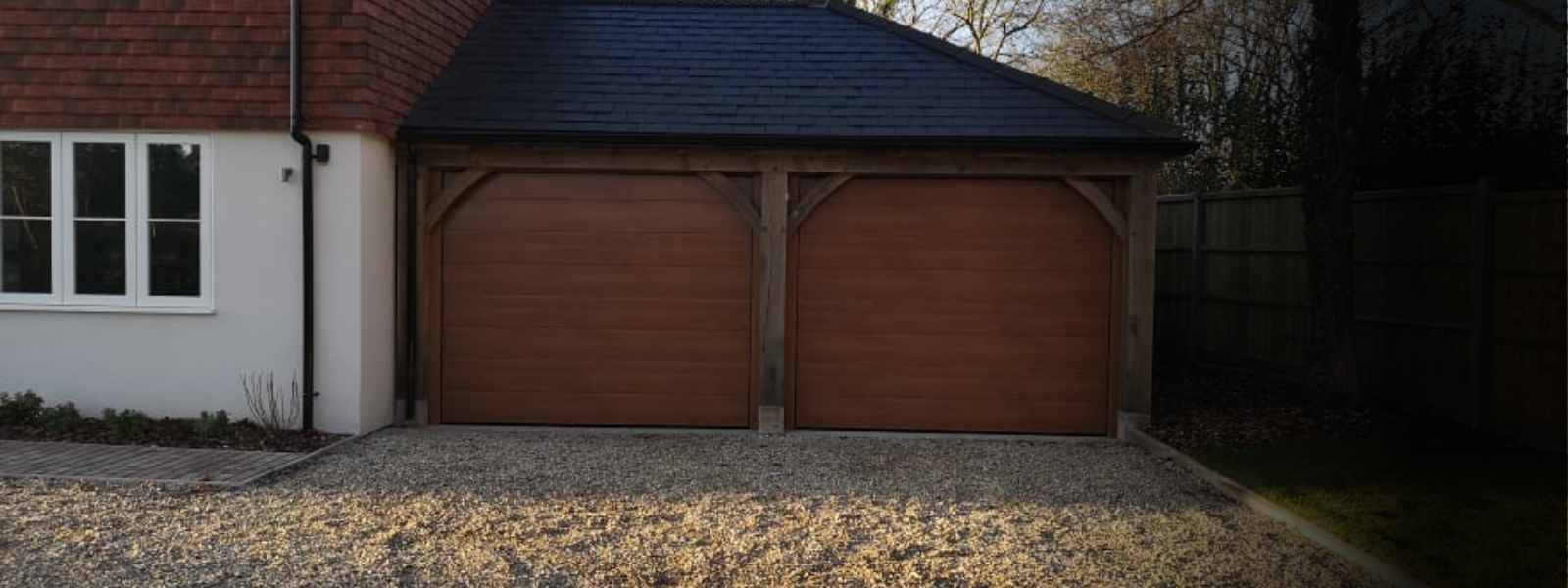

ISO 45 Sectional garage door
Door Design: Double Large Rib Smooth
Colour: Winchester Wood Effect

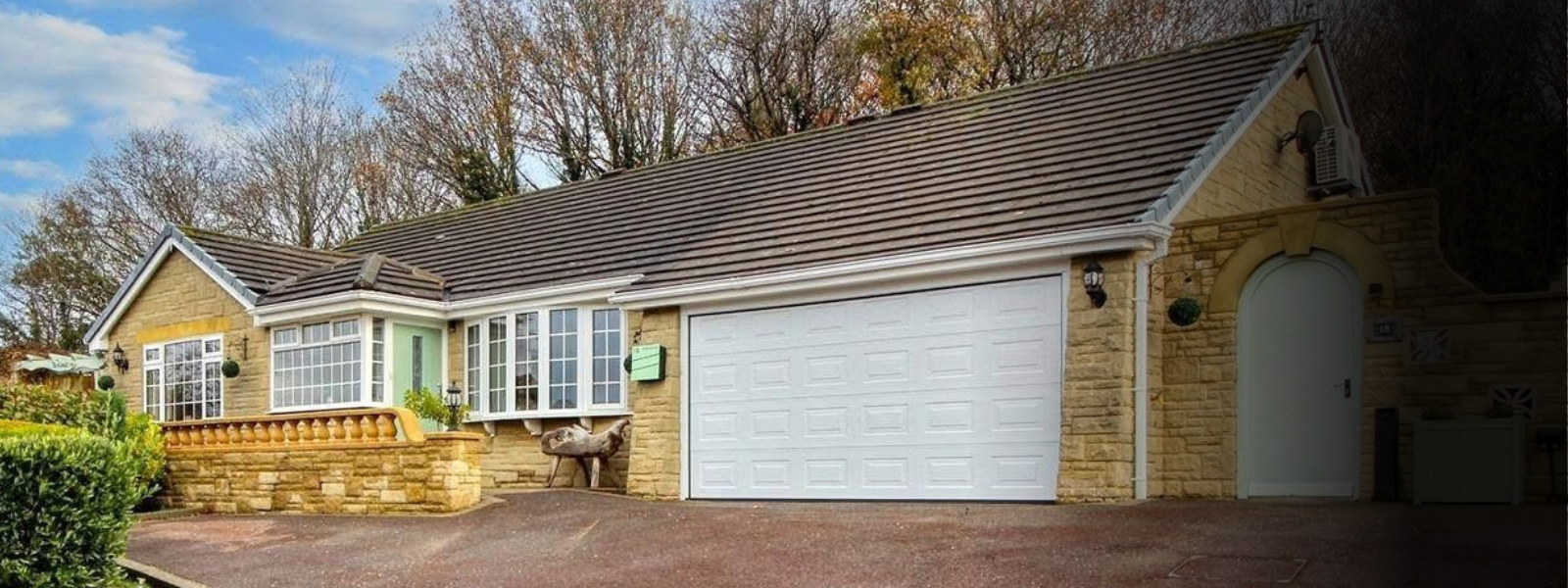

ISO 45 Sectional garage door
Door Design: Double Panelled Woodgrain
Colour: Traffic White (RAL 9016)

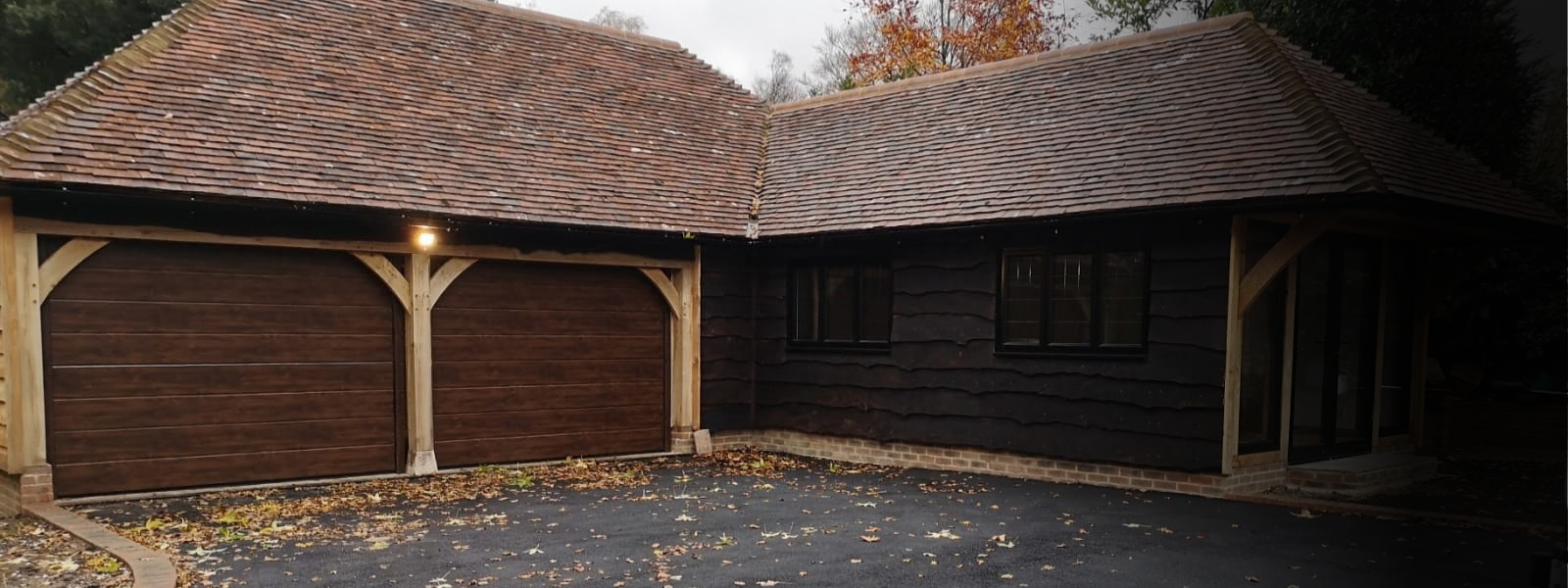

ISO 45 Sectional garage door
Door Design: x2 Large Rib Woodgrain
Colour: Dark Oak Wood Effect

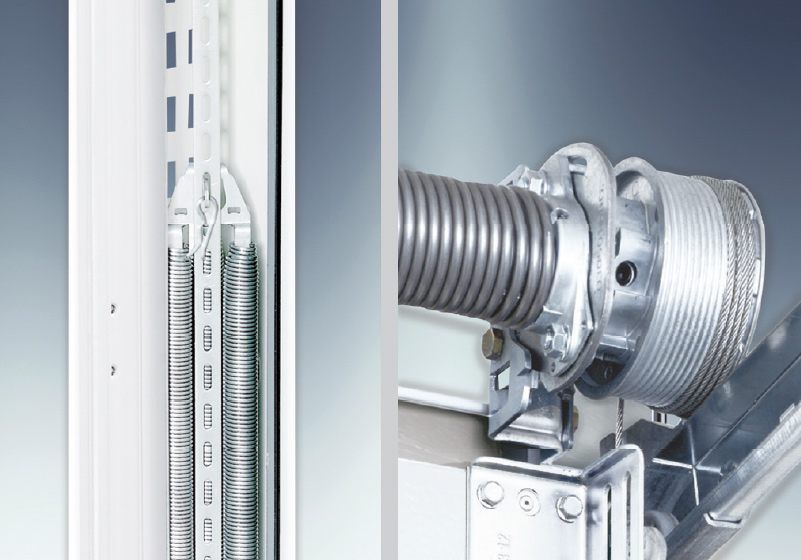

Our Premium sectional doors are available with either a vertical tension spring system or with stable torsion spring shafts. Compared to our sectional garage doors with 20 mm insulation, our high-quality Premium sectional doors with 45 mm insulation are available with torsion spring shafts for a small surcharge, with maintenance-free spring breakage protection tested in accordance with DIN EN 12604. All larger versions are available with our torsion spring shafts as standard. This ensures that the door is held securely even in the event of spring breakage and can be moved upwards again.
The iso 20 and iso 45 sectional garage doors with widths of up to 3,000 mm and a height of 2,500 mm (plain) or 2,750 mm (woodgrain) are available with a vertical tension spring system.
With a stop width of just 80 mm per side, these doors are also ideal for renovation projects.

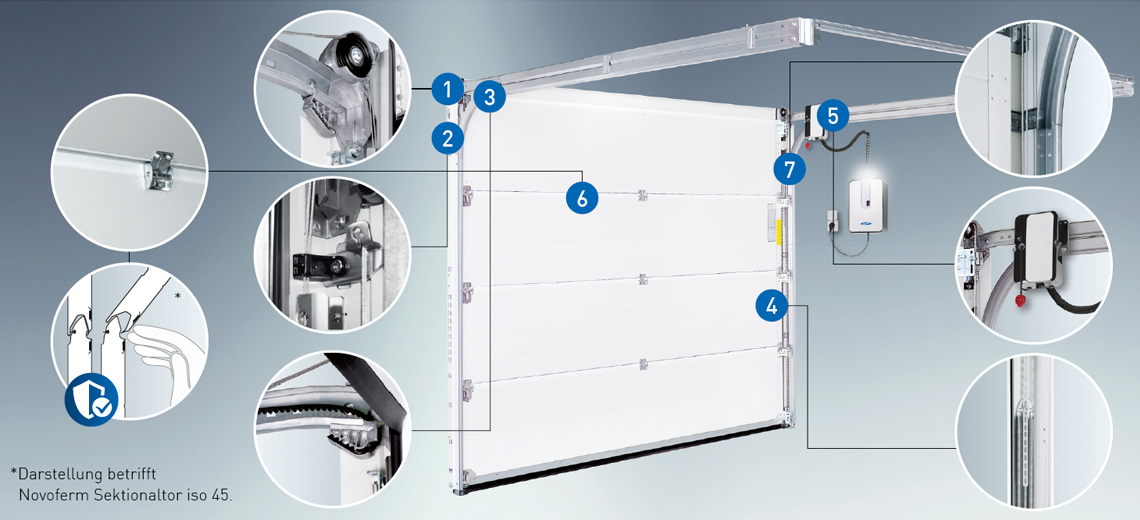

1. engagement-protected deflection pulley
The steel cables run vertically into the angled frame via engagement-protected, ball-bearing mounted deflection pulleys with a U-shaped pulley holder. This saves space in height, in contrast to the torsion spring in front.
2. rope holder
The new rope holder with the wire rope holder ensures that the ropes run safely in the angled frame without touching the insulated section. The separate door leaf guide ensures an optimum closing position for the door leaf.
3. integrated toothed belt fastening
The mould end piece includes a secure fastening for the maintenance-free NovoPort® toothed belt.
4. multiple tension spring assemblies
For tension spring doors: The spring is adjusted at the upper end of the spring assembly. Vertical extension springs allow low installation depths and require little space.
5. NovoPort® - Unique & flexible
The NovoPort® operator system ensures maximum convenience during operation and installation. The motor is not fixed to the ceiling like conventional operators, but is simply integrated into the side door track - on the right or left, depending on the structural conditions.
6. finger pinch protection
The design of the sections and hinges prevents pinch points on the door leaf from the outset - from the inside and outside.
7. finger trap protection and internal cable guide
The angled frames largely prevent finger trapping between the door leaf and frame. Internal suspension cables minimise the risk of injury and ensure maximum functional safety.
Our high-quality iso 45 and iso 70 sectional doors are available (up to a size of 3,000 x 2,750 mm (WxH))* with torsion spring shafts, with maintenance-free spring breakage protection tested in accordance with DIN EN 12604, for a small surcharge.

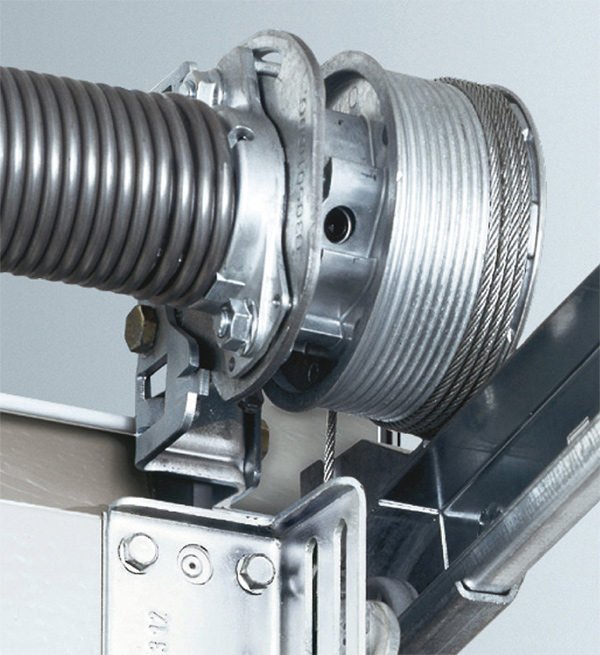

All larger versions are available with our torsion spring shafts as standard. This ensures that the door is held securely even in the event of spring breakage and can be moved upwards again.
* Applies to versions with a woodgrain finish.
For smooth surfaces up to a size of 3,000 x 2,500 mm.
Surfaces | Corresponding colour |
Golden oak | similar to RAL 8007 |
Dark oak | similar to RAL 8028 |
Winchester | similar to RAL 8001 |
Night oak | similar to RAL 8022 |
Satin white | similar to RAL 9016 |
Satin grey | Mixed colour |
Satin dark grey | similar to RAL 7016 |
Satin Window grey | similar to RAL 7040 |
Satin brown | similar to RAL 8014 |
Satin black | Mixed colour |
The following video illustrates the step-by-step installation of Novoferm sectional doors. The videos are only intended as a supplement to the installation, operating and maintenance instructions. They do not replace professional installation by qualified and trained specialist personnel.
