Introduction
High speed doors have become an increasingly popular feature of many commercial and industrial sites, thanks to the excellent range of benefits they offer. Designed to improve efficiency, safety, and environmental control, these advanced door systems are ideal for fast-paced operations where every second counts.
A range of innovative products are available by Novoferm with selected products designed for indoor and outdoor use. Whether you’re looking to streamline internal logistics, maintain temperature-controlled environments, or enhance security at external access points, there is a solution to suit your application.
With cutting-edge technology, low maintenance requirements and a focus on long-term performance, Novoferm's high speed door solutions are designed to support modern industrial demands while improving overall operational efficiency.
Indoor - High Speed Industrial Doors
Indoor - High Speed Industrial Doors
High speed doors for indoor use are designed to be mounted inside a building. This can be in a passageway between rooms or on the inside of an exterior wall. Which door is most suitable for your situation depends on many factors. Firstly, the size and wind pressure in the passageway. Often, smaller spaces will have less wind pressure than between large halls or in an airlock.
Product Specifications

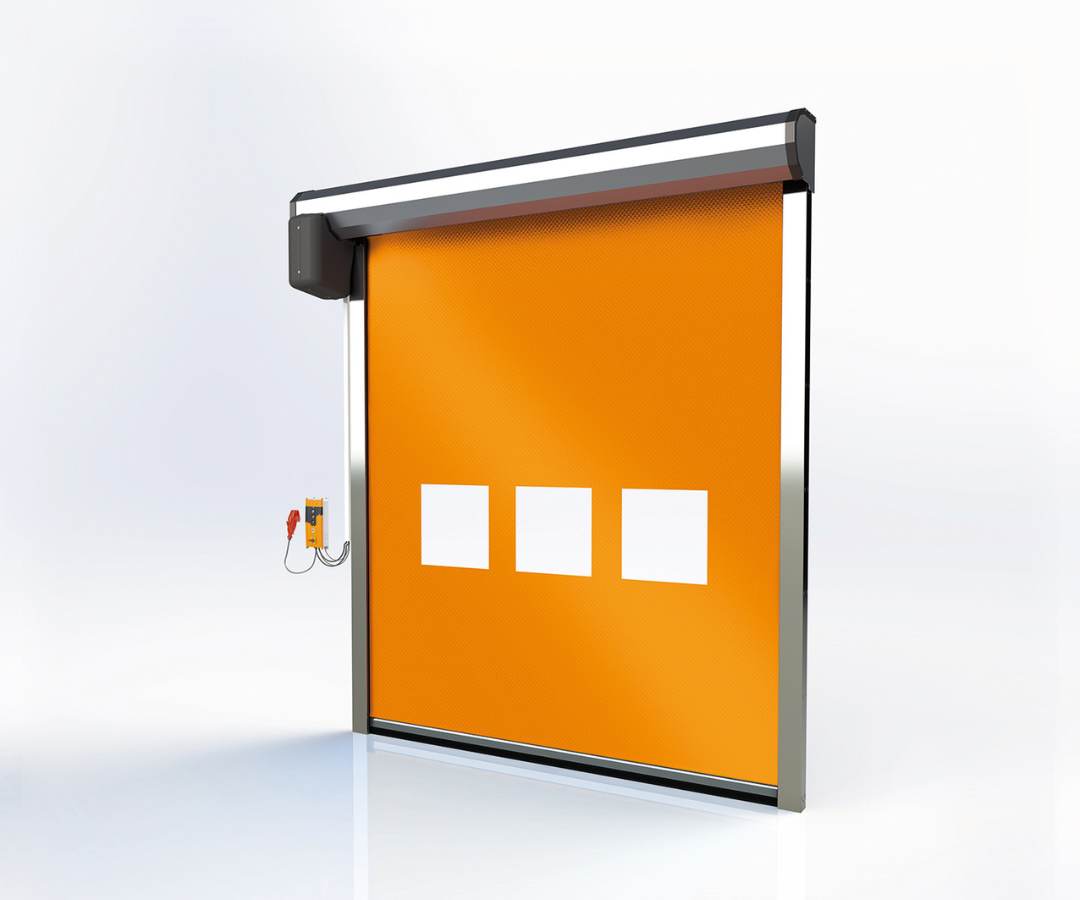

Prime
Introduction
The quick, silent solution to draught.
The high speed door Prime is a good solution for medium sized openings up to 12.25 m2 and normal use. Ideal for the daily passage of people and light goods. The one-piece door curtain is extremely quiet and can be printed with any required imprint. High speed doors are used in many supermarkets because they are practical in use, save a lot of energy and improve the atmosphere in the shopping area with their beautiful, clear print.
Advantages
• Wind resistant up to at least 3 Bft or even up to 7 Bft with WindLoad Optimiser. Class 0 according to EN12424.
• Silent the door curtain is manufactured in one piece and is therefore virtually noise-free.
• Safe equipped with a safety light curtain as standard, optionally with a soft FlexEdge bottom beam.
• Robust steel guide columns guide the door curtain made of polyester-reinforced plastic fabric.
• Draught-free the door curtain is sealed with sliding strips, the bottom beam has a rubber sealing profile.
Application
- Supermarkets.
- Food Industry.
- Laboratories.
- Light Industry.
Technical Data At A Glance
Max. area (W × H) | 12,25 m² |
Max. width | 3,500 mm |
max. height | 3,500 mm |
Wind load resistant up to min. [* with WindLoad Optimiser] | 3 / 7* Bft |
Max. wind load class according to EN 12424 | 0 |
Opening speed with frequency regulator | 1.5 m/s |
Closing speed with frequency regulator | 0.5 m/s |
Opening/closing speed with standard control | 1 m/s |
Curtain thickness (standard/optional) | 0.7 / 1.2 mm |
Curtain weight (standard/optional) | 680 /1,400 g/m² |
Suitability as external door | no |

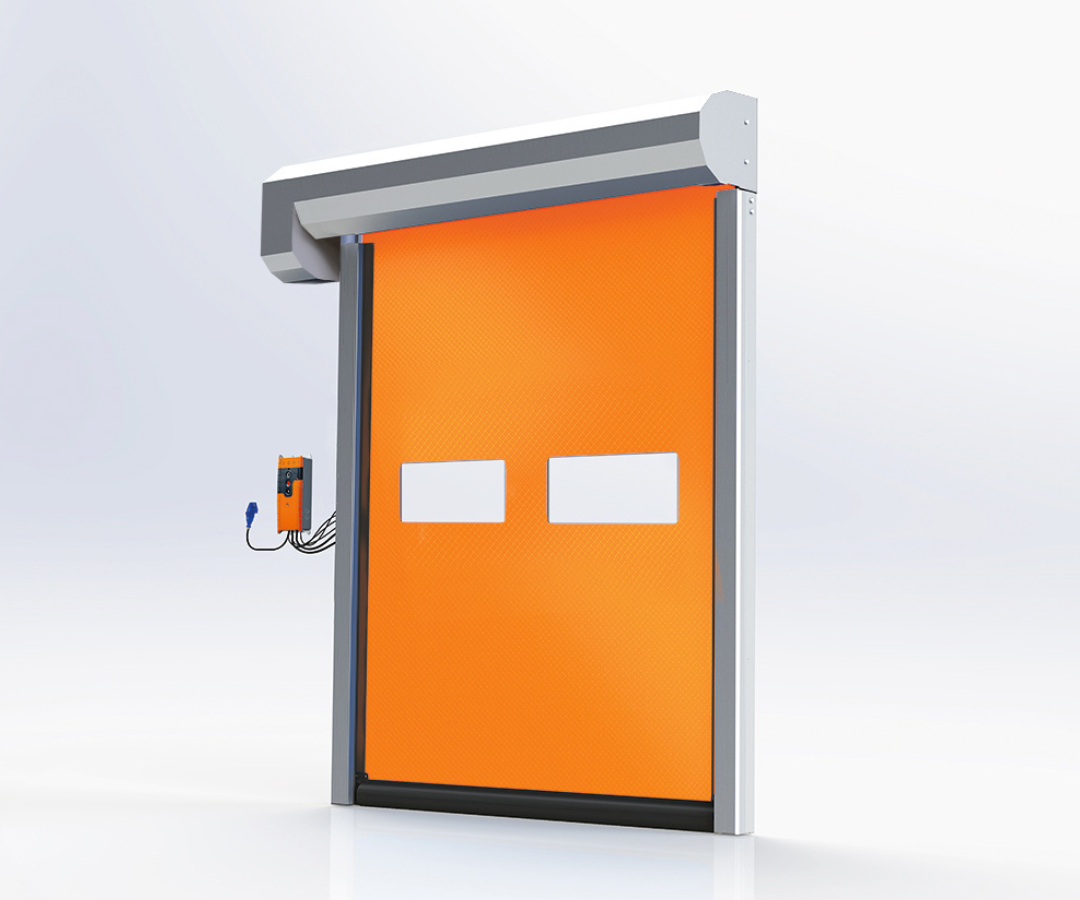

NovoZip
Introduction
Self-repairing rapid roll door.
The self-repairing high speed door NovoZip is the ideal solution for openings of up to 20.25 m2 and intensive use. The self-repairing operation of the self-lubricating track reduces interruptions and ensures minimum delay in the production process. The NovoZip is intended as a fast, user-friendly room divider and provides very good draught exclusion and climate control. This results in significant energy savings
Advantages
• Wind resistant up to at least 11 Bft. Class 3 according to EN12424.
• Self-repairing the door curtain automatically returns into the columns after a collision.
• Silent the door curtain is manufactured in one piece and is therefore virtually noise-free.
• Safe equipped with a safety light curtain and a soft FlexEdge bottom beam as standard.
• Robust steel guide columns guide the door curtain made of polyester-reinforced plastic fabric.
• Draught proof the zip fastener technology ensures a good draught proofing, as does the rubber sealing.
• Installation in every passageway up to 20.25 m2 in the building and on the inside of the external facade.
Application
- Supermarkets.
- Food Industry.
- Laboratories.
- Light Industry.
- Cleanrooms
Technical Data At A Glance
Max. area (W × H) | 20,25 m² |
Max. width | 4,500 mm |
Max. height | 4,500 mm |
Wind load resistant up to min. [* with WindLoad Optimiser] | 11 Bft |
Max. wind load class according to EN 12424 | 3* |
Opening speed with frequency regulator | 2.0 m/s |
Closing speed with frequency regulator | 0.5 m/s |
Curtain thickness (standard/optional) | 1 mm |
Curtain weight Class M2 | 900 g/m² |
Curtain weight (standard/optional) | 1,050 g/m² |
Suitability as external door | no |

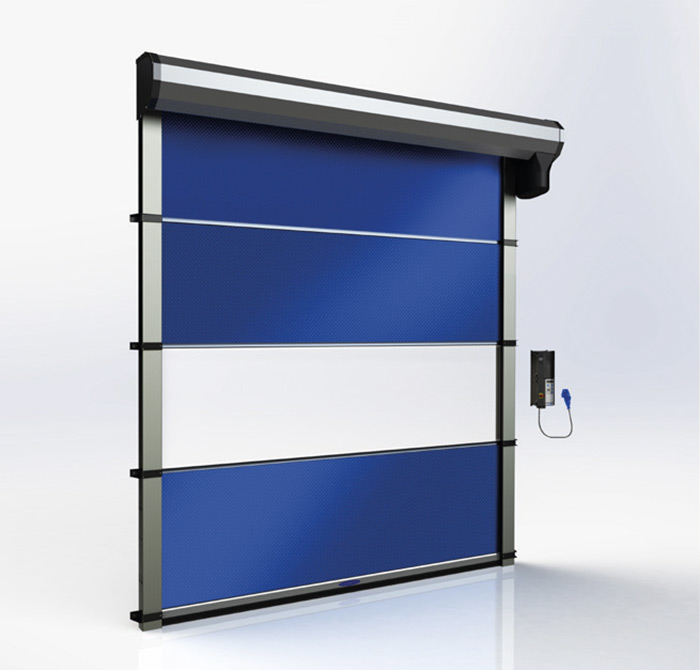

Strong (Indoor)
Introduction
Appearance and performance in perfect harmony.
The High Speed Roller Strong has been specially developed for high speeds and intensive use. Ideal for the rapid passage of people and goods, even under high wind pressure. Suitable for openings up to 25m2. The reinforcement profiles provide additional stability. The opening speed of 1.8 m/s makes this door a practical solution, even with heavy traffic and large passageways. Ideal for fast-moving, large-scale production processes where downtime cannot be tolerated.
Advantages
• Wind resistant up to min. 7 Bft (5,000 × 5,000 mm) Wind class 2 according to EN 12424 (up to a width of 3,000 mm)
• Fast opening and closing, and very frequently: this is the strength of the High Speed Roller Strong.
• Maximum reliability under all indoor conditions.
• Sound Insulation: Noise reduction thanks to additional sound insulation on the winding shaft.
• Draught proof: Brush seal in the track and closing edge with rubber seal
• Safe with light grille as standard, optionally with FlexEdge closing edge
• Robust: The WindLoad Optimiser makes the Strong even more stable for high wind loads
Application
- Distribution centres.
- Warehouses.
- Large industrial warehouses.
- Heavy industry.
Technical Data At A Glance
Max. area (W × H) | 25 m² |
Max. width | 5,000 mm |
Max. height | 5,000 mm |
Wind load resistant up to min. [* with WindLoad Optimiser] | 7 Bft |
Max. wind load class according to EN 12424 | 2* |
Opening speed with frequency regulator | 1.8 m/s |
Closing speed with frequency regulator | 0.5 m/s |
Opening/closing speed with standard control | 1 m/s |
Curtain thickness (standard/optimum) | 0.7 / 1.2 mm |
Curtain weight (standard/optimum) | 680 / 1400 g/m² |
Suitability as external door | no |
Outdoor - High Speed Industrial Doors
Outdoor - High Speed Industrial Doors
High speed doors for outdoor use are designed to be mounted on the facade of a building. This can be done on the inside, but also on the outside of the facade. Which door is most suitable for your situation depends on many factors. Firstly, the size and the wind pressure in the passageway.
Product Specifications
NovoZip Class 3
Introduction
Self-repairing rapid roll door.
The self-repairing high speed door NovoZip is the ideal solution for openings of up to 20.25 m2 and intensive use. The self-repairing operation of the self-lubricating track reduces interruptions and ensures minimum delay in the production process. The NovoZip is intended as a fast, user-friendly room divider and provides very good draught exclusion and climate control. This results in significant energy savings
Advantages
• Wind resistant up to at least 11 Bft. Class 3 according to EN12424.
• Self-repairing the door curtain automatically returns into the columns after a collision.
• Silent the door curtain is manufactured in one piece and is therefore virtually noise-free.
• Safe equipped with a safety light curtain and a soft FlexEdge bottom beam as standard.
• Robust steel guide columns guide the door curtain made of polyester-reinforced plastic fabric.
• Draught proof the zip fastener technology ensures a good draught proofing, as does the rubber sealing.
• Installation in every passageway up to 20.25 m² in the building and on the inside of the external facade.
Application
- Supermarkets.
- Food Industry.
- Laboratories.
- Light Industry.
Technical Data At A Glance
| max. area (W × H) | 20,25 m² |
| Max. width | 4,500 mm |
| max. height | 4,500 mm |
| Wind load resistant up to min. [* with WindLoad Optimiser] | 11 Bft |
| Max. wind load class according to EN 12424 | 3* |
| Opening speed with frequency regulator | 2.0 m/s |
| Closing speed with frequency regulator | 0.5 m/s |
| Curtain thickness | 1.0 mm |
| Curtain weight, class M2 | 900 g/m² |
| Curtain weight (optional) | 1,050 g/m² |
| Suitability as external door | yes |

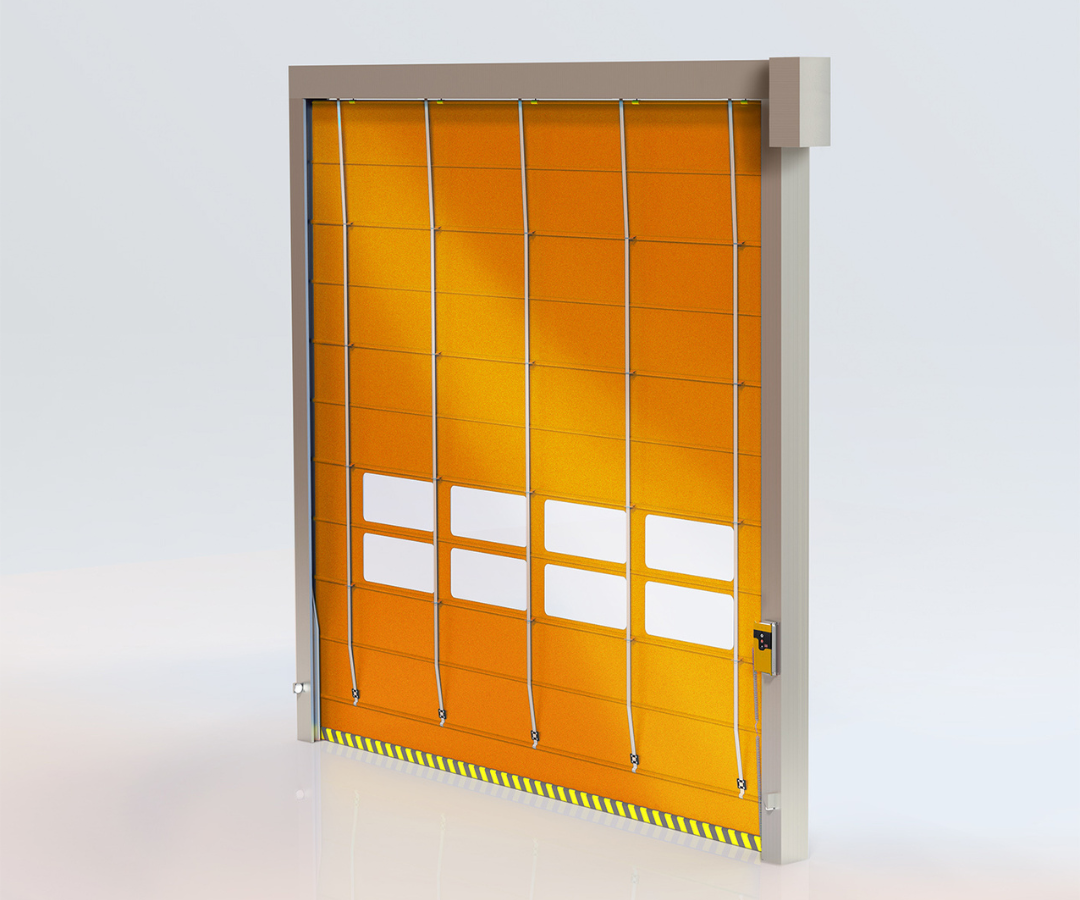

NovoFold
Introduction
Self-repairing rapid roll door.
The NovoFold folding door has been developed for intensive use in outdoor openings up to 36 m2 in size. Ideal for the fast daily passage of forklift trucks and large goods. The door curtain is equipped with a large number of reinforcement profiles and a unique folding technique, as a result of which it remains extremely stable even under high wind pressure. The fully closed covers and the materials used make the NovoFold suitable for long-term use under all conditions.
Advantages
• Wind resistant up to Class 5 according to EN 12424 at up to at least 13 Beaufort.
• Solid the guide columns and the drive are completely encased in watertight steel caps. This makes the NovoFold suitable for outside mounting.
• Extreme the unique folding construction and the materials used make the NovoFold extremely reliable and robust, even under harsh conditions. The NovoFold is not affected by high wind pressure, rain, dust, etc.
• Safe fitted as standard with Opto-sensors in the lower beam: As soon as the lower beam touches something, the door opens immediately. The door opening is secured with safety photocells.
• Draught seal the bottom beam has a soft rubber sealing profile, additional draught brushes are available as an option.
• Outside powder-coated in RAL 7011 as standard.
Application
- Installation in the external wall (inside and outside).
- Supermarkets.
- Food industry.
- Laboratories.
- Light Industry.
| max. area (W × H) | 36 m² |
| Max. width | 6,000 mm |
| max. height | 6,000 mm |
| wind load resistant up to min. | 13 Bft |
| max. wind load class according to EN 12424 | 5 * |
| Opening speed with frequency regulator | 1.1 m/s |
| Closing speed with frequency regulator | 0.5 m/s |
| Opening/closing speed with standard control | 0.9 m/s |
| Curtain weight, class M2 | 900 g/m² |
| Suitability as external door | yes |

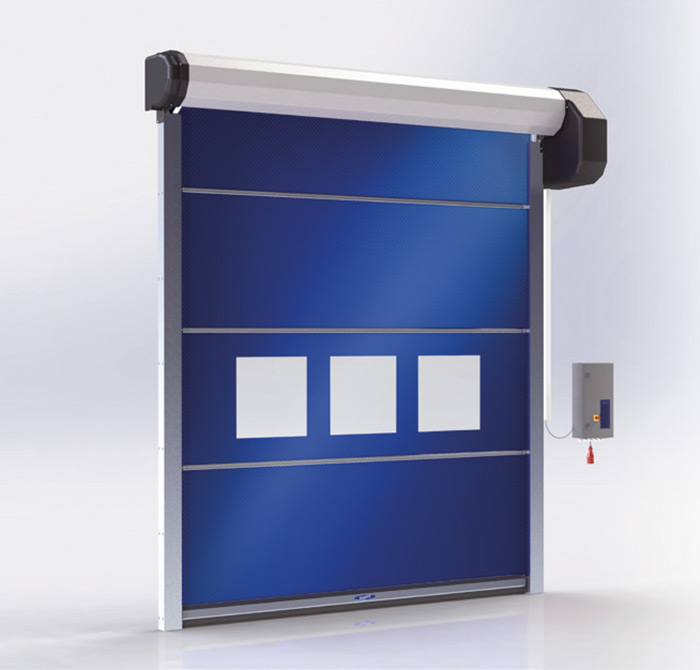

Strong (Outdoor)
Introduction
Self-repairing rapid roll door.
The Strong Outdoor is the ultimate High Speed Roller for the really tough cases. Smooth operation is guaranteed by the robust components and reliable technology. The Strong Outdoor High Speed Roller has been specially developed for installation on external walls, particularly for large openings and high wind loads. The sturdy tracks with integrated seals keep draughts out and ensure a comfortable indoor climate. The electronic control system ensures that this large door opens at 1.8 m/s*.
Advantages
• Wind resistant up to 12 Bft (width up to 4,000 mm) min. wind class 3 according to EN 12424 (width > 4,000 mm) min. wind class 4 according to EN 12424 (width ≤ 4,000 mm).
• Sound Insulation: The door curtain is fitted with additional sound insulation as standard.
• Safe with light grid as standard.
• Robust: Steel guides in the tracks and new closures on the hinges guide the door curtain.
• Fast Installation: The new rail and tensioning system is pre-assembled in the tracks.
• Draught Proof: Brush seal in the track and closing edge with rubber seal.
• Installation: suitable for all large passageways up to 36m2 in the interior walls of buildings and on the inside of exterior walls.
Application
- Installation on the outside wall (inside).
- Distribution centres.
- Warehouses.
- Large industrial warehouses.
- Heavy industry.
Max. area (W × H) | 36 m² |
Max. width | 6,000 mm |
Max. height | 6,000 mm |
Wind load resistant up to min. | 12 Bft |
Max. wind load class according to EN 12424 | 4 * |
Opening speed with frequency regulator | 1.8 m/s |
Closing speed with frequency regulator | 0.5 m/s |
Curtain thickness | 1.2 mm |
Suitability as external door | yes |
Max. area (W × H) | 36 m² |
Technical Data - Comparison
Technical Data - Comparison (INDOOR)
| Unit | PRIME | NovoZip | Strong |
Speed control | Standard control | open in m/s (approx.) | 1 | 1 |
| close in m/s (approx.) | 1 | 1 | |
Control with frequency controller | open in m/s (approx.) | 1,8 | 1,8 | |
| close in m/s (approx.) | 0,5 | 0,5 | |
Safety | EN 13241 |
| ● | ● |
Wind resistance | Minimum value, in Bft | [with WindLoad Optimiser] | 7 (- 61 km/h) | 7 (- 61 km/h) |
Wind load class | max., according to EN 12424 |
| Class 2 (B ≤ 3 m) | Class 2 (B ≤ 3 m) |
Door size | Width | in mm, max. | 5.000 | 5.000 |
Height | in mm, max. | 5.000 | 5.000 | |
Max. area | in m², max. | 25 | 25 | |
Overall size without required mounting clearances | Width drive side | clear width + mm | 300 | 300 |
Width bearing side | clear width + mm | 170 | 170 | |
Height | Clear height + mm | 410 | 410 | |
Depth | from wall, in mm | 325 | 325 | |
Width with protective cover, drive side | clear width + mm | 410 | 410 | |
Width with protective cover, bearing side | clear width + mm | 170 | 170 | |
Height with protective cover | Clear height + mm | 460 | 460 | |
Depth with protective cover | from wall, in mm | 430 | 430 | |

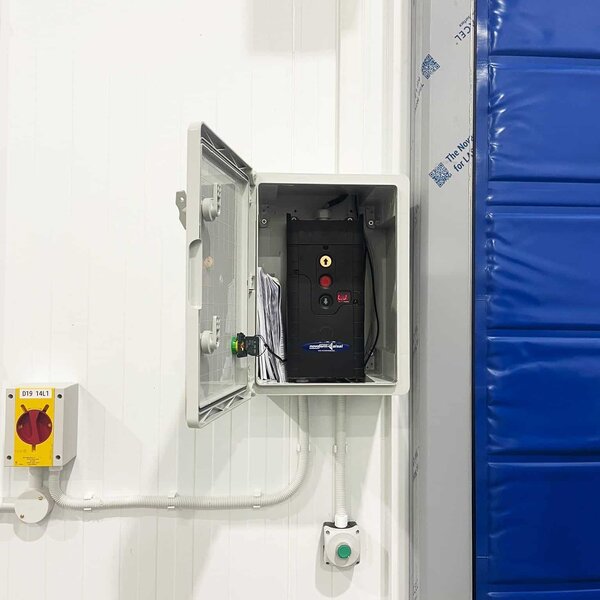

Control unit T100R, plastic housing [400 V, 3L + N + PE, IP65] | W × H × D = 219 × 256 × 117 mm | ● | ● | |
large control unit T100R FU, 1.5 kW [230 V, L+ N + PE, IP65] | W × H × D = 219 × 550 × 117 mm | o | o | |
large control unit T100R FU 3 kW [400 V, 3L+ N + PE, IP65] | W × H × D = 300 × 600 × 160 mm |
|
| |
GFA TS971 | W × H × D = 155 × 386 × 90 mm |
|
| |
GFA TS981 | W × H × D = 190 × 300 × 115 mm |
|
| |
Easy Repair | manual retraction |
| o | o |
Self Repair | Automatic retraction (self-repair) |
|
|
|
Door curtain | Thickness of the transparent sections | 0.8 / 20 mm | 0.8 mm | 0.8 mm |
Thickness of the coloured plastic door curtain | 0.7 / 1.0 / 1.2 mm | 0.7 / 1.2 mm | 0.7 / 1.2 mm | |
Thickness of the insulation sections | 40 mm |
|
| |
Guide material/surface finish | Steel, galvanised/powder-coated |
| ● / - | ● / - |
Stainless steel (304), polished |
| o | o | |
Painted/powder-coated in RAL colour according to customer requirements |
| o | o | |
Drive and control unit | Electronic limit switches DES |
| ● | ● |
Power supply |
| 230 V, L + N + PE/ 400 V, 3L + N + PE | 230 V, L + N + PE/ 400 V, 3L + N + PE | |
Fuse |
| 16 A, slow | 16 A, slow | |
Main switch |
| o | o | |
Emergency stop switch |
| o | o | |
Direction detection in the door opening | Light grid | ● | ● | |
| Light barrier + safety closing edge | o | o | |
| Radar detector | o | o | |
Emergency opening | Crank |
| ● | ● |
Pull chain |
| o | o | |
UPS, 230 V | only with 230 V frequency regulator | o | o |
● = standard version o = optional
Technical Data - Comparison (OUTDOOR)
Technical Data Comparison - OUTDOOR
Description | Unit | NovoZip | Strong Outdoor | NovoFold | |
Speed control | Standard control | open in m/s (approx.) |
|
| 0,9 |
| close in m/s (approx.) |
|
| 0,9 | |
Control with frequency controller | opening in m/s (approx.) | 2,0 | 1,8 | 1,1 | |
| close in m/s (approx.) | 0,5 | 0,5 | 0,5 | |
safety | EN 13241 |
| ● | ● | ● |
Wind resistance | Minimum value, in Bft | [with WindLoad Optimiser] | 11 (- 117 km/h) | 12 (- 133 km/h) | 13 (- 149 km/h) |
Wind load class | max., according to EN 12424 |
| Class 3 | Class 4 (B ≤ 4m) | Class 5 |
Door size | width | in mm, max. | 4.500 | 6.000 | 6.000 |
Height | in mm, max. | 4.500 | 6.000 | 6.000 | |
Max. surface area | in m², max. | 20,25 | 36 | 36 | |
Overall size without required mounting clearances | Width drive side | clear width + mm | 310 | 345/360 | 520 |
Width bearing side | clear width + mm | 120 | 195 | 220 | |
Height | Clear height + mm | 500 | 650 | 1.070 | |
Depth | from wall, in mm | 370 | 435 | 400 | |
Width with protective cover, drive side | Clear width + mm | 310 | 430 | 520 | |
Width with protective cover, bearing side | Clear width + mm | 120 | 240 | 220 | |
Height with protective cover | Clear height + mm | 500 | 700 | 1.170 | |
Depth with protective cover | from wall, in mm | 370 | 570 | 400 | |
Large control unit T100R FU 3 kW [400 V, 3L+ N + PE, IP65] | W × H × D = 300 × 600 × 160 mm |
| ● |
| |
GFA TS971 | W × H × D = 155 × 386 × 90 mm | ● |
| ● | |
GFA TS981 | W × H × D = 190 × 300 × 115 mm | o |
| o | |
Self Repair | Automatic retraction (self-repair) |
| ● |
|
|
Door construction | self-supporting |
|
|
| ● |
Door curtain | Thickness of the transparent sections | 0.8 / 20 mm | 0.8 mm | 0.8 mm | 0.8 mm |
Thickness of the coloured plastic door curtain | 0.7 / 1.0 / 1.2 mm | 1.0 mm | 1.2 mm | 1.2 mm | |
Thickness of the insulation sections | 40 mm |
|
|
| |
Tensioning the door curtain | Tensioning system |
|
| ● |
|
Drive system with endless chains/steel cable |
|
|
|
| |
Guide material/surface finish | Steel, galvanised/powder-coated |
| ● / - | ● / - | ● / ● |
Stainless steel (304), polished |
| o | o | o | |
Painted/powder-coated in RAL colour according to customer requirements |
| o | o | o | |
Drive and control unit | Electronic limit switches DES |
| ● | ● | ● |
Power supply |
| 230 V, L + N + PE | 400 V, 3L + N + PE | 400 V, 3L + N + PE | |
Fuse |
| 16 A slow-blow | 16 A slow-blow | 16 A slow-blow | |
Main switch |
| o | o | o | |
Emergency stop switch |
| o | o | o | |
Direction detection in the door opening | Light grid | ● | ● | o | |
| Light barrier + safety closing edge | o | o | ● | |
| Radar detector | o | o | o | |
Closing edge safety device | Optosensors |
|
| o | |
Emergency opening | Crank |
| ● | ● |
|
Pull chain |
| o | o | ● | |
UPS, 230 V | only with 230 V frequency regulator | o |
|
| |
| |||||
● = standard version o = optional
Wind Load Classification
Wind Load Classification
Wind force | Wind pressure in pascals | Wind speed | Classification according to DIN EN 12424 | Application |
0 - calm wind | 0,0 - 0,0 | < 1 km/h |
| Low wind pressure Small door opening Small rooms Occasional use |
1 - quiet draught | 0,0 - 0,1 | 1 - 5 km/h |
| |
2 - light breeze | 2,0 - 5,9 | 6 - 11 km/h |
| |
3 - light breeze | 6,9 - 17,7 | 12 - 19 km/h |
| |
4 - moderate breeze | 18,6 - 38,3 | 20 - 28 km/h |
| medium wind pressure larger door opening larger rooms regular use |
5 - fresh breeze | 39,2 - 70,6 | 29 - 38 km/h |
| |
6 - strong wind | 71,6 - 116,7 | 39 - 49 km/h |
| |
7 - stiff wind | 117,7 - 179,5 | 50 - 61 km/h |
| |
8 - gale force wind | 180,5 - 262,9 | 62 - 74 km/h |
| |
9 - storm | 263,9 - 365,9 | 75 - 88 km/h | Class 1 - 300 N/m² | high wind pressure large door opening large spaces in the outer wall intensive use |
10 - severe storm | 366,9 - 495,4 | 89 - 102 km/h | Class 2 - 450 N/m² | |
11 - hurricane-like storm | 496,4 - 652,4 | 103 - 117 km/h | Class 3 - 700 N/m² | |
12 - hurricane | 653,3 - 836,8 | 118 - 133 km/h | Class 4 - 1,000 N/m² | |
13 - Hurricane | 837,8 - 1.039,9 | 134 - 149 km/h | Class 5 > 1,000 N/m² | |
14 - Hurricane | 1.049,7 - 1.294,9 | 150 - 166 km/h |
| |
15 - Hurricane | 1.304,7 - 1.579,4 | 167 - 183 km/h |
