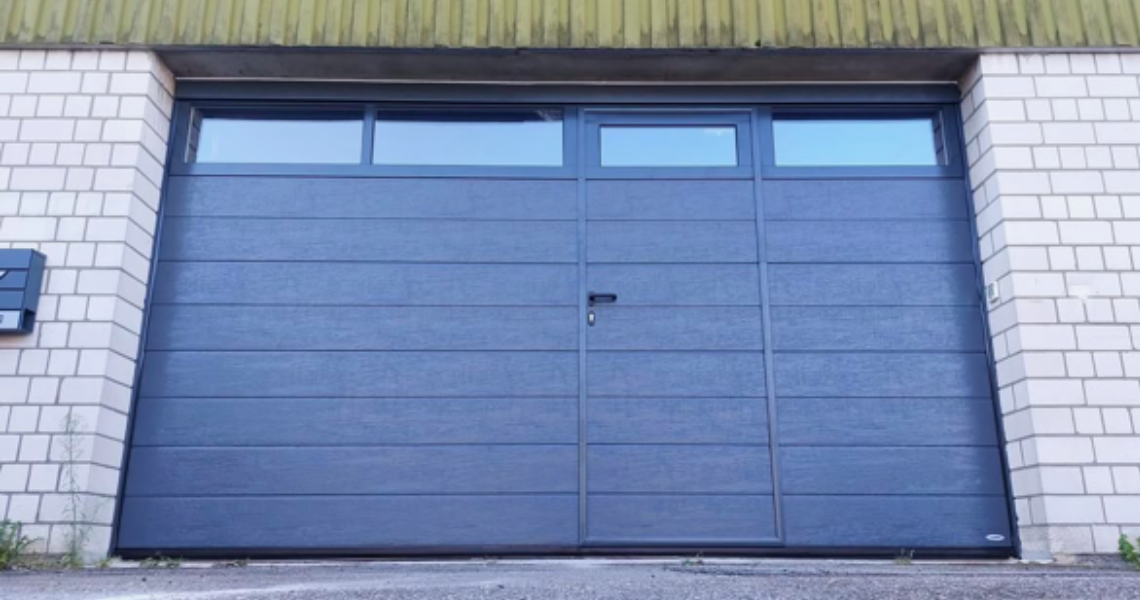

Wicket Sectional garage doors by Novoferm are available in case your garage is too narrow for a side door but you still want this added convenience or wish for an alternative entry and exit without opening the full door.
Sectional garage doors with perfectly integrated Wicket doors are a fantastic option for property owners all over Britain. In case your garage is too narrow for a side door but you still want its convenience, we have the perfect solution for you!

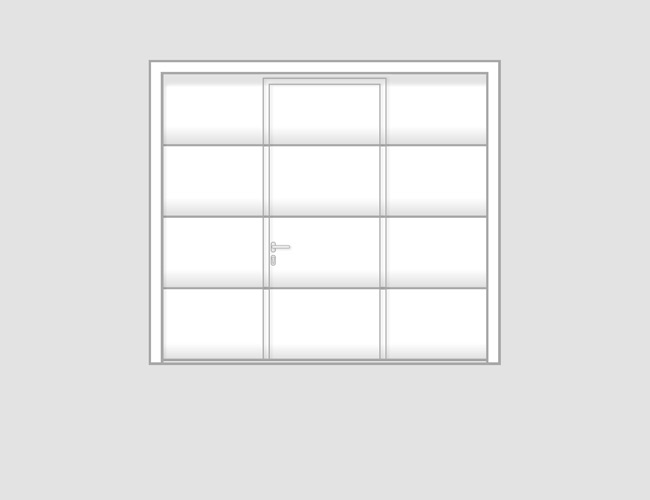

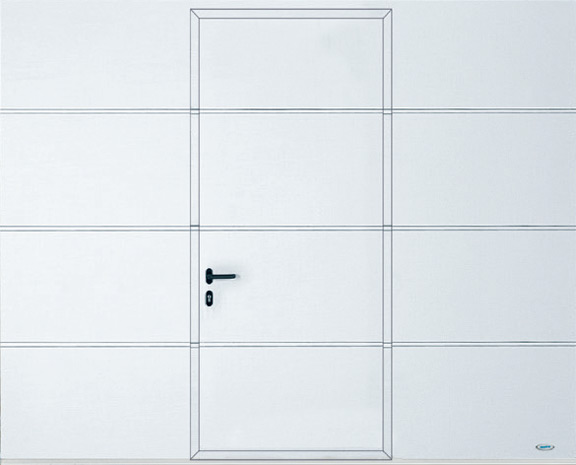

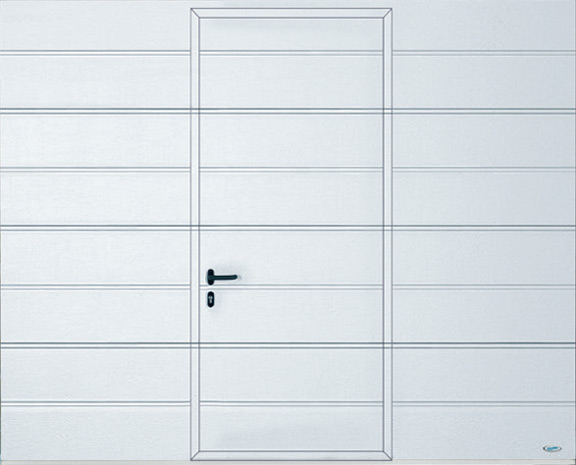

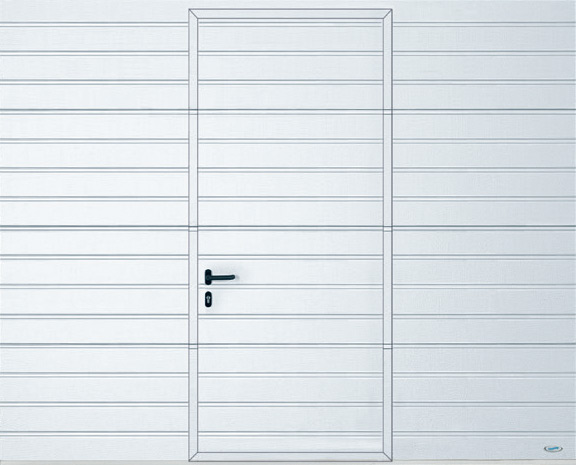

Wicket doors are standard doors that are integrated into the main door leaf. The purpose is to allow quick and easy access without having to open and close the main door. This also helps you manage security and privacy better as the main door will remain closed when not in use.

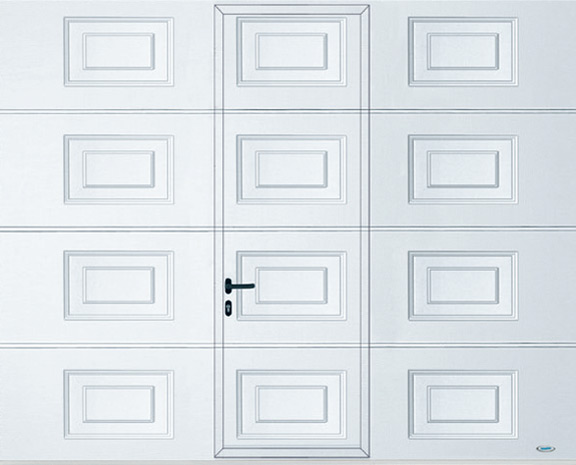

Our integrated Wicket doors are available for all ISO45 exclusive garage doors with a width up to five meters. They offer a practical passage width of 85 centimetres – 60 centimetres with the raised panel designs and will be fitted with double-skinned insulation for perfect thermal performance with similar insulation properties as our ISO 45 Sectional doors.
Premium door with thermal break
Novoferm ISO 45 sectional doors have a 45mm thick insulating hard foam core for particularly high thermal insulation. It has up to 17% better insulation* compared to doors in a similar series (only from Novoferm).
Large selection of door designs / finishes
Novoferm Evolution premium sectional doors are available in 4 door designs, numerous surfaces and in almost all modern and industry popular RAL colours - to match your house architecture.
SmartHome-capable / Innovative
Compatible with the Novoport Speed, side mounted operator. Instead of being fixed to the ceiling, this is integrated into the side door track. Smart home compatibility is available with this product.
Aluminium Door Sill Height of Only 24 Millimetres
High-Quality Products with a Ten-Year Warranty
Evolution sectional door with up to 17% improved thermal insulation for an installed door in the range of door solutions with comparable section thicknesses.
Novoferm Evolution premium sectional doors are available in all 5 door designs, numerous surfaces and in almost all modern RAL colours to match your house architecture.

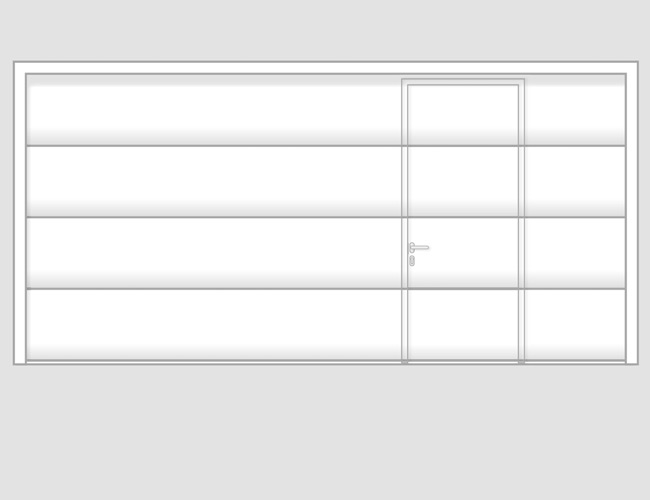

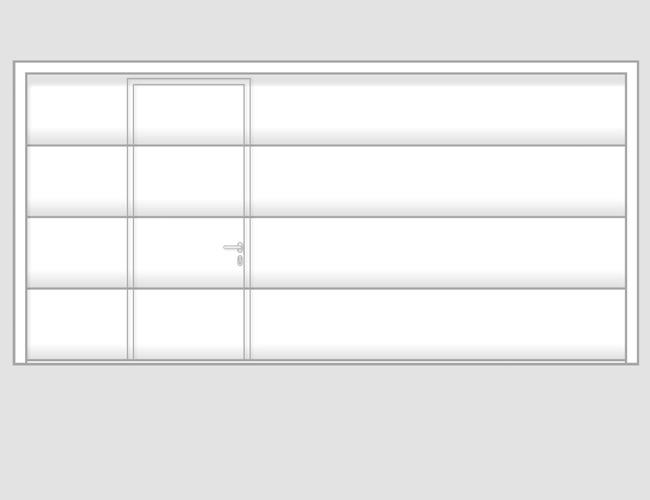

Double sectional doors can only have the wicket on the left or right.
Wicket doors come with a colour-matched surround. per window per window per window V1, V2, V3, V4D, V4S Window Sizes as standard 457mm (w) 260mm (h)
Minimum Door Width 2000mm Maximum Door Width 5000mm. (Panelled - Minimum Door Width 2250mm) Minimum Door Height 1875mm.
Experience more colour and variety
With our surfaces in a discreetly grained woodgrain texture or the elegantly smooth surface, you can choose between 16 attractively priced preferred colours and almost all RAL colours for further customisation.
Our ISO 45 Evolution premium sectional doors are also available on request in 4 surfaces with an authentic rustic timber look. The surfaces are end-coated and weather-resistant. The wood finishes are available in the door designs Large Rib & Flush.
Our Evolution ISO 45 sectional garage doors are also available in six decorative, end-coated, semi-gloss satin surfaces with low soiling tendency and special weather resistance.
Our popular Microline door design in satin white, satin grey, satin dark grey and satin window grey is available exclusively for the Flush style on Evolution premium sectional doors with 45 mm insulation.
This is a modern, profiled wave structure that stands out with an expressive light/shadow effect.
DO YOU WANT MORE LIGHT IN YOUR GARAGE?
Have you already considered a door in a certain style and colour, but it's not yet individual enough for you?

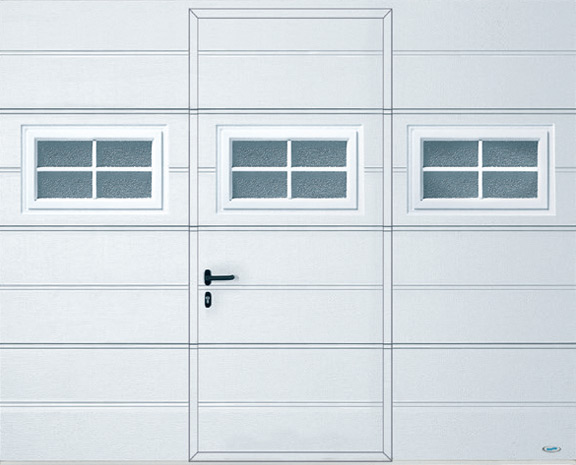

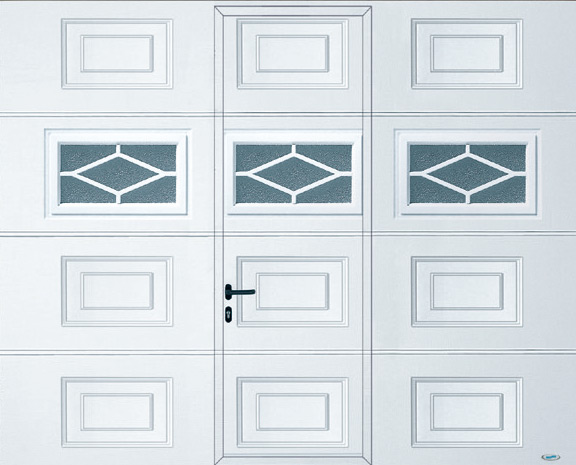

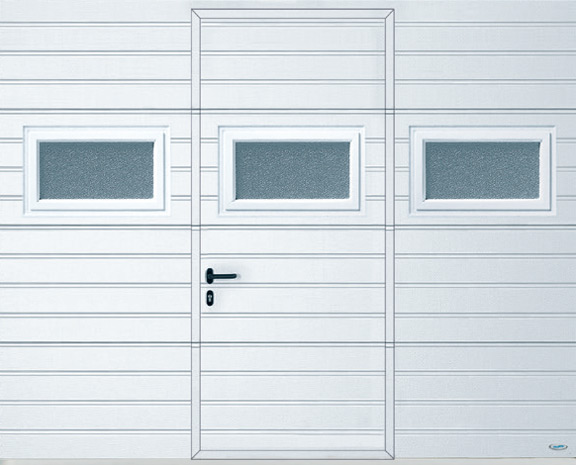

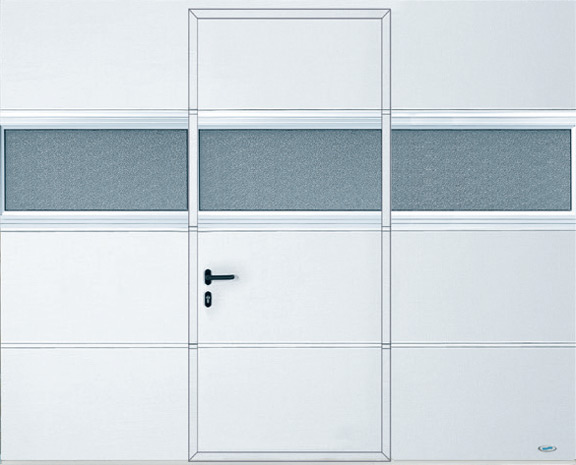

Then take a look at our attractive glazing options. They not only draw attention to your garage, but also let the light in. This is particularly convenient if you also use your garage as a hobby room or workshop. All Novoferm glazing is made of weather-resistant acrylic glass or impact-resistant polycarbonate and is characterised by maximum light transmission.
To put your garage door in the right light even after sunset and also to deter unauthorised personnel, we recommend the LED lighting kit. It creates an exciting dialogue with other light sources, e.g. illuminated windows, and sets the scene for the overall architecture of your home. Depending on the door width, the lighting kit consists of four, six or eight LEDs, which are evenly distributed across the entire width of the door in a U-shaped track. They can be controlled either via the hand-held transmitter, which you also use to operate your operator, via a separate timer or a motion detector.
The flat, aluminium-coloured LED lighting kit (40 x 20 mm) is installed under the garage lintel to save space, so that almost the full clearance height is retained. Long-life LEDs ensure very bright illumination with minimal power consumption. Depending on the door width, the lighting units can be easily shortened on both sides to achieve exact symmetrical illumination of the door.
The stable door leaf frame, in combination with the aluminium threshold profile reinforced with six hollow chambers, ensures high stability and functionality, so that the degree of deflection of the door leaf is reduced to a minimum even when the door is open/ when the door leaf is lifted.

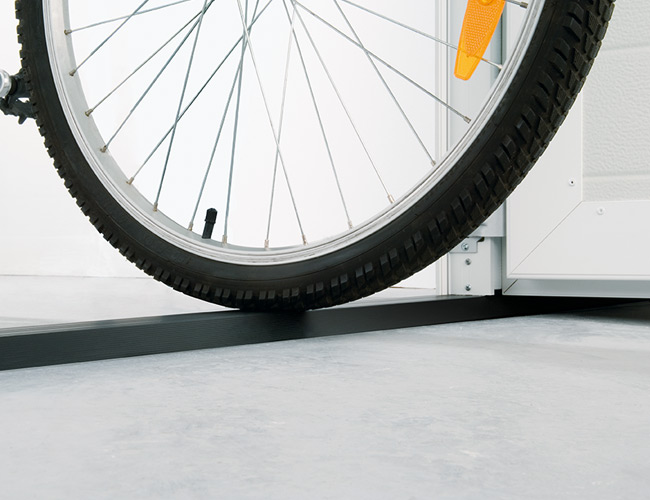

With a height of just 24 millimetres, the black anodised aluminium threshold is suitable for bicycles and mopeds and allows easy access.
This is ensured by the standard outward-opening overhead door closer on the outward-opening wicket door and the inward-opening and invisible overhead door closer on the inward-opening wicket door.
This is particularly practical if you have both hands full, e.g. to push your bike, moped or lawnmower out of the garage.

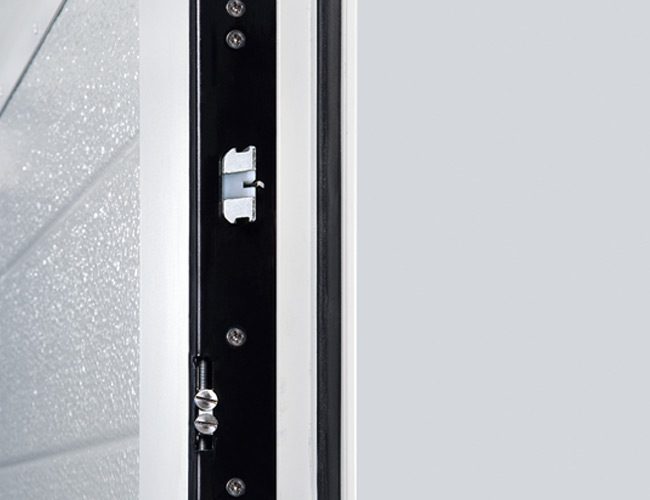

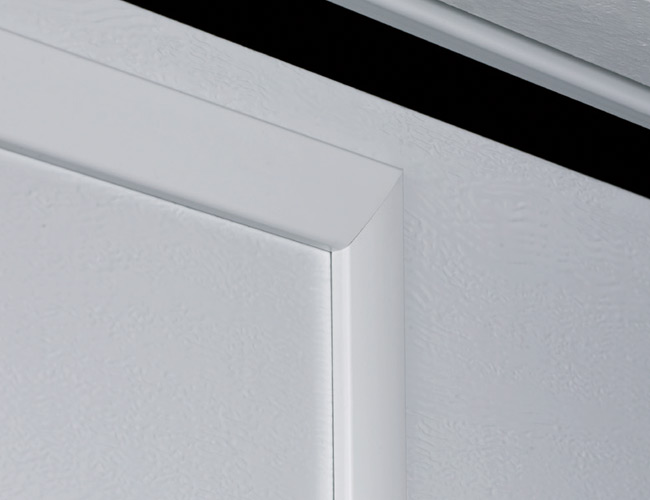

Aesthetic overall impression of the door thanks to Softline profiles (rounded) and concealed hinges. The door leaf frame is painted in traffic white, similar to RAL 9016, as standard.
For a small surcharge, all other RAL colours can be painted in the door leaf colour.
For coated door leaves (wood tones - only Golden oak for inward-opening wicket doors - Satin white, Satin Window grey, Satin grey, Satin Dark grey and Satin brown), the door leaf frame is painted in a matching colour for an additional charge.
(1) For modern private garages up to 5,500 mm wide
The Evolution premium sectional door is ideal for private garages and double garages up to a width of 5.50 m for new builds and renovations.
(2) Largest selection and variety of features
Choose between all motifs, surfaces, colours (RAL of your choice) and many other features from the Novoferm range! The majority of surfaces and colours are end-coated. This makes them less sensitive to external influences.
(3) New: double-walled and thermally optimised
The new, optimised steel sections are manufactured exclusively in a double-walled, thermally separated sandwich construction with a thickness of 45 mm.
This enables them to achieve a particularly high thermal insulation value of U(p) = 0.46 W/m2Kin the range of door solutions with comparable section thicknesses.
(4) Approved burglar resistance with the RC2 security package
With the Evolution premium sectional door, you can protect your home even better:
The premium door is optionally available in a burglar-resistant version with resistance class RC 2 in accordance with DIN/TS 18194:2020-07.
(5) New:
Quality that stands the test of time
High-quality materials, first-class workmanship and coordinated components characterise the Evolution premium sectional door - naturally "Made in Germany"!
The high manufacturing quality guarantees a high level of stability that can withstand a class 4 wind load (144 km/h).
(6) Finger pinch protection inside and outside
The special design of the sections and hinges prevents pinch points on the door leaf from the outset.
(7) New:
Thermo frame set in new design
The new, optimised thermo frame set improves thermal insulation by up to 15 % (when installed behind the opening) thanks to the 3-sided thermal optimisation and the double seals. This performance value depends on the door motif and size.
The new thermal frame set therefore actively supports the optimisation of the performance balance of the entire building.
(1) New: Harmonious appearance of the inside of the door
The Evolution premium door offers a visual highlight with its harmonious appearance on the inside of the door. The surface is finished in traffic white (similar to RAL 9016). In addition to the profiles and section end caps in RAL 9016, the outer colour of the door is no longer visible on the inside at the door transition.
(2) New: thermal separation
The exclusive, thermally separated sections with insulating hard foam core and additional seals between the sections ensure even greater thermal insulation*.
(3)New: variable floor profile
The new floor profile on the bottom edge of the door compensates for minor unevenness in the floor of up to 10 mm and ensures high flexibility during installation thanks to slotted holes.
(4) High flexibility: Optional spring technology
The Evolution premium door can be fitted with either multiple tension spring packages or torsion springs. The vertical tension springs enable a low installation height (in combination with a low lintel) and offer many options where space is limited. For large sizes, the door is fitted with torsion spring shafts, either at the front or rear.
(5) New: tandem rollers with ball bearings
High-quality tandem rollers with ball bearings optionally ensure extremely smooth and even door operation.
(6) Only from Novoferm: NovoPort® premium operator
The NovoPort® operator system with integrated internal pushbutton and door status display via hand-held transmitter ensures maximum convenience. The innovative, flexible side installation, optionally on the right or left, eliminates installation obstacles from the outset. This leaves the ceiling free.
(7) Even more safety: "Easy" photocell.
The optional "Easy" safety photocell detects obstacles and people and interrupts the door closing process in case of doubt.
(8) SmartHome compatible
In combination with the new Novoferm WiFi modules, the SmartHome-compatible garage door openers from Novoferm enable easy integration of the door control unit into your existing SmartHome system. Our technology is compatible with common systems. The functions can be controlled via app or voice control via Amazon Alexa and Google Home.**
* In the area of door solutions with comparable section thicknesses.
** Hardware and functions depend on SmartHome systems, components and release.
The surface of the inside of the door is finished in traffic white, similar to RAL 9016. In addition to the profiles and section end caps in traffic white, similar to RAL 9016, the outer colour of the door is no longer visible on the inside at the door transition.
The picture on the right shows the uniform colour gradient on the inside of the new EVOLUTION ISO 45 premium sectional door using the head section as an example in comparison to conventional door solutions.
The new optimised steel sections are manufactured exclusively in a double-skinned, thermally broken sandwich construction with a thickness of 45 mm.
With additional seals between the sections, they achieve a particularly high heat insulation value of U(p)= 0,46 W/m2K with respect to door solutions with comparable section thicknesses.
The new, thermally separated sections are compatible with the ISO 45 sections of the previous series.
Backwards compatibility is guaranteed thanks to the proven ISO 45 section geometry.
The new factory-fitted floor profile compensates for uneven floors of up to 10 mm, making it easier to install the door safely.
The 15 slotted holes in the bracket ensure a high degree of flexibility in the event of slightly uneven floors.
As an optional variant, the EVOLUTION ISO 45 premium sectional door can be fitted with high-quality, ball-bearing tandem rollers for smooth running for a small additional charge.

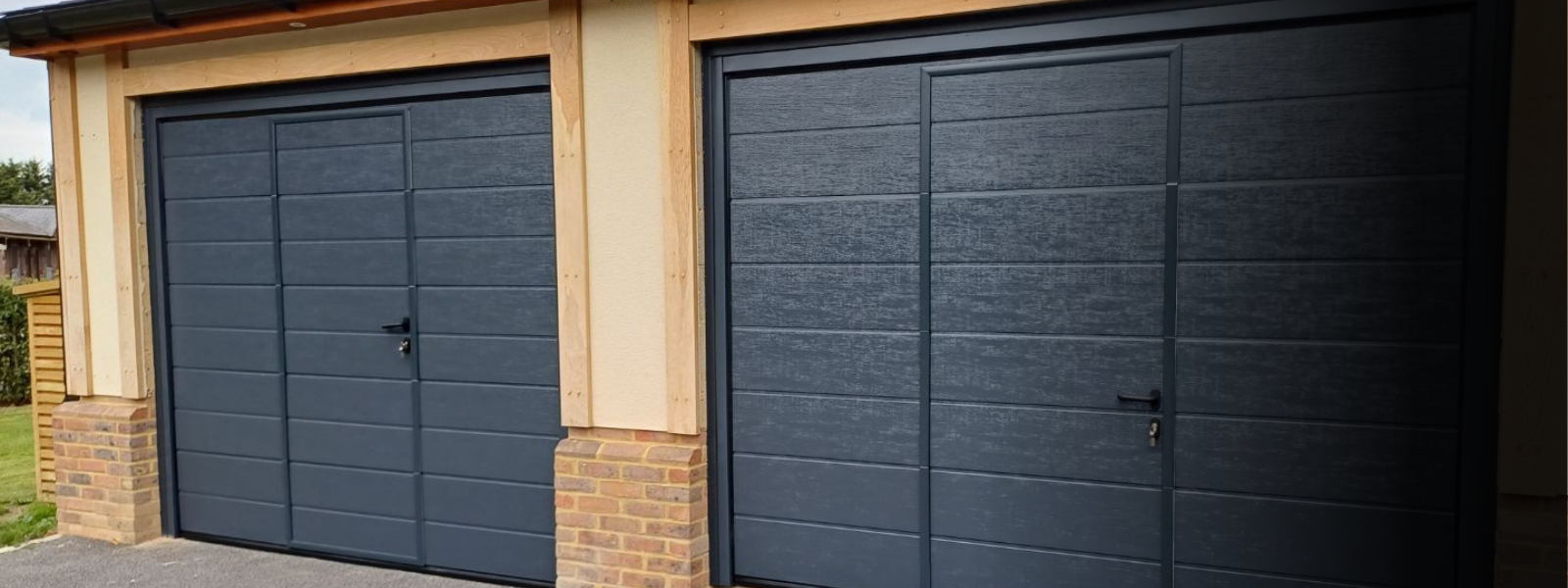

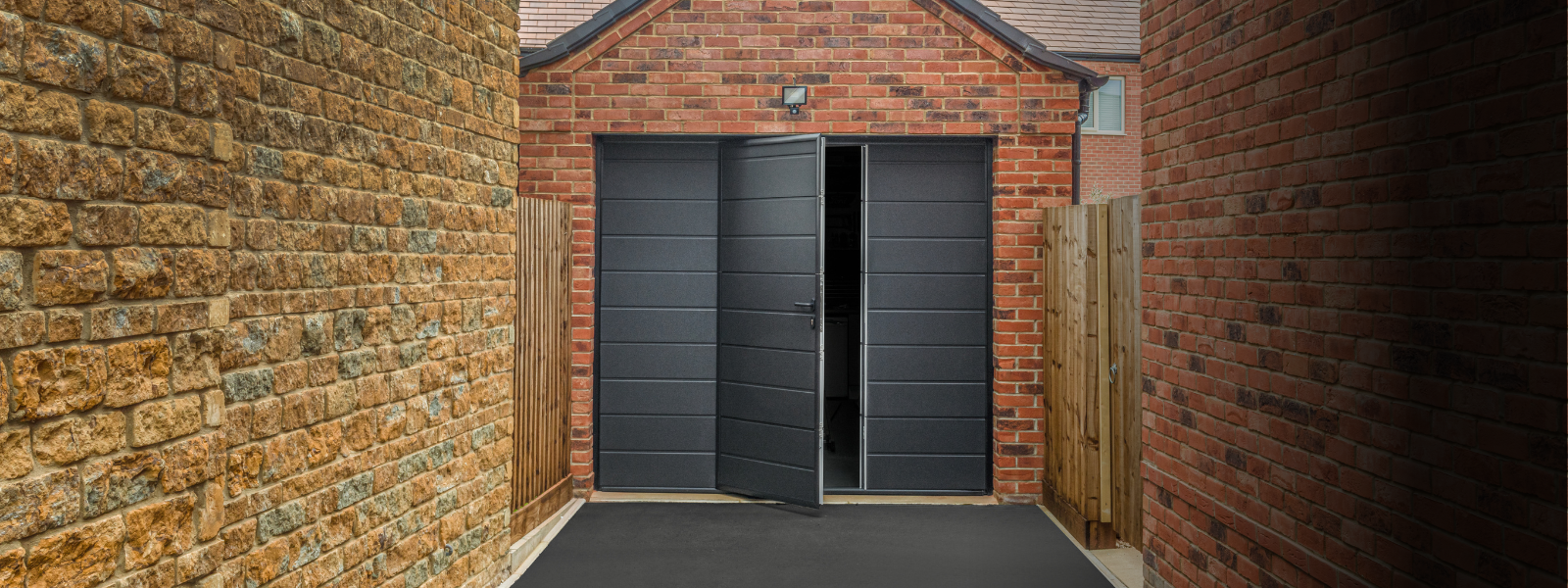

ISO 45 Wicket Sectional garage door
Door Design: Large Rib Woodgrain
Colour: Anthracite Grey (RAL 7016)

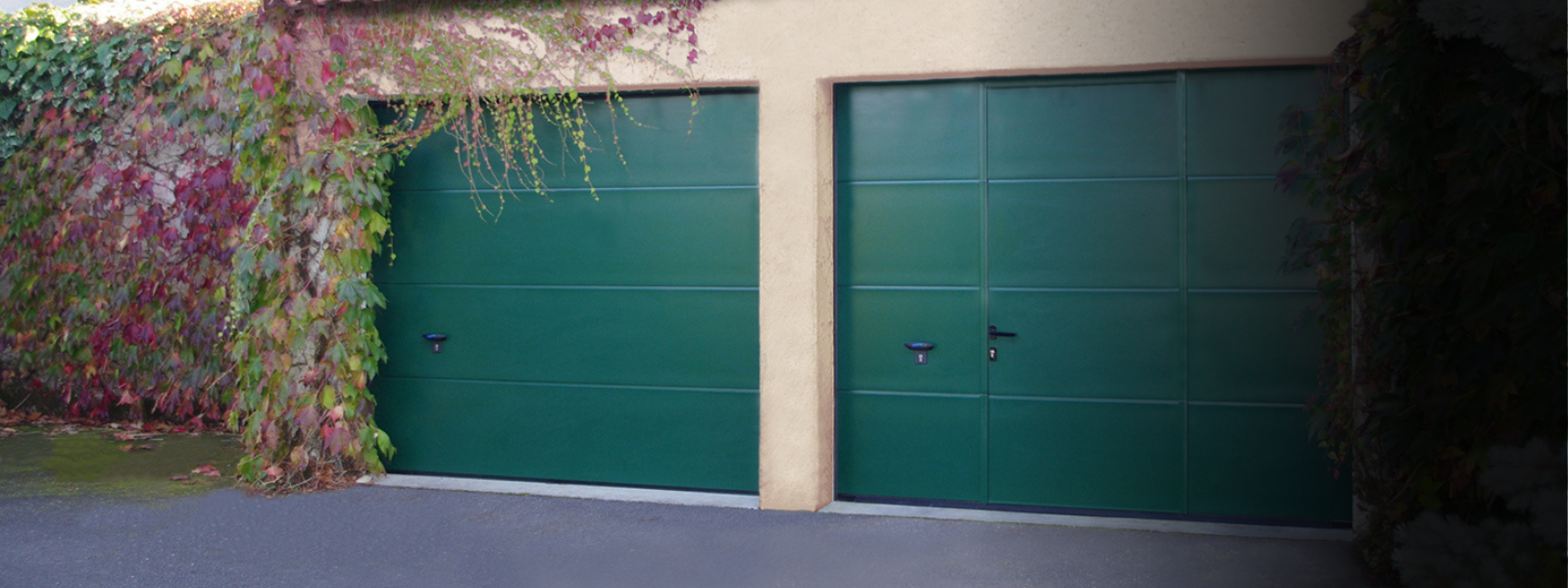

ISO 45 Wicket Sectional garage door
Door Design: Flush Smooth
Colour: Moss Green (RAL 6005)

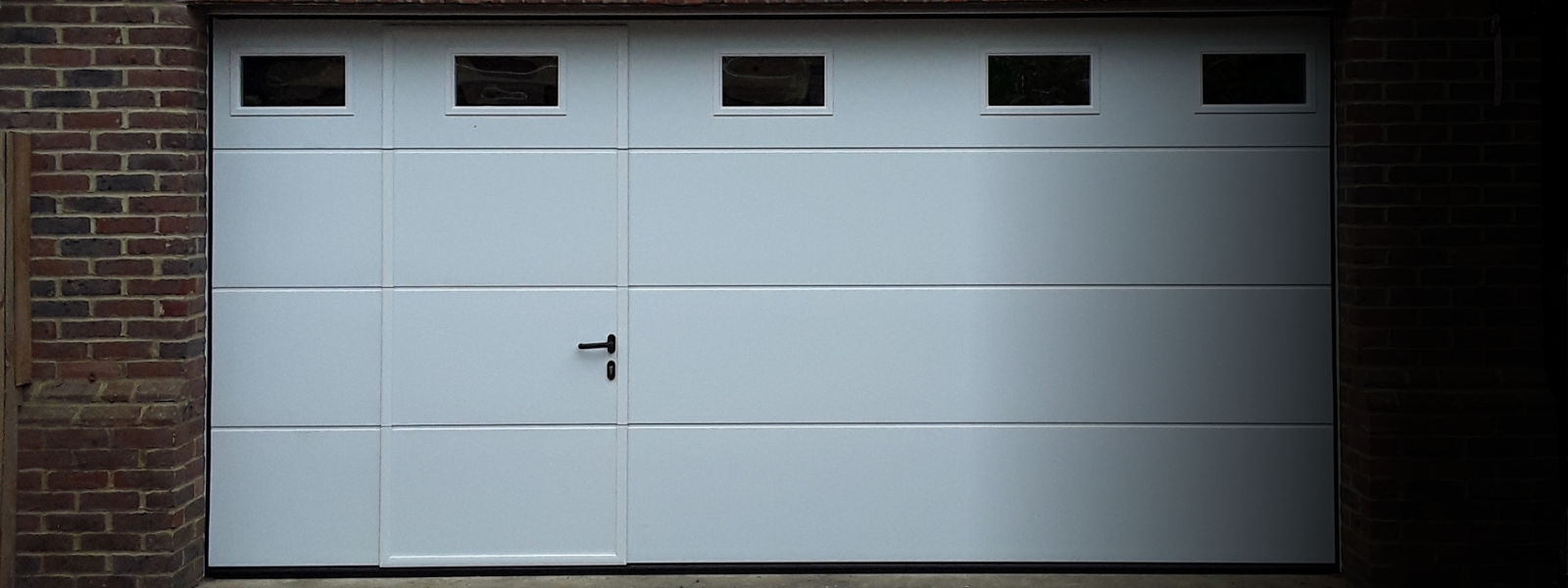

ISO 45 Wicket Sectional garage door
Door Design: Flush Smooth Glazed
Colour: Traffic White (RAL 9016)
ISO 45 Wicket Sectional garage door
Door Design: Large Rib Woodgrain
Colour: Anthracite Grey (RAL 7016)
