Space-saving roller garage doors roll vertically into a neat overhead coil, offering convenience at the push of a button, insulation, multiple designs with safety and security benefits in mind.
Roller garage doors are made of high-quality aluminium slats and are manufactured according to the roller shutter principle. This leaves the ceiling in the garage free and no swing space is required in front of the garage, so you can use every last centimetre of space, for example for parking a second car.
Novorol takes the concept of the roller garage door to a new level. It out-performs the ordinary garage door for ease of use, insulation, finishes, safety and security plus all doors are manufactured under ISO 9001 quality guidelines.
Enjoy effortless automation, enhanced security, and premium insulation with our space-saving insulated roller doors, designed to open vertically and maximise driveway use. With vibrant colours, elegant woodgrain finishes and smartphone app compatibility, these doors combine style, convenience, and protection for your home. Space-saving Novorol roller doors are safety certified to EN12453 and fitted with NovoShield and a safety edge as standard.

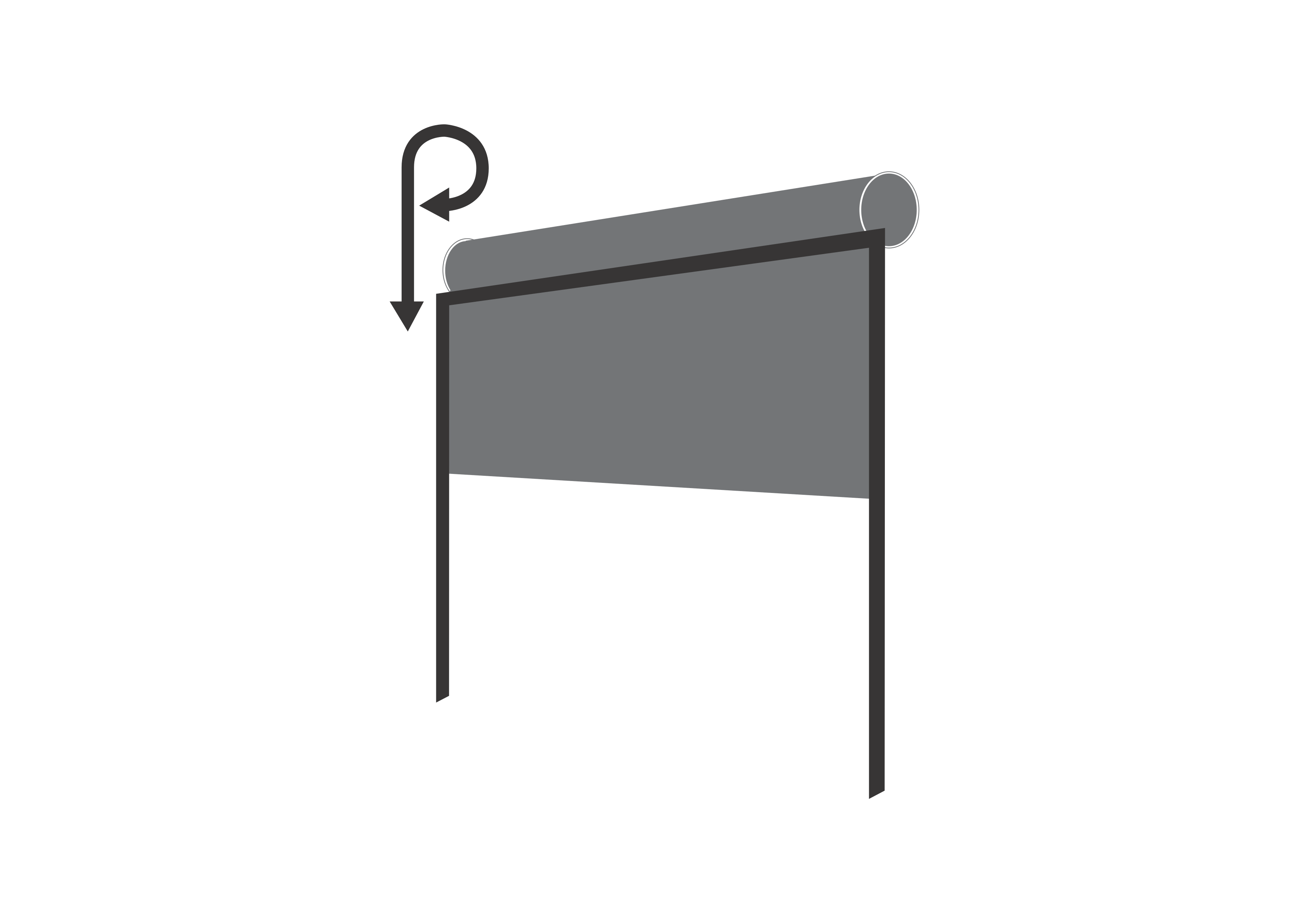

Click on the animation on the left to view an animated version of how our roller garage doors operate.
Detailed animations / videos on the advantages, installation and programming of Novoferm garage doors can be found on the Novoferm YouTube channel:
https://www.youtube.com/@novofermukltd
Doors based on the roller shutter principle

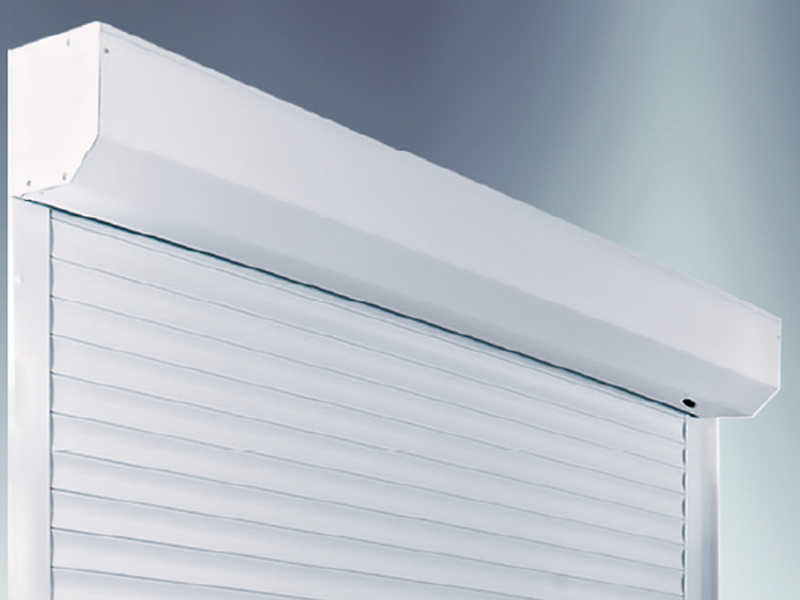

"Novorol" roller garage doors are made of high-quality aluminium slats and are manufactured according to the roller shutter principle. The doors are fitted with a roller shutter box (Novoshield), which is installed behind, in or in front of the opening.

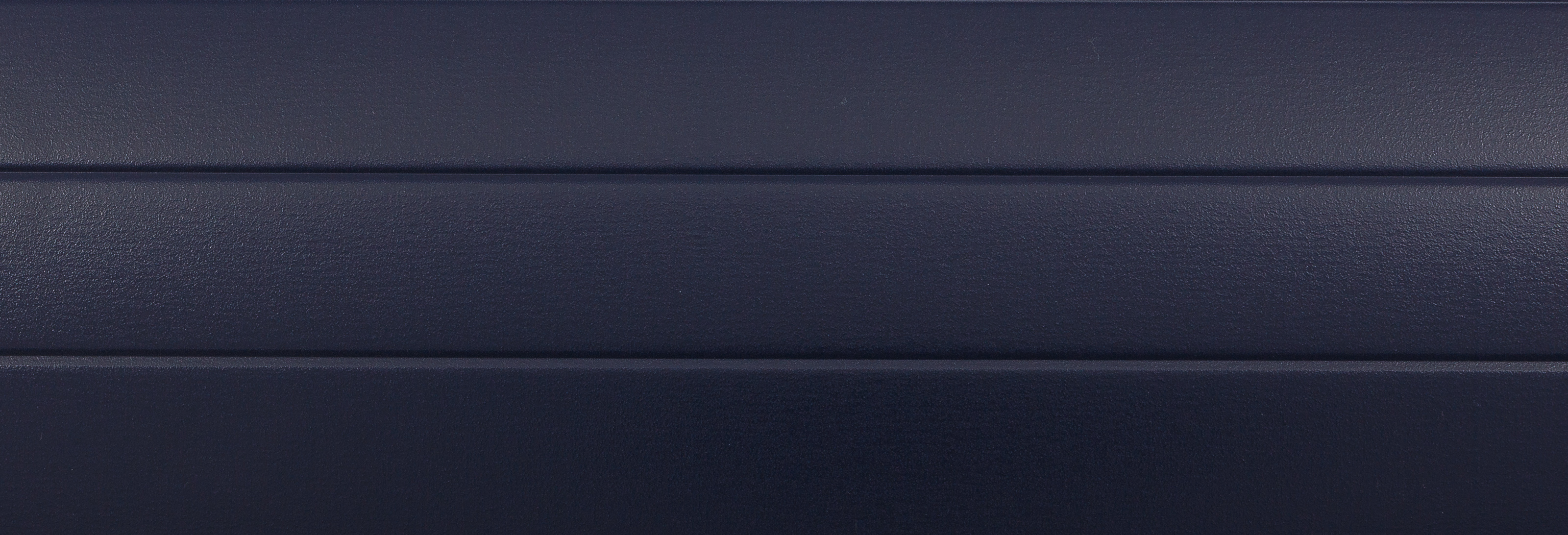

Large selection of colours
The combination of visual appeal and robust performance makes the Novorol insulated roller door a practical and stylish choice for enhancing your home’s exterior. Available in many standard colours and 3 premium high grade woodgrain laminate finishes.

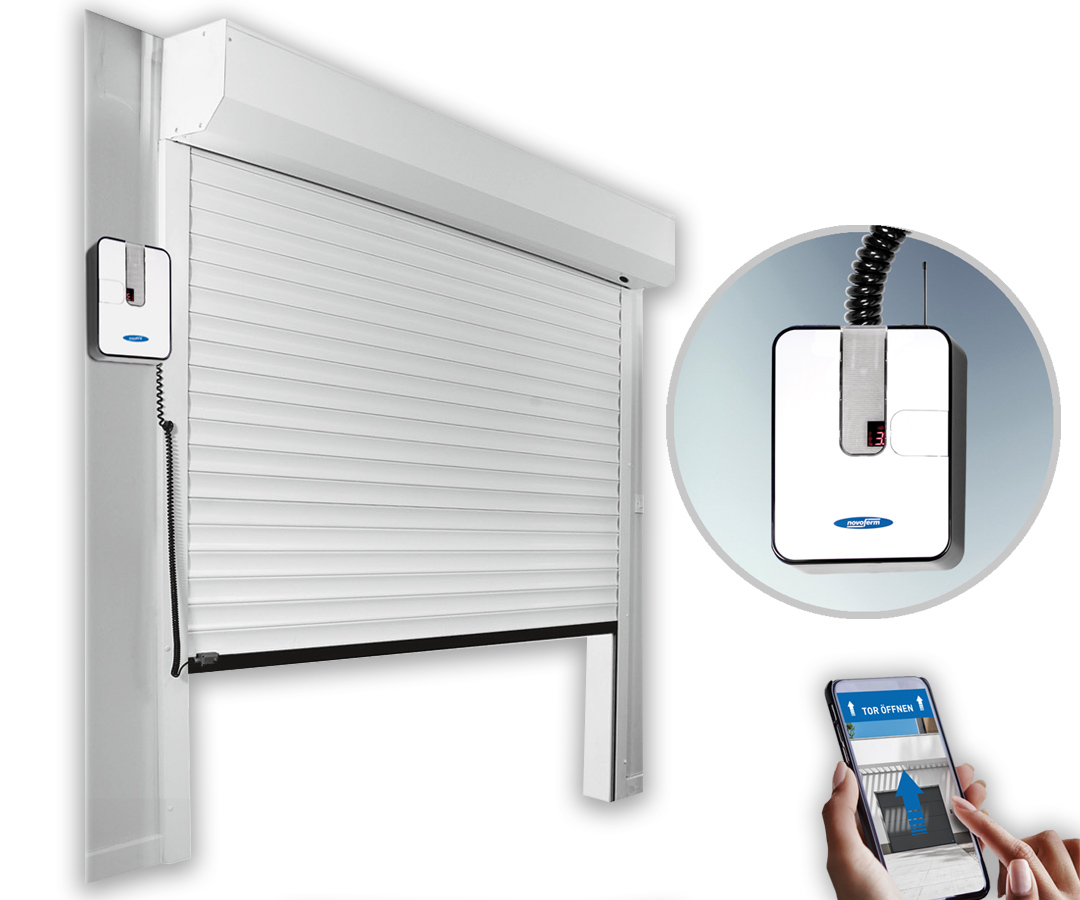

Innovative / SmartHome-capable
Novoferm roller garage doors are fitted with an electric operator as standard with a range of control units available. The smart home-compatible operator is mounted on the side to save space and enables the door to be opened with an integrated button.

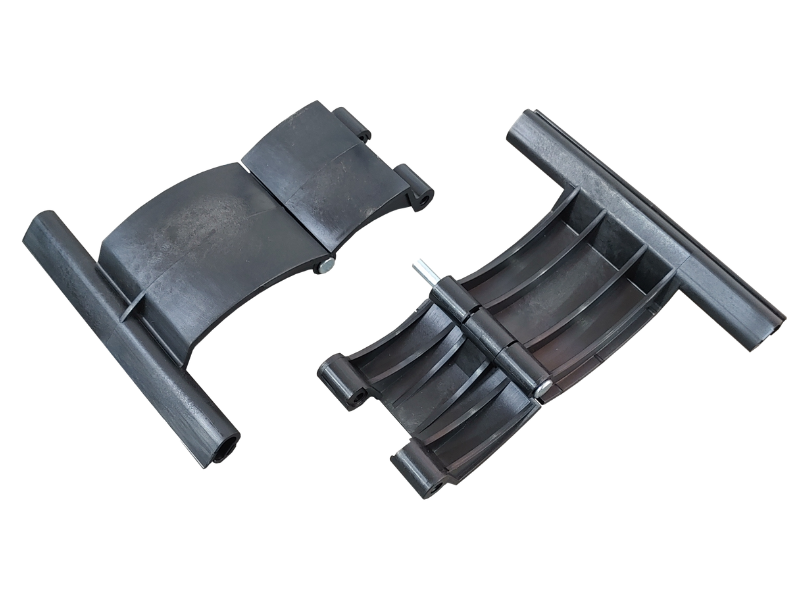

Anti-lift device to prevent unauthorised opening
Novorol allows you to choose your design. Two designs are available - the Novorol 77 which is the ultimate in remote control luxury, and the ultra-compact Novorol 55, the solution for tight spaces, which is available in the remote control version.
Guides and Box Colour Matched as Standard.
Polyester Painted 70mm Guides up to 3m Wide (Colours available).
Polyester Painted 90mm Guides over 3m wide (Colours available).
NovoShield Full Box supplied as standard. Box sizes subject to change dependent on curtain height. (Other box options available).
Novorol Hard Wired Control Safety System.
Wireless Option Available.
Two 2-Channel Hand Transmitters.
Guides and Box Colour Matched as Standard.
65mm Guides.
205mm NovoShield Full Box.
Novorol Hard Wired Control Safety System.
Wireless Option Available.
Two 2-Channel Hand Transmitters.

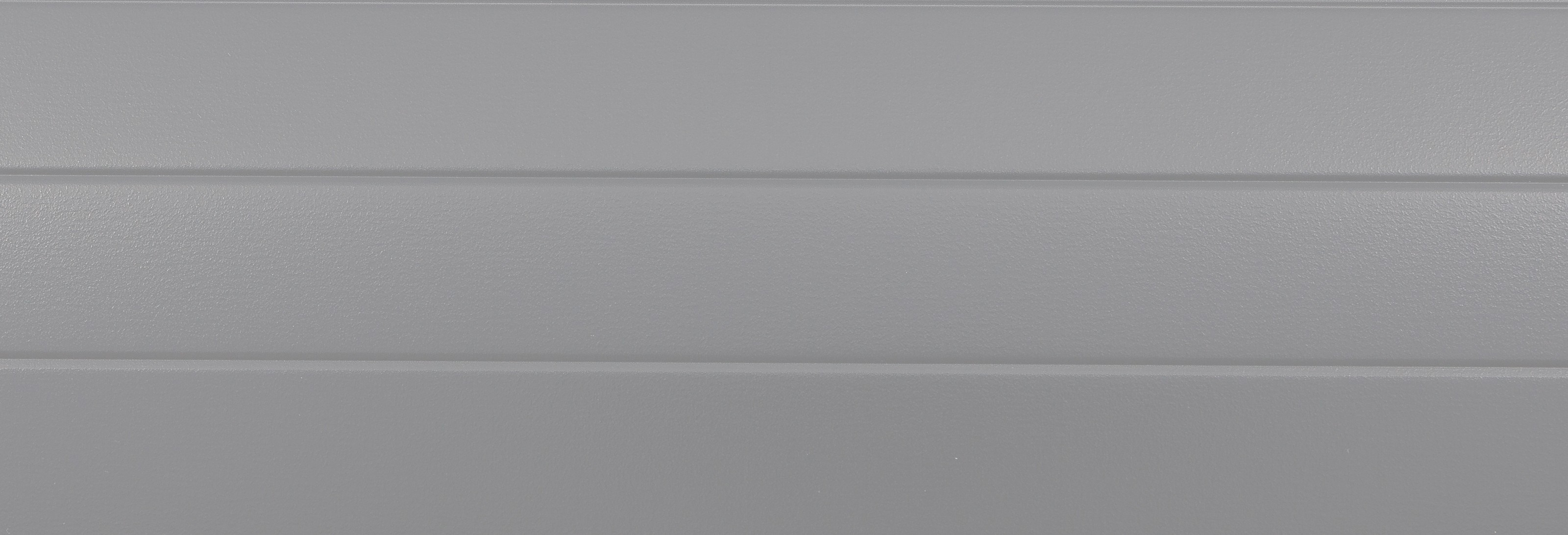

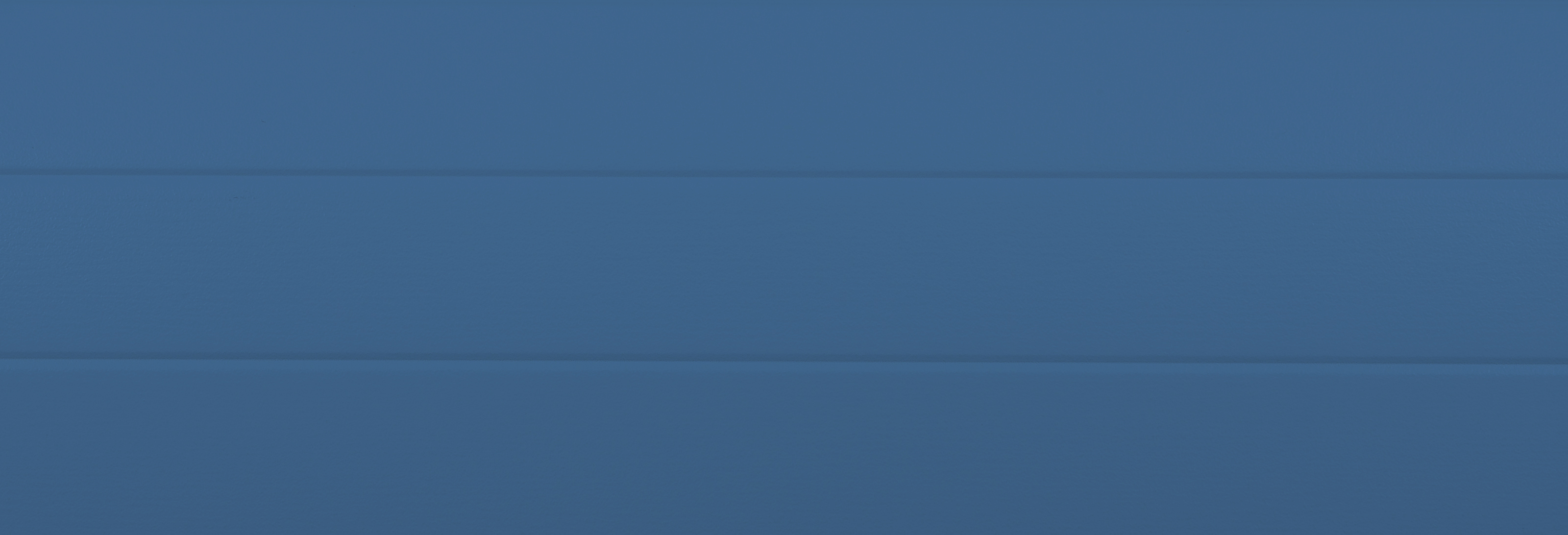

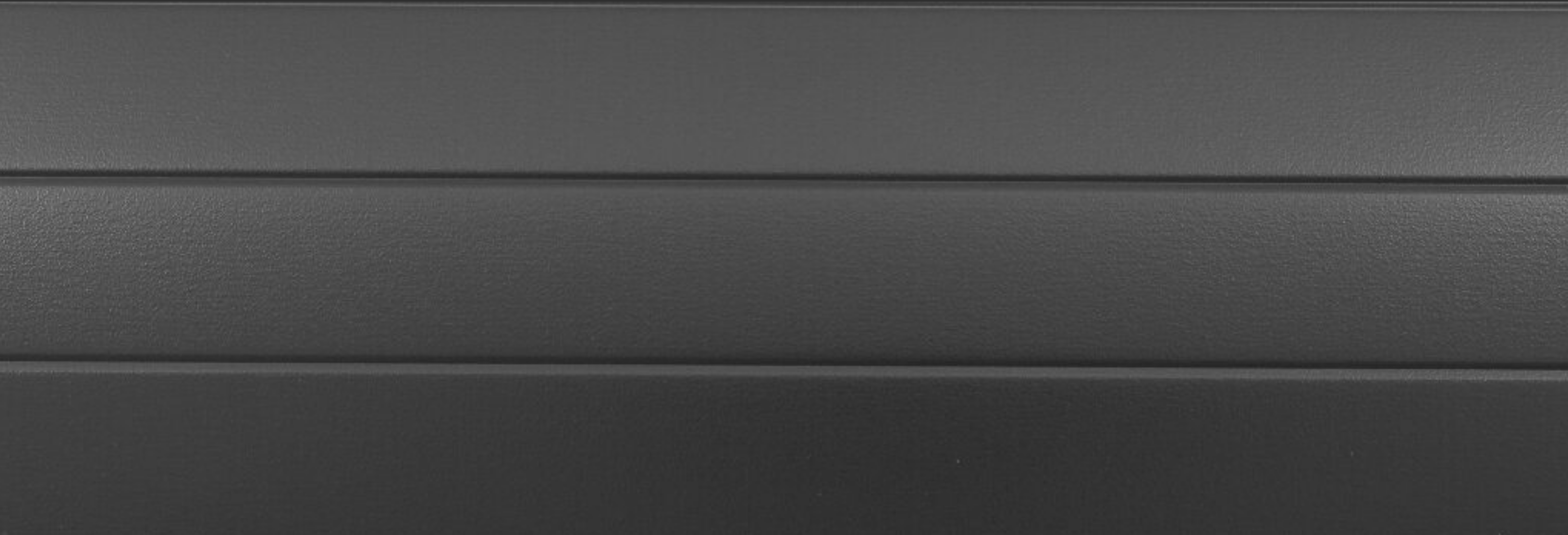

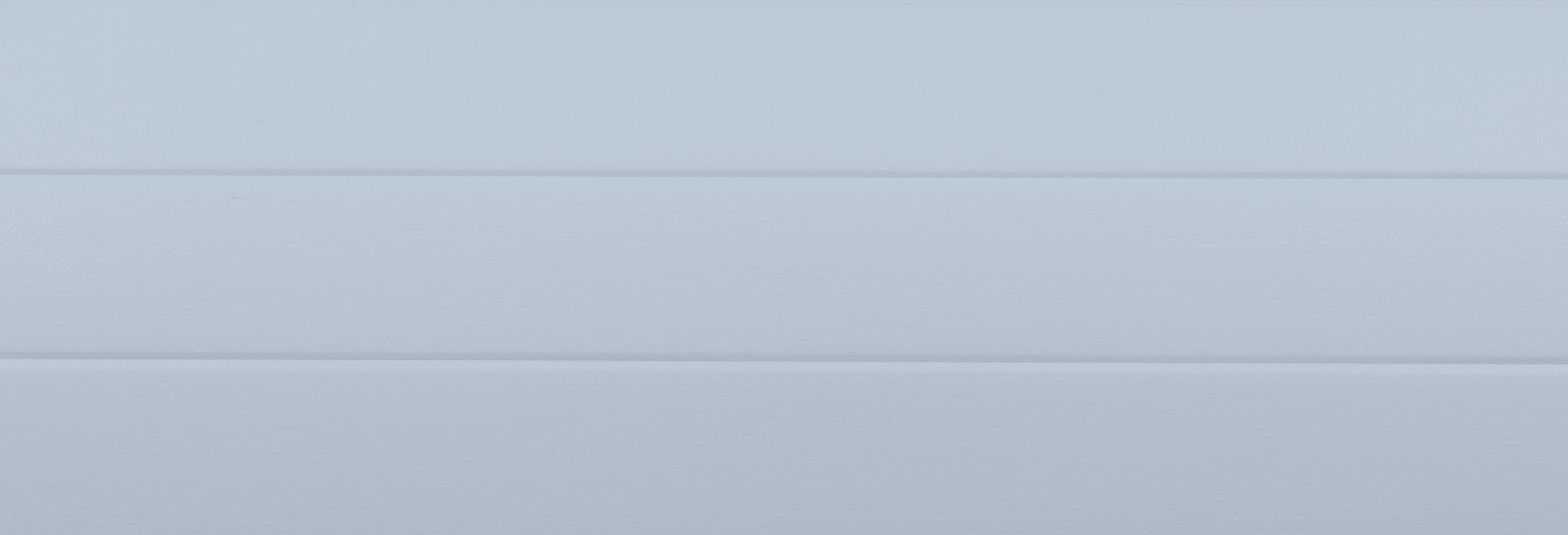

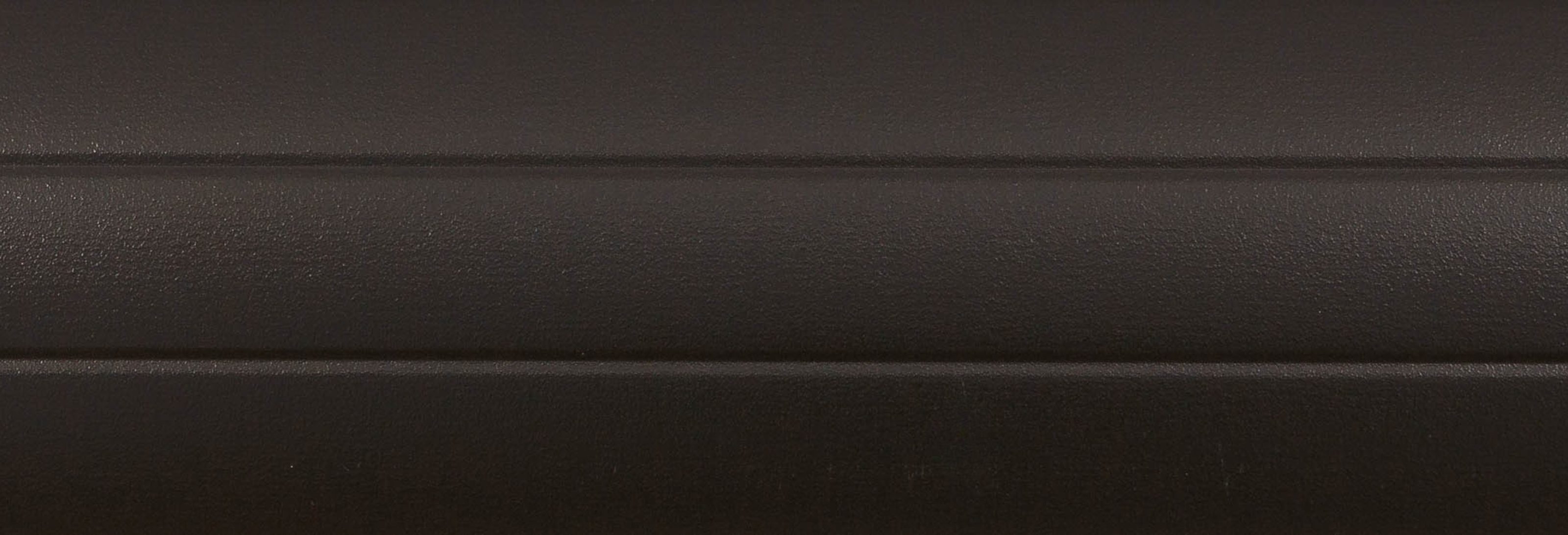

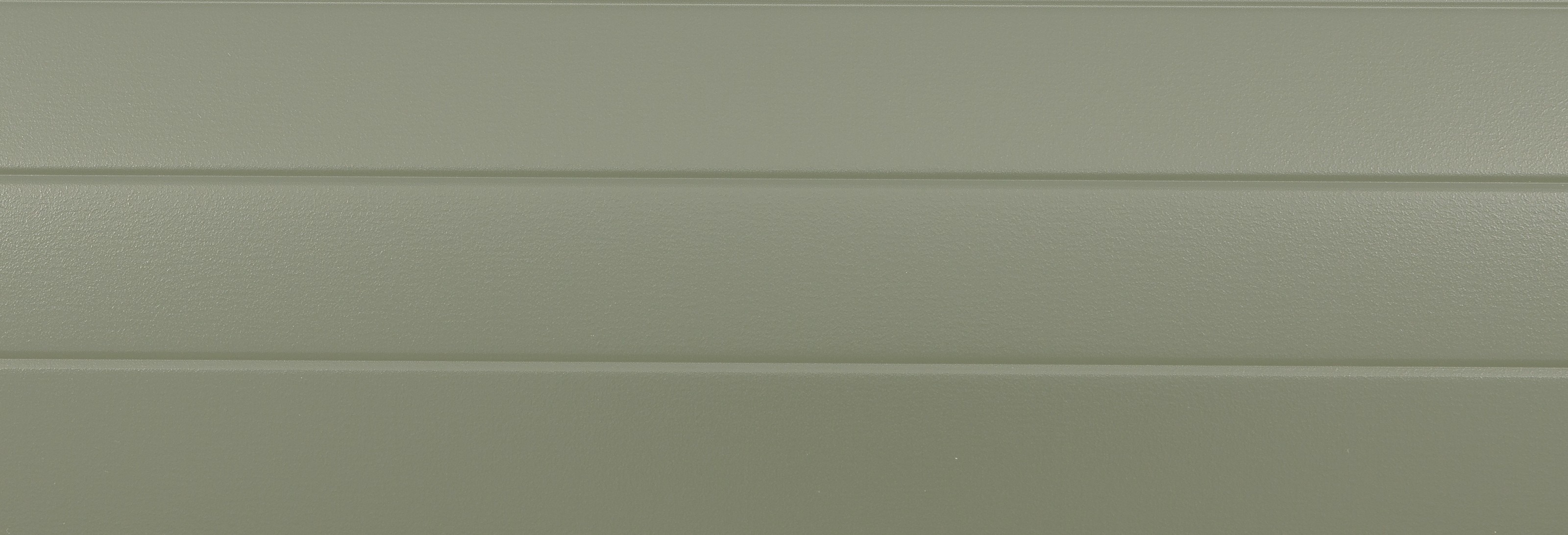

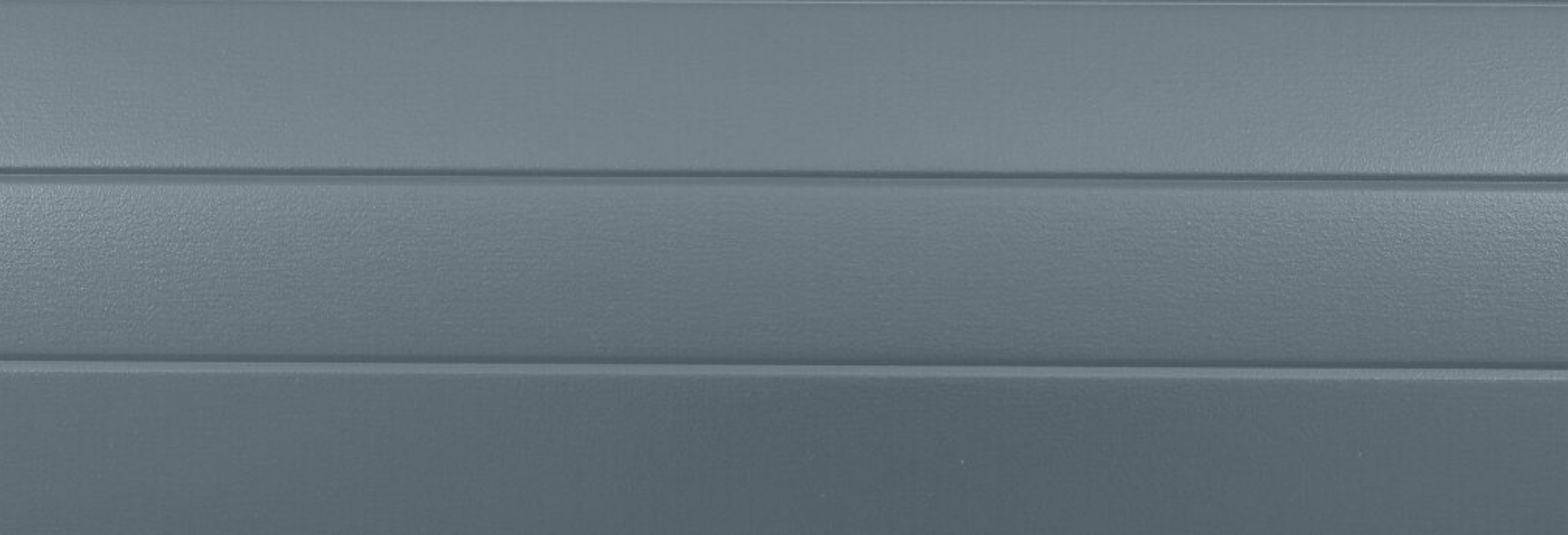

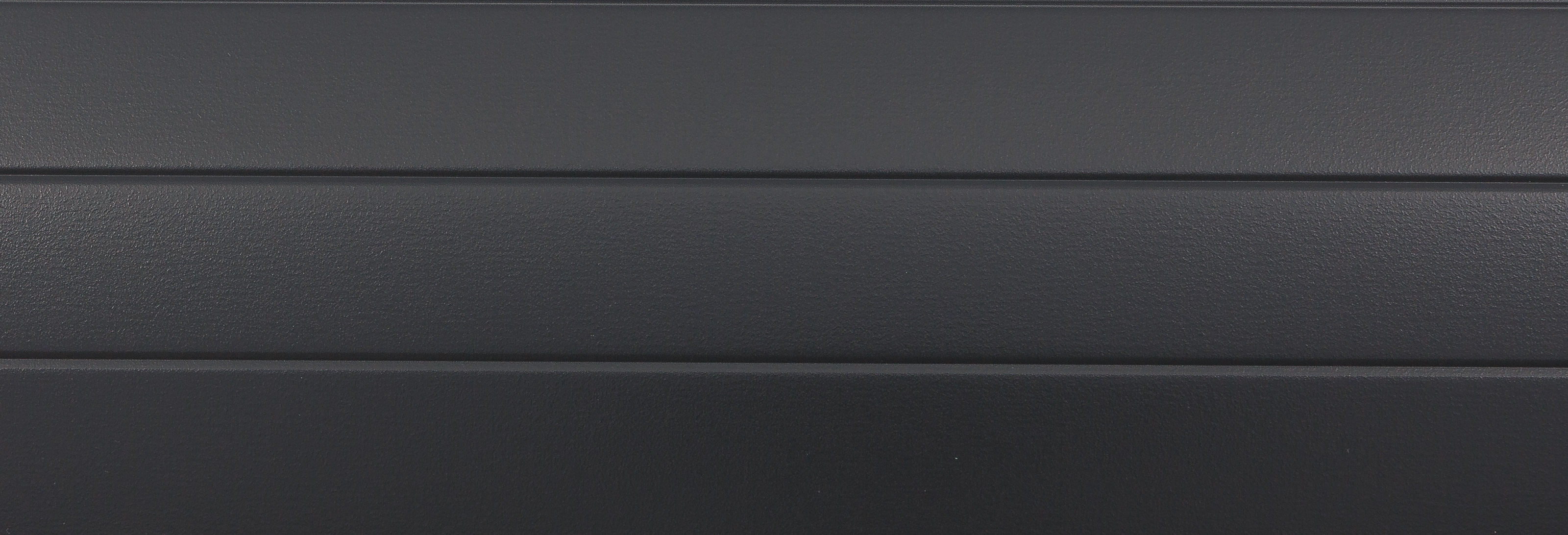

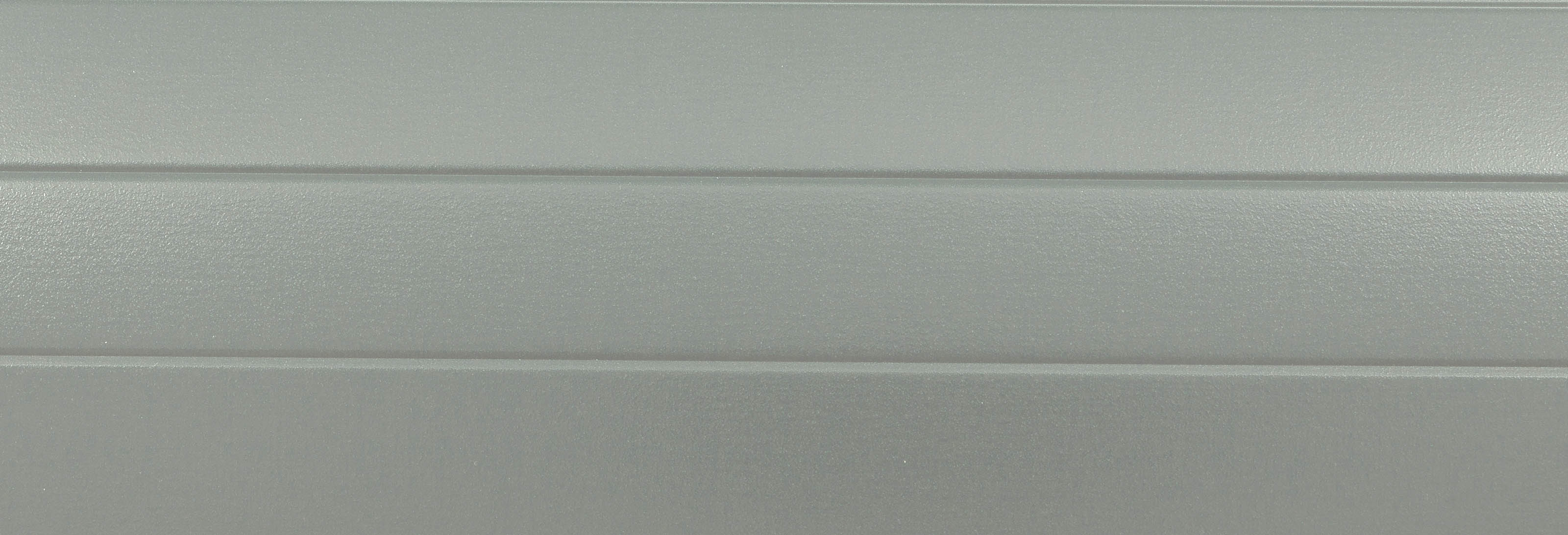

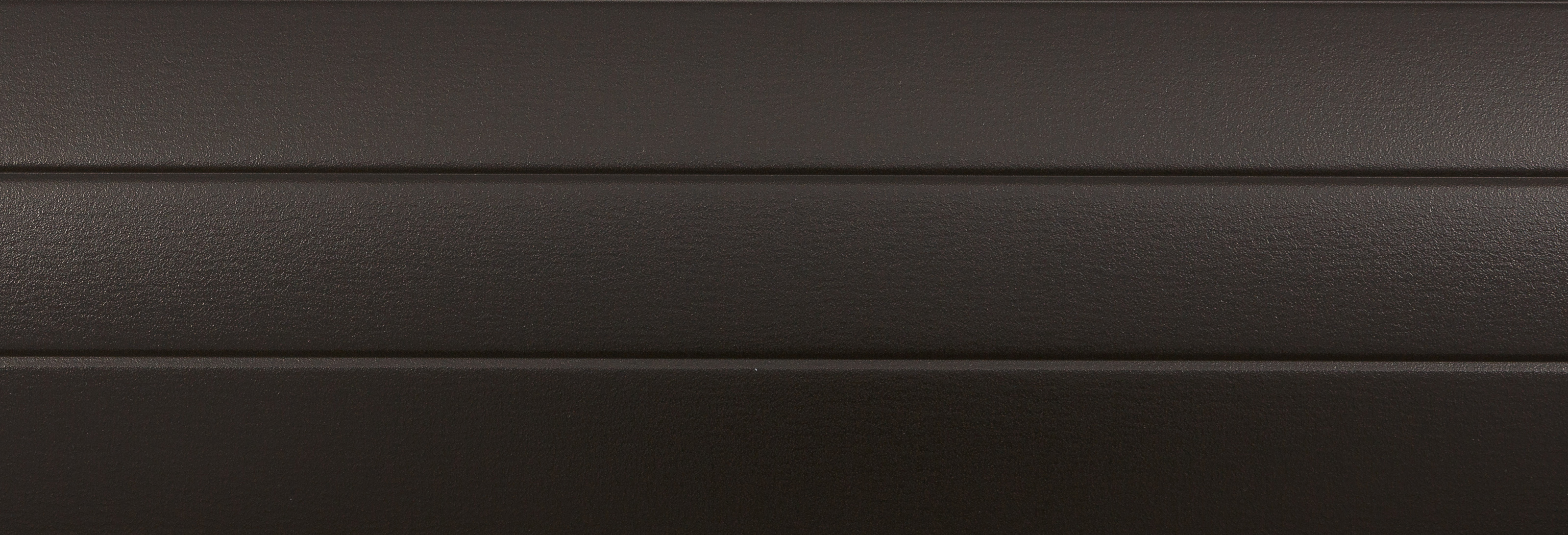

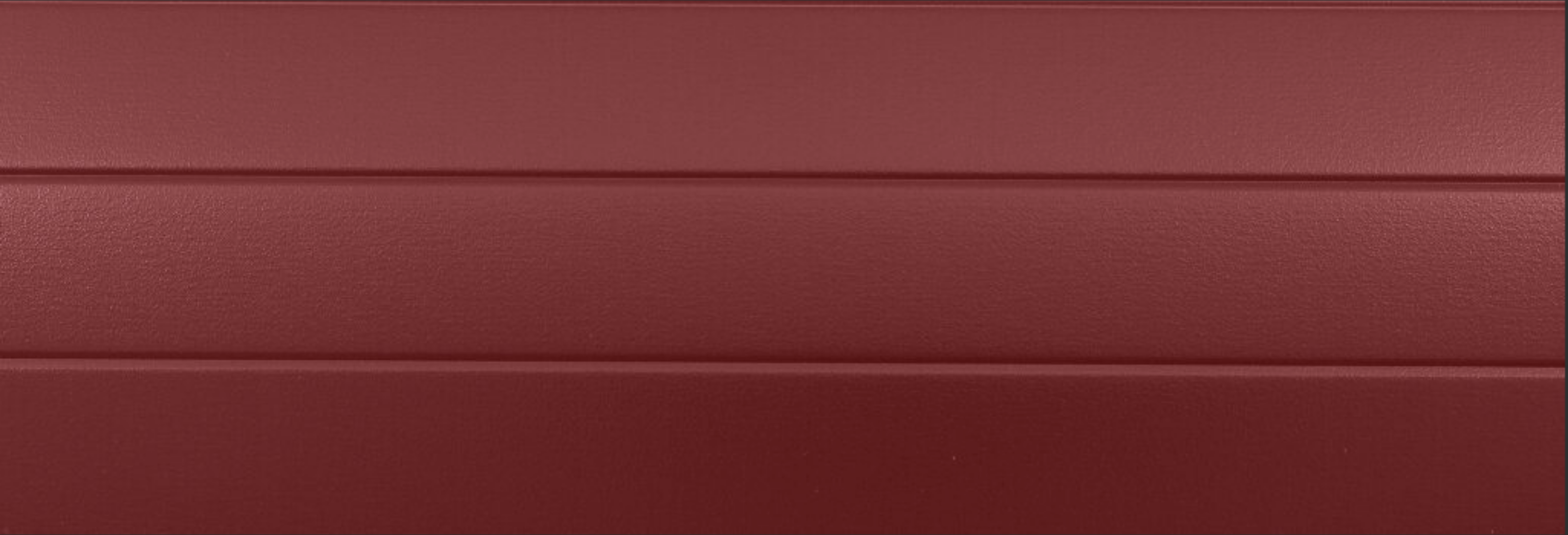

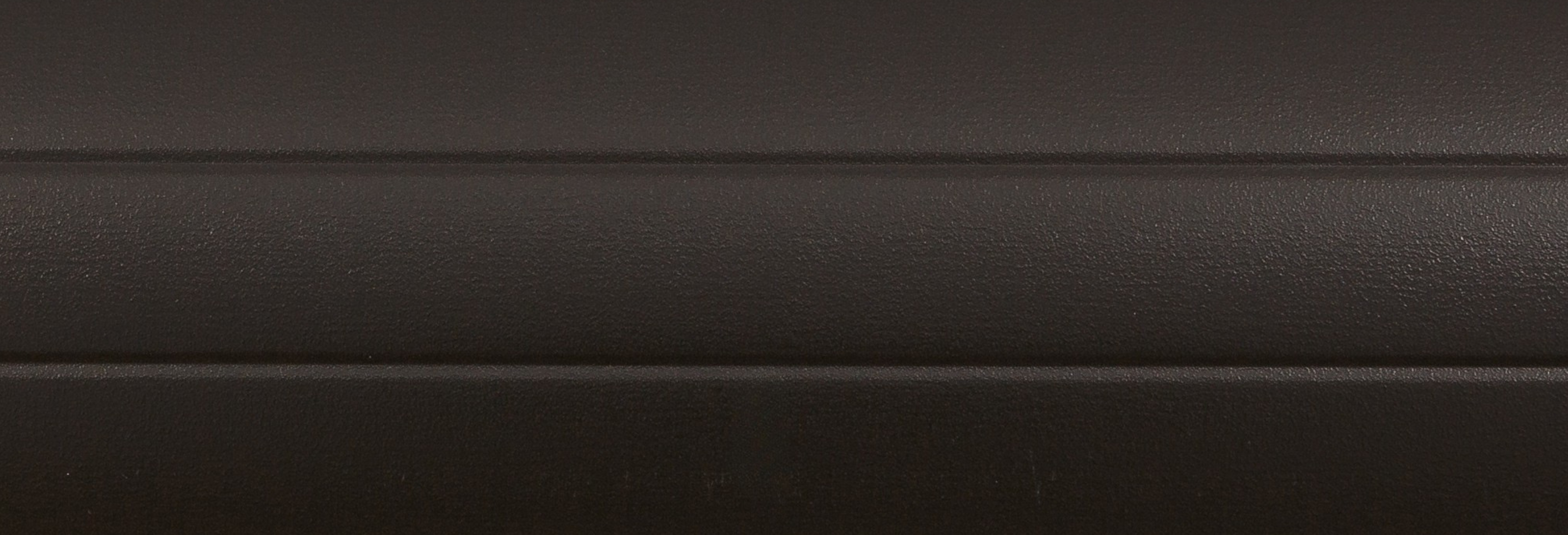

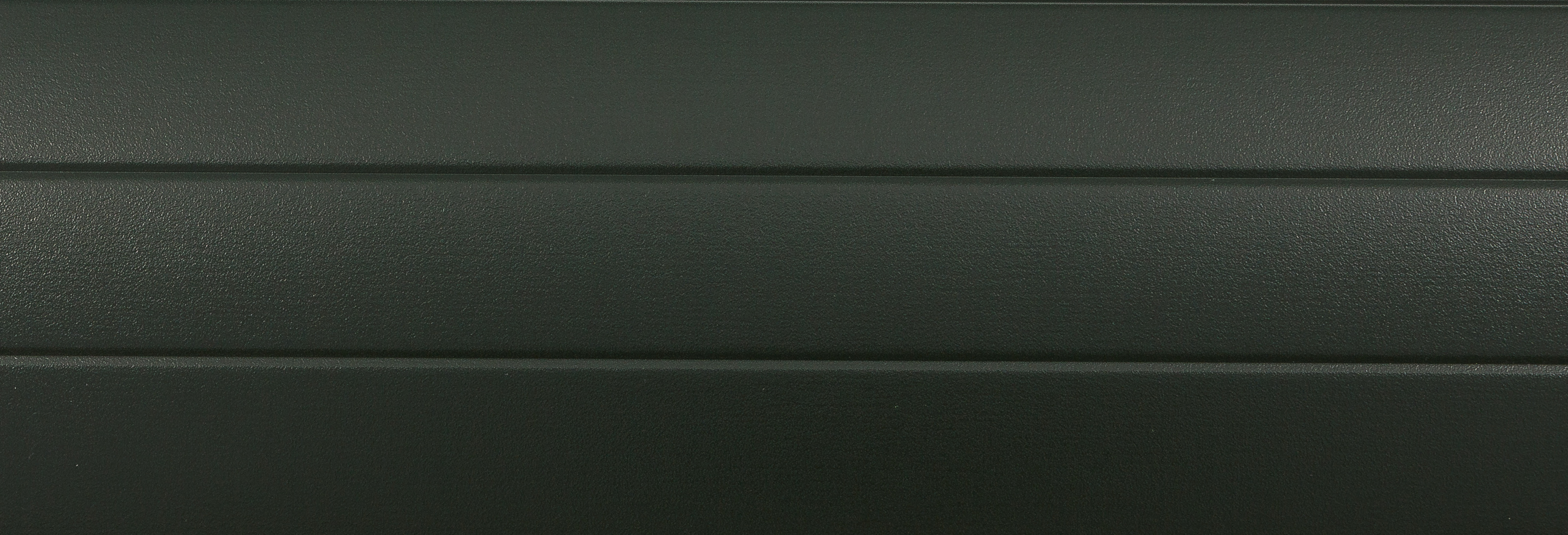

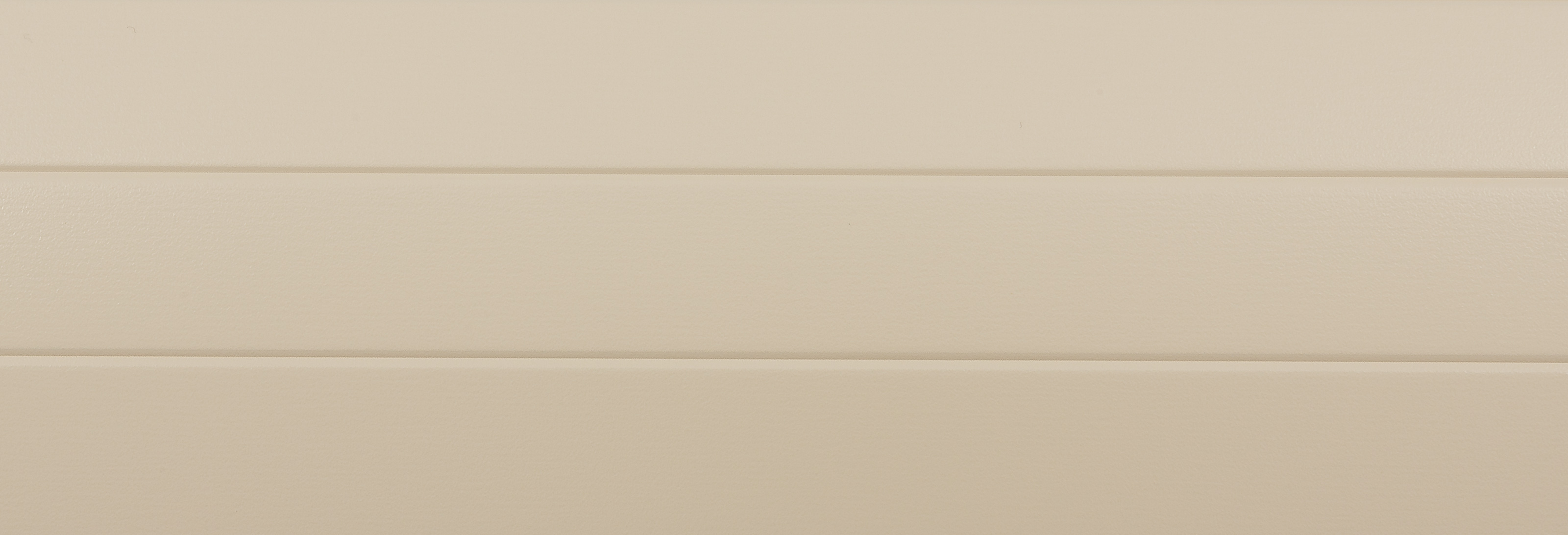

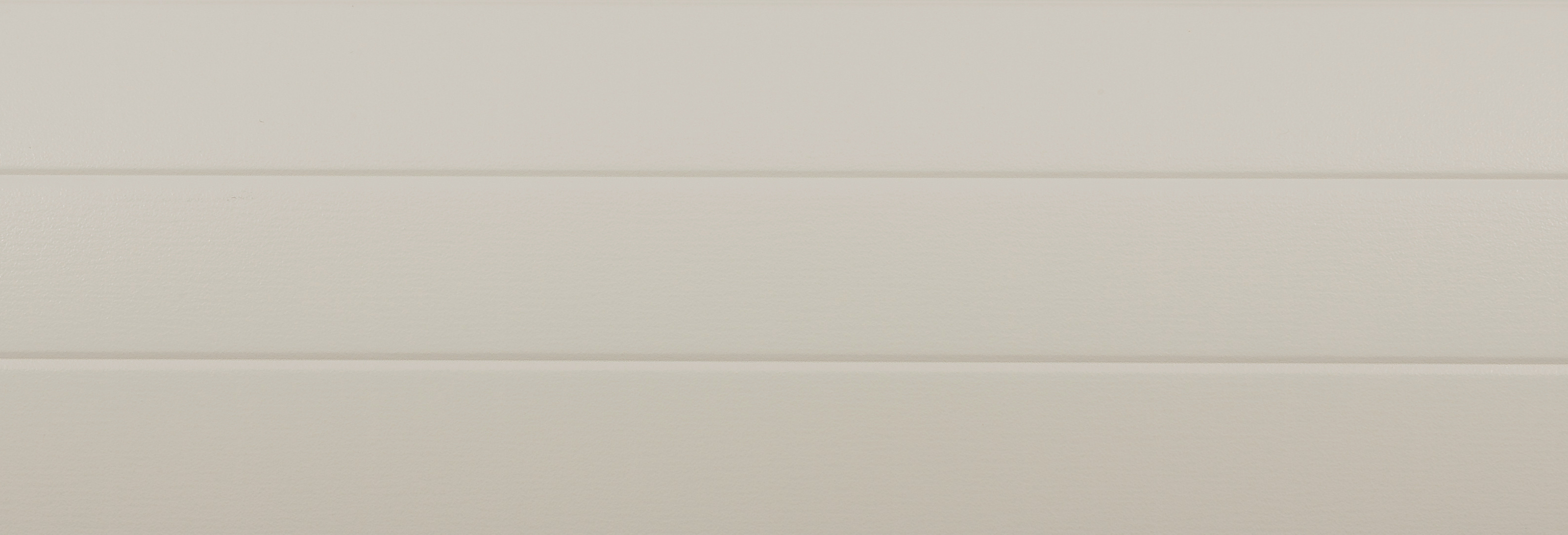

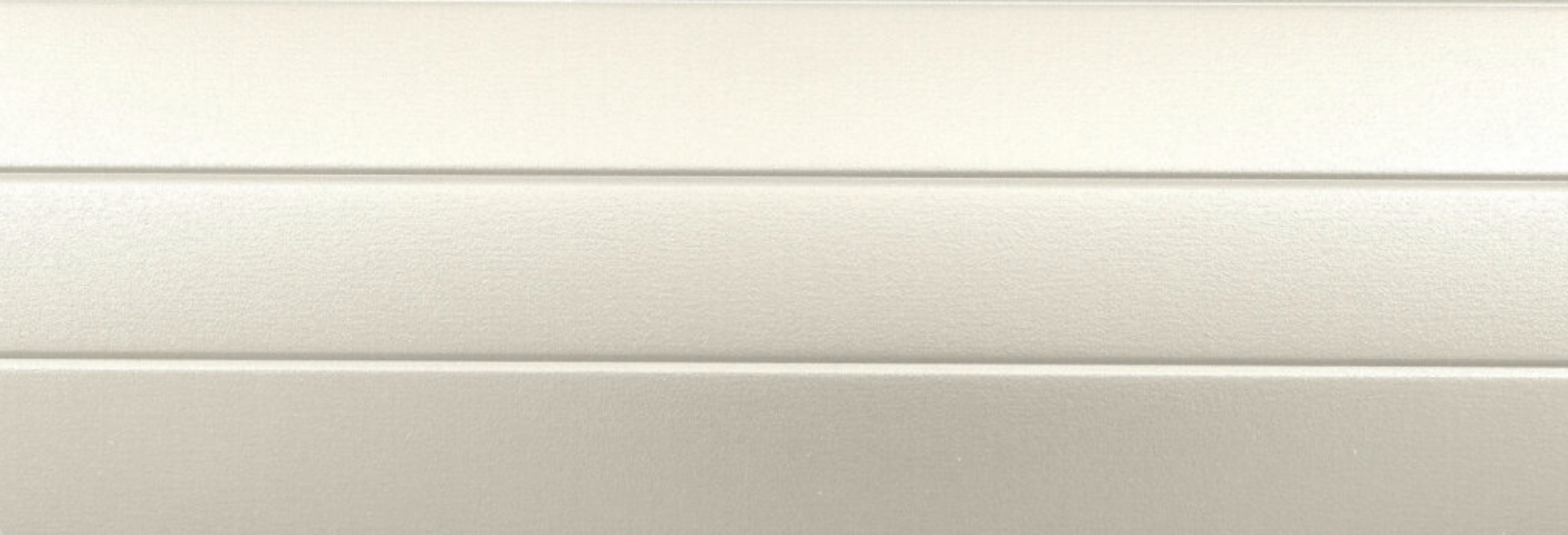

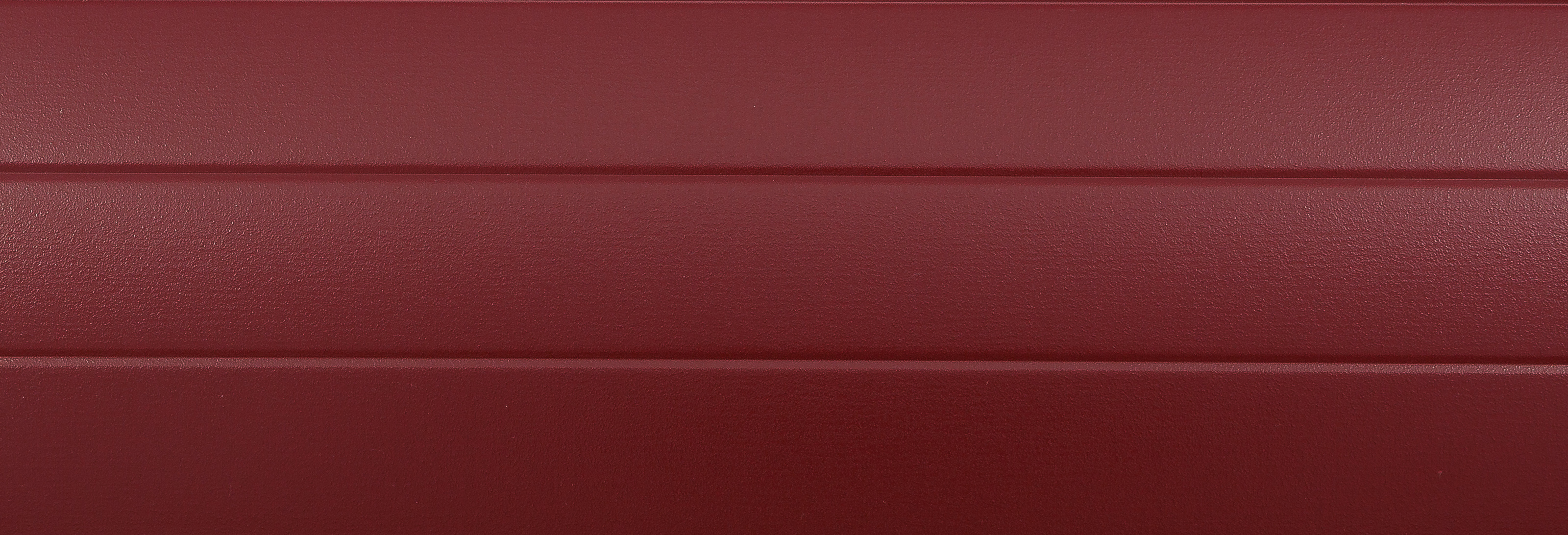

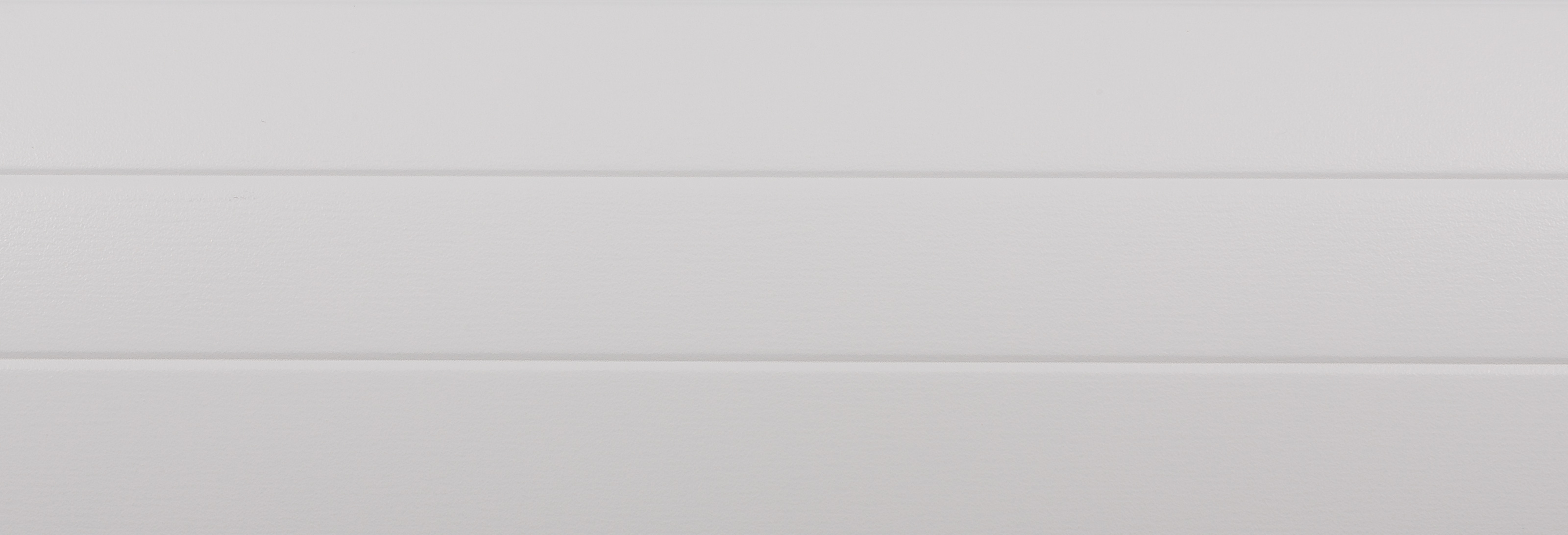

Standard colour
* Only available in 77mm lath.
Specific RAL colours are available upon request for further customisation, price on application.

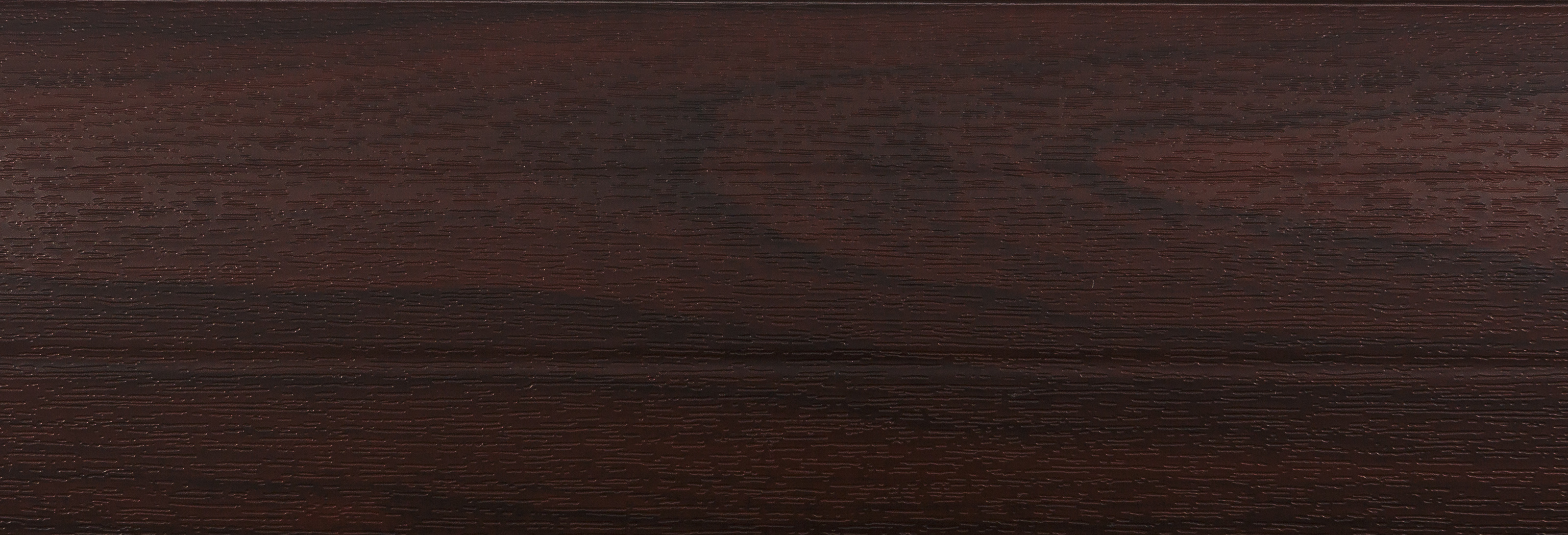

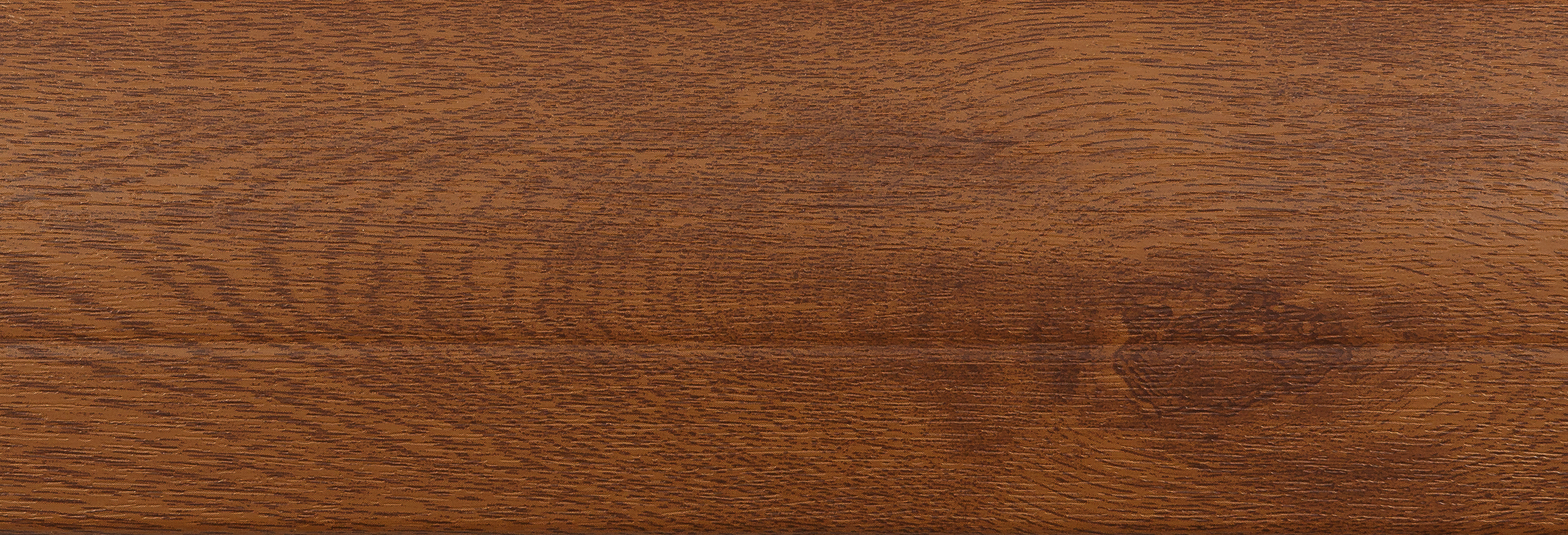

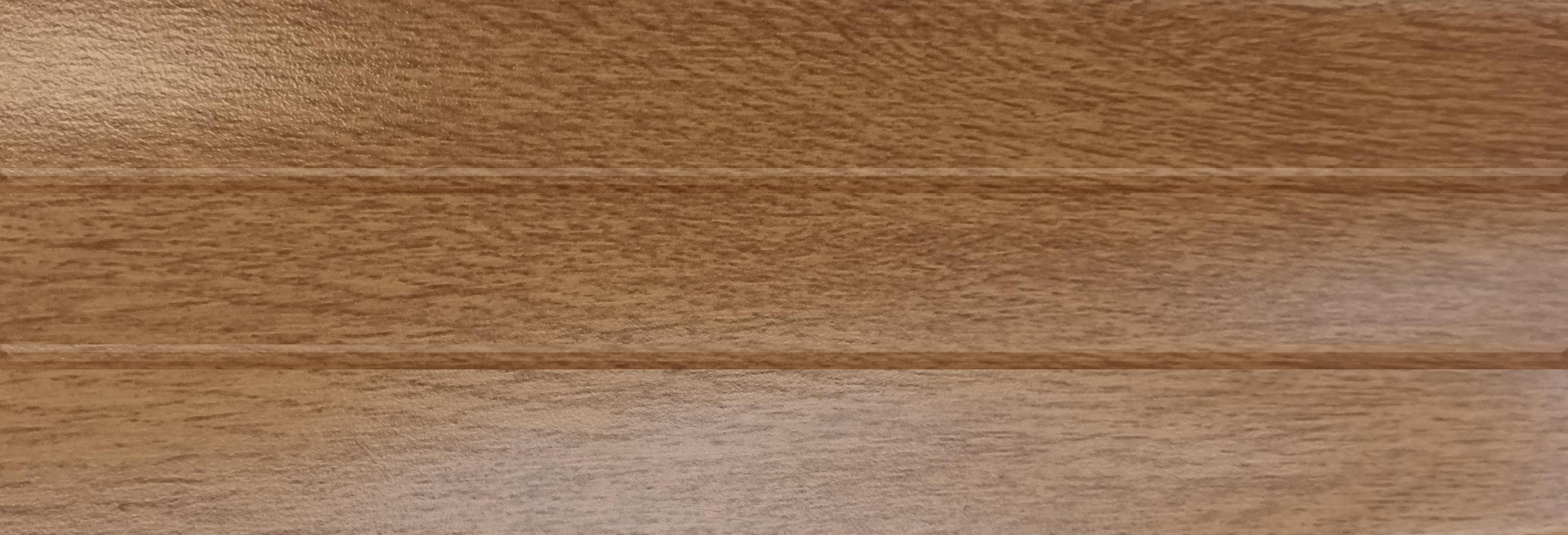

NovoRol garage doors consist of high-quality aluminium slats. On request, these are available with the Golden Oak, Rosewood and Irish Oak foil surface, which simply repels dirt and moisture.
The Novorol insulated roller door combines a space saving design with the convenience of an electrically operated automatic door. The door lifts vertically and rolls into a box at the head of the garage door opening, providing more space in front of the garage. This allows you the option to park closer as the door does not swing out like a traditional garage door, which is ideal if you have a shorter driveway. The vertical tracks are fitted with brush seals, which ensure low-wear door guidance!
This unique design also allows you more space inside the garage for storage etc.

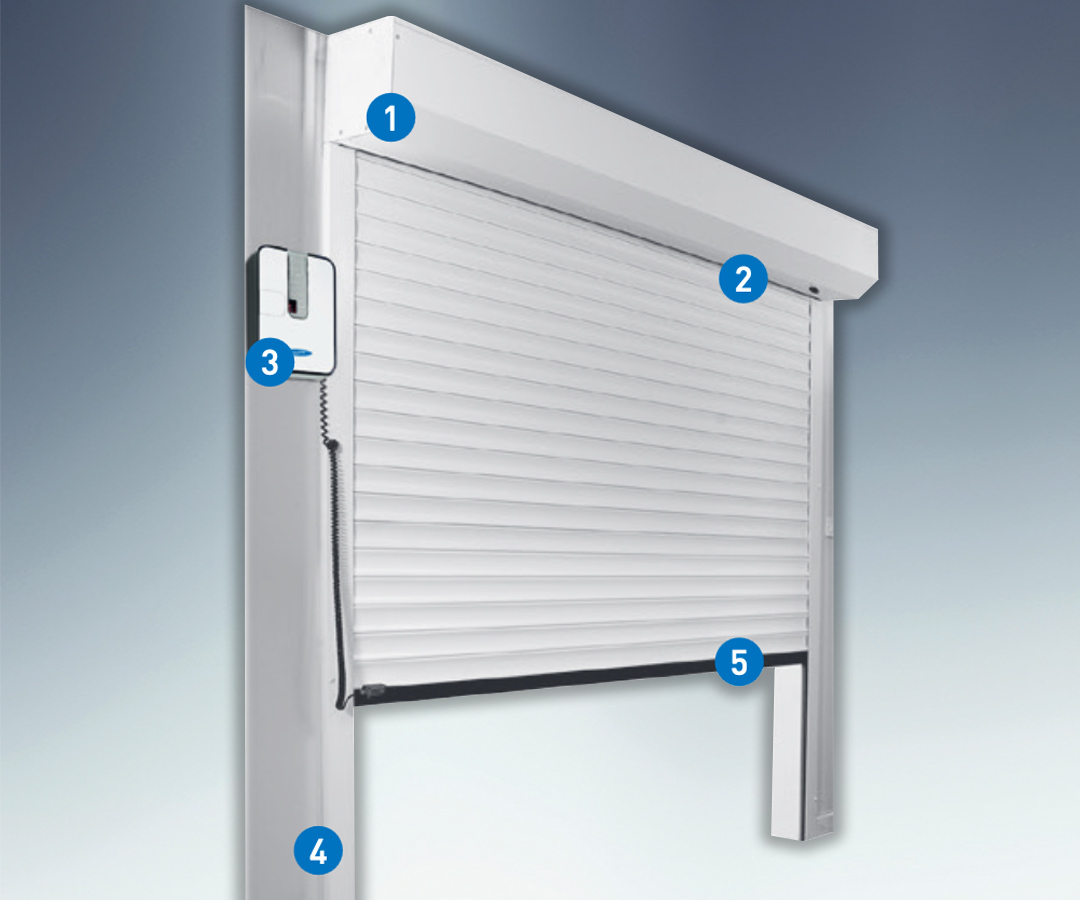

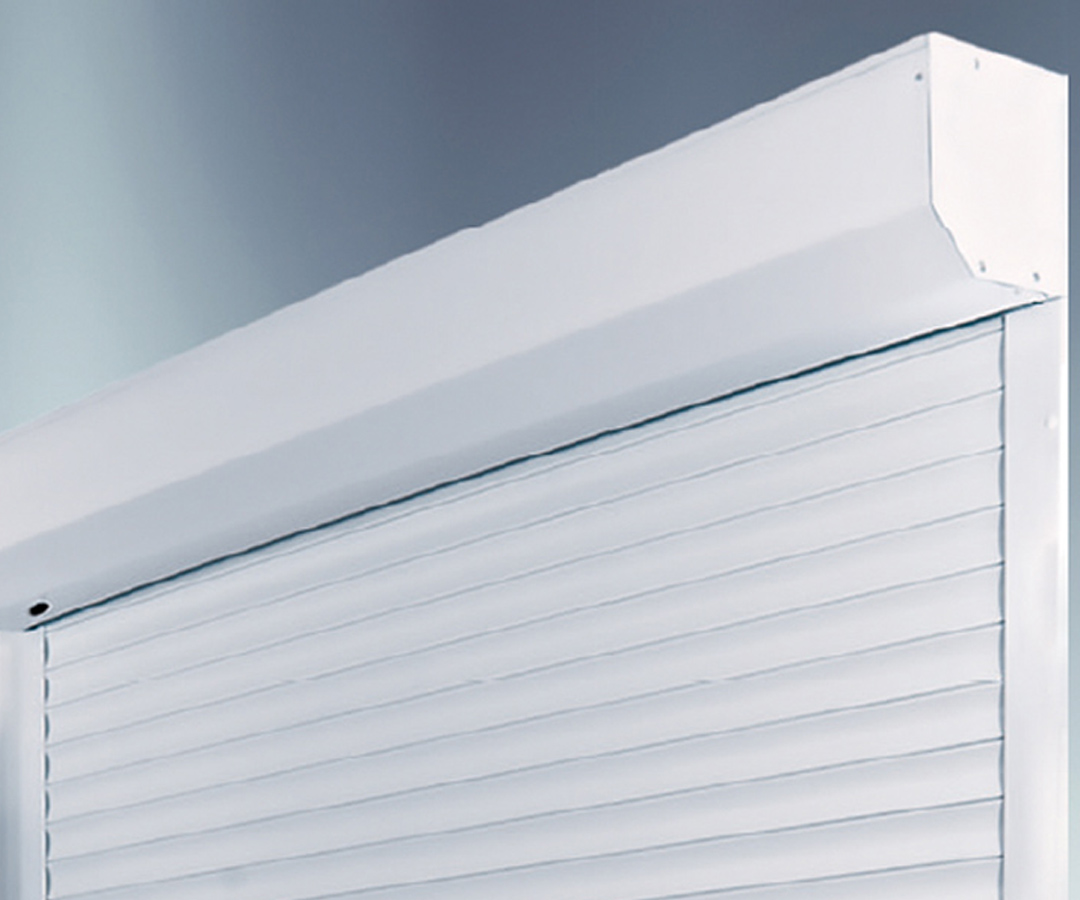

1. Novoshield
Supplied in the standard colour white. Protects the user from jamming and at the same time offers an attractive appearance.
2. Manual Overide
We supply a crank handle as standard. This allows the door to be opened manually from the inside, for example if the power fails.

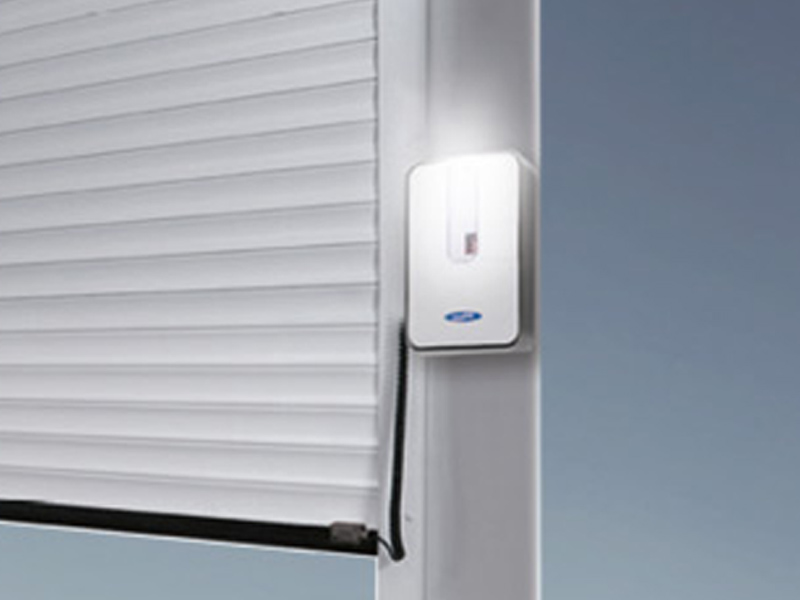

3. Control System / Unit
As soon as you open or close the door, the lighting on the control unit is activated. It switches off again automatically after four minutes.
4. Guide Rails
The vertical guide rails are fitted with brush seals that ensure low-wear door guidance and good sealing!
5. Safety Edge
If the door encounters the slightest resistance when closing, the optical closing edge safety device ensures that it stops immediately and opens again.
Novorol 77 - Secured By Design (SBD)
Novoferm UK are pleased to announce our Novorol 77 Insulated Roller door (Up to 3m) is Secured by Design (SBD) accredited, (STS222 tested – Passed to BR1). Our Novorol 77 SBD Roller Garage Door has been independently tested to ensure it can withstand realistic intrusion attempts, giving both you and your customers confidence in its performance.
Secured by Design (SBD) is the official UK Police security initiative that promotes building products proven to reduce crime. With garage doors often targeted by burglars due to the valuable assets they protect and the potential direct access they provide to the home security is more important than ever. SBD focuses on the improvement of products that include doors, windows, locks and walling systems. Products that receive the ‘Secured by Design’ accreditation are certified as providing the highest levels of security.
For more information on Secured By Design, you can visit their website - https://www.securedbydesign.com/
*Only available on Novorol 77 up to 3m. Behind Fit Installation only. Excludes vision lath option and low level EMR.
Utilise every last centimetre of the space in front of and inside the garage:
As the roller garage door does not require any swing space, it allows storage space for bulky items on the garage ceiling as well as parking a second car in front of the garage.
Each roller shutter door is equipped as standard with a Novoshield, which can be positioned behind, in or in front of the opening, depending on the available space.
Box Sizes:
Novorol 77 below 2300mm height - 300mm end plates
Novorol 77 above 2300 height - 360mm end plates
Novorol 77 ordered with no box - 270mm end plates that are not suitable for full or half box
Novorol 55 - 250mm end plates
All of our roller garage doors are supplied as standard with automation, with no manual operation options available. Designed for both Novorol 77mm and Novorol 55mm designs, every door is equipped to deliver smooth, reliable performance and effortless day-to-day use.
We offer a range of high-quality control units to suit different project requirements, including the Novoferm Novorol NR20, Somfy, ANSA, and Teleco Automation systems. Each solution provides precise motor control, integrated safety compatibility and convenient remote operation as standard.
Whether you’re specifying for a new build or replacement project, our automated systems ensure consistent quality, ease of installation and a dependable user experience. Explore the full range of control options to find the ideal solution for your application below.
view our roller door operators
Up-and-over doors | Sectional doors | Side-Hinged | Roller shutters | |
Functional principle | Up-and-over doors consist of a door leaf as a unit, supported by two lateral lever arms | Sectional doors consist of sections that are connected to each other and are pushed vertically under the ceiling | Side Hinged doors can be opened with two swing doors that swing inwards or outwards | Door slats roll up into the roller shutter box provided for this purpose to save space, similar to the window roller blinds used in domestic applications |
Space in front of the garage | Compared to sectional or roller doors, the door leaf swings outwards when opened | Space in front of the garage can be used for parking a car, for example (no swinging space in front of the garage) | The space required in front of the garage must be taken into account for outward swinging hinged doors | Space in front of the garage can be used for parking a car, for example (no swing space in front of the garage) |
Overall dimensions | Up to 5 m wide | Up to 5.50 m wide | Steel - Up to 2.438m wide Duoport – Up to 2.520m | Up to 5 m wide |
Insulation | None | 20 mm or 45mm insulation | Steel - None Duoport - 45 mm insulation | Low insulation |
Thermal separation | - | - | - | - |
TÜV tested burglar resistance | - | Yes | - | - |
Tested security according to resistance class RC 2 | - | - | - | - |
Surface finish | - Smooth surface | - Woodgrain - Smooth surface - Wood effect finish - Satin surface - Microline | - Woodgrain - Smooth surface - Wood effect finish - Satin surface | - Smooth surface - Laminated finish. |
Door Designs | - Steel Vertical & Horizontal - Steel Panelled - Steel Larger Rib - Timber - GRP | Horizontal Rib - Large Rib - Flush - Panelled | - Steel Vertical & Horizontal - Steel Panelled - Steel Larger Rib - Timber - Horizontal Rib - Large Rib - Flush - Panelled - GRP | - Aluminium slats 77 & 55 |
Colours | - 26 attractively priced preferred colours - Golden Oak & Rosewood available on selected designs - RAL colours of your choice 9 Timber Finishes | - 16 attractively priced preferred colours - RAL colours of your choice - 4 wood finishes - 6 satin surfaces | - 26 attractively priced preferred Steel colours - Golden Oak & Rosewood available on selected Steel designs. - 16 attractively priced preferred colours 9 Timber Finishes - RAL colours of your choice - 4 wood finishes (DuoPort Only) - 6 satin finishes (DuoPort Only) | - 24 attractively priced preferred colours - 3 High Grade Woodgrain Laminate Finishes |
Glazing | Available on selected designs | Available | Available on selected designs | Vison Laths available |
Spring technology | Tension spring | - Tension spring - Torsion spring (in front) - Torsion spring (rear) | - | - |
Wicket door | - | - Without wicket door - With wicket door (opening outwards) - With wicket door (opening inwards) | - | - |
Opening method | - Manually operated (with handle) canopy or retractable. - Electric (with operator) retractable only. | - Manually operated (with handle) - Electric (with operator) - Electric (with app) | - Manually operated (with handle) | - Electric (with operator) - Electric (with app) |
| Functional principle | Door slats roll up into the roller shutter box provided for this purpose to save space, similar to the window roller blinds used in domestic applications |
| Space in front of the garage | Space in front of the garage can be used for parking a car, for example (no swivelling space in front of the garage) |
| Overall dimensions | Up to 5 m wide |
| Insulation | Low insulation |
| Surface finish |
|
| Material |
|
| Colours |
|
| Glazing |
|
| Opening method | Automated as standard. |
| Drive installation position | Side mounting. |
| Special features |
|

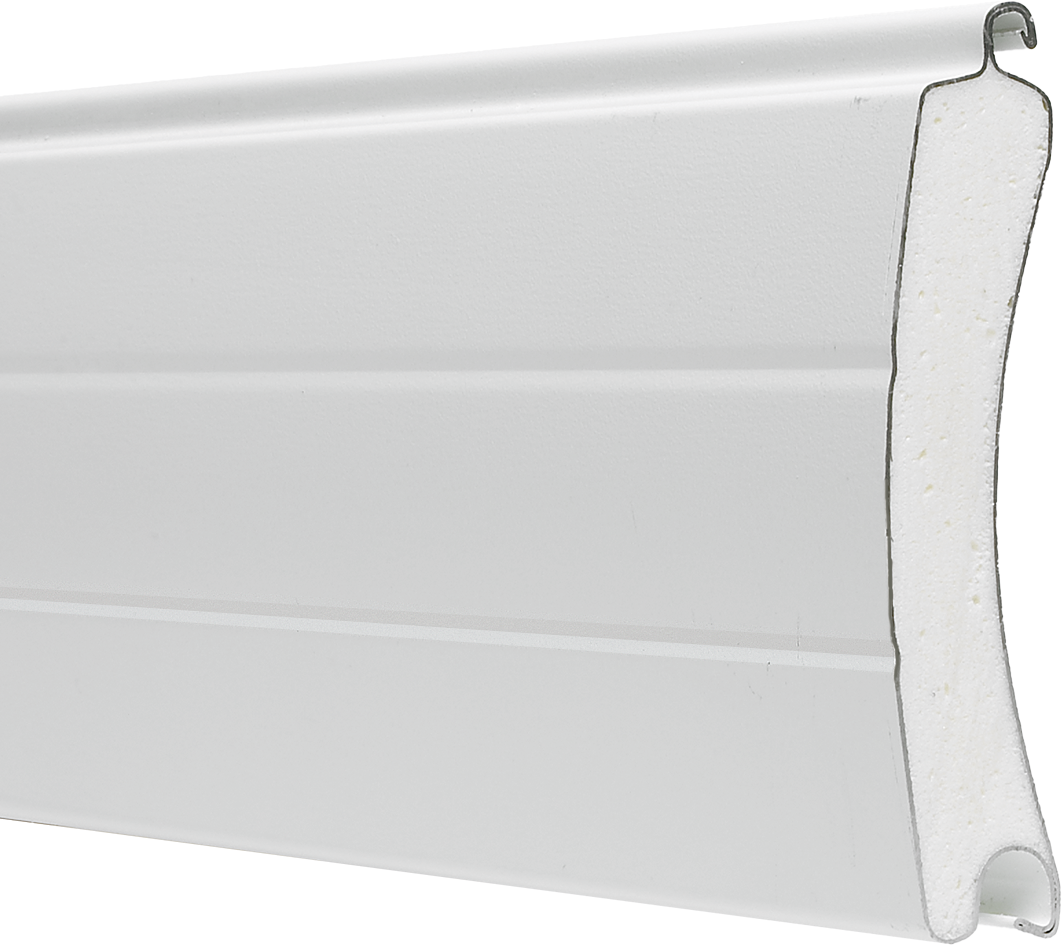

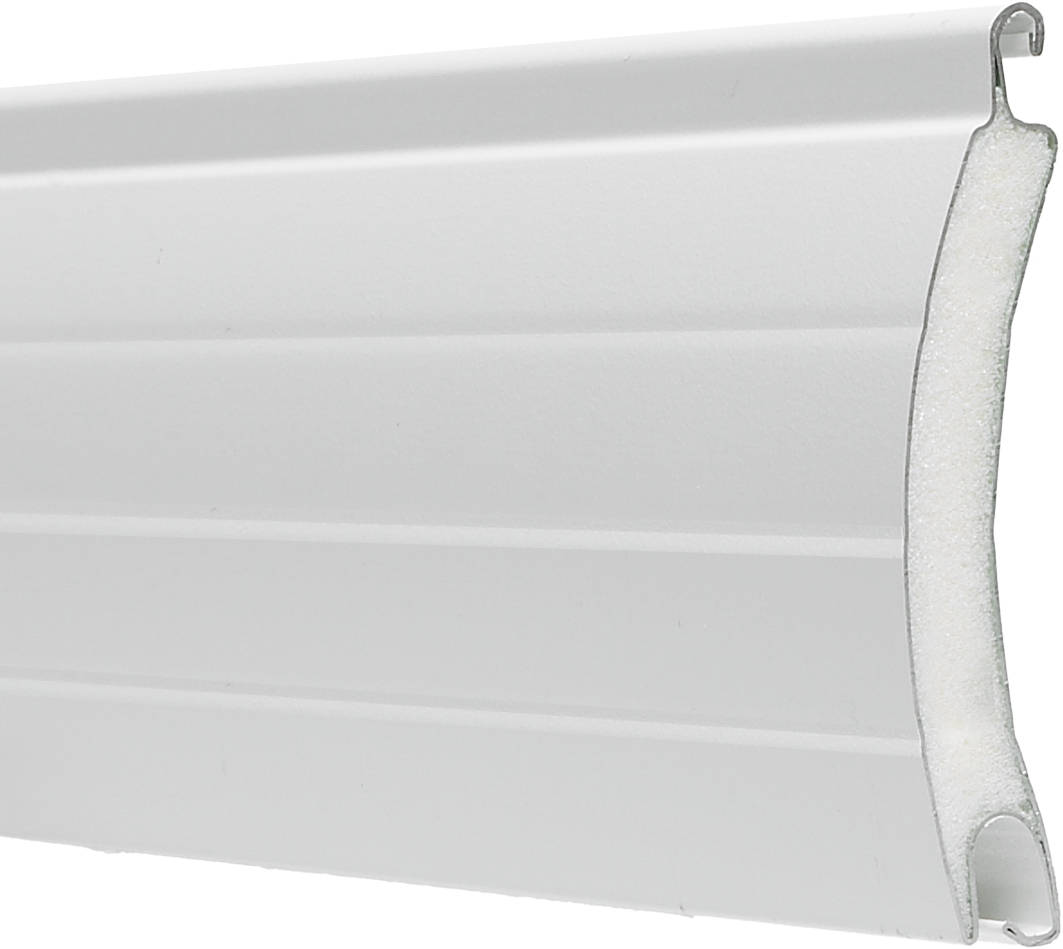

Our automated insulated Roller doors are constructed from 77mm or 55mm double walled aluminium laths filled with CFC free insulating foam, an ideal solution for those who want to improve the appearance and gain space in their garage. Known as Novorol 77 and 55 these insulated roller doors are strong and efficient. Novorol is a feature packed insulated roller door which comes with a full box and 70mm guides up to 3m or 90mm guide for doors over 3m as standard.

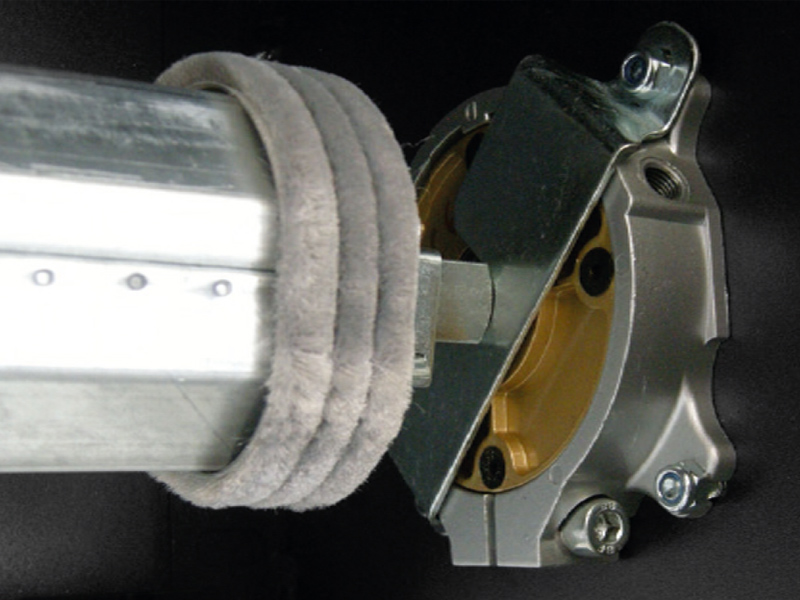

Electrically operated roller garage doors offer more convenience, but also require additional safety devices. For example, the aluminium slat roller shutter curtain must be prevented from suddenly falling. For this purpose, our roller garage doors are equipped with fall protection.
If the supporting equipment fails and the rolling speed therefore exceeds a certain value, this safety device takes effect and stops the door movement automatically.

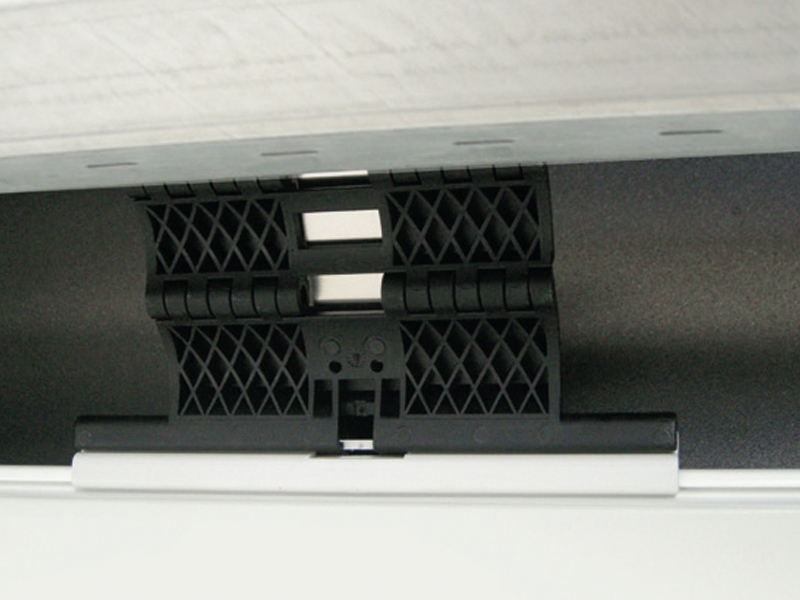

The anti-opening device protects against unauthorised opening of the door. Electrically operated doors such as roller garage doors always offer a manual unlocking option so that the garage remains accessible even in the event of a power failure.
To prevent this option from being misused, the anti-opening device is included as standard.

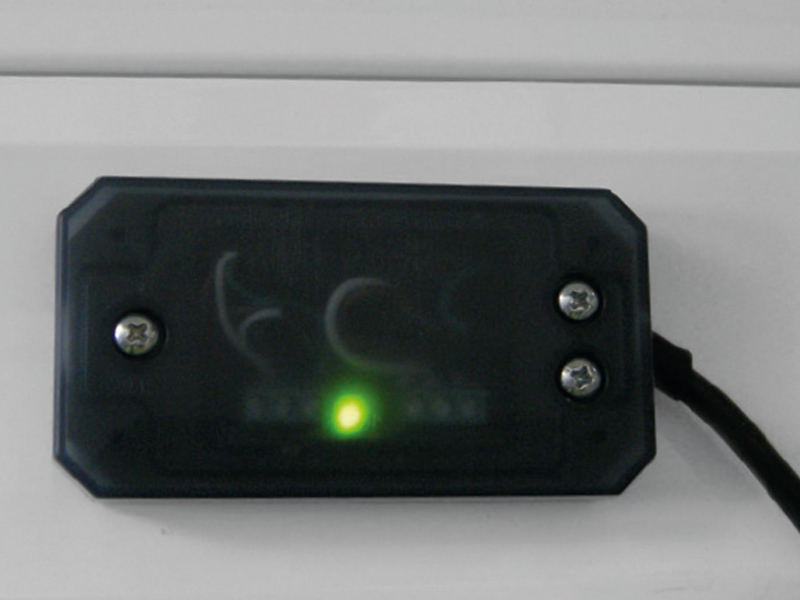

If the door encounters the slightest resistance when closing, the optical closing edge safety device ensures that it stops immediately and opens again.
This prevents personal injury and damage to property from the outset.
The closing edge safety device is pre-assembled in the factory as standard and is equipped with an LED status indicator.

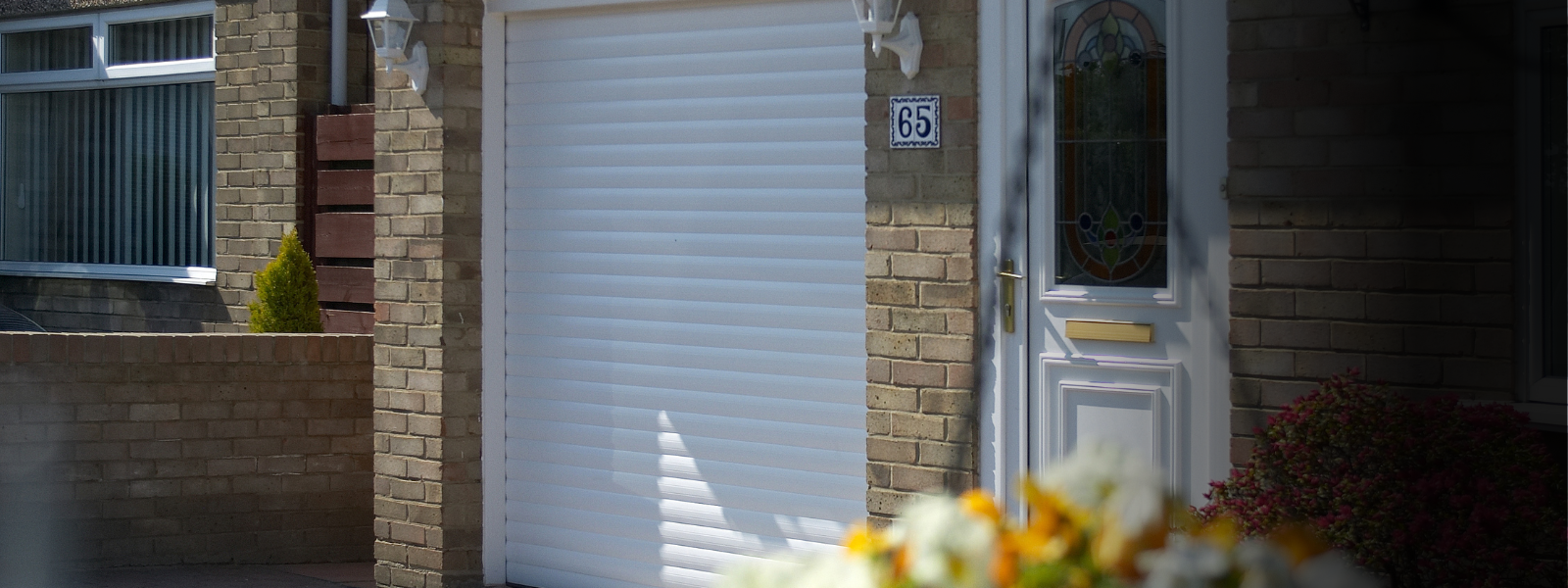

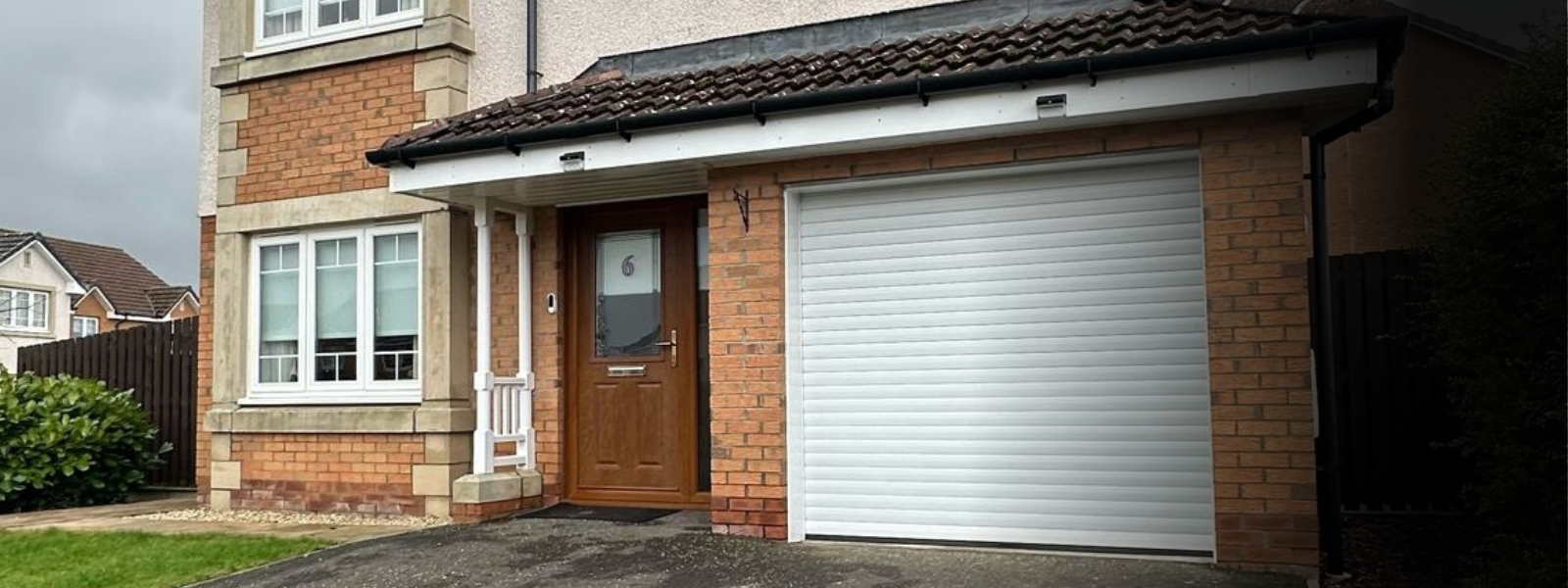

Insulated Roller garage door
Door Design: Novorol 77
Colour: Traffic White (RAL 9016)

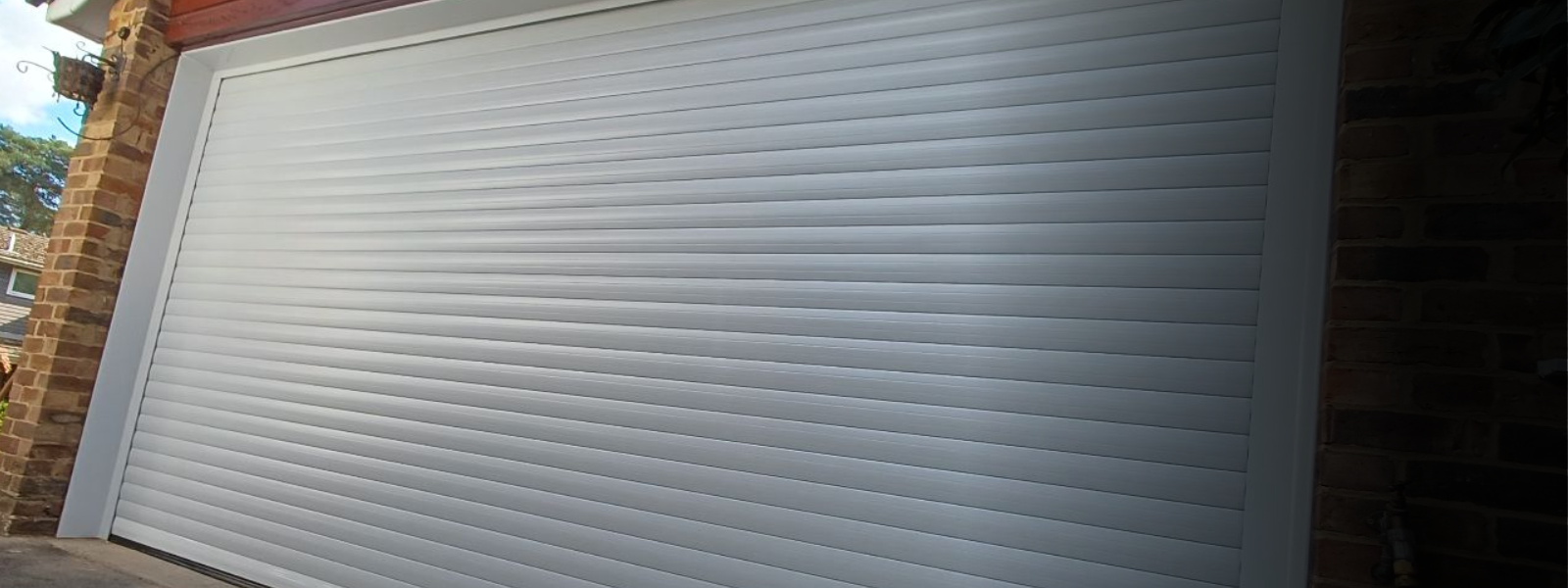

Insulated Roller garage door
Door Design: Double Novorol 77
Colour: Traffic White (RAL 9016)
Insulated Roller garage door
Door Design: Novorol 77
Colour: Anthracite Grey (RAL 7016)
Insulated Roller garage door
Door Design: Novorol 77
Colour: Traffic White (RAL 9016)
Insulated Roller garage door
Door Design: Novorol 55
Colour: Anthracite Grey (RAL 7016)

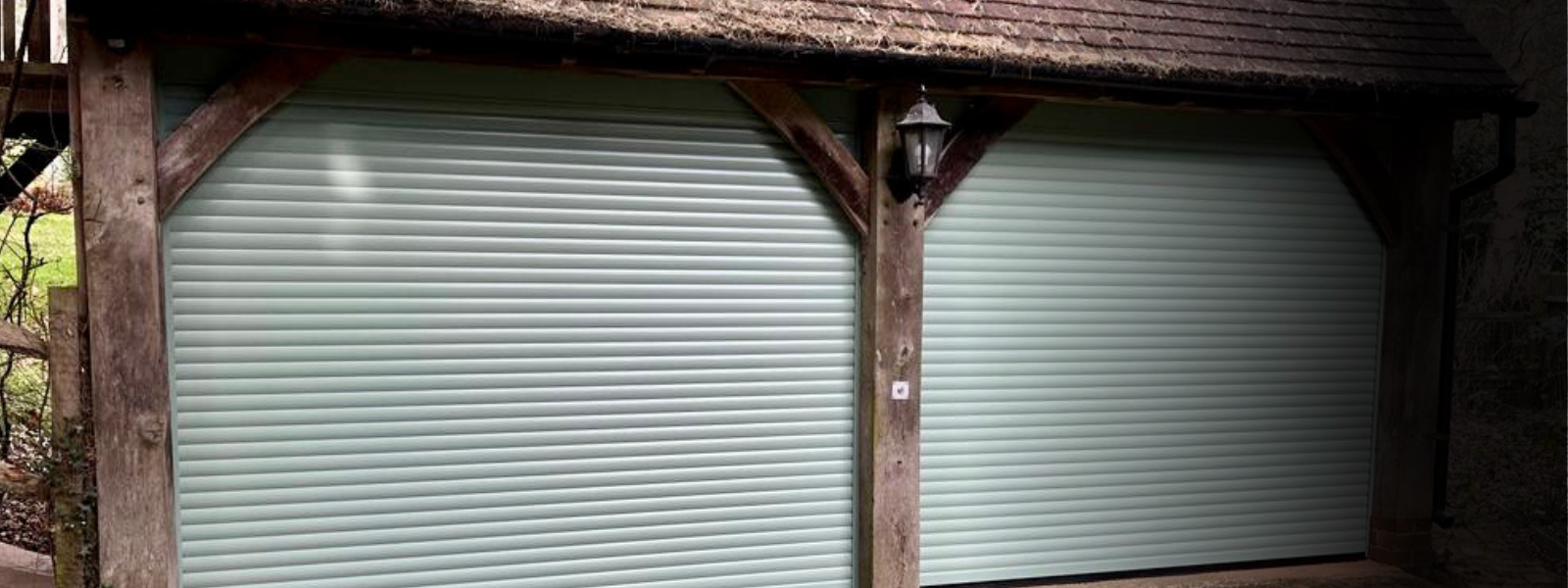

Insulated Roller garage door
Door Design: Novorol 55

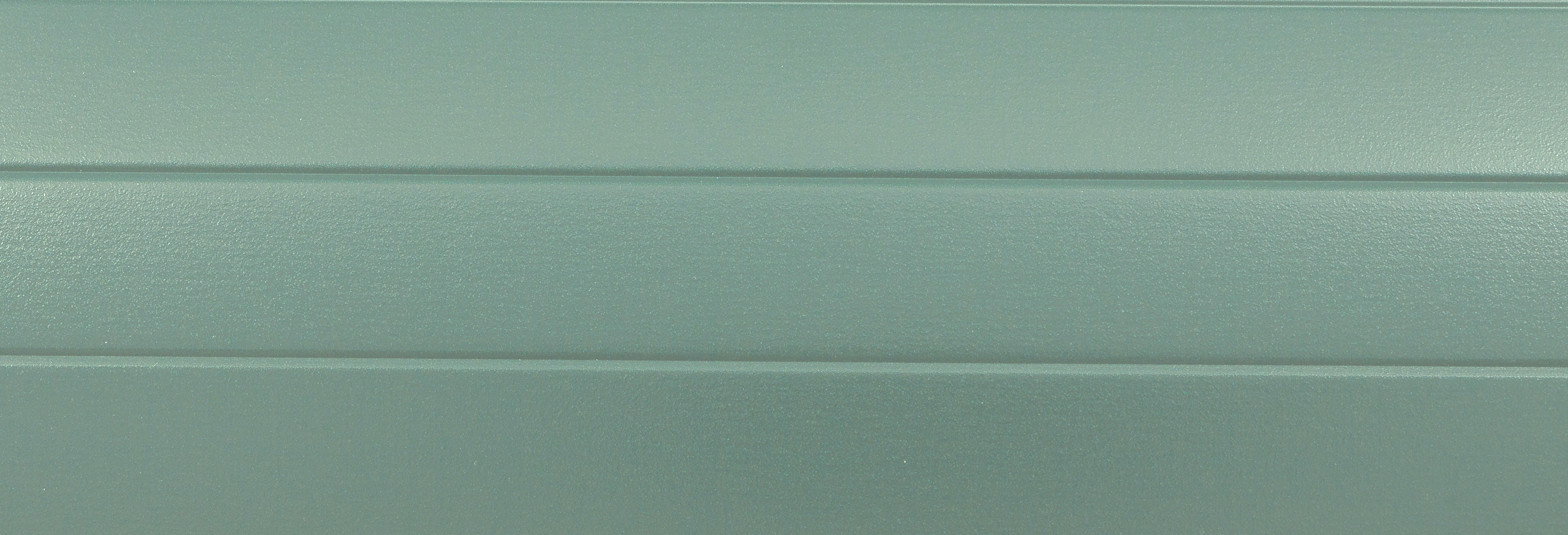

Colour: Chartwell Green (BS 14C 35)
Insulated Roller garage door

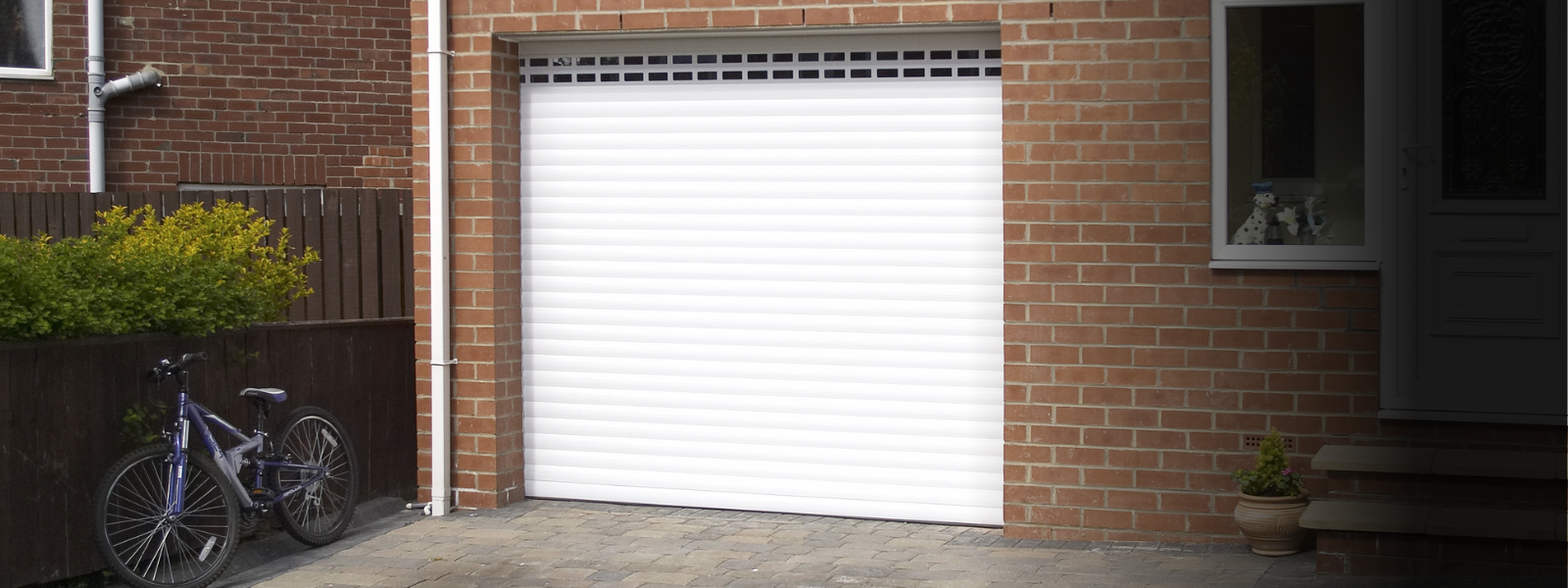

Door Design: Novorol 77 with Vision Laths
Colour: Traffic White (RAL 9016)

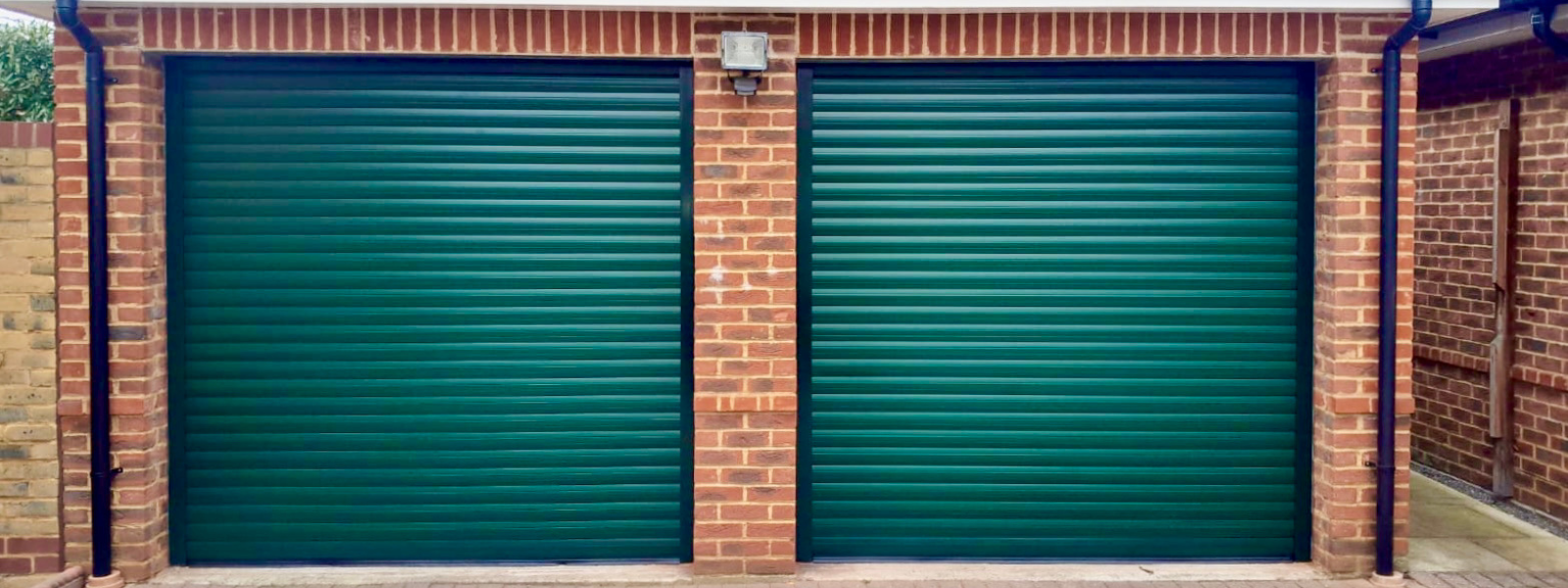

Insulated Roller garage door
Door Design: Novorol 77
Colour: Racing Green (RAL 6009)
