UP-AND-OVER DOORS
A Traditional, Practical, and Easy-to-Use CHOICE
Up-and-Over Garage Doors from Novoferm offer a classic, reliable solution with effortless operation and space-saving design.
Up-and-over garage doors
The classic among garage doors
The up-and-over door is the tried and tested classic among garage doors and is a widely popular choice across the UK.

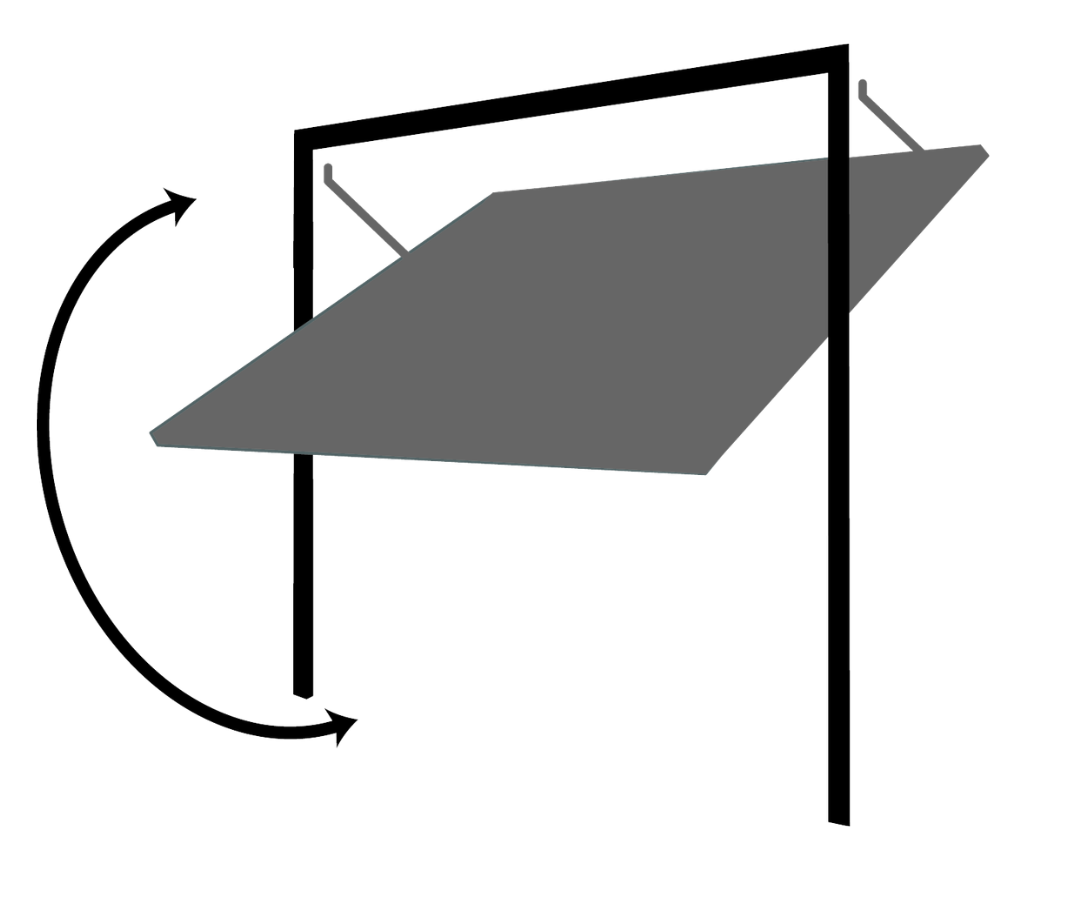

Canopy Doors Type - These doors are manufactured with a single galvanised door leaf equipped with spring mechanism at the top, lifting the door panel at the sides via cable and forming a canopy when fully open. This door type can only be operated manually.
Retractable Gear Type - These doors are manufactured with a single galvanised door leaf equipped with spring mounted spring-mounted lever arms at the sides and can either be operated manually or with an electric operator.
Installation is simple, regardless of whether it is a new build or renovation, whether it is a standard-sized Novoferm garage door completely pre-assembled at the factory or a customised door for a prefabricated garage. It offers cost-conscious buyers excellent value for money without having to compromise on attractive door designs and customised design options.
How do up-and-over doors operate?
Click on the animation on the left to view an animated version of how our up-and-over garage doors work.
Detailed animations and videos on the advantages, installation and programming of Novoferm up-and-over garage doors can be found on the Novoferm YouTube channel:
https://www.youtube.com/@novofermukltd
Functionality of up-and-over doors

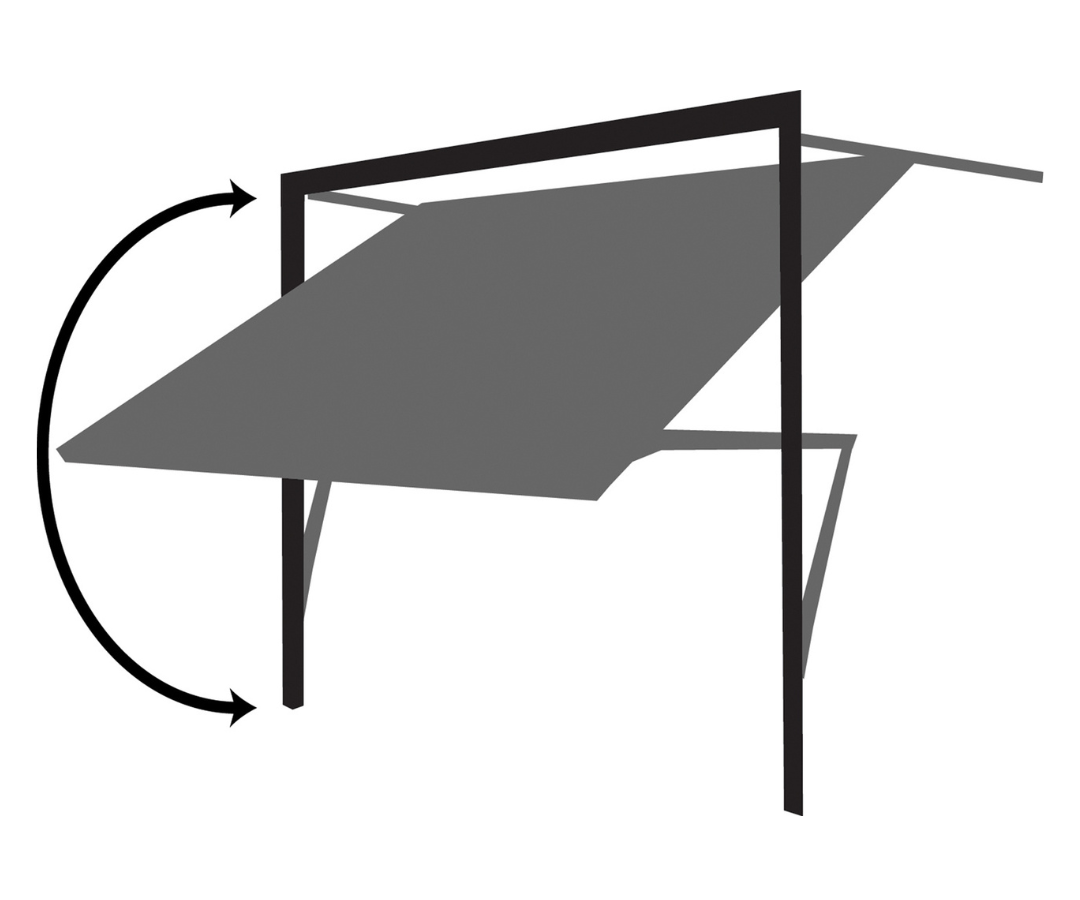

Door Operation
Door Operation

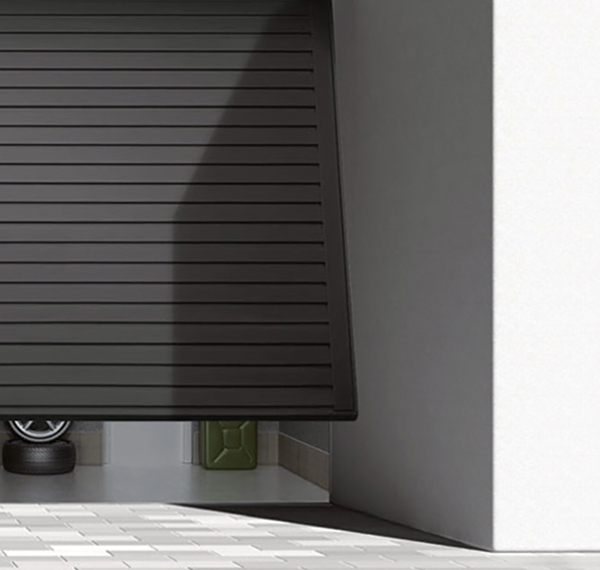

The up-and-over garage door is the classic garage door. In contrast to the sectional garage door, the up - and - over door swings out when opening and closing.
While sectional doors disappear section by section under the garage ceiling, the entire door leaf of the up - and - over door moves as a unit. This must be considered when allocating space in front of the door.
There are two gear types for up-and-over doors, this being Canopy or Retractable. Automated options are only available on Retractable up-and-over doors

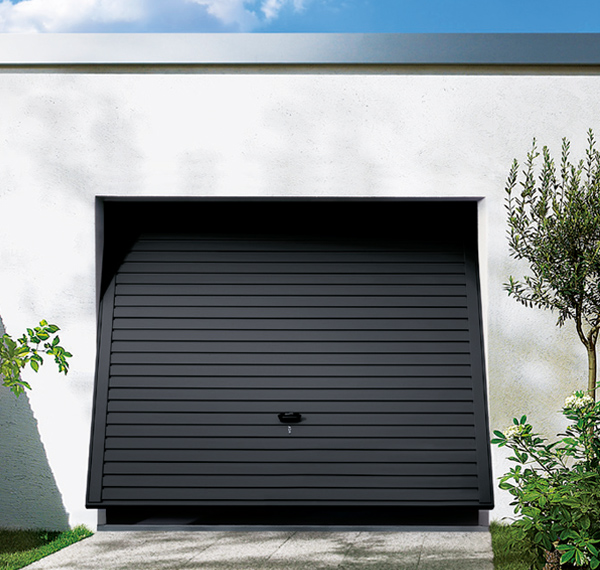

SPACE REQUIREMENT IN FRONT OF THE GARAGE
SPACE REQUIREMENT IN FRONT OF THE GARAGE
Due to their movement mechanism, up-and-over garage doors require a certain amount of clearance in front of the garage. The door leaf of the up-and-over door "swings out", which is why a swivelling area must be allowed for in front of the garage.
Your plus points at a glance
- For private garages up to 5,000 mm wide
- Available in steel and wood versions
- High quality with a 10-year guarantee (Made in Germany)
- High corrosion resistance thanks to primed, galvanised door leaves and galvanised block frames
Pleasantly smooth running thanks to whisper-quiet plastic rollers
- Easy operation and high functional reliability thanks to stable multiple spring assemblies
- Available in many designs and colours
- Available with automatic drives
- An upgraded 3-point locking system available with delatching kit as and additional extra
Selection of up-and-over garage doors
Choose your up-and-over door:
Door comparison and properties
COMPARISON WITH OTHER GARAGE DOOR TYPES
COMPARISON WITH OTHER GARAGE DOOR TYPES
Up-and-over doors | Sectional doors | Side-Hinged | Roller shutters | |
Functional principle | Up-and-over doors consist of a door leaf as a unit, supported by two lateral lever arms (retractable) or spring mechanism at the top (canopy). | Sectional doors consist of sections that are connected to each other and are pushed vertically under the ceiling | Side Hinged doors can be opened with two swing doors that swing inwards or outwards | Door slats roll up into the roller shutter box provided for this purpose to save space, similar to the window roller blinds used in domestic applications |
Space in front of the garage | Compared to sectional or roller doors, the door leaf swings outwards when opened | Space in front of the garage can be used for parking a car, for example (no swinging space in front of the garage) | The space required in front of the garage must be taken into account for outward swinging hinged doors | Space in front of the garage can be used for parking a car, for example (no swing space in front of the garage) |
Overall dimensions | Up to 5 m wide | Up to 5.50 m wide | Steel - Up to 2.438m wide Duoport – Up to 2.520m | Up to 5 m wide |
Insulation | None | 20 mm or 45mm insulation | Steel - None Duoport - 45 mm insulation | Low insulation |
Thermal separation | - | - | - | - |
TÜV tested burglar resistance | - | Yes | - | - |
Tested security according to resistance class RC 2 | - | - | - | - |
Surface finish | - Smooth surface | - Woodgrain - Smooth surface - Wood effect finish - Satin surface - Microline | - Woodgrain - Smooth surface - Wood effect finish - Satin surface | - Smooth surface - Laminated finish. |
Door Designs | - Steel Vertical & Horizontal - Steel Panelled - Steel Larger Rib - Timber - GRP | Horizontal Rib - Large Rib - Flush - Panelled | - Steel Vertical & Horizontal - Steel Panelled - Steel Larger Rib - Timber - Horizontal Rib - Large Rib - Flush - Panelled - GRP | - Aluminium slats 77 & 55 |
Colours | - 26 attractively priced preferred colours - Golden Oak & Rosewood available on selected designs - RAL colours of your choice 9 Timber Finishes | - 16 attractively priced preferred colours - RAL colours of your choice - 4 wood finishes - 6 satin surfaces | - 26 attractively priced preferred Steel colours - Golden Oak & Rosewood available on selected Steel designs. - 16 attractively priced preferred colours 9 Timber Finishes - RAL colours of your choice - 4 wood finishes (DuoPort Only) - 6 satin finishes (DuoPort Only) | - 24 attractively priced preferred colours - 3 High Grade Woodgrain Laminate Finishes |
Glazing | Available on selected designs | Available | Available on selected designs | Vison Laths available |
Spring technology | Tension spring | - Tension spring - Torsion spring (in front) - Torsion spring (rear) | - | - |
Wicket door | - | - Without wicket door - With wicket door (opening outwards) - With wicket door (opening inwards) | - | - |
Opening method | - Manually operated (with handle) canopy or retractable. - Electric (with operator) retractable only. | - Manually operated (with handle) - Electric (with operator) - Electric (with app) | - Manually operated (with handle) | - Electric (with operator) - Electric (with app) |
SECURITY AND BURGLAR RESISTANCE
SECURITY AND BURGLAR RESISTANCE

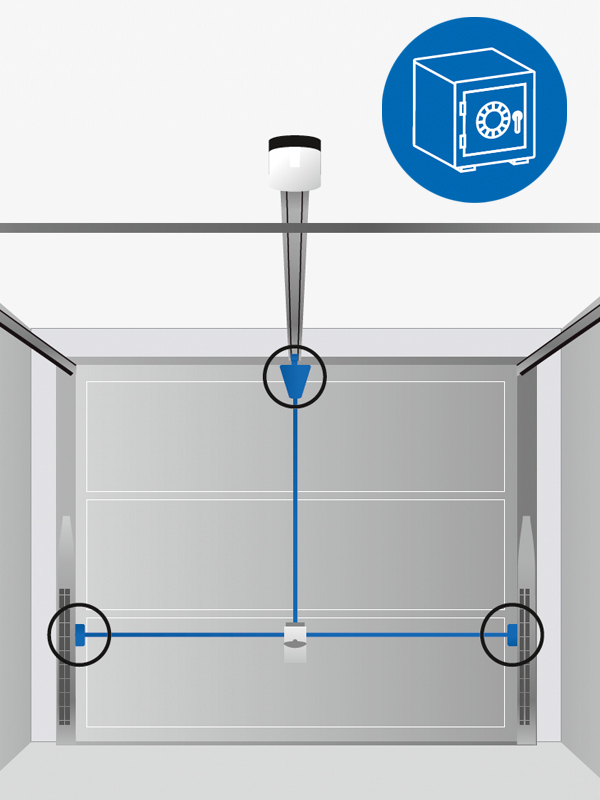

3-POINT LOCKING ACCORDING TO THE SAFE PRINCIPLE
The Novoferm up-and-over door with operator and triple locking (incl. BDIP rail) protects your property according to the safe principle. This is ensured by the locking mechanism on both sides using solid bolts in the frame and the self-locking mechanism of the operator on the top edge of the door leaf.
The additional floor-independent horizontal locking system with solid bolts in the side frames is tamper-proof because it cannot be reached from the outside, even with tools. There is no more secure way to lock an up-and-over door.

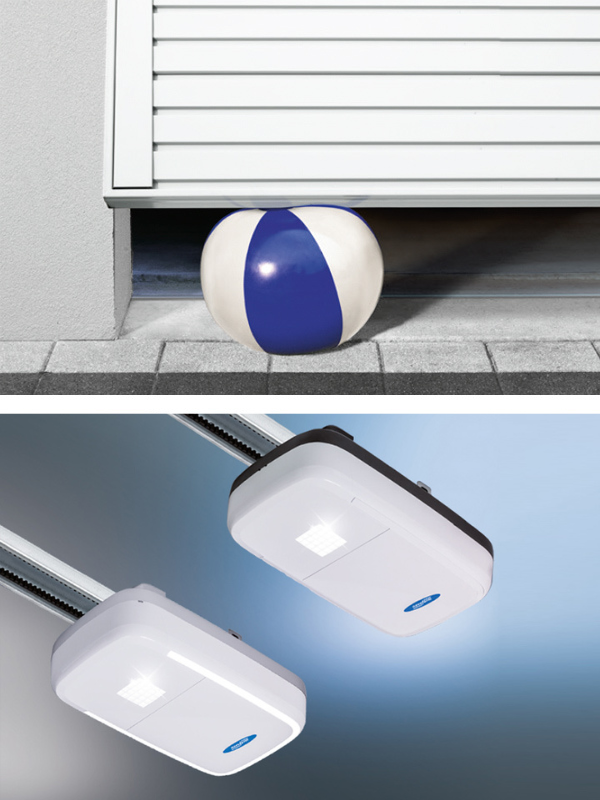

ELECTRONIC ANTI-LIFT DEVICE AND SELF-LOCKING GEARBOX
Novoferm up-and-over doors with operator are equipped with a self-monitoring automatic switch-off system.
As soon as the door encounters an obstacle when closing, regardless of whether it is an object or a person, it stops and opens immediately at the slightest resistance.
Quality without compromise
Quality without compromise
When you opt for a Novoferm up-and-over door, you’ll be investing in quality. Each door is comprised of hot-dipped galvanised thin sheet metal primed with a polyester-based electrostatic powder coating. These features come together to provide outstanding protection against corrosion. Such build-quality extends to the door leaf, block frame, guides, lever arms and all other components which are also galvanised. Torsion-resistant, continuously welded frame corners and hollow frame profiles with cross struts ensure maximum stability. And because we are convinced of the durability of this design, we give a 10-year guarantee.
We don't cut corners when it comes to safety either.
This applies equally to up-and-over doors and operators. Protection of persons through automatic switch-off and self-monitoring force limitation, protection against break-ins through the 3-point central locking system based on the safe principle for up-and-over doors with system or the self-locking gear of the operator. So secure, so good. Additionally to this, there is an option upgrade security even further with our new point locking system.
That's Novoferm
1. protects people: The door that monitors itself
The Novoferm up-and-over door with operator is equipped with a self-monitoring automatic switch-off system. As soon as the door encounters an obstacle when closing, regardless of whether it is an object or a person, it stops and opens immediately at the slightest resistance.
2. protects property: exemplary burglar resistance
The Novoferm up-and-over door with operator and triple locking (incl. BDIP rail) protects your property according to the safe principle. Locking on both sides by solid bolts in the frame, additional locking by self-locking of the operator at the top edge of the door leaf.
3. convenient opening and closing
Specially designed lever arm bearings make it easy to open and close your door - conveniently by hand or even more conveniently with an electric operator.
4. maximum functional reliability
Powerful triple tension spring assemblies ensure "feather-light" ease of use with maximum safety: even if a spring were to break, it could not jump away because it is firmly screwed in at the top and bottom. In addition, the remaining springs would hold the door securely in place.
5. additional property protection
The floor-independent horizontal locking mechanism with solid bolts in the side frames is tamper-proof because it cannot be reached from the outside, even with tools.
CE regulations are good - exceeding them is better. All Novoferm up-and-over doors are certified in accordance with the European door product standard EN 13241.
With Novoferm, you can be assured of the highest levels of quality and safety. After all, as a well-known and well-respected brand, we are committed to upholding our status as Europe’s leading system providers of doors, garage doors, frames, and operators.
We always pursue best engineering practices and always take into account environmental concerns that may be directly linked to our work. It’s of great importance to us that our products and services are certified under ISO 9001. Plus, the EN 13241-1 certification asserts that all our products are compliant with Europe’s stringent requirements for product standards.
So that we can continue to guarantee impeccable quality, we offer a ten year warranty on all our up and over doors. Warranty length is dependent on maintenance and service history.
This is how we guarantee quality:
10 years on up-and-over doors made of steel, 5 years on up-and-over doors made of solid wood. All this combined with the exemplary service of your Novoferm dealer. You can find detailed warranty documentation at www.novoferm.co.uk/warranty
Up-and-over doors offer a lot and cost little:
Doors and frames are galvanised and polyester primed. For a harmonious appearance, the frame elements visible from the outside are painted in the gate colour - in an attractive colour of your choice.
- Base coat
- Galvanisation
- Base material: steel
Gallery
Steel up-and-over garage door
Door Design: Berwick
Colour: Agate Grey (RAL 7038)
Steel up-and-over garage door
Door Design: Regency
Colour: Traffic White (RAL 9016)

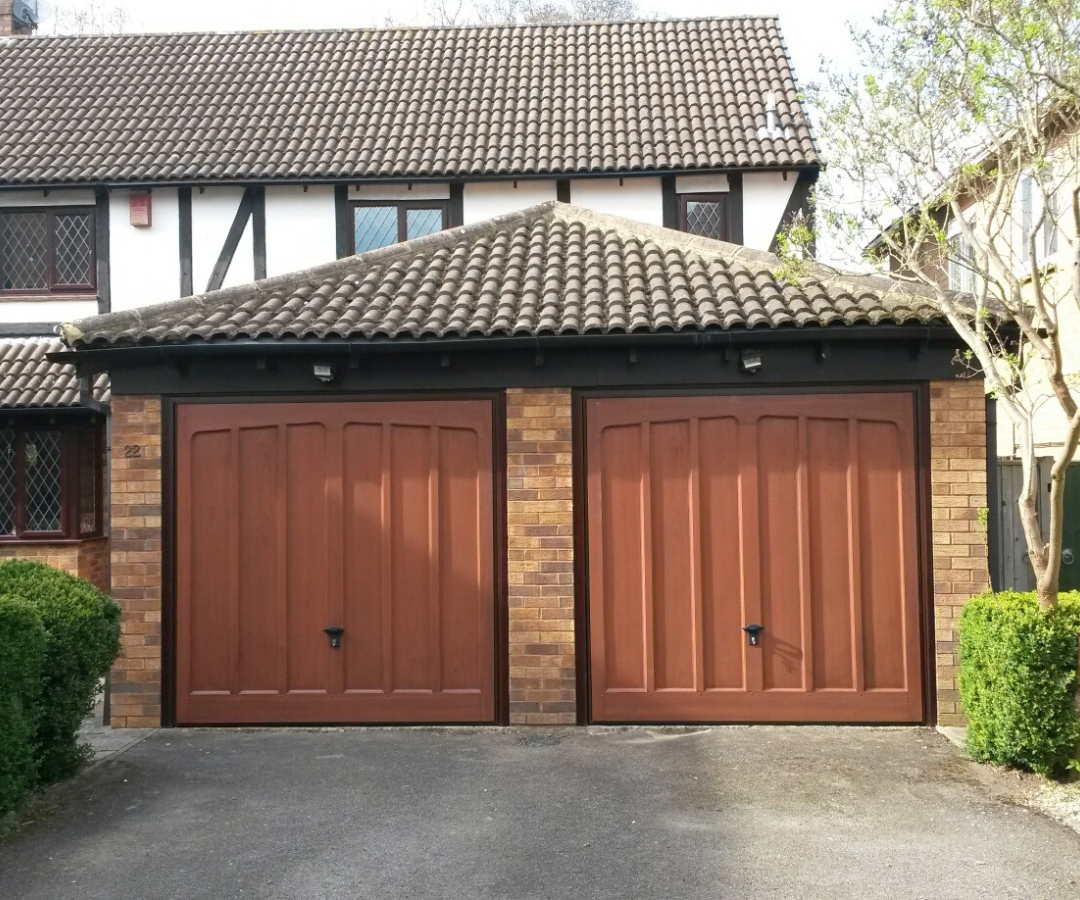

GRP up-and-over garage door
Door Design: Hamilton
Colour: Rosewood
GRP up-and-over garage door
Door Design: Lydbrook Glazed
Colour: Light Oak

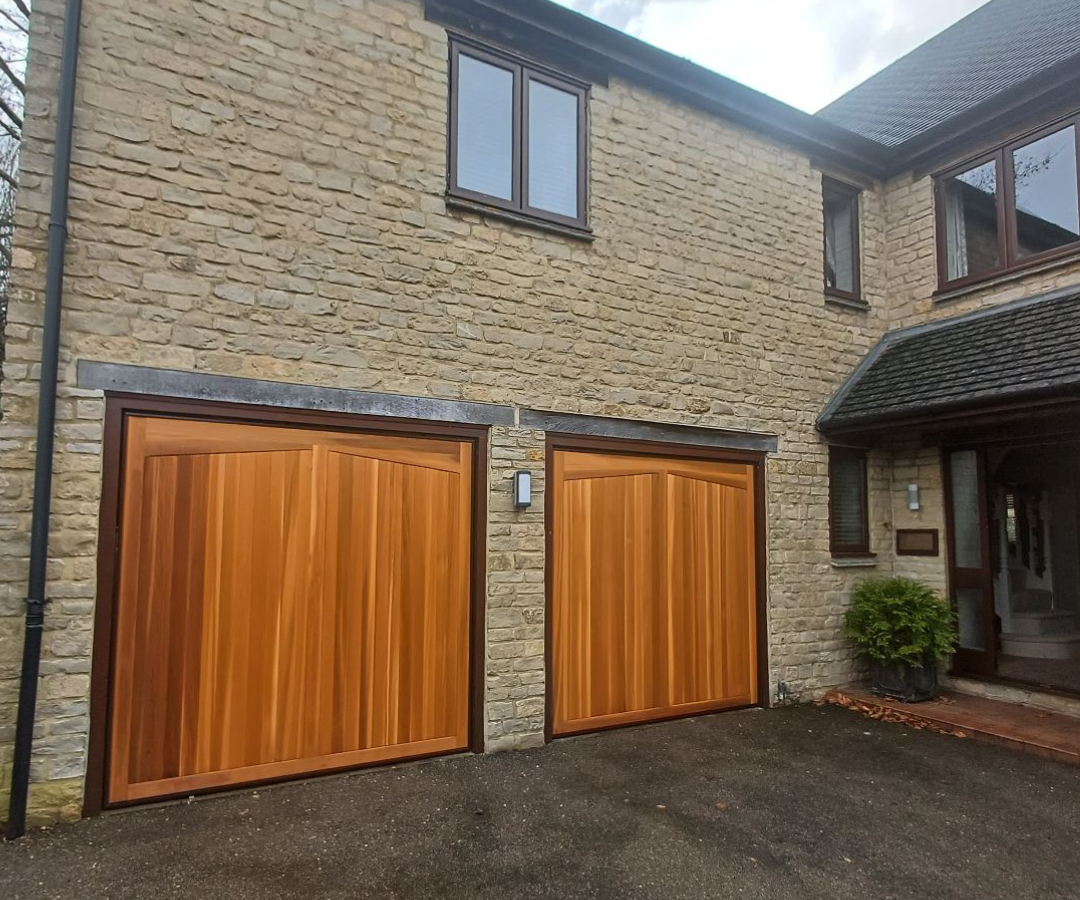

Timber up-and-over garage door
Door Design: Caithness
Colour: Basecoat
Timber up-and-over garage door
Door Design: Windsor
Colour: Rosewood
