ACCESSORIES FOR OPERATORS

sECURE. RELIABLE. CONVENIENT.

Premium garage door remotes, wireless keypads and secure access controls designed to complement every installation. Reliable, easy to program, enhanced security and safety all providing everyday convenience for homeowners.

COntact us

ACCESSORIES FOR OPERATORS

Customised equipment also includes the right accessories.

At Novoferm, we have a wide range of fantastic accessories available to suit any door. We believe in making life easier for our clients, so you are sure to benefit from our great selection of innovative additional items!

OVERVIEW ACCESSORIES

Remote Controls

With two or four buttons for programming various door functions including operating the door.

Keypads

Push button or multi digit code keypads are available for specific door types.

SmartHome

Integration into various SmartHome systems, voice control and app control.

LED light strip

For illumination of the garage entrance with installation under the garage lintel.

Safety Sensors

Detecting obstacles and automatically stops and reverses the door to prevent damage or injury.

Emergency Release

In the event of a power failure, you can also open your garage door manually to gain access.

Accessories in detail

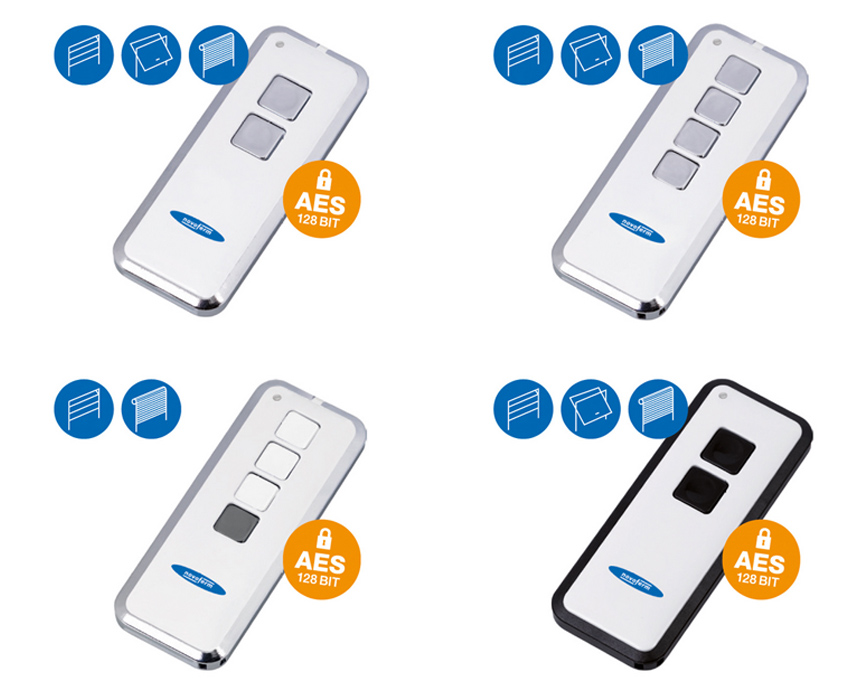

HANDHELD TRANSMITTERS AND REMOTE CONTROLS

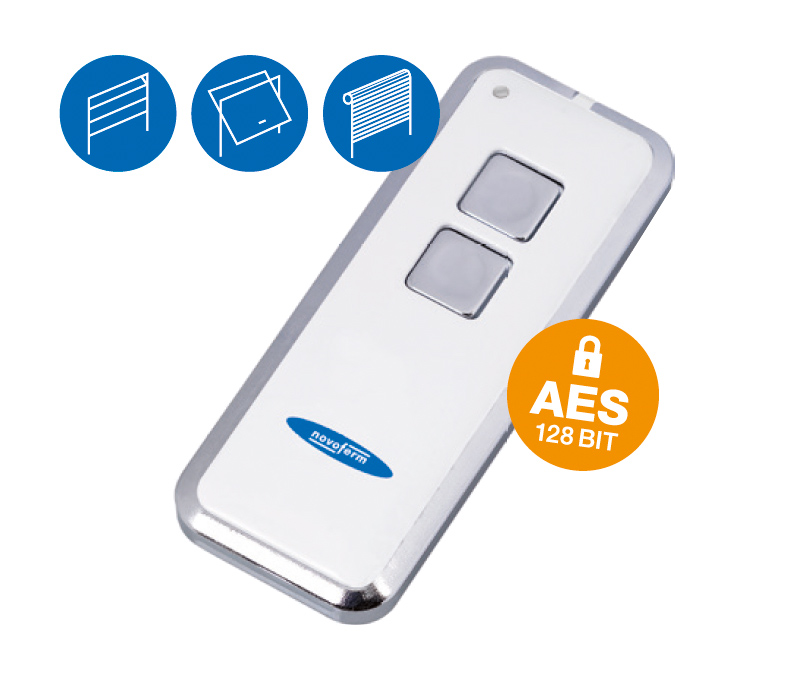

Mini-Novotron 522 Design*
2-channel, 433 MHz,
KeeLoq exchangeable code

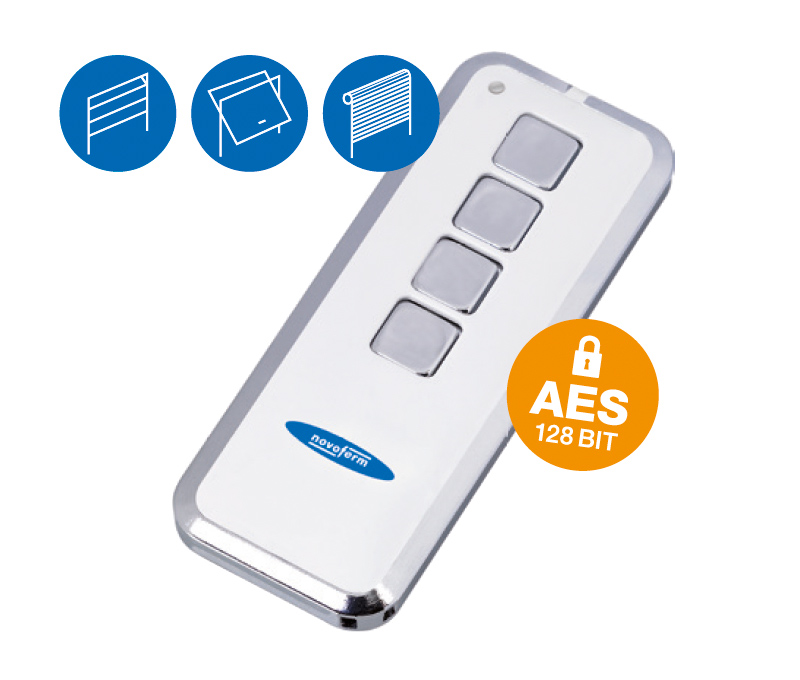

Mini-Novotron 524 Design*
4-channel, 433 MHz,
KeeLoq exchangeable code

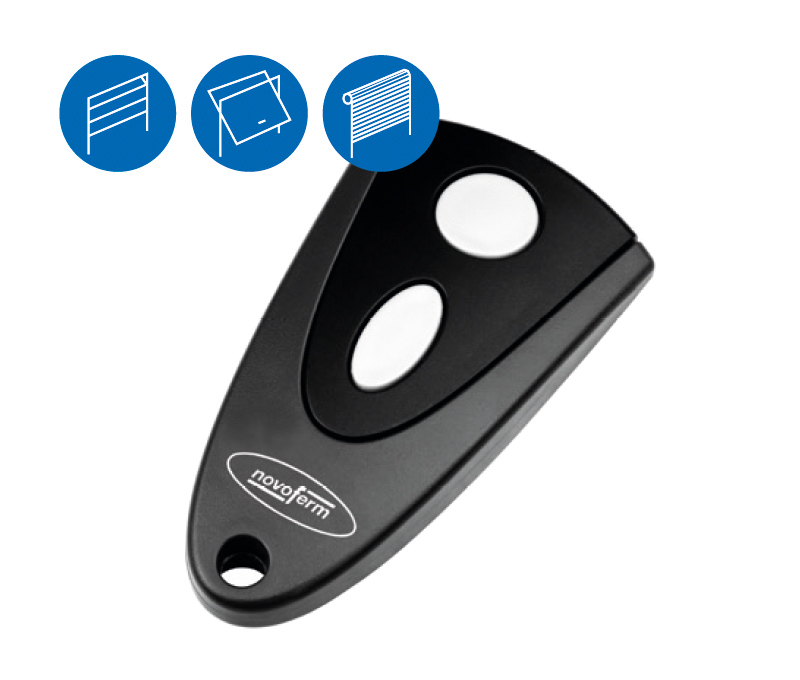

Mini-Novotron 50
2-channel, 433 MHz,
KeeLoq exchangeable code

Mini-Novotron 50
4-channel, 433 MHz,
KeeLoq exchangeable code

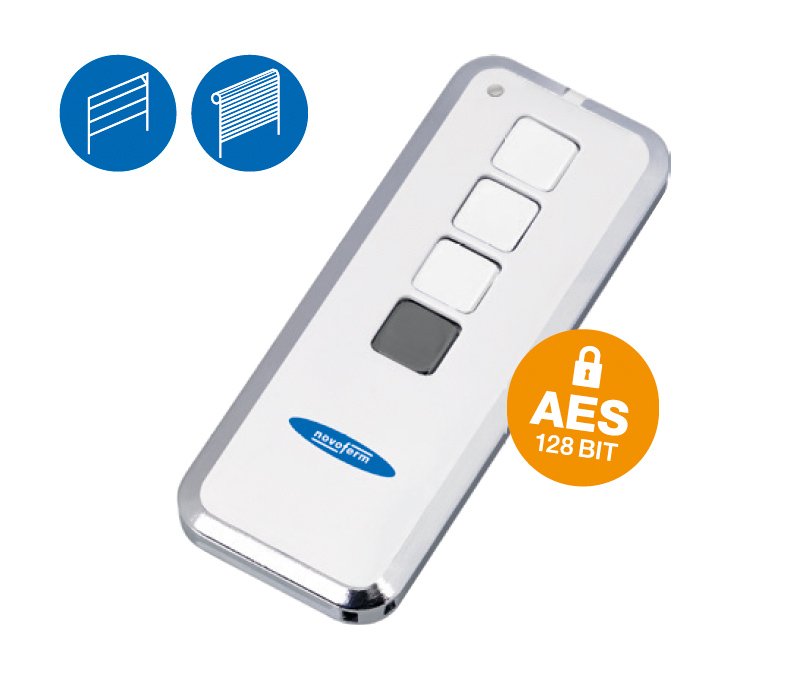

Mini-Novotron 523 Protect*
3-channel, 433 MHz,
in combination with the ^NovoPort® actuator

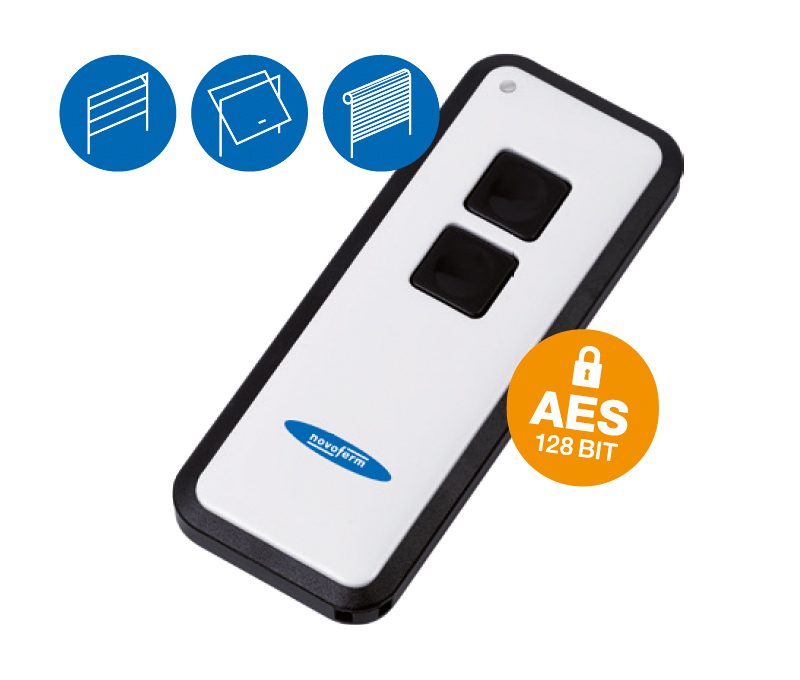

Mini-Novotron 522*
2-channel, 433 MHz,
KeeLoq exchangeable code

Micro-Novotron 51
2-channel, 433 MHz,
KeeLoq exchangeable code

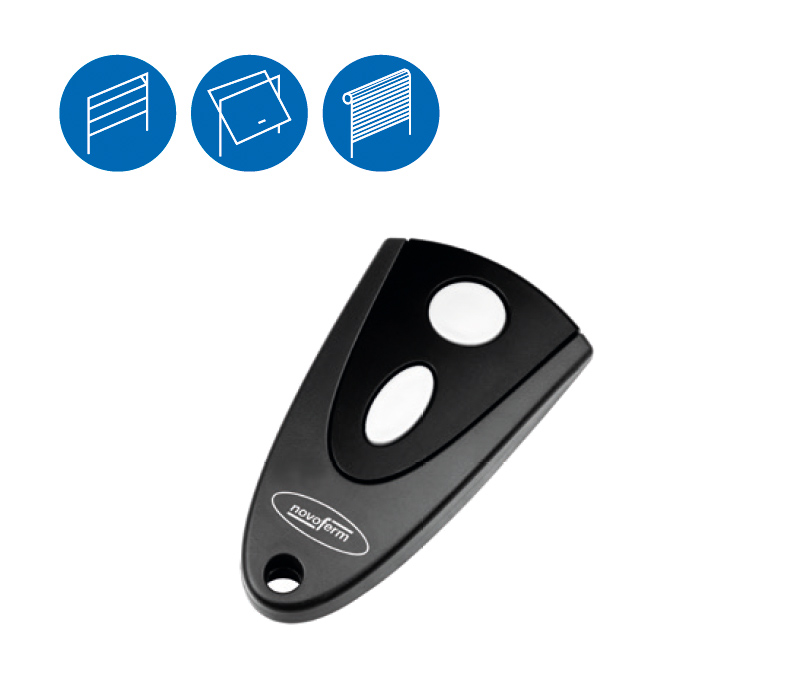

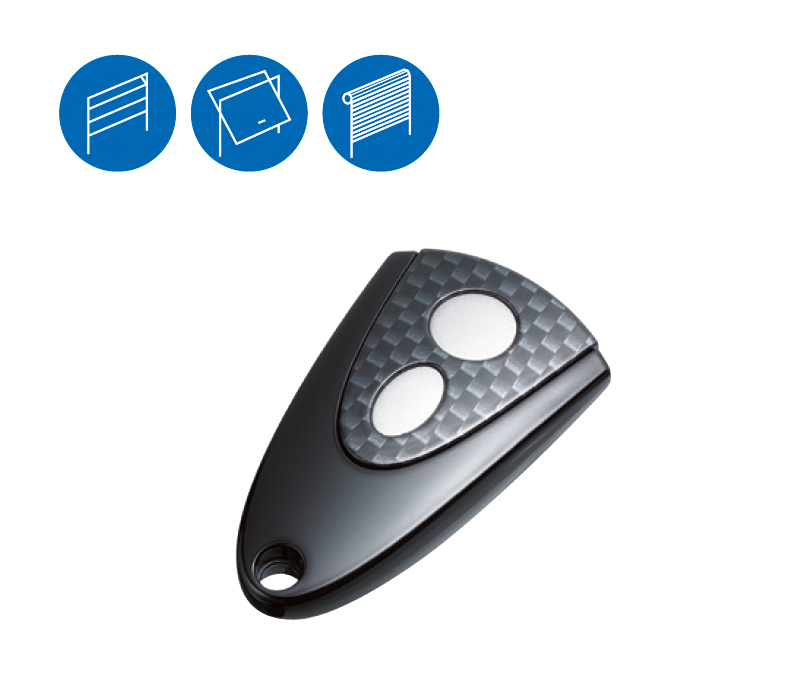

Micro-Novotron 512 Design
2-channel, 433 MHz,
KeeLoq exchangeable code

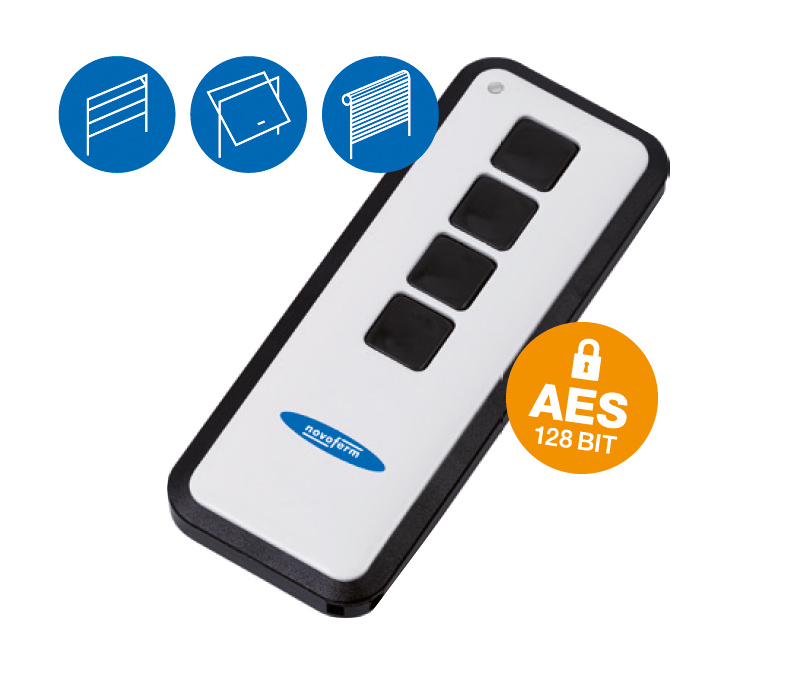

Mini-Novotron 524*
4-channel, 433 MHz,
KeeLoq exchangeable code

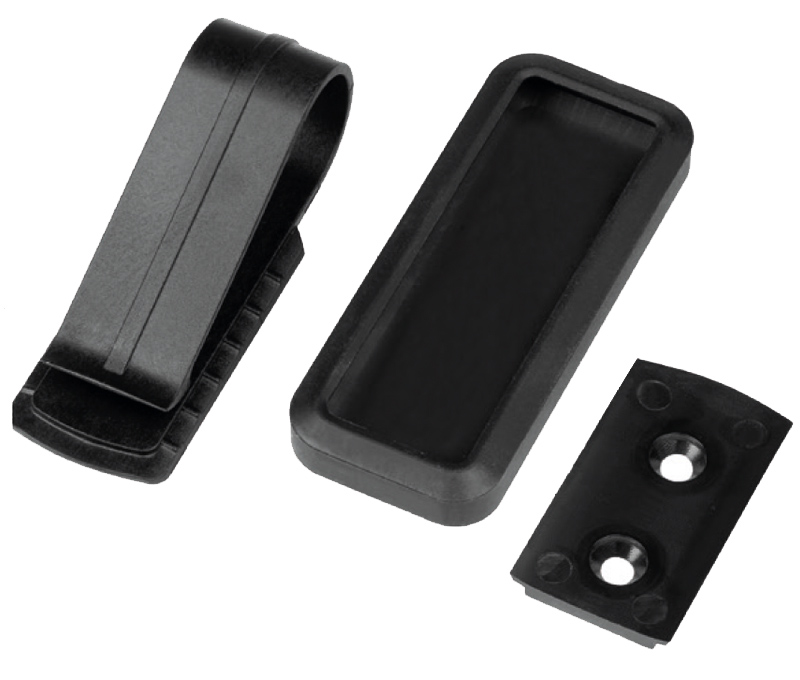

Clip/ silicone cover/ wall mount
Suitable for use as a clip, cover and wall mount for

Mini-Novotron 522 Design
Mini-Novotron 524 Design
Mini-Novotron 522
Mini-Novotron 524
Mini-Novotron Protect 523

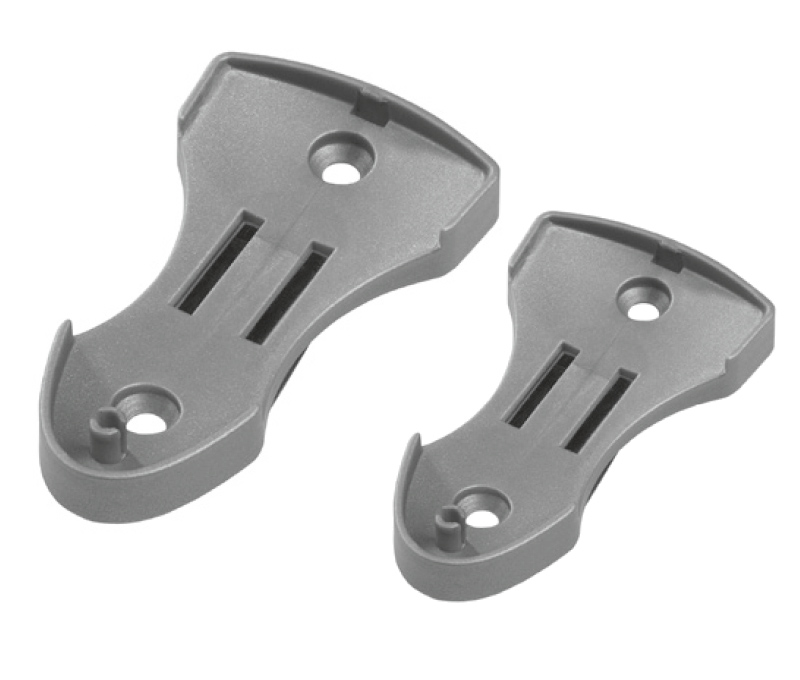

Wall bracket HS
with sun visor clip for

Mini-Novotron 502

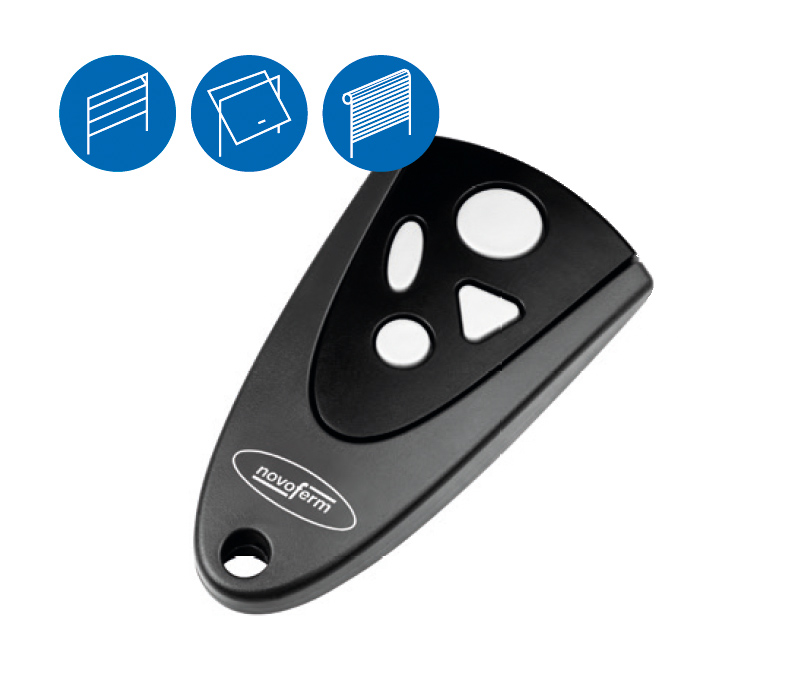

Mini-Novotron 504
Micro-Novotron 512
Micro-Novotron 512 Design

Keypads

Radio Keypads

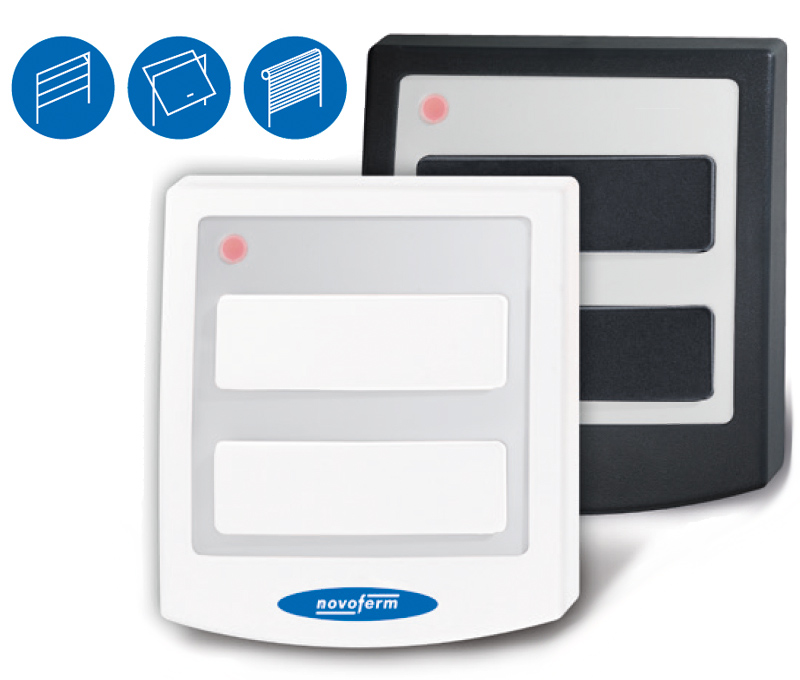

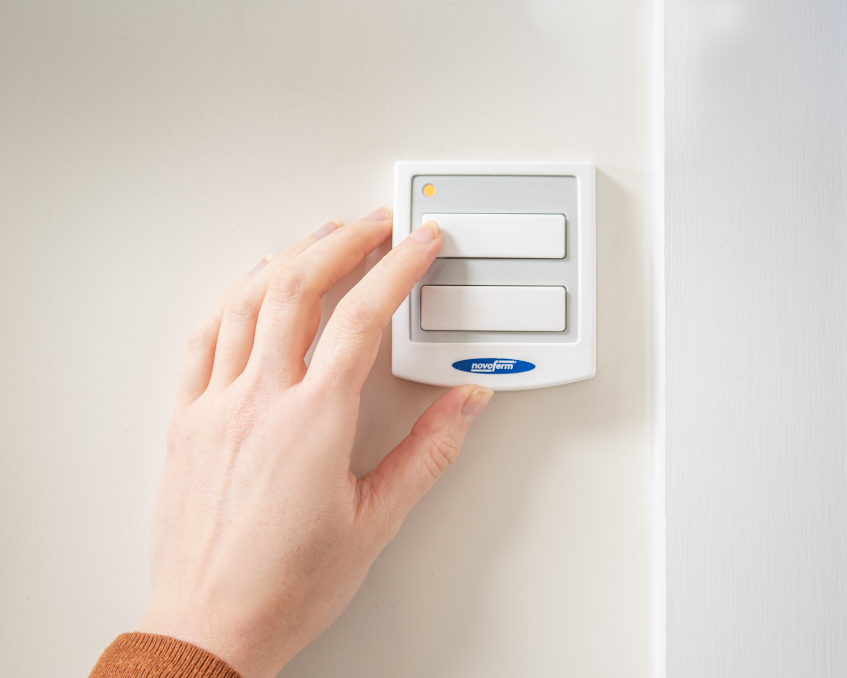

Radio indoor push-button Signal 111
2-channel, 433 MHz, KeeLoq changeover code for controlling 2 drives or 1 drive and 1 outdoor light, made of UV-resistant material, optionally in white or black

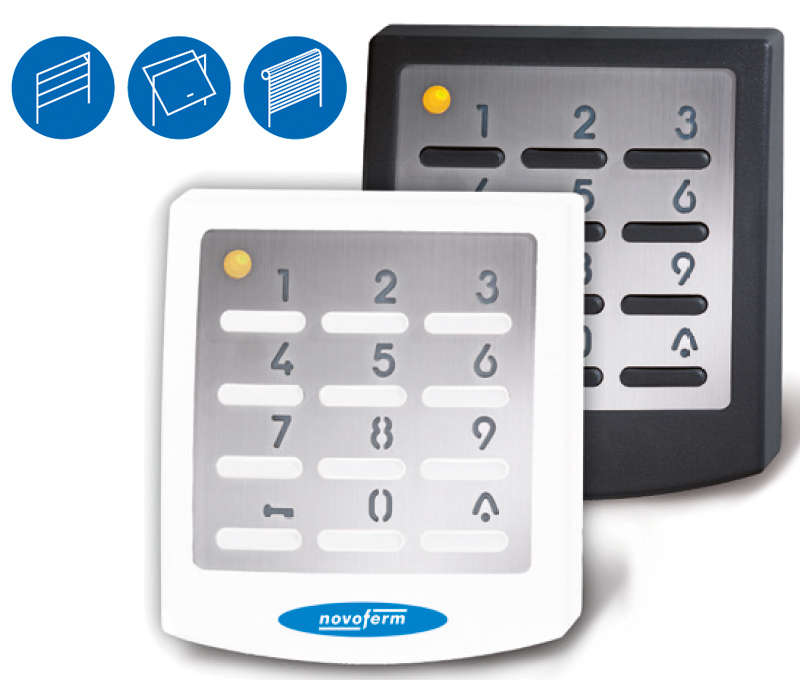

Wireless code switch Signal 218
10 codes, 433 MHz, KeeLoq exchangeable code with stainless steel bezel, backlit, made of UV-resistant material, optionally in white or black

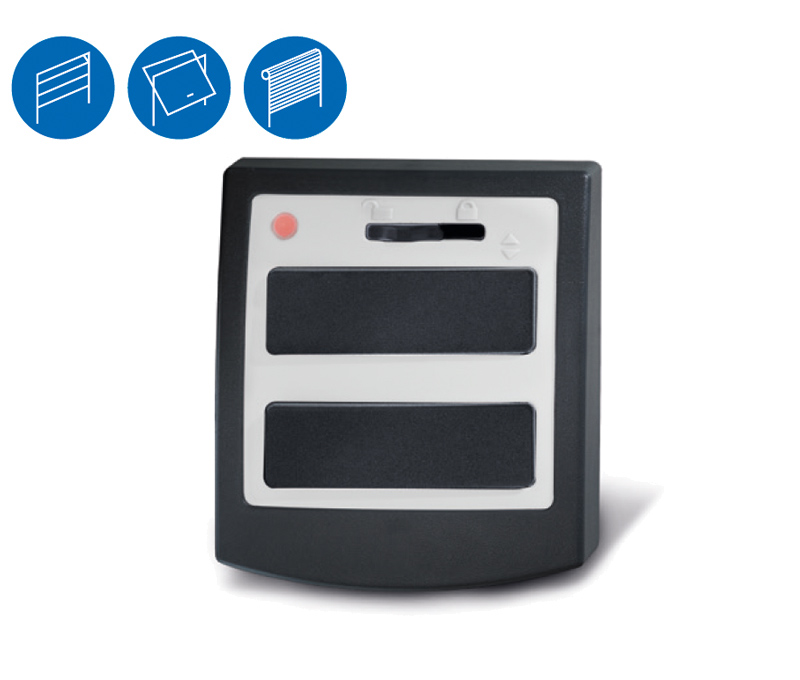

Indoor push-button Signal 112
Start button, holiday switch, permanent light (on/off), 24 V connection on operator, made of UV-resistant material

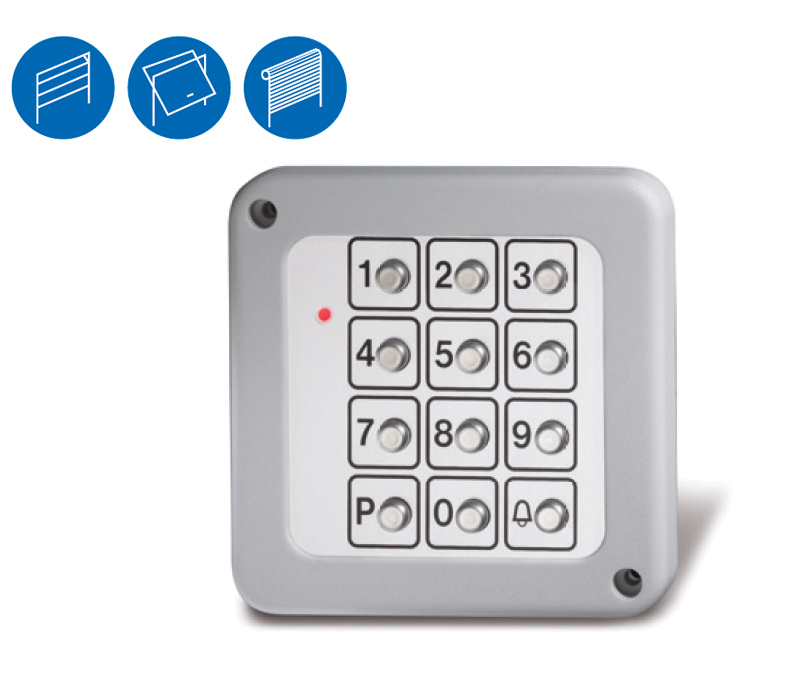

Code switch Signal 213
3 signals, metal keypad, 230 V connection

SMARTHOME COMPONENTS

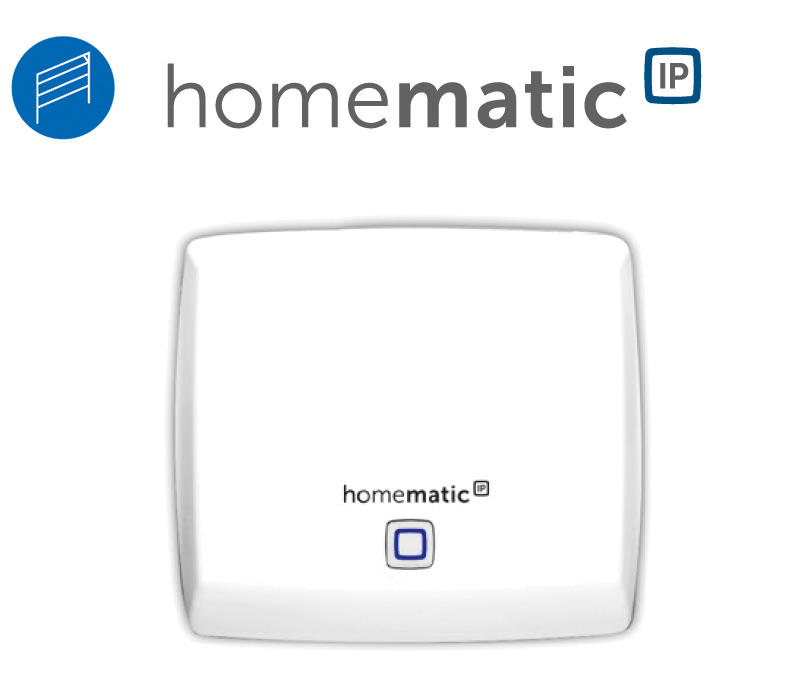

Homematic IP
Access Point

Suitable for:
^NovoPort®Speed,
Novomatic 443 & 573 S

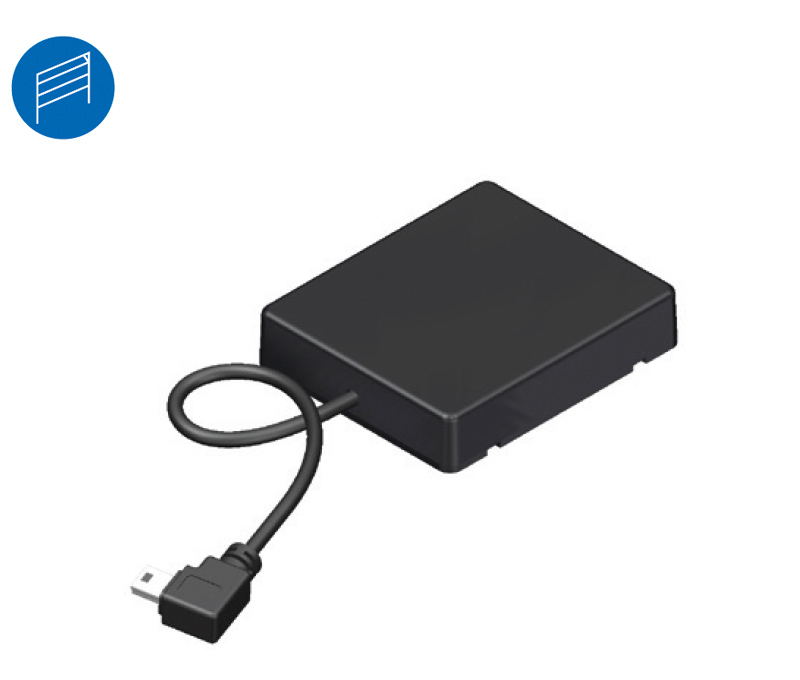

Novoferm plug-on module
for controlling an additional drive via your chosen SmartHome partner app

Suitable for:
^NovoPort®Speed,
Novomatic 443 & 573 S

STYLISH LIGHTING

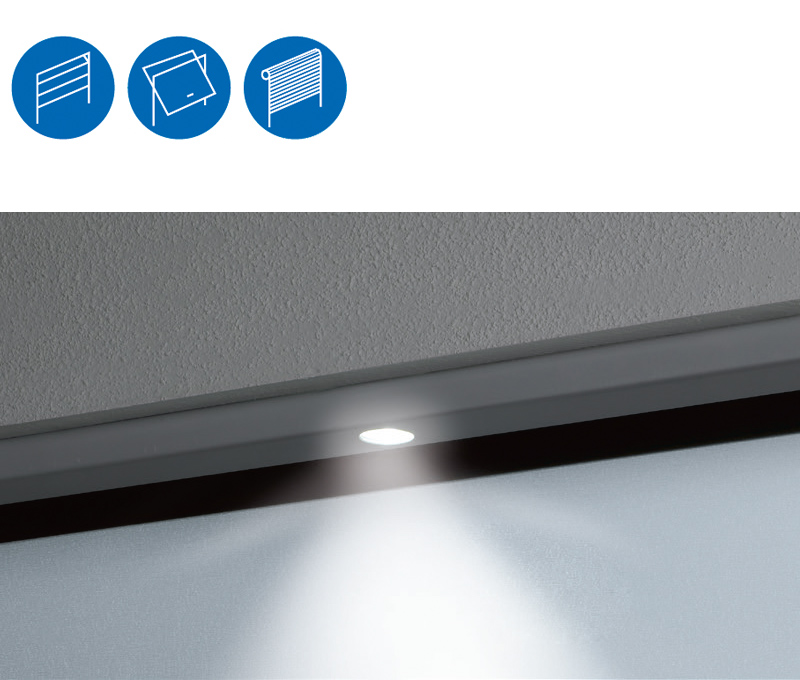

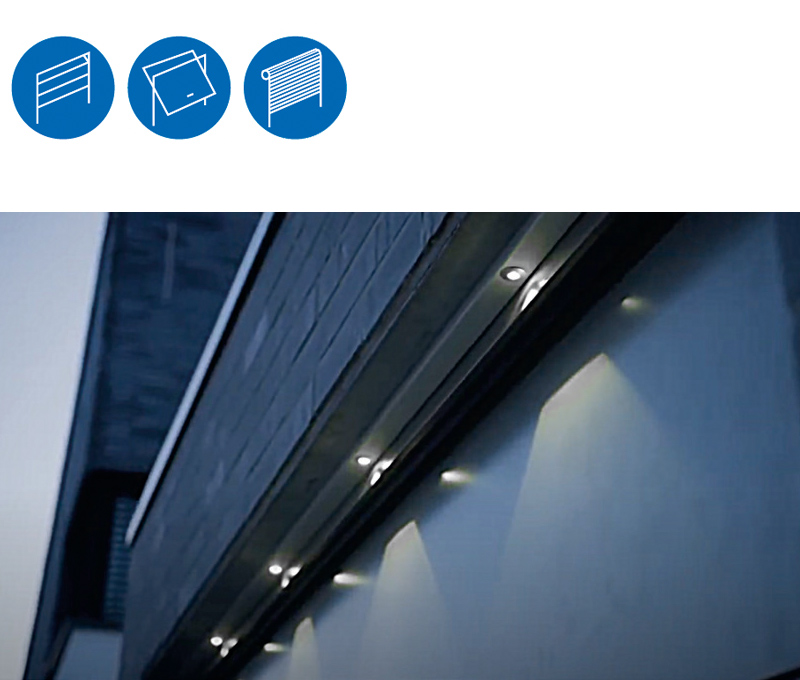

LED LIGHT STRIP

Aluminium anodised light strip
Bright illumination with low power consumption
Long service life thanks to LED technology
Weather-protected lighting
Available lengths: 3 m, 4 m and 5 m - can be shortened if required

Even distribution across the door width:
4, 6 or 8 LEDs for door widths of up to 3,000, 4,000 or 5,000 mm
Door and light can be controlled with a hand-held transmitter
Lighting optionally with or without door movement
Space-saving installation under the garage lintel

SAFETY OPTO SENSORS

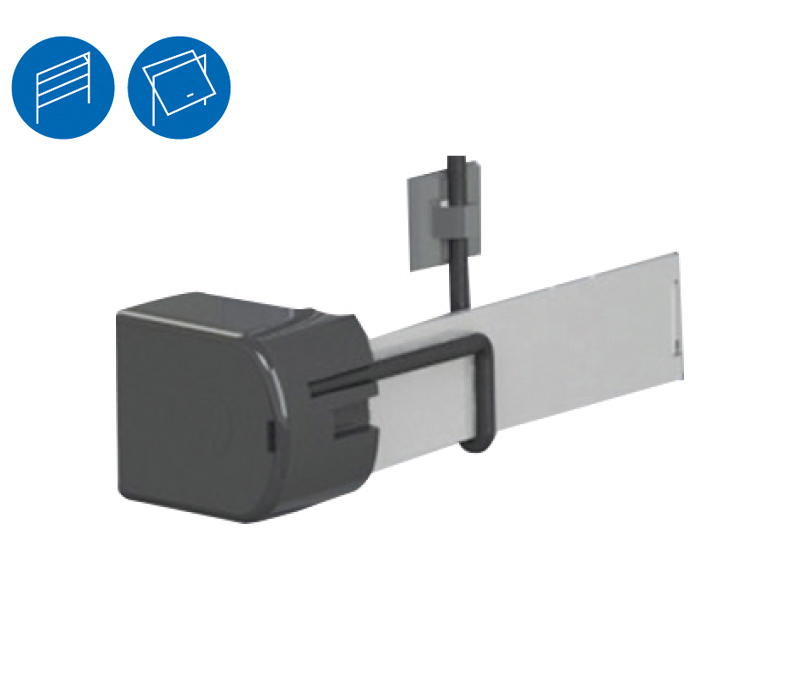

"Easy" throughbeam photoelectric sensor

10-30 V
Range 7 m
Suitable for:
Novoferm sectional doors with operator

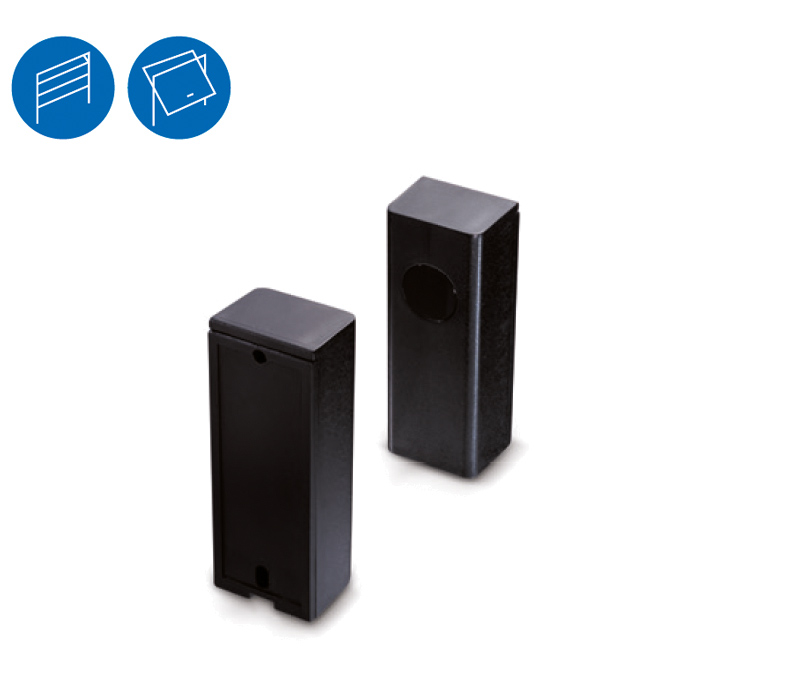

Throughbeam photoelectric sensor "Extra 625"

24 V DC, IP 54
Range 8 m
Suitable for:
All operator models

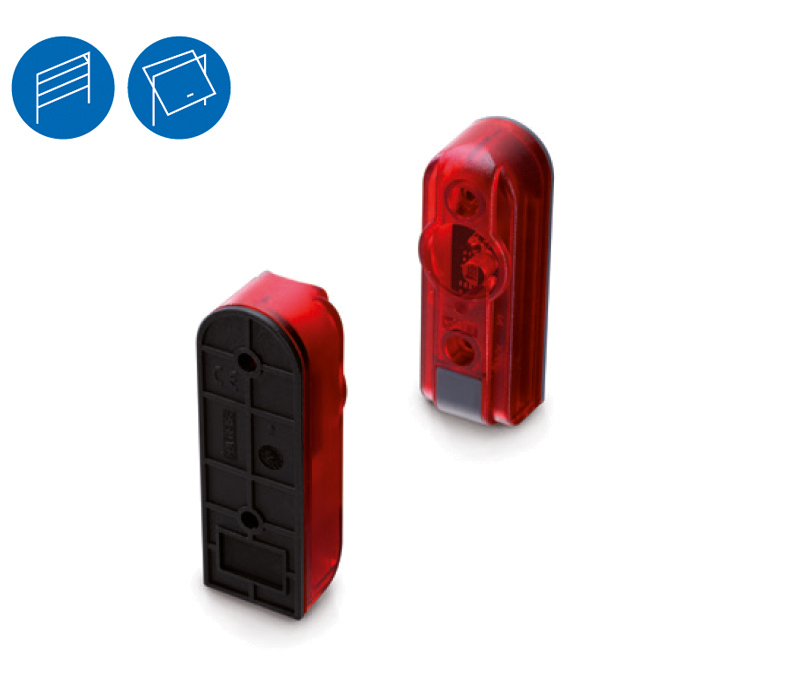

Throughbeam photoelectric sensor "Extra 626"

20-28 V, IP 50, 2-wire
Range 8 m
Suitable for:
Novomatic 423, 563 S
^NovoPort®

Emergency release

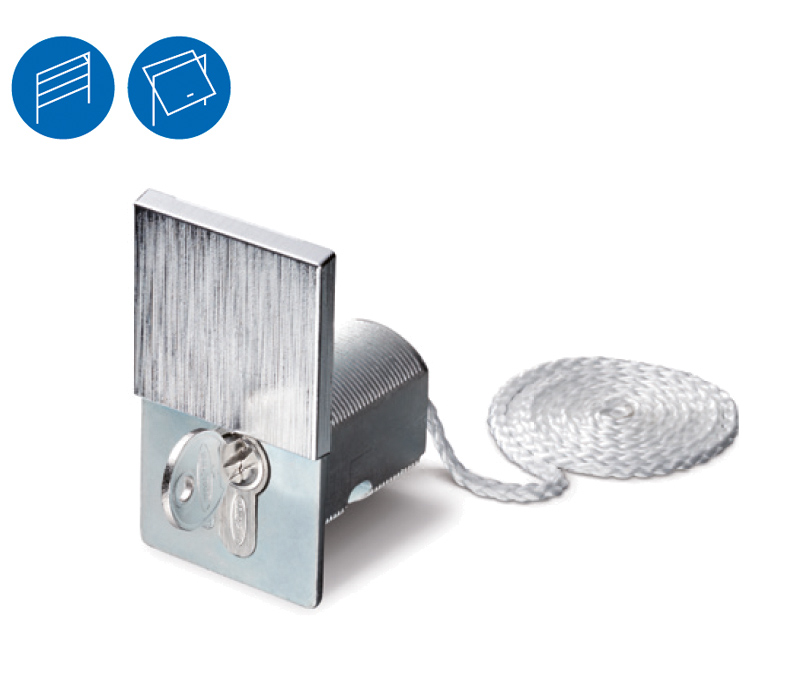

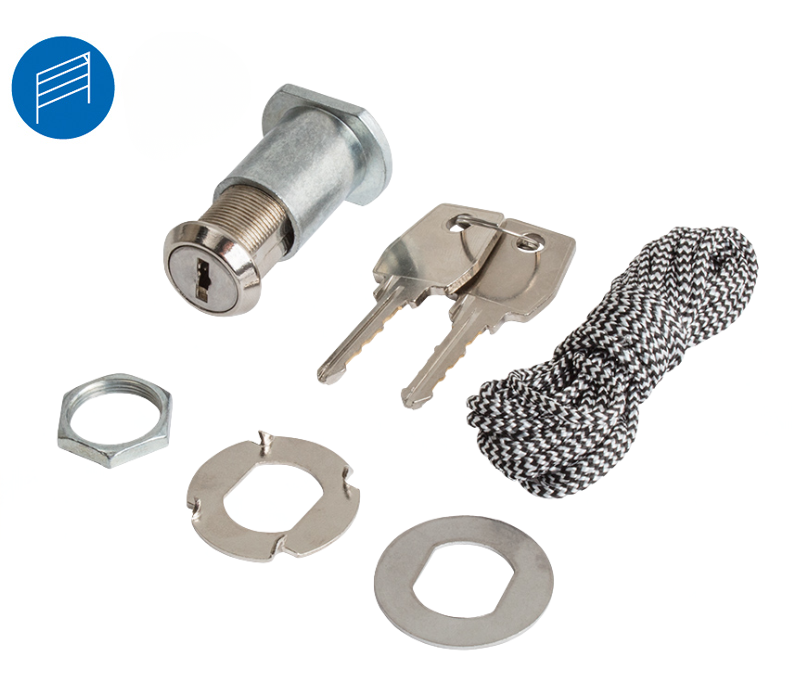

Extra 315" emergency release

With safety profile half cylinder
Suitable for iso 20 and iso 45 sectional doors
A separate version is available for iso 70 sectional doors

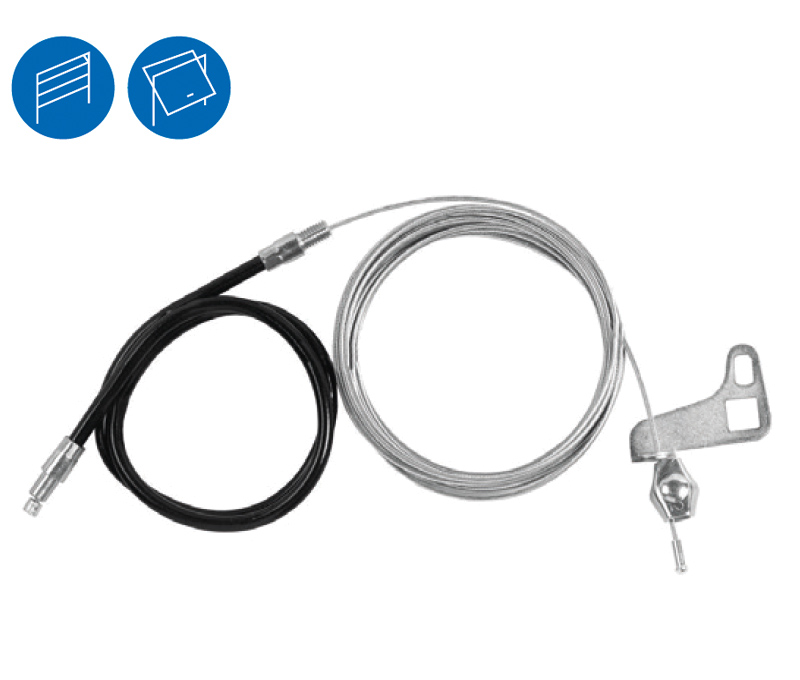

Extra 312" emergency release

Suitable for Novomatic door operators
Suitable for Novoferm ^K® and ^M® up-and-over doors

Battery Back Up

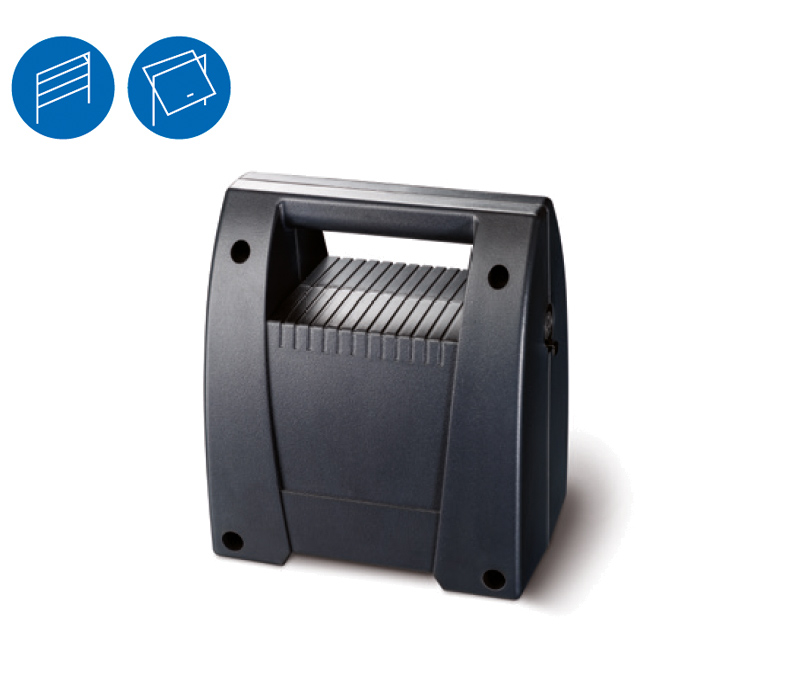

Battery pack
Nominal voltage 12 V DC, nominal capacity 15 Ah, service life 40 days with max. 4 openings per day and at a temperature of 20 °C, temperature range - 15 ° to + 45 °C, integrated charge controller
for plug-in power supply unit

Suitable for:
Novomatic 423 Accu

Use & benefits of accessories

What are the advantages of the accessories?

How can I control my garage door or garage door opener via app? How do I open my automatic garage door if there is a power cut? How can I optimise the ventilation of my garage door? What happens if I don't look at my garage door control? Our user and service videos answer these and many other questions?

Easy" safety light barrier

Thanks to the Novoferm "Easy" safety light barrier, your garage door stops when obstacles are detected, even when you are not looking.

- Reliable detection of obstacles and people
- Automatic detection of the photocell by the operator
- Simple installation without screws
- Self-retaining design on the sectional door frame
- Predefined installation position thanks to holes in the frame

You can find videos of other highlights below or on the Novoferm YouTube channel:
https://www.youtube.com/@novofermukltd

Operating elements for operating garage doors

Convenient opening of Novoferm garage doors! A wide range of different Novoferm operating elements are available for operation without remote control.

https://www.youtube.com/@novofermukltd

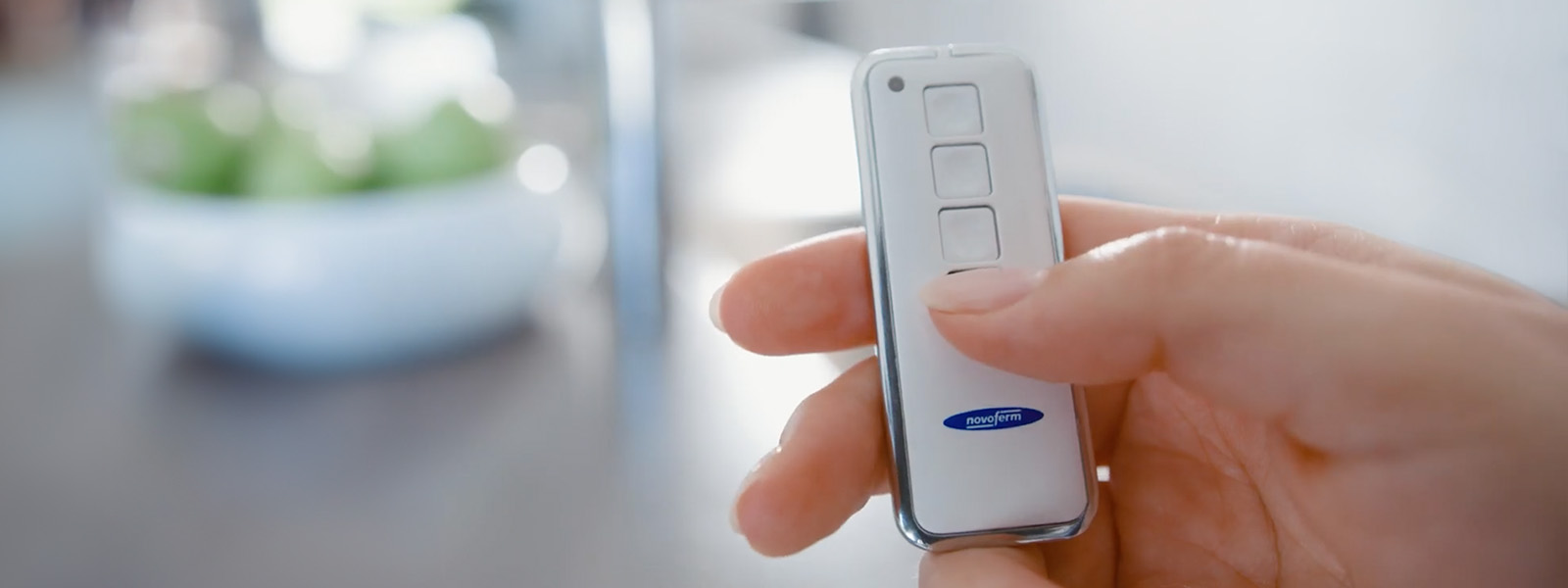

Bidirectional radio with NovoPort®

Door status query thanks to multicoloured LED on the Novoferm hand-held transmitter Mini-Novotron 523 Protect! The door status can be reliably checked using the LED colour.

https://www.youtube.com/@novofermukltd

SmartHome - Door control with app

SmartHome door control with app

You can use typical SmartHome systems (Homematic IP, DeltaDore, Mediola, Google Home, Amazon Alexa) for the intelligent control of garage door openers from Novoferm(^{NovoPort®Speed}, Novomatic 443, Novomatic 573 S).

https://www.youtube.com/@novofermukltd

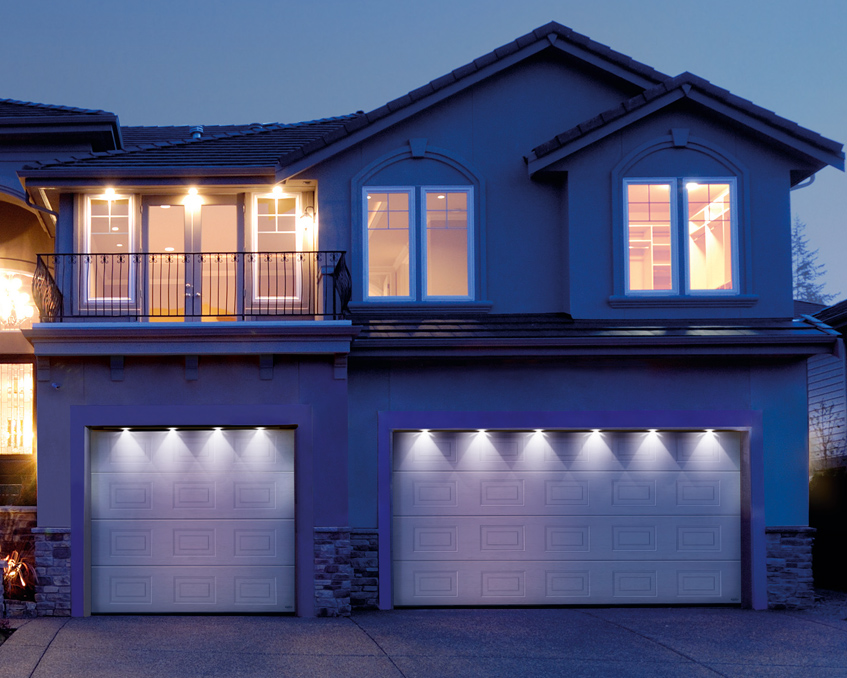

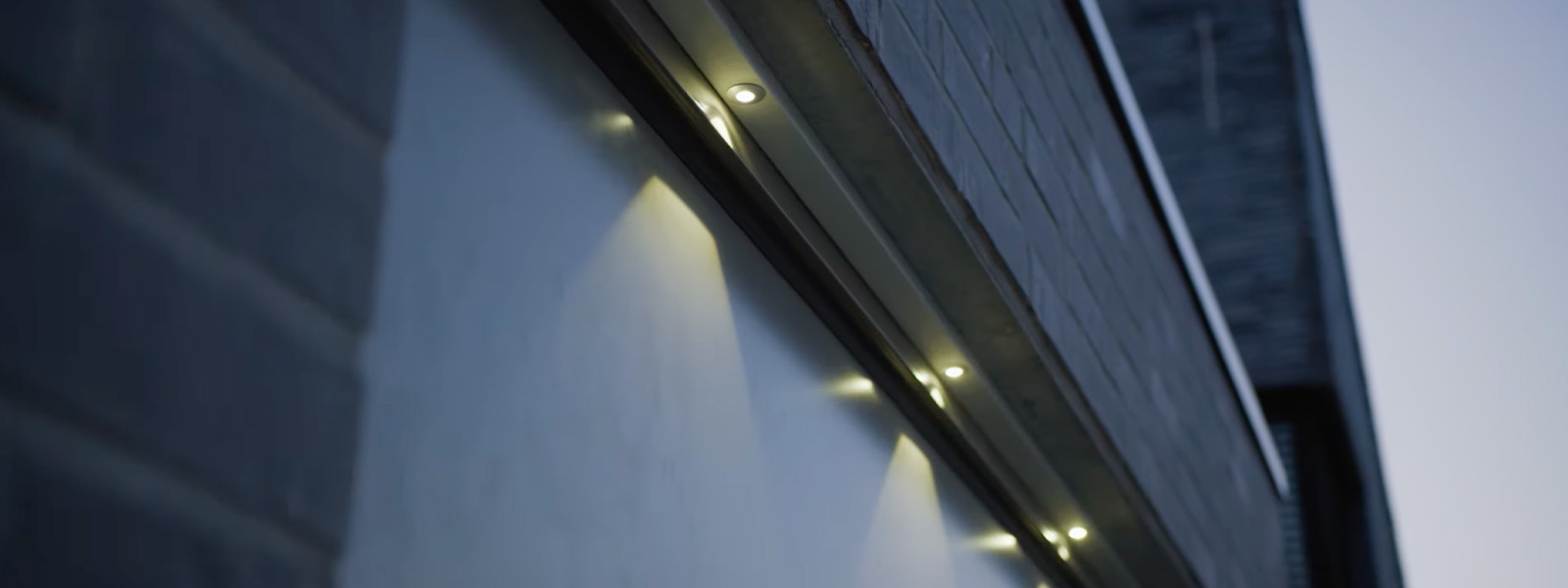

LED light strip for the exterior lighting of the garage

The Novoferm LED light strip sets the scene for your door in the dark! Thanks to the light strip, burglars can also be effectively deterred.

https://www.youtube.com/@novofermukltd

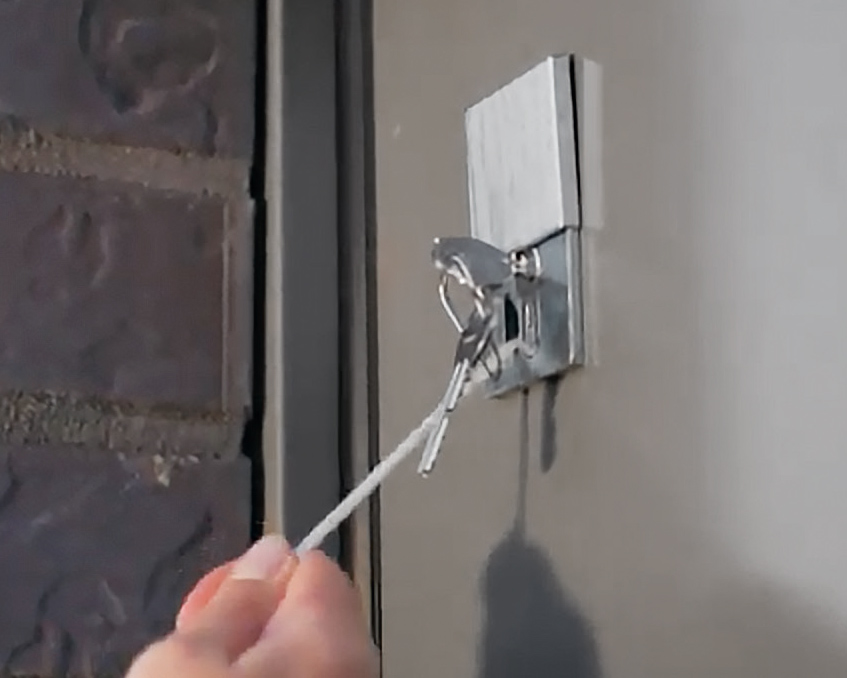

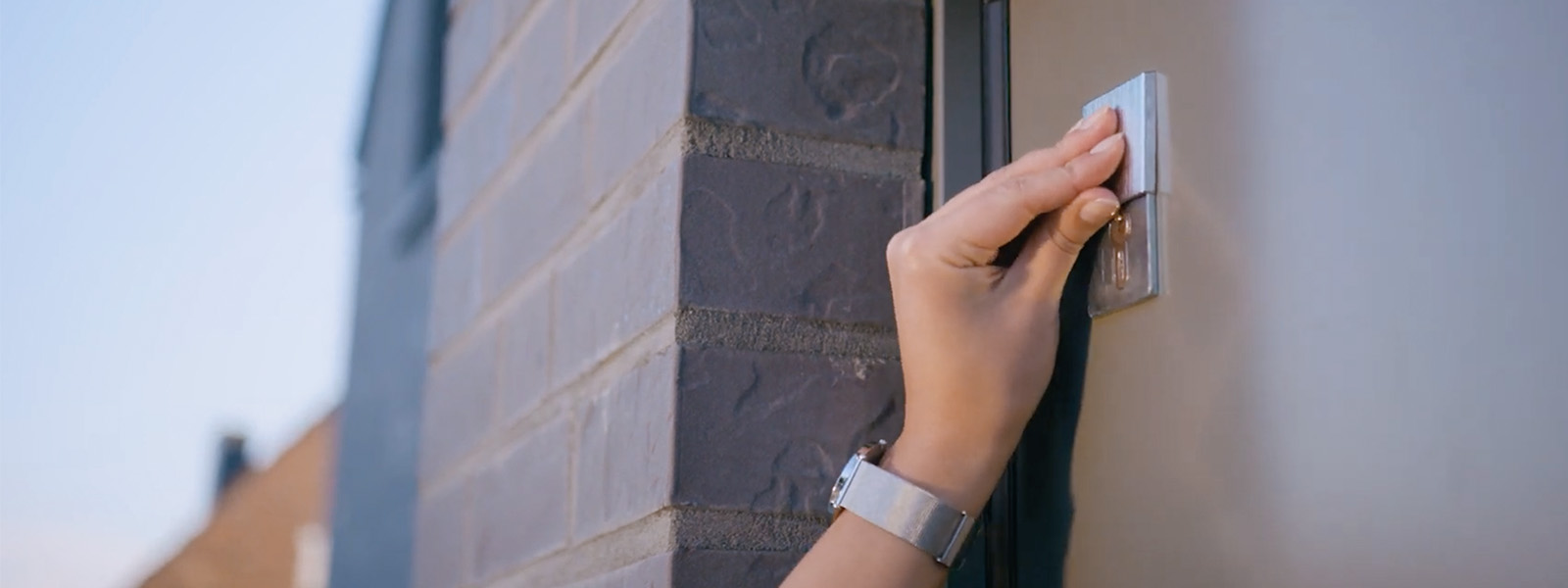

Extra 315" emergency release for garage doors

Easy opening of the door even in the event of a power failure! Thanks to the Novoferm "Extra 315" emergency release, you can open your garage door without any problems even in the event of a power failure.

https://www.youtube.com/@novofermukltd

Gallery

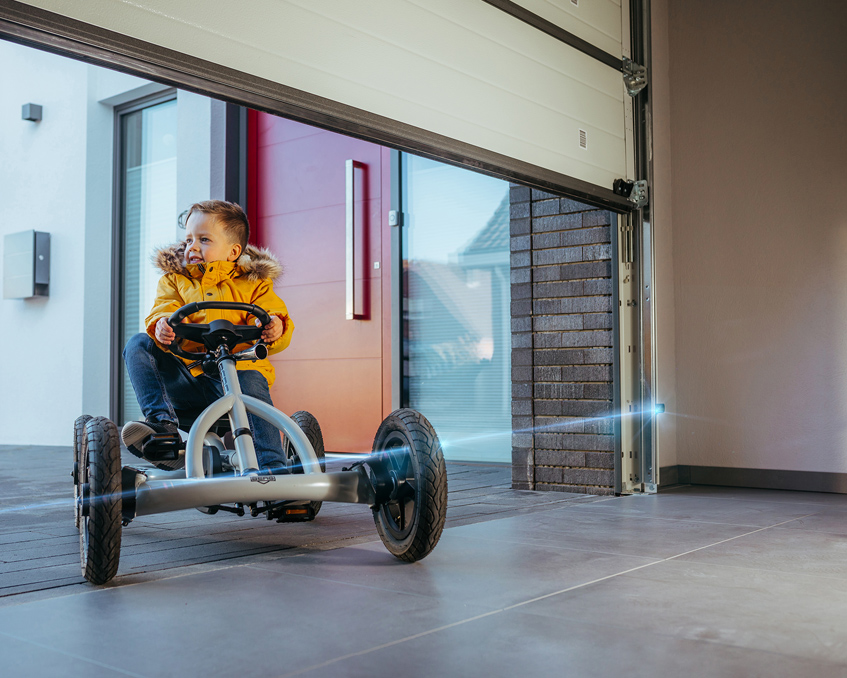

Safety Sensors
This sensor detects obstacles and automatically stops and reverses the door to prevent damage or injury.

Garage door remotes
Door status query thanks to multicoloured LED on the Novoferm Mini-Novotron 523 Protect hand-held transmitter! The door status can be reliably checked using the LED colour.

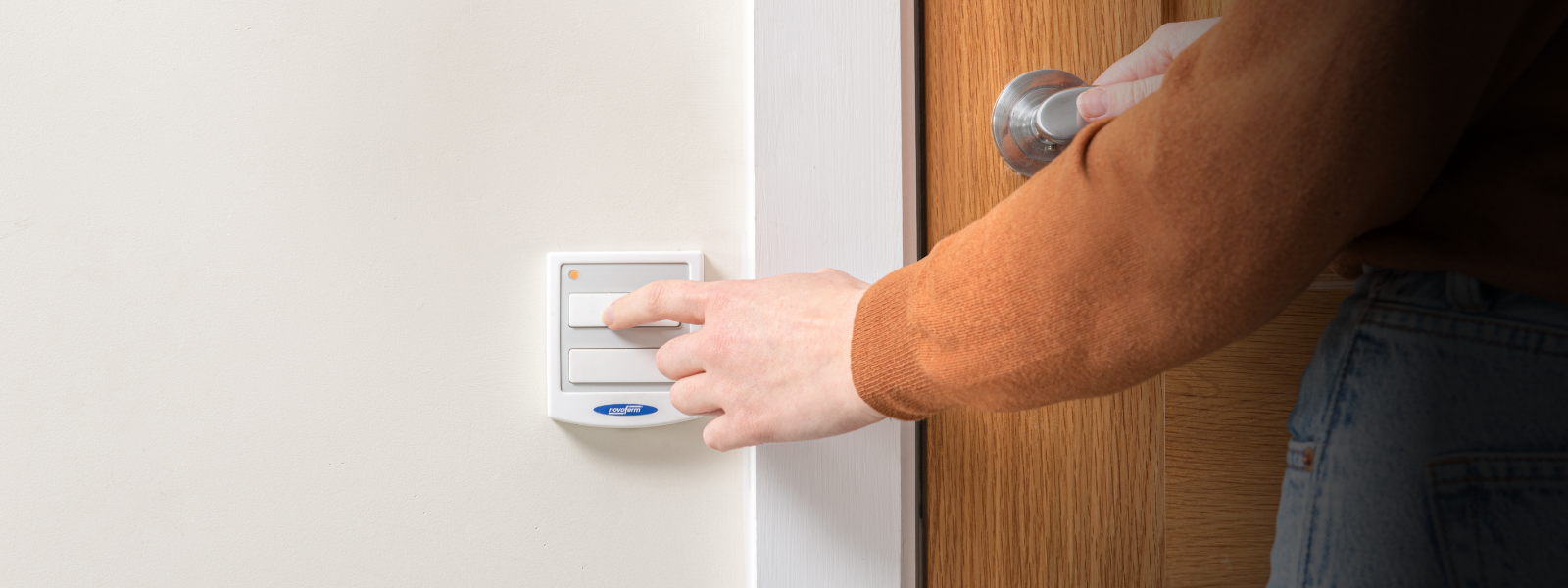

Keypads
Wide range of Radio Keypads including indoor push button Signal 111

LED light strip
The Novoferm LED light strip sets the scene for your door in the dark! Thanks to the light strip, burglars can also be effectively deterred.

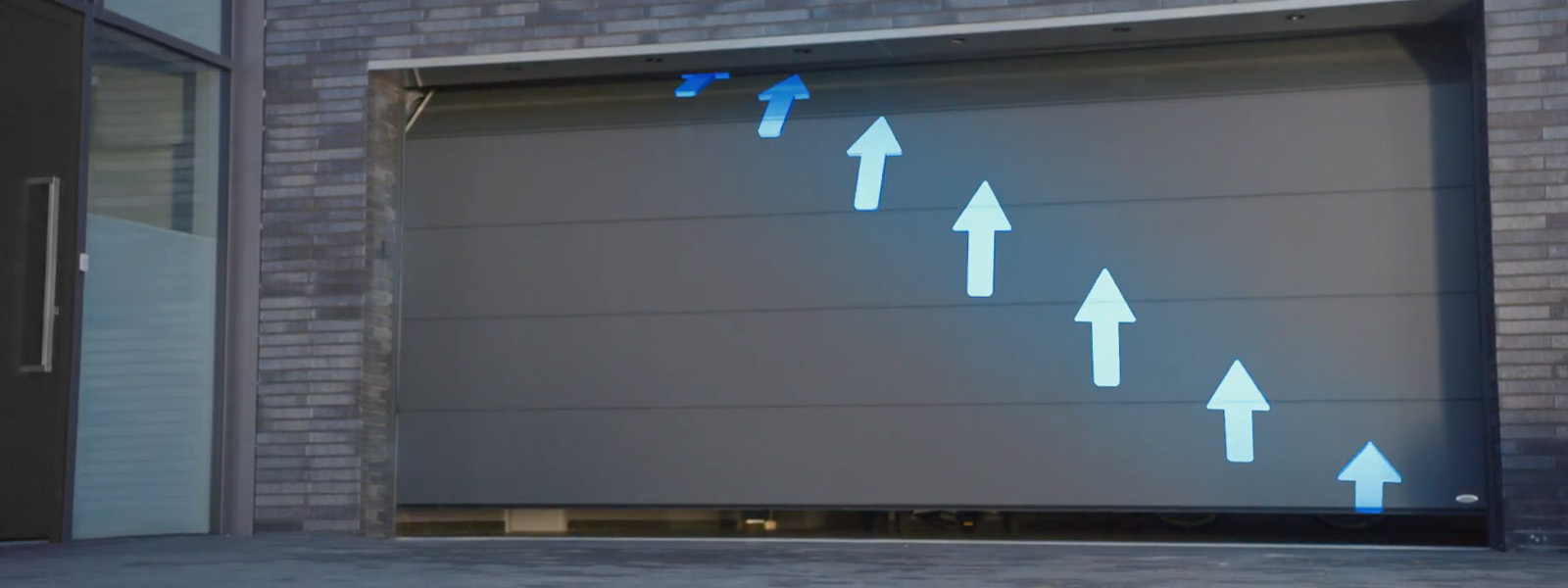

Ventilation of garages
Optimum air circulation in the garage thanks to the adjustable ventilation position of Novoferm garage doors!

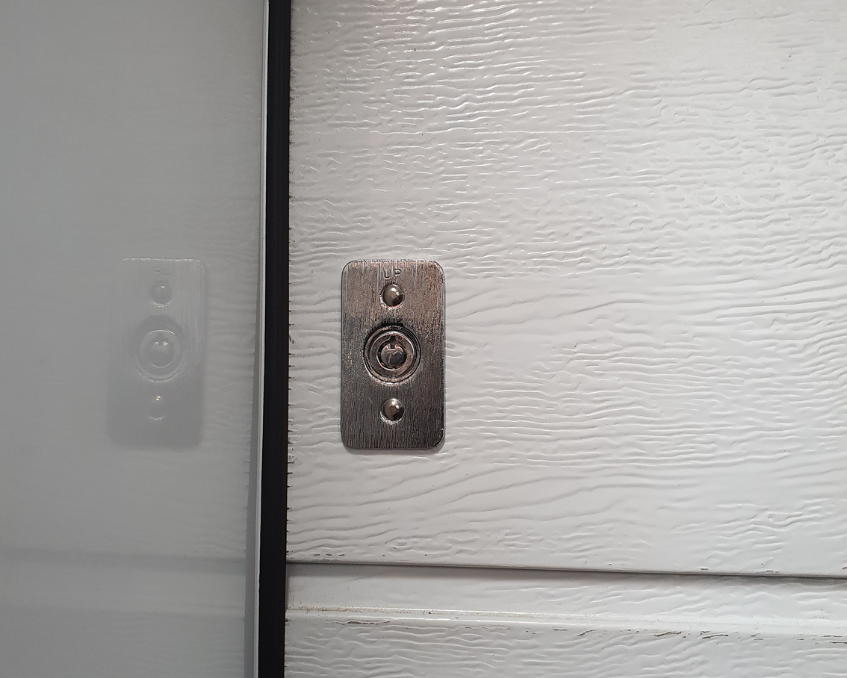

Emergency Manual Release
Easy opening of the door even in the event of a power failure!

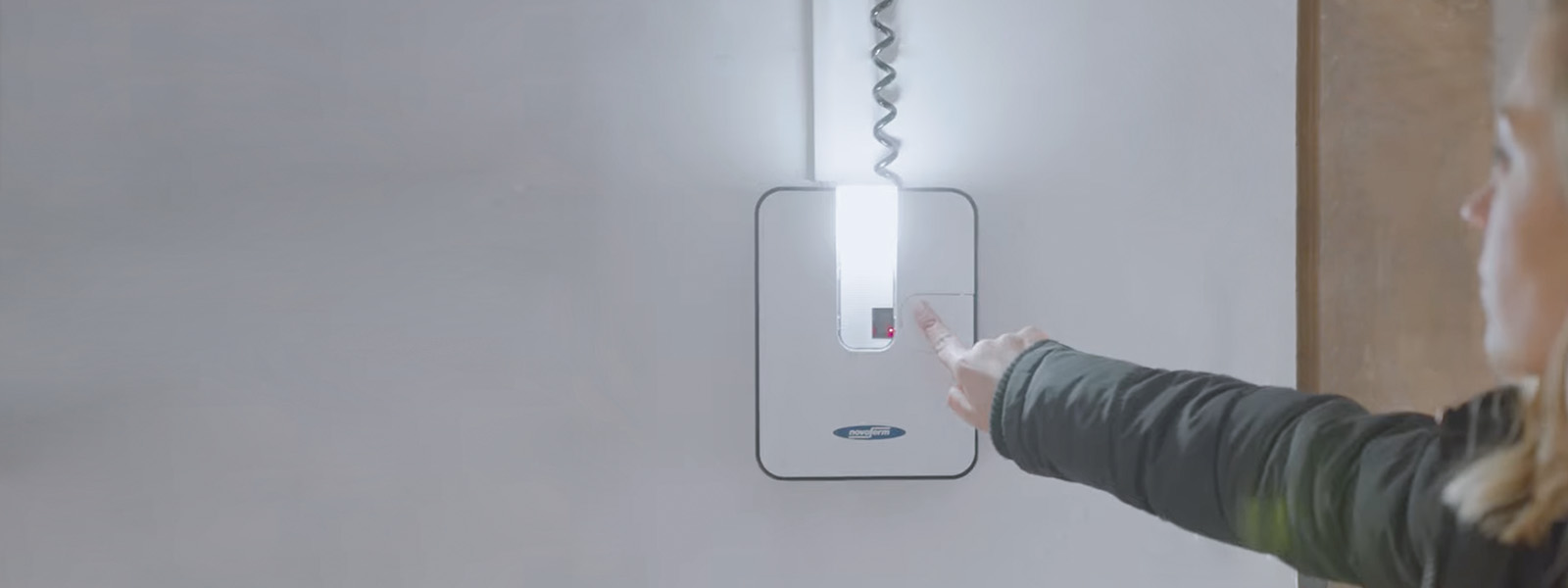

Push-button for NovoPort garage door opener
Integrated internal push-button for NovoPort garage door opener! Thanks to the push-button integrated directly into the control unit, no separate wall push-button is required.

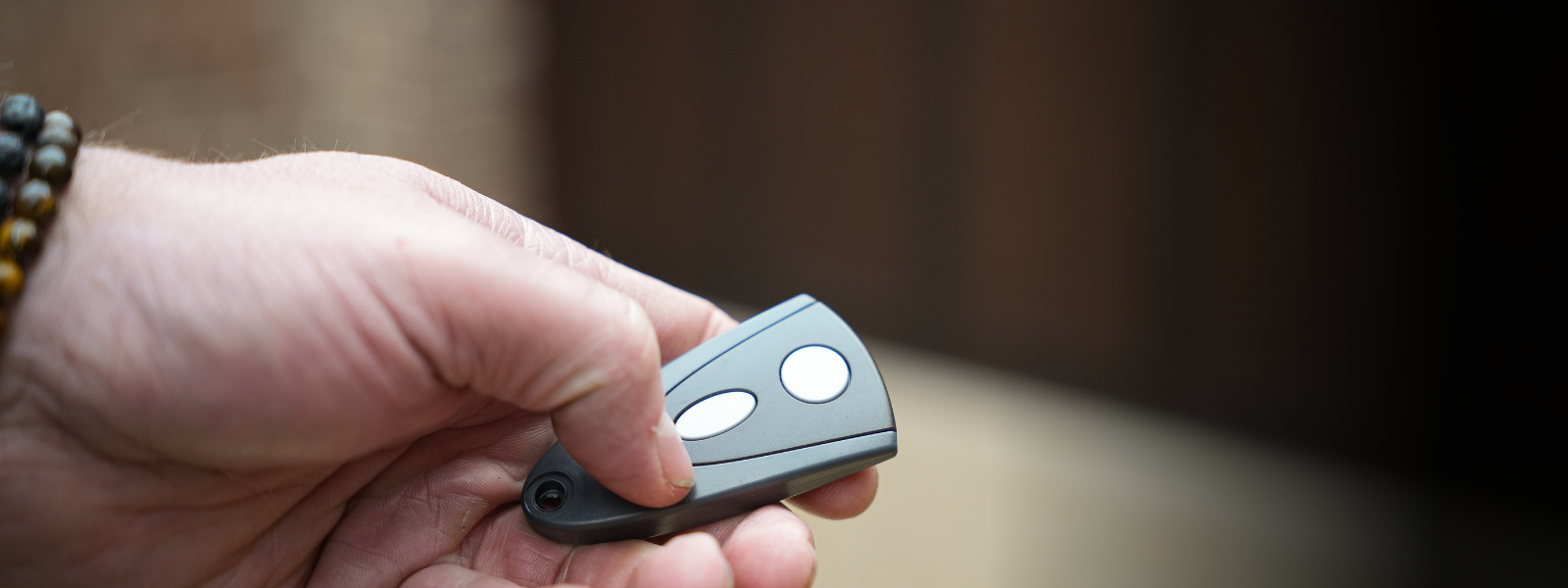

Garage door remotes
Wide range of remote controls and handheld transmitters available.

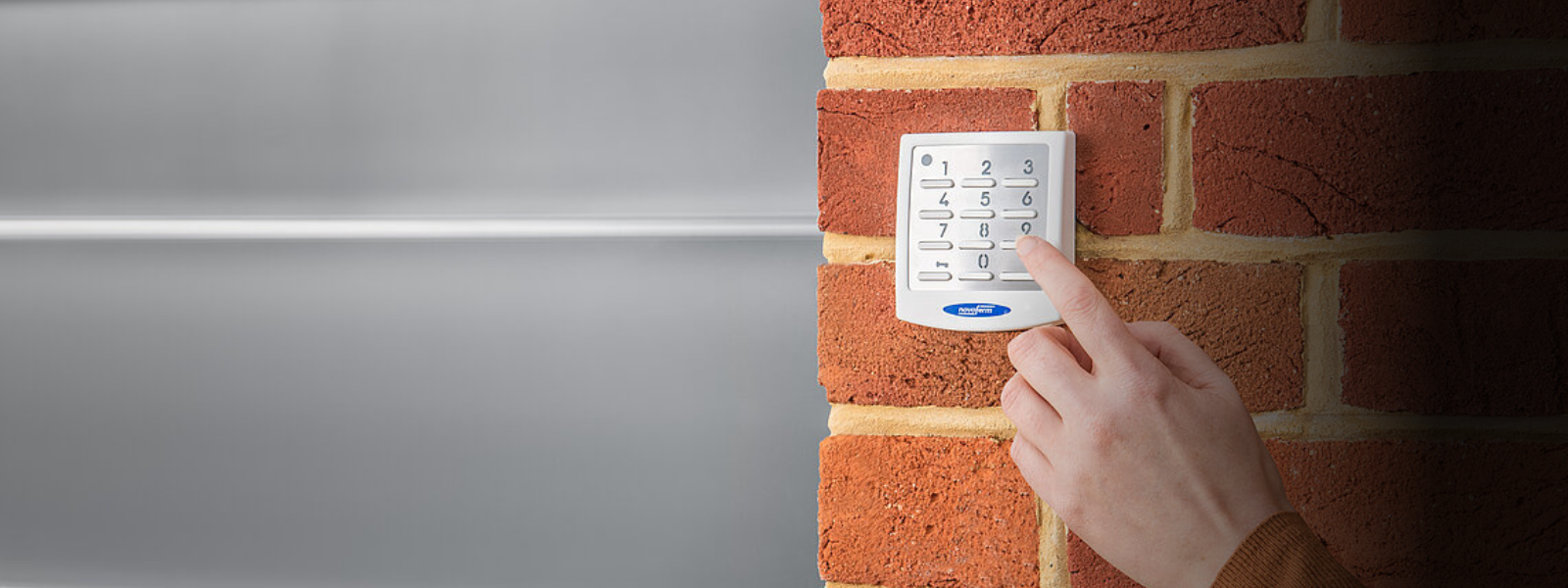

Keypads
Wide range of Radio Keypads including wireless digit code switch Signal 218

How To Guides Of Hand-Held Remotes & Buttons

How do I learn remote controls?

The hand-held remote controls and buttons are programmed easily and conveniently using three push-buttons and a clear display on the door operator. Thanks to logical menu navigation, no setting can be overlooked. All parameters are retained even in the event of a power failure.

How To Guide - Programme Mini-Novotron 522

How To Guide - Mini-Novotron 522

This video from the garage door sector shows you how to programme the new Novoferm hand-held transmitter Mini-Novotron 522 (2-channel interchangeable code hand-held transmitter -- KeeLoq) to control the new Novoferm design operators for opening and closing garage doors and/or the operator lighting.

https://www.youtube.com/@novofermukltd

How to Guide - Programme Novoferm Signal 218 Radio Code Switch

This video from the garage door sector shows you how to programme the new Novoferm Signal 218 radio code switch in white by entering a 4-digit security code to control the new Novoferm design operators for opening and closing garage doors. The push-button can be programmed with 10 codes.

https://www.youtube.com/@novofermukltd

How to Guide - Programme Novoferm Signal 111 Indoor Radio Code Switch

This video from the garage door sector shows you how to teach in the new Novoferm Signal 111 (2-channel) indoor radio switch in white to control the new Novoferm design operators for opening and closing garage doors and/or the operator lighting.

https://www.youtube.com/@novofermukltd

How to Guide - Changing the battery on a Novoferm hand held transmitter

This video shows step-by-step how to change the batteries in Novoferm hand-held transmitters.

https://www.youtube.com/@novofermukltd
