Thermo industrial sectional doors

Thermo sectional doors are the all-rounders when it comes to industrial sectional doors. The thermal and acoustic insulation of the doors is particularly good, and they effectively separate different temperature zones. Thermo sectional doors are available with 40 or 60 mm panels.

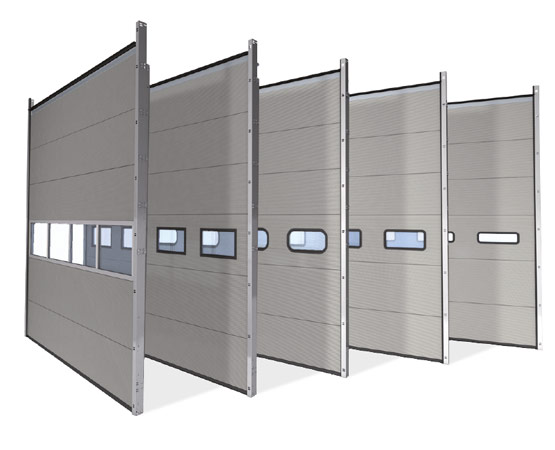

Thermo 40 mm industrial sectional doors

The all-rounder, made by Novoferm!

Novoferm sells more Thermo 40 mm sectional doors than any other type of industrial door. The door combines exceptional thermal and acoustic insulation performance with microprofiled panels featuring a modern design. The scope for design and layout is endless. You can configure the door exactly to the requirements of the specific situation. Choose from numerous light and visibility options, heights and widths, and a standard rage of 10 RAL colours offered by Novoferm.

Core aim: Flexibility
Thermo 40 mm sectional doors are designed and manufactured with the aid of cutting-edge technologies. They are finished with a view to ensuring exceptional load bearing ability, and thought through down to the very last detail, as clearly demonstrated by the metal or aluminium end caps, reinforcing profiles, and the bottom edge of the anodized aluminium floor profile, which is not visible from the outside. Flexibility is absolutely key when manufacturing these doors. They are real all-rounders reflecting a perfect blend of price, performance and possible uses.

Thermo insulated industrial sectional doors
Advantages at a glance

Thermo high insulation industrial sectional doors

Ideal for areas where separation of temperature zones is important

Available with 40 or 60 mm panels

Microprofiled sheet steel panels with excellent acoustic and thermal insulation properties; exceptionally weatherproof

Thermo panels can be combined with NovoLux sections for specific requirements

Standard microprofiling in 10 colours at no extra cost; optional specific RAL colours

Design
Thermo 40 mm sectional door U value

Thermo 40 mm sectional door U value:
5000 x 5000 mm: 1.02 W/m²K

Sandwich design 40 mm Thermo panels

Panel thickness:

40 mm

Thermal conductivity:

λ=0.025 W/mK

Insulation performance:

U=0.52 W/m²K

PU foam density:

40 kg/m³

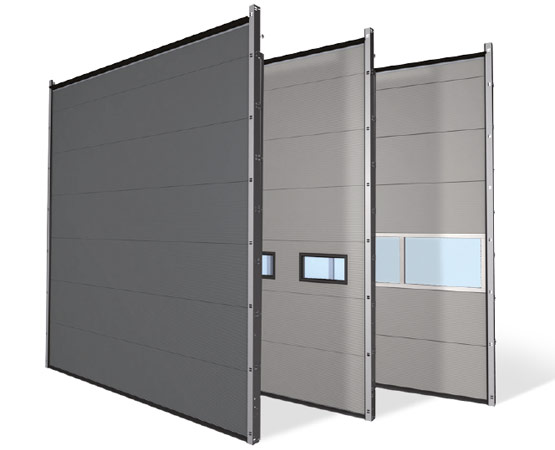

Thermo 60 mm industrial sectional doors

Effectively separate different temperature zones

The insulating and sealing properties of Thermo 60 mm sectional doors are particularly good, making them ideal for areas where temperature zone separation is key. If you want to keep the temperature constant in your production hall or warehouse, Thermo 60 is just what you need. The microprofiled sheet steel panels with excellent acoustic and thermal insulation properties are exceptionally weatherproof.

Exceptional insulation performance
The panels on Thermo sectional doors are designed using the sandwich principle. CFC-free rigid polyurethane foam is inserted between two steel sheets and bonded to the galvanized steel on both sides. If you require a certain colour, the sheet steel can be coated in acrylic paint in an RAL colour of your choice.

Thermo insulated industrial sectional doors
Advantages at a glance

Thermo high insulation industrial sectional doors

Ideal for areas where separation of temperature zones is important

Available with 40 or 60 mm panels

Microprofiled sheet steel panels with excellent acoustic and thermal insulation properties; exceptionally weatherproof

Thermo panels can be combined with NovoLux sections for specific requirements

Standard microprofiling in 10 colours at no extra cost; optional specific RAL colours

Design
Thermo 60 mm sectional door U value

Thermo 60 mm sectional door U value:
5000 x 5000 mm: 0.77 W/m²K

Sandwich design 60 mm Thermo panels

Panel thickness:

60 mm

Thermal conductivity:

λ=0.025 W/mK

Insulation performance:

U=0.35 W/m²K

PU foam density:

40 kg/m³

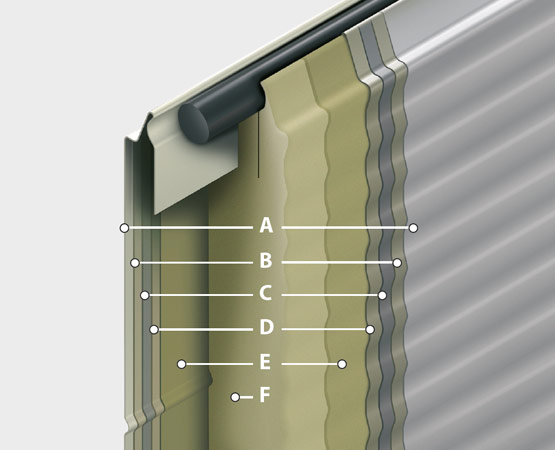

Thermo insulated industrial sectional doors

A Coat of paint:

in 10 colours (outside)

B Zinc layer:

275 g/m²

C Sheet steel:

0.5 mm

D Zinc layer:

275 g/m²

E Coat of etching primer



F Rigid PU foam:

g=40 kg/m³, free of CFC and HCFC

E Coat of etching primer



D Zinc layer:

275 g/m²

C Sheet steel:

0.5 mm

B Zinc layer:

275 g/m²

A Coat of paint:

RAL 9002 (inside)

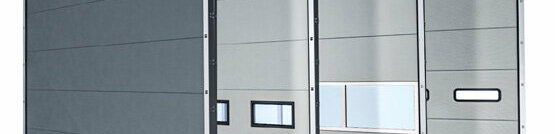

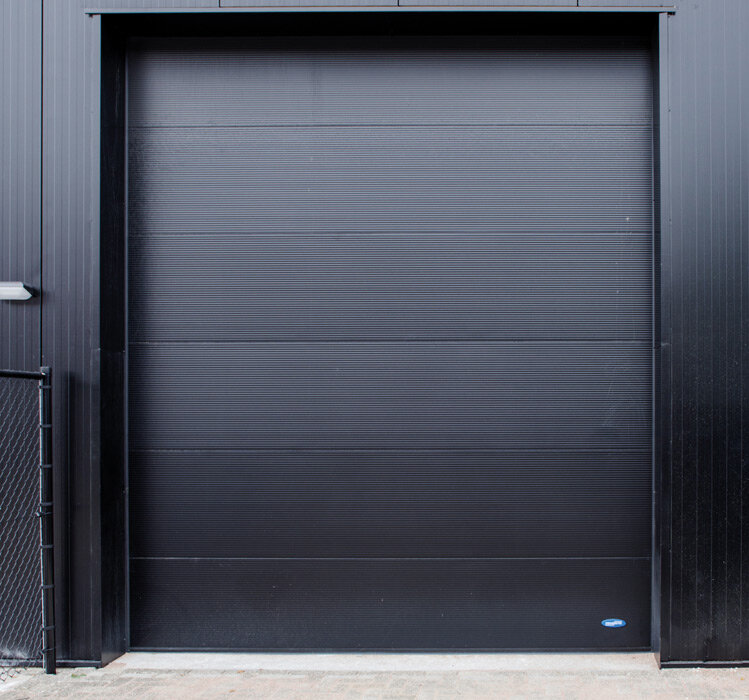

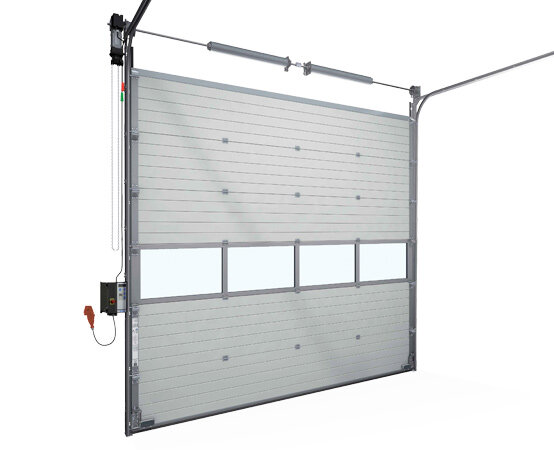

Thermo 80 mm industrial sectional doors

Maximum Insulation from Novoferm

In this day and age, it’s essential for every building to be well-insulated. It’s also vital that this insulation is in line with the latest industry standards, particularly when it comes to external doors and gates. The Thermo 80 is the thickest in the Thermo series, offering even greater insulation than the Thermo 40 and 60 models. The panels of the Thermo 80 are filled with polyurethane foam and have a thermal break between the inner and outer shell.

Double-Skinned Sectional Doors with Thermally Broken Steel Panels
With optimal thermal insulation qualities and a U-value of 0.25 W/m2K, the Thermo 80 will meet the needs of all clients who are looking to maximise energy efficiency. The Thermo 80 model is perfect for refrigeration and freezer rooms, distribution centres, warehouses, and other environments in which heat loss must be avoided. The Thermo 80 is available in 3 standard colours.

Advantages at a glance

Highest level of thermal insulation

Ideal for areas where separation of temperature zones is important

Highly durable 80mm thick panels

Microprofiled sheet steel with excellent acoustic and thermal insulation properties; exceptionally weatherproof

Lintel seal revised and double-sided side seals added for optimal structural integrity

Thermo panels can be combined with NovoLux sections for specific requirements

Standard microprofiling in 3 colours at no extra cost

Specifications

Thermo 60 mm sectional door U value:
5000 x 5000 mm: 0.49 W/m²K

Sandwich design 80 mm Thermo panels

Panel thickness:

80 mm

Insulation performance:

U=0.25 W/m²K

Soundproofing:

25 dB

PU foam density:

40 kg/m³

A Coat of paint:

Available in 3 colours, micro-profiled (standard)*

B Zinc layer:

275 g/m²

C Sheet steel:

0.5 mm

D Zinc layer:

275 g/m²

E Coat of etching primer



F Rigid PU foam:

g=40 kg/m³

G Coat of paint (inside)
