Sectional overhead doors are a vital part of any commercial or industrial setup. Not only are they important for providing quick and convenient access, but also for keeping out intruders and maintaining the internal environment.
ISO 40 , 60 and 80mm sectional doors are engineered with cutting-edge technology to deliver exceptional durability and attention to detail. Metal or aluminium end caps, integrated reinforcement profiles, and concealed anodized aluminium sub-profiles ensure a robust construction and refined finish. The versatile manufacturing approach prioritises flexibility, resulting in a product that excels as a true all-rounder, balancing competitive pricing, high performance, and broad application possibilities.
The ISO 40, 60 and 80 mm industrial sectional door, combines excellent heat-insulation and sound-absorbing properties with modern design.
Overview Of Door Types
Thermo industrial sectional door with 40 panels that perfectly combines price, performance and application options.
Thermo industrial sectional door with 60 panels, as a particularly good thermally insulating and sealing door.
Thermo industrial sectional door with 80 panels, with optimum thermal insulation to maintain the temperature of goods.
GATE COMPARISON AND PROPERTIES
GATE COMPARISON AND PROPERTIES
THERMO 40 MM, THERMO 60 MM, THERMO 80 MM
| Door types | Thermo 40 mm | Thermo 60 mm | Thermo 80 mm | ||
| Max. Max. width | 8,000 mm | 8,000 mm | 8,000 mm | ||
| Max. Max. height | 6,000 mm | 6,000 mm | 6,000 mm | ||
| Max. Surface area (WxH) | 48 m² | 48 m² | 42 m² | ||
| U-value (at 5,000 x 5,000 mm) (without NovoLux sections) | 0.99 W/m²K | 0.84 W/m²K | 0.49 W/m²K | ||
| PU foam density | 40 kg/m² | 40 kg/m² | 40 kg/m² | ||
| Wind class according to EN 12424 | 3 - 4 wind resistant up to 12 - 13 Beaufort (118 - 149 km/h) | 3 - 4 wind resistant up to 12 -13 Beaufort (118 - 149 km/h) | 3 - 4 wind-resistant up to 12 -13 Beaufort (118 - 149 km/h) | ||
| Thermally separated sections | - | x | x | ||
Rail systems | Standard guide | T 450 | x | x | x |
| T 340 | o | o | - | ||
| Low camber | T 240 | o | o | - | |
With height guide | T 400 | o | o | o | |
| T 400 HF | o | o | o | ||
| T 400 DS | o | o | - | ||
Roof sequence | T 450 | o | o | o | |
| T 340 | o | o | - | ||
| T 240 | o | o | - | ||
| T 400 | o | o | o | ||
| T 400 HF | o | o | o | ||
| T 400 DS | o | o | - | ||
Vertical guide | T 500 | o | o | o | |
| T 500 HF | o | o | o | ||
| T 500 DS | o | o | - | ||
| Helix |
|
|
| ||
| S600 |
|
|
| ||
| Operation and control | |||||
| Operation | Manual operation | Pull rope or reel chain | Pull rope or reel chain | Pull rope or reel chain | |
| E-drive | o Electric motor with gearbox | o Electric motor | o Electric motor | ||
| Control unit (electric drive) | Dead man's control, pulse control or remote control | Dead man's control, pulse control or remote control | Dead man's control, pulse control or remote control | ||
| Available controls | T75/ T100 | T75/ T100 | T75/ T100 | ||
| Load change | 30,000 cycles using torsion springs ** | 30,000 cycles using torsion springs ** | 30,000 cycles using torsion springs ** | ||
| Options and accessories1 | |||||
Safety | Leading photoelectric sensor (no wiring on the door leaf | o | o | o | |
| Light grid | o | o | o | ||
| Rope breakage protection | o | o | o | ||
| Lifting safety device | o | o | o | ||
| Connection of traffic lights (red/green or red and green) | o | o | o | ||
| Flashing warning light (orange/red) | o | o | o | ||
| Push bolt with spring return, heavy-duty design | o | o | o | ||
| Cylinder lock | o | o | o | ||
| 1 At an extra charge x = Standard o = Optional - = Not possible * FU = 230v TS971/ TS981 only emergency hand chain DU = 400 V T100 only quick release ** Higher load changes possible | |||||
Product Specifications
Door Structure

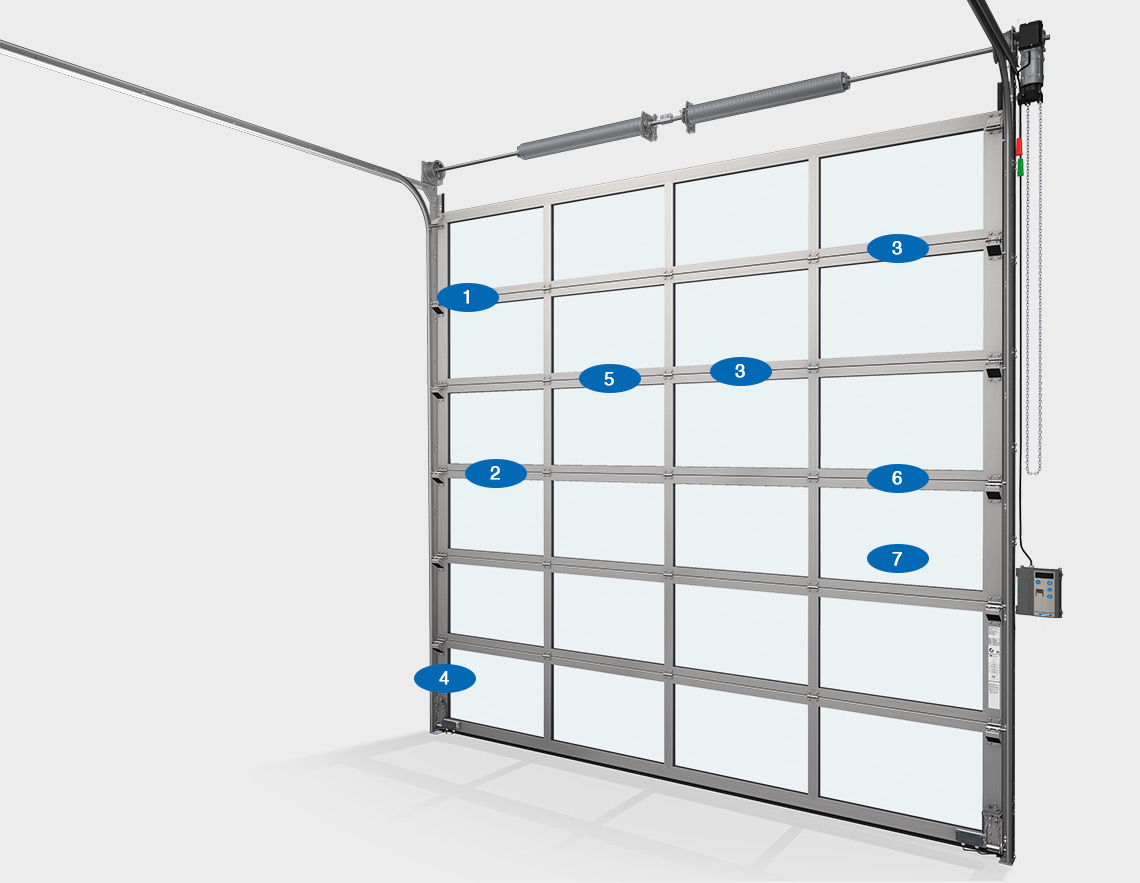

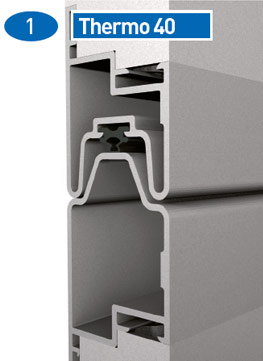

The connection between the sections of a Thermo 40/60/ 80 door is wind & watertight. This is ensured by Kompriband, a foam sealing tape that is applied between the panels.
Novoferm uses this frame for doors with a dark-coloured paint finish and from a certain door size. Sunlight causes the door to expand and can hit the centre of the lintel; the heavy corner frame prevents this.
To increase wind resistance and to fulfil all regulations and standards regarding high wind loads, doors are fitted with reinforcement profiles depending on their width.
A rubber profile with an inwardly curved sealing lip is used to seal the floor of the door. The rubber profiles are mounted using a special plastic profile. The sealing lip of the rubber profile fits closely to the frame seal.

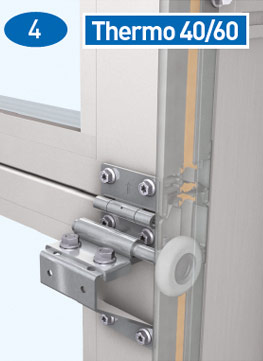

The connection of the door leaf to the vertical tracks by means of a standard corner frame ensures a stable and good seal between the door side and the building.
A double rubber profile with an inwardly curved sealing lip is used to optimise the floor seal of the door. The rubber profiles are mounted using a special plastic profile with low thermal conductivity. The sealing lip of the rubber profile fits closely to the frame seal.
Details Thermo 40 sectional door
Thermo 40
The Thermo 40 sectional door is the best-selling Novoferm industrial sectional door. The door combines excellent thermal and sound insulation properties with micro-profiled panels in a modern design. The design and configuration options are limitless, so that a door can always be perfectly configured for any situation.
Choose from numerous options for light and vision panels, heights and widths and a palette of 15 RAL colours as standard.
CORE OBJECTIVE FLEXIBILITY
Thermo 40 sectional doors are designed and manufactured using state-of-the-art technologies. The finishing is designed for high load-bearing capacity and thought through down to the last detail. This is clearly evident in the metal end caps, the reinforcement profiles and the underside of the anodised aluminium bottom profile, which is not visible from the outside. Flexibility is of central importance in the production of this door.
It is a genuine all-round model in which price, performance and application possibilities interact perfectly.
Product Specification | |
|---|---|
Panel Thickness | 40mm |
Insulation Value | U = 0,52 W/m²K |
Specific Density PU Foam | 40 kg/m³ |
(A )Paint Layer | 19 standard colours (outside) |
(B) Zinc Coating | 275 g/m² |
(C) Steel Sheet | 0.5 mm |
(D) Zinc Coating | 275 g/m² |
(E) Primer coating |
|
(F) PU High Density Foam | g = 40 kg/m³, CFK and H-CFK free |
(A) Paint Layer | RAL 9002 (outside) |
U-value Thermo 40 sectional door: 5,000 x 5,000 mm: 0.99 W/m2K
Details Thermo 60 sectional door
Thermo 60

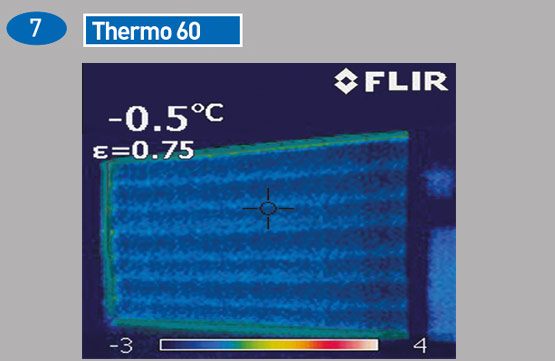

Thermo 60 sectional doors are particularly good heat-insulating and sealing doors that are ideal for areas where the separation between temperature zones is important. If you want to keep your production hall or warehouse at an even temperature level, then the Thermo 60 is just right for you.
The micro-profiled sheet steel panels have excellent sound-insulating and heat-insulating properties and are extremely weather-resistant.
PARTICULARLY HIGH THERMAL INSULATION VALUE
The panels of the Thermo 60 sectional doors are manufactured according to the so-called "sandwich principle". Rigid polyurethane foam is inserted between two steel sheets and bonded to the galvanised steel sheet on both sides. If you have special colour requirements, the sheet steel can be coated with acrylate paint in a RAL colour of your choice.
Product Specification | |
|---|---|
Panel Thickness | 60mm |
Insulation Value | U = 0.35 W/m2K |
Specific Density PU Foam | 40 kg/m³ |
Sound insulation: | 25 dB (for 4,100 x 2,830 mm door without window or wicket door) |
(A )Paint Layer | In 10 colours, Microprofiled (standard)* |
(B) Zinc Coating | 275 g/m² |
(C) Steel Sheet | 0.5 mm |
(D) Zinc Coating | 275 g/m² |
(E) Primer coating |
|
(F) PU High Density Foam | g = 40 kg/m3 |
(A) Paint Layer | RAL 9002 (outside) |
| * Other section designs or surfaces and finger protection on request. |
U-value Thermo 60 sectional door: 5,000 x 5,000 mm: 0.84 W/m2K
Details Thermo 80 sectional door
Thermo 80
Nowadays, every building must be well insulated. It must comply with current standards. This also applies to external doors and gates. The panels of the Thermo 80 door are also foamed with polyurethane and thermally separated between the inner and outer shells, but have even better thermal insulation than the doors in the Thermo 40 or 60 series.
DOUBLE-WALLED SECTIONAL DOORS WITH THERMALLY BROKEN STEEL PANELS
With its optimum thermal insulation and a U-value of 0.25 W/m2K, the Thermo 80 fulfils the needs of clients who place particular emphasis on energy efficiency. This makes this door ideal for cold storage and deep-freeze halls, industrial halls, warehouses and distribution centres where heat loss must be avoided and where a certain temperature of the goods must be maintained.
The Thermo 80 sectional door is available in 3 standard colours.
Product Specification | |
|---|---|
Panel Thickness | 80mm |
Insulation Value | U = 0.25 W/m2K |
Specific Density PU Foam | 40 kg/m³ |
Sound insulation: | 25 dB (for 4,100 x 2,830 mm door without window or wicket door) |
(A )Paint Layer | In 3 colours, Microprofiled (standard)* |
(B) Zinc Coating | 275 g/m² |
(C) Steel Sheet | 0.5 mm |
(D) Zinc Coating | 275 g/m² |
(E) Primer coating |
|
(F) PU High Density Foam | g = 40 kg/m3 |
(A) Paint Layer | RAL 9002 (outside) |
| * Other section designs or surfaces and finger protection on request. |
U-value Thermo 80 sectional door: 5,000 x 5,000 mm: 0.49 W/m2K
Colours
Colours
STANDARD COLOURS
With Novoferm, architects can play with design and colour. The optical properties of the micro-profiled steel sheet ensure that the doors are ideal for use in modern buildings. The colour range offers 15 popular colours that give each door an individual look at no extra cost.
This selection of colour-fast coil coatings allows the doors to be seamlessly integrated into your company's corporate design.
Do you have special colour requirements? Novoferm also offers a range of options here.
Glazing Options
THE FUNCTION OF WINDOWS

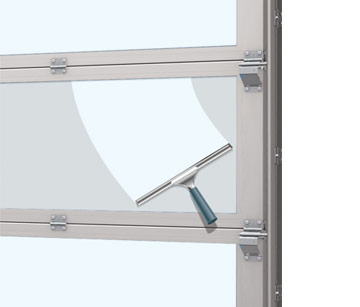

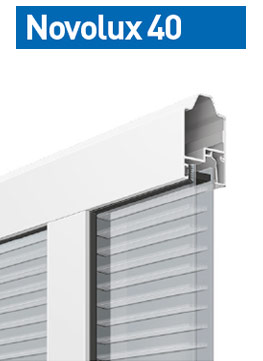

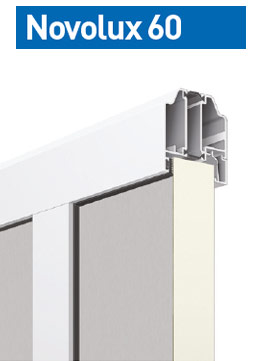

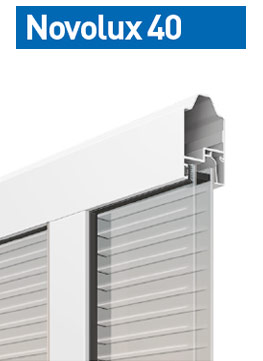

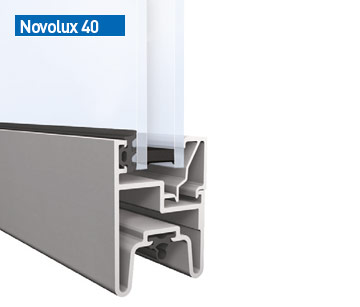

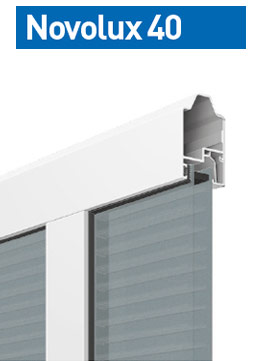

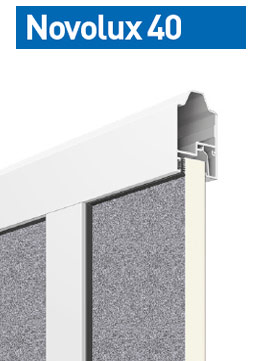

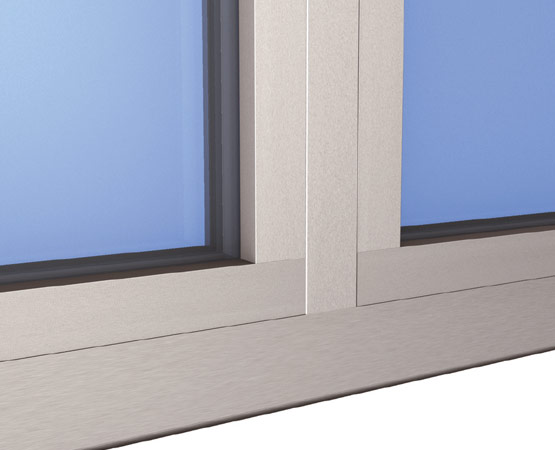

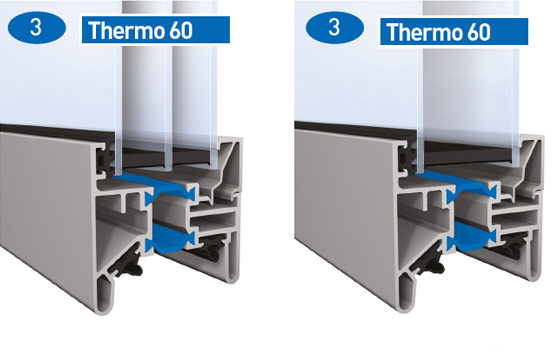

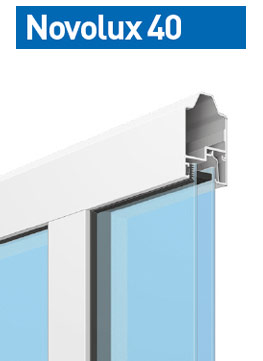

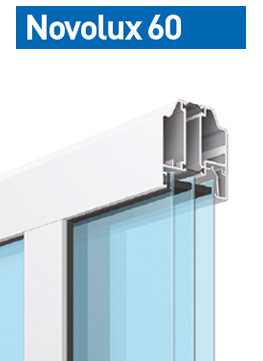

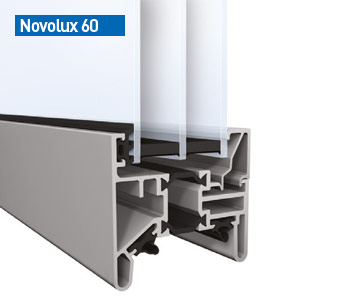

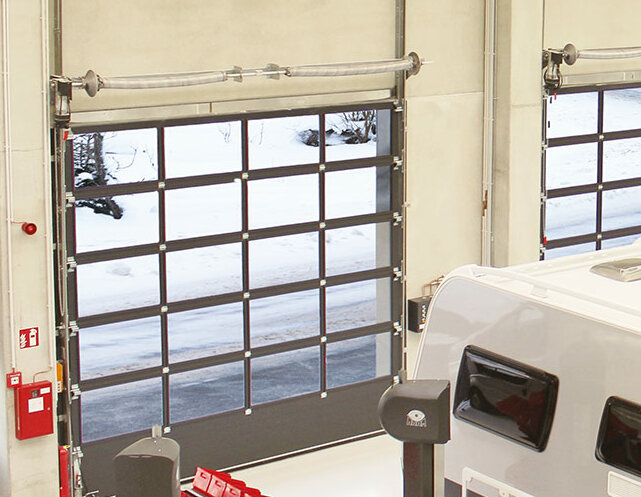

Thermo sectional doors can be fitted with Plexiglas panes for optimum light conditions and good visibility. The standard window models are elongated, with right-angled or rounded corners and have single-pane or multi-pane insulating glazing.
Rectangular panes with rounded corners and limited height are available as additional burglary protection.
Are you looking for an unconventional design?
How about round windows or a creative arrangement of the panes?
* Light yield of the windows
