Rapid roll doors for indoor use

At work, efficiency includes cost efficiency. Novoferm rapid roll doors help to improve your logistics performance. Novoferm offers customized solutions to suit nearly any application. Our in-house research & development departments closely track changes to the requirements placed on rapid roll doors.

See for yourself!

Your advantages at a glance

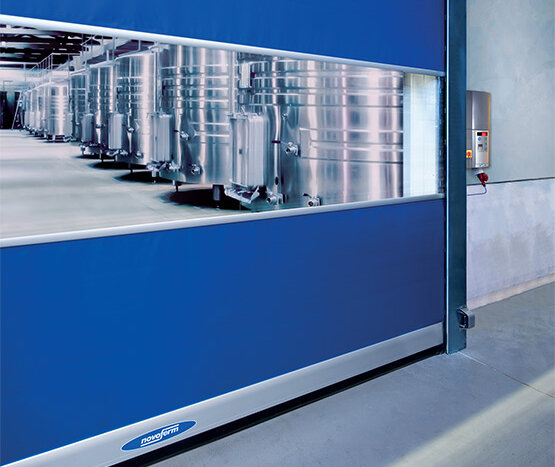

Developed to suit all possible situations
Two tension springs to balance the weight
Max. 8m²
Wind load class: Class 0 or 1
Opening speed of max. 2 m/s with frequency control

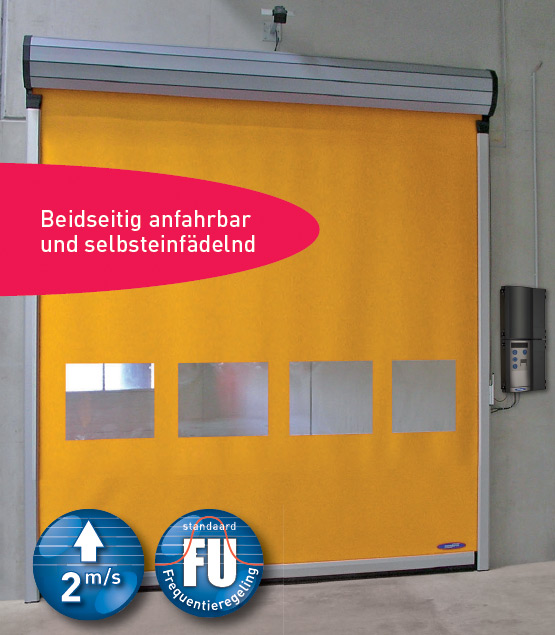

Operation from either side, automatic self-feeding
Pre-assembled units for easy installation
Aluminium tracks keep the weight down
Optional flexible or rigid bottom beam

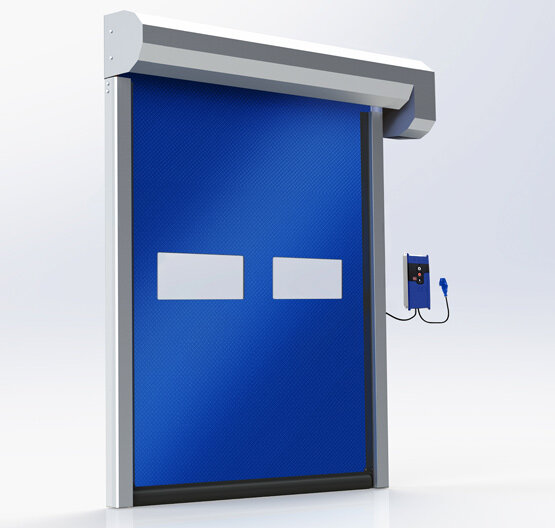

SpeedRoller NovoZip

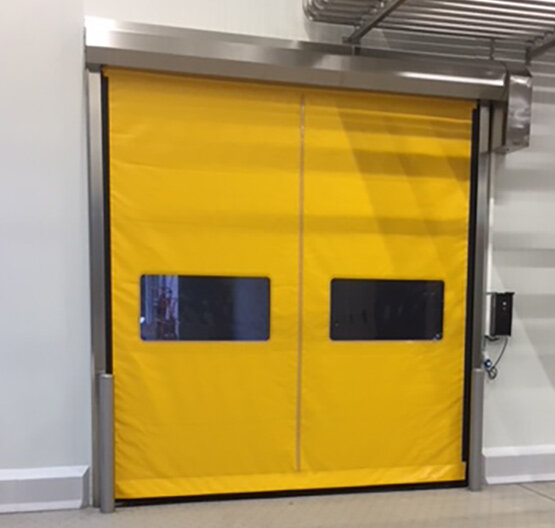

The self-repairing NovoZip high speed door is the ideal solution for fast and frequently used passages. The self-lubricating rails in particular contribute to this. The self-repairing opperation reduces interruptions and guarantees a minimal delay in your production process. The NovoZip is intended as a fast, user-friendly partitioning of spaces and provides energy saving, draught exclusion and climate control. The result is significant energy savings with NovoZip installed.

Advantages at a glance

Dimensions
max. width (W)	4.000 mm
max. height (H)	4.000 mm
max. surface area	16 m²
max. wind force	Cl. 3 / 12 Bft
required lateral space at the guides	110 mm
required lateral space at slip on drive*	310 / 610 mm
required space above door opening	500 mm
depth top hood (without / with FU)	340 / 370 mm
required depth for mounting top hood	650 / 700 mm

Features

wind load resistance minimal class 3 according to EN 12424, or up to 12 Beaufort (118 - 149 km/h)
opening speed with Frequency Control max. 2.0 m/s, closing speed approx. 0.5 m/s
900 gr/m² , class M2 door curtain in white 9016, yellow 1003, orange 2004, red 3002, blue 5015/5002, green 6026, gray 7038 and black 9005
the solution for optimal logistics within your business premises
continues to function reliably even under heavy use
EN13241 compliant

SpeedRoller NovoZip: the details

Components and construction

Components and construction
The NovoZip has a 900 g/m², class M2 door curtain made of a polyester-reinforced synthetic material, with a flexible rubber sealing profile at the bottom. The steel columns with a zipper closure ensure the guidance of the door curtain. These form one taut unit with the top brackets for the fastening of the roller and protective hood.

Materials
The guides and roller are made of galvanised steel. The PVC door curtain has a polyester reinforcement inlay. The FlexEdge bottom beam is made of PVC. The protective hood is available in galvanized steel with a powder coating or optionally in stainless steel. All PVC parts can be recycled.

Colours
The door curtain is available in 9 colours. The door curtain can be provided with transparent windows (option). The steel guides and top cover have a white (RAL-9016) or grey (RAL-7011) powdercoating as standard, but your choise of RAL-colour is also available as an option¹.

Drive

Technical details electric motor
mains voltage with frequency control	LNPE~230V/50Hz/16AT
degree of protection	IP65
consumed power	max. 1,5 kW

The drive consists of an electric motor with reduction unit, mounted at the side of the roller. Drive side available left or right (standard).

Protection

Performance
control box with frequency control:
max. opening speed	2,0 m/s
max. closing speed	0,5 m/s

• Safety light curtain and to max. height 2500 mm. If this curtain is interrupted by an obstacle the door will automatically fully open until the screen is freed again. This does not apply to the door in closed position.
• Mechanical emergency unlocking (after unlocking the door opens)

Structural provisions and connection

a flat mounting frame and the necessary mounting space must be available
exact installation dimensions in the Technical Datasheet
within a radius of 500 mm of where the control unit with frequencycontrol will be positioned there must be a wall socket:
- CEE-form blue, 1 x 230V fused, slow operation 16 A fitted with a circuit-breaker of at least 300 mA
the control box usualy is fitted on the drive side, at a height of approx. 1,500 mm from the floor
with standard CEE-plug, the control box is IP54 compliant

Control and operation

Available controls:

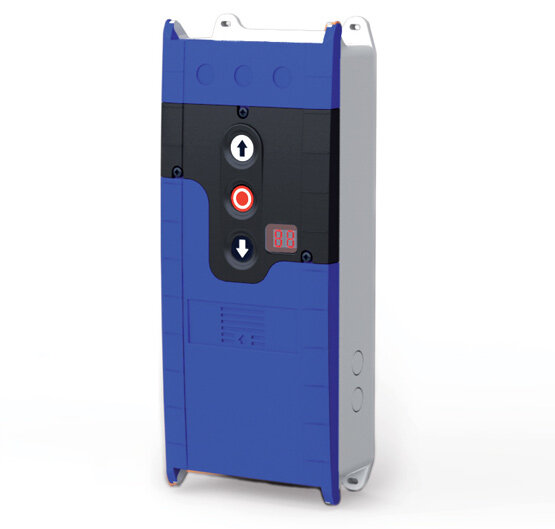

TS971
TS981

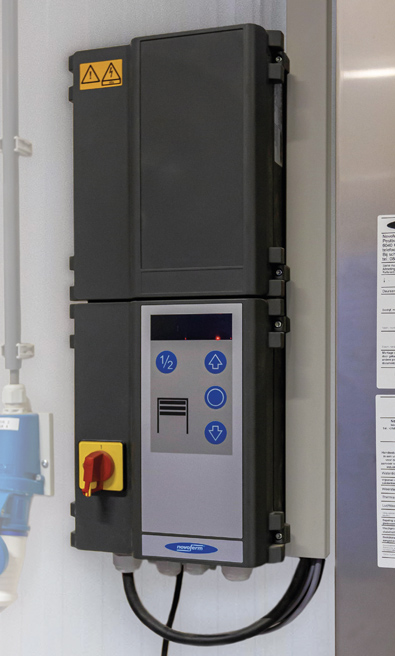

The control unit has 3 buttons (open-stop-close) and a CEE plug, and regulates a multitude of functions such as:

adjustable open time or so called 'Dead man control
LED display for control of the various functions
permanently open or permanently shut
service and run mode

Depending on the size and application of the door you can choose between two types of control:
GFA TS971
GFA TS981

Additional controls that can be connected to the control box are:
push-button, pull switch, key-operated switch, photocell, radar, induction loop detection or radio control.
Other forms of operation on request

Extras (1)

Control and operation

additional controls as described above available at surcharge
control box directly wired (control box IP65)
main switch directly wired on the control box (IP65)
door interlock control in combination with another door

Protection

connection of traffic lights (red/green or red and green)
orange flashing warning light
steel bumpers to prevent damage to the guide columns

Construction

thick 1050 gr/m² weißes Torblatt für Reinraumanwendungen
1000 x 500 mm transparent plastic windows: from 940 mm to 2500 mm wide 1 window, up from 2500 mm wide 2 windows.*
guide columns in customer-specified RAL colour (powder coating)

* Required lateral space for mounting the slip on drive. There are two versions:
- attach the drive on the shaft before mounting the top section, the required lateral space will be 310 mm
- attach the drive on the shaft after mounting the top section, the required lateral space will be 610 mm

* Depending on the configuration

(1) subject to surcharge

NovoSpeed Retail

Developed for retail

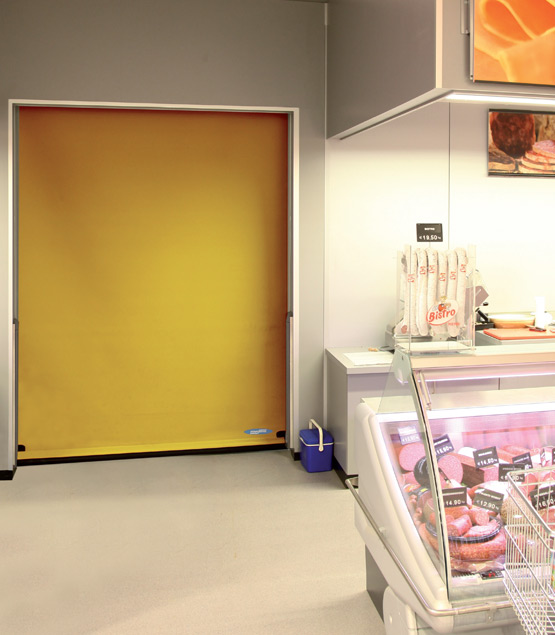

Supermarkets even have to look "super" nowadays, with merchandise displayed attractively and appetizingly. NovoSpeed Retail completes the overall appearance. This rapid roll door is not just one of the fastest of its kind, with a speed of 2 m/s; it also opens and closes without making virtually any noise. Added to which, its plastic cover makes NovoSpeed Retail look really good as well.

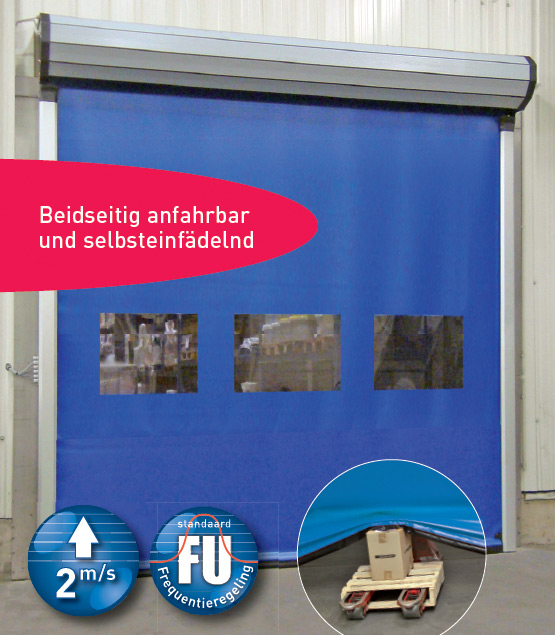

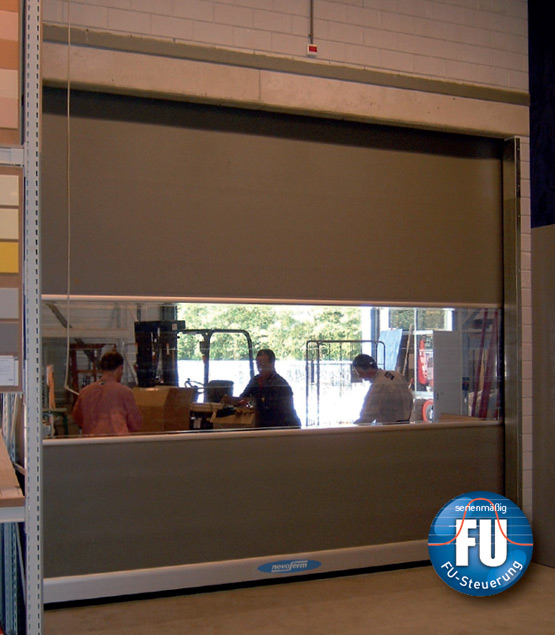

NovoSpeed rapid roll doors for indoor use

Advantages at a glance

Developed for retail
For applications up to 2250 mm wide and 2600 mm high
Max. 5.85 m²
Curtain weight: 650 g/m²
Curtain thickness: 0.7 mm
Curtain thickness when printed: 0.9 mm
Wind load class: Class 1
Opening speed: 2 m/s with frequency control
Closing speed: 0.5 m/s
Optional print motif of your choice on curtain

NovoSpeed Retail: the details

The best solution for your business!

The tubular motor – which is even included in the standard model – ensures an elegant appearance while reducing the space requirement. You can even personalize the curtain with your logo or any other print motif of your choice.
Safety is, of course, a huge consideration in premises such as supermarkets with their high volumes of customer traffic. The standard NovoSpeed Retail model has a Flex Edge bottom beam and can be supplied with mechanical or automatic emergency unlocking to ensure safety even if the power fails.

Options

Flex Edge or aluminium bottom beam
Counterweight rather than springs to balance the weight
Integrated industrial drive (tubular motor)
Multiple opto sensors in the lateral guides
Mechanical emergency unlocking
Opens automatically if power fails

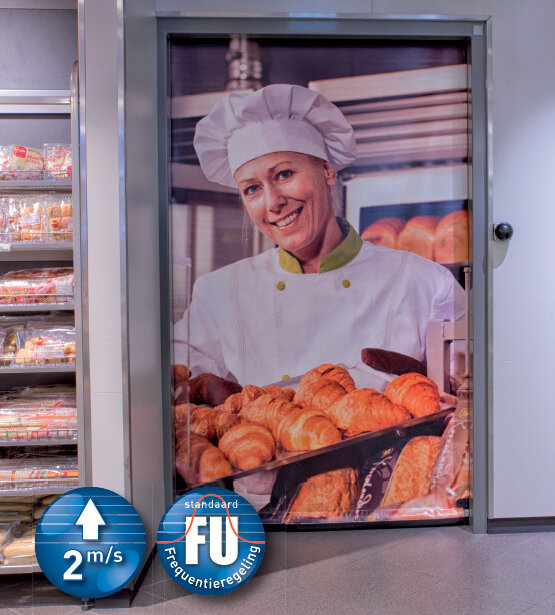

Curtain can feature a print motif of your choice

Product features

Wind load class: Class 1
Compact design of lateral guides and covers
Self-feeding in one direction

Colours

RAL colours:

1003, 2009, 3020, 5005, 7038, 9003, 9004

Technical data

Modell	Retail
Interior door	•

T100R FU with frequency control
Opening speed (m/s, ca.)	2
Closing speed (m/s, ca.)	0.5


Safeguards as per EN 13241	•
Wind load class	Class 1
Wind resistance	3 (12 - 19 km/h)
Wind protection system	Blocks

Door dimensions:
Max. width (mm)	2250 mm
Max. height (mm)	2600 mm
Max. surface area (m²)	5.85

Installation dimensions
Clear width, drive side + mm	200 / 325
Clear width, bearing side + mm	200 / 250
Clear height + mm	430
Clear width with protective cover + mm	310 / 460
Clear height with protective cover + mm	400
Depth with protective cover from the wall = mm	410
T100R FU 1.5 kw (IP65)	•

Anti-crash system, self-feeding	• (1 side)
Self-supporting door structure	•
Door leaf (transparent light strip or window)	0.8 / 3 mm
Door leaf (coloured PVC)	0.7 / 1.2 / 3 mm
Material / Surface	Galvanized steel
Available in RAL colour	•

Drive and controller
DES electronic limit switch	•
Supply voltage	1 x 230 V, N, PE
Fuse	16 A slow
Supply voltage (single phase) 230 V	•
Controller off at main switch	•
Emergency stop	•
Protection in the opening (photo cell + safety edge)	• / -
Radar detector	•

Emergency open
Counterweight / Spring	•
B brake	•
Mechanical emergency open	•
UPS with frequency control, 230 V	•

Potential-free contacts	2

NovoSpeed Flex 2.0 | Flex Edge

Developed for frequent use

NovoSpeed Flex Flex Edge is an electrically operated rapid roll door for use in retail facilities, or commercial and industrial buildings. NovoSpeed Flex combines rapid operation with low noise levels.

Advantages at a glance

Developed for frequent use
For applications up to 3500 mm wide and 5000 mm high
Max. 17.5 m²
Curtain weight: 1400 g/m²
Curtain thickness: 1.2 mm
Wind load class: Class 0
Opening speed: 2 m/s
Closing speed: 0.5 m/s
Standard frequency control

NovoSpeed Flex 2.0 | Flex Edge: the details

If your merchandise is fragile

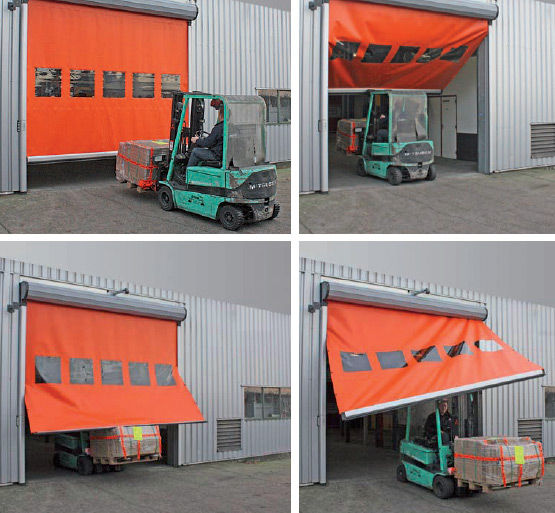

No damage if collisions occur

Soft, flexible bottom beam
If passages are relatively low, you cannot always avoid contact between the bottom beam and the merchandise in transit when the door is closing. A hard bottom beam could well cause damage.

The "Flex Edge" bottom beam is flexible and soft, thus enhancing security. Any accidental human or other contact with the Flex Edge will therefore result in little or no damage.

The equipment used to monitor the clear opening of the door is the same as fitted on the Hard Edge model.

The following options are available for NovoSpeed Flex Hard Edge / Flex Edge:

Option 1:
Illuminated Open-Stop-Close keypad
Option 2:
Mechanical emergency unlocking
Option 3:
Automatic emergency unlocking if power fails

Product features

Wind load class: Class 0
Self-supporting structure

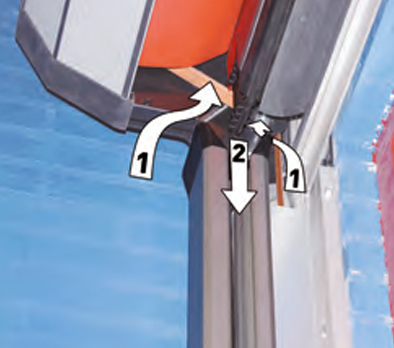

100% self-feeding in both directions
Standard equipped with integrated light curtain

100% self-feeding in both directions

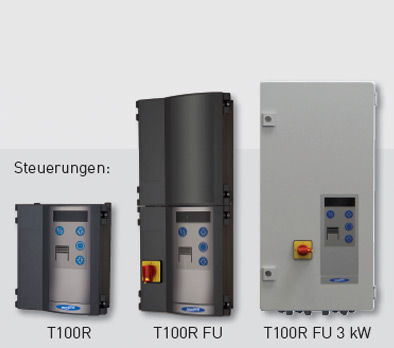

Controller: T100R FU

Colours

RAL colours:

1023, 2009, 3020, 5002, 7038, 9003, 9004

Technical data

Model	Flex Flex Edge
Interior door	•

T100R FU with frequency control
Opening speed (m/s, ca.)	2
Closing speed (m/s, ca.)	0.5

Safeguards as per EN 13241	•
Wind load class	Class 0
Wind resistance	5 (29 - 38 km/h)
Wind protection system	Blocks

Door dimensions:
Max. width (mm)	3500 mm
Max. height (mm)	5000 mm
Max. surface area (m²)	17.5

Installation dimensions
Clear width, drive side + mm	210
Clear width, bearing side + mm	210
Clear height + mm	450
Clear width with protective cover + mm	320
Clear height with protective cover + mm	450
Depth with protective cover from the wall = mm	420
T100R FU 1.5 kw (IP65)	•

Anti-crash system, self-feeding	•
Self-supporting door structure	•
Door leaf (transparent light strip or window)	0.8 mm
Door leaf (coloured PVC)	1.2 mm
Aluminium	•
Available in RAL colour	•

Drive and controller
DES electronic limit switch	•
Supply voltage	1 x 230 V, N, PE
Fuse	16 A slow
Supply voltage (single phase) 230 V	•
Controller off at main switch	•
Emergency stop	•
Protection in the opening (opto sensor)	•
Radar detector	•

Emergency open
Counterweight / Spring	- / •
B brake	•
Mechanical emergency open	•
UPS with frequency control, 230 V	•

Potential-free contacts	•

NovoSpeed Flex 2.0 | Hard Edge

Developed for frequent use

NovoSpeed Flex Hard Edge is an electrically operated rapid roll door for use in retail facilities, or commercial and industrial buildings. NovoSpeed Flex combines rapid operation with low noise levels.

rapid roll doors for indoor use, NovoSpeed

Advantages at a glance

Developed for frequent use
For applications up to 4000 mm wide and 5000 mm high
Max. 20 m²
Curtain weight: 1400 g/m²
Curtain thickness: 1.2 mm
Wind load class: Class 0
Opening speed: 2 m/s
Closing speed: 0.5 m/s
Standard frequency control

NovoSpeed Flex 2.0 | Hard Edge: the details

Attractive, fast and quiet

Suitable for use virtually anywhere
NovoSpeed Flex is an interior door for universal use in industrial applications. The door is fast and strikingly quiet. The drive is integrated in the drum, keeping the space requirement at the side to a minimum. The advanced controller is equipped with frequency control and offers numerous functions and connection options.

Monitored opening
Models up to 2500 mm high include a standard light curtain. When the door is open, the light curtain detects objects that are either stationary or passing through the opening, and prevents the door from closing.

Product features

Wind load class: Class 0
Self-supporting structure
100% self-feeding in both directions
Standard equipped with integrated light curtain

The new NovoSpeed Flex generation is fitted with two tension springs to balance the weight, which extends servicing intervals accordingly.

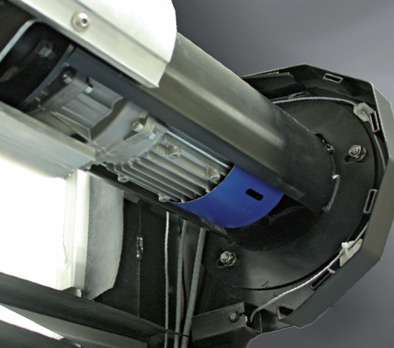

Very quiet, integrated drive.

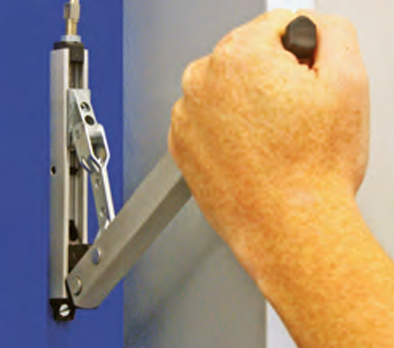

Open-Stop-Close and Mechanical emergency unlocking

Option 1: Open-Stop-Close
Option 2: Mechanical emergency unlocking

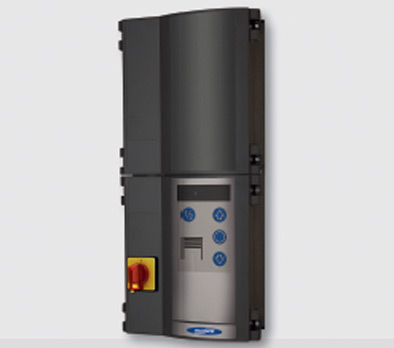

Controller: T100R FU

Colours

RAL colours:

1023, 2009, 3020, 5002, 7038, 9003, 9004

Technical data

Model	Flex Hard Edge
Interior door	•

T100R FU with frequency control
Opening speed (m/s, ca.)	2
Closing speed (m/s, ca.)	0.5

Safeguards as per EN 13241	•
Wind load class	Class 0
Wind resistance	5 (29 - 38 km/h)
Wind protection system	Blocks

Door dimensions:
Max. width (mm)	4000 mm
Max. height (mm)	5000 mm
Max. surface area (m²)	20

Installation dimensions
Clear width, drive side + mm	210
Clear width, bearing side + mm	210
Clear height + mm	450
Clear width with protective cover + mm	320
Clear height with protective cover + mm	500
Depth with protective cover from the wall = mm	420
T100R FU 1.5 kw (IP65)	•

Anti-crash system, self-feeding	•
Self-supporting door structure	•
Door leaf (transparent light strip or window)	0.8 / 3 mm
Door leaf (coloured PVC)	1.2 mm
Aluminium	•
Available in RAL colour	•

Drive and controller
DES electronic limit switch	•
Supply voltage	1 x 230 V, N, PE
Fuse	16 A slow
Supply voltage (single phase) 230 V	•
Controller off at main switch	•
Emergency stop	•
Protection in the opening (opto sensor)	•
Radar detector	•

Emergency open
Counterweight / Spring	- / •
B brake	•
Mechanical emergency open	•
UPS with frequency control, 230 V	•

Potential-free contacts	2

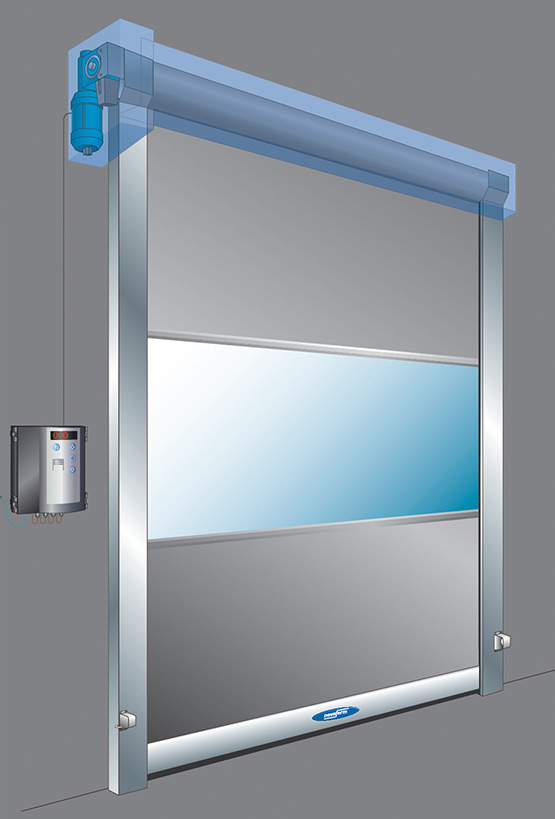

NovoSpeed Heavy | Indoor

Developed for large openings and frequent use

NovoSpeed Heavy Indoor is an electrically operated rapid roll door that was designed specifically for use inside industrial buildings.

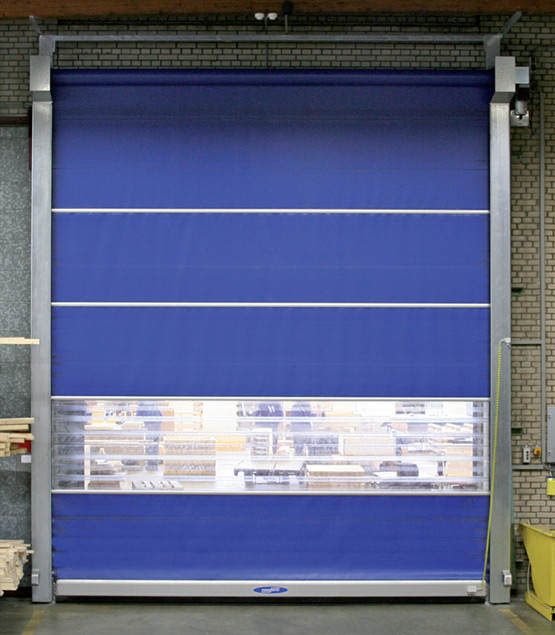

The workhorse for larger opening dimensions
NovoSpeed Heavy Indoor was designed specifically for larger opening dimensions – up to 36 m² – indoors. All parts of the design, including the curtain, are therefore particularly sturdy. Over- and underpressure can exert considerable force on the curtain. With its 1.2 mm curtain and aluminium strengthening profiles, the door can withstand max. wind pressure of 5 Beaufort.

Advantages at a glance

Developed for large openings and frequent use
For applications up to 6000 mm wide and 6000 mm high
Max. 36 m²
Curtain weight: 1400 g/m²
Curtain thickness: 1.2 mm
Wind load class: Class 0
Opening speed: 1 m/s
Opening speed with frequency control: 1.5 m/s
Closing speed: 1 m/s
Closing speed with frequency control: 0.5 m/s

NovoSpeed Heavy | Indoor: the details

Product features

Wind load class: Class 0
Safety opto sensor integrated in the opening
Optional, entirely transparent "full vision" curtain

Outstanding features include:

Curtain is channelled through particularly heavy guides made of folded sheet steel fitted with brushes
A bottom beam with self-testing closing edge guard and cast aluminium end pieces is standard
Optional bottom beam with unique break-away system that makes it possible to feed the curtain back into the guide after a collision without damaging it and without the need for special tools

When the door needs to be impervious to impact

Controllers:
T100R, T100R FU, T100R FU 3 kW

Colours

RAL colours:

1023, 2009, 3020, 5002, 7038, 9004, 9004, 9003, transparent

Technical data

Modell	Heavy Indoor
Interior door	•

T100R controller
Opening speed (m/s, ca.)	1
Closing speed (m/s, ca.)	1

T100R FU with frequency control
Opening speed (m/s, ca.)	1.5
Closing speed (m/s, ca.)	0.5


Safeguards as per EN 13241	•
Wind load class	Class 0
Wind resistance	5 (29 - 38 km/h)
Wind protection system	Stiffener / Profile

Door dimensions:
Max. width (mm)	6000 mm
Max. height (mm)	6000 mm
Max. surface area (m²)	36

Installation dimensions
Clear width, drive side + mm	470
Clear width, bearing side + mm	275
Clear height + mm	710
Clear width with protective cover + mm	775
Clear height with protective cover + mm	750
Depth from the wall = mm	400
Depth with protective cover from the wall = mm	400
T100R controller, plastic housing (IP65)	•
T100R controller, large with extension (IP65)	•
T100R FU 1.5 kw (IP65)	•
T100R FU 3 kw (IP65)	•

Break-away system with manual restoral	•
Door leaf (transparent light strip or window)	0.8 mm
Door leaf (coloured PVC)	1.2 / 3 mm
Galvanized steel	•
Available in RAL colour	• / -

Drive and controller
DES electronic limit switch	•
Supply voltage	3 x 400 V, N, PE
Fuse	16 A slow
Supply voltage (single phase) 230 V	•
Supply voltage (single phase) 400 V	•
Controller off at main switch	•
Emergency stop	•
Protection in the opening (photo cell + safety edge)	•
Protection in the opening (opto sensor)	•
Radar detector	•
Closing edge guard, coil cable	•

Emergency open
Crank	•
Emergency chain	•
UPS with frequency control, 230 V	•

Potential-free contacts	2

Made to measure and controllers!

Made to measure, controllers and accessories

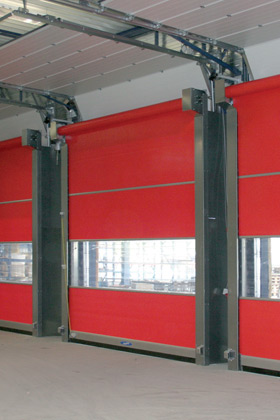

Made to measure

Controllers and accessories

Gallery / Inspiration
