ISO45 Sectional Doors (Steel Section Garage Doors – Premium)

If you’re searching for a premium-quality option that boasts a wide array of bespoke features, you’ll want to consider these top-quality doors for your property. Ease-of-use, energy-efficiency, and unmatched security are just some of the great things these doors have to offer.

All our ISO45 doors are fabricated from hot-galvanised thin steel sheet and enhanced with a polyester-based pre-finished coat, or, in the case of certain products, a durable foil finished coating. We galvanise all exposed parts, including the angular frames, guide rails and fitting parts to ensure no rust can form.

You might already be familiar with our amazing ISO20 doors. The main difference between these two doors is the thickness. While ISO20 doors measure just 20mm in thickness, the ISO45 doors are more than double that at 45mm. This increase in thickness translates to improved thermal and acoustic efficiency which you can learn more about below.

We’re confident of the quality of our ISO45 doors, which is why the first ten years of each door’s service life is guaranteed by us!

If this all sounds like something you need, inquire about our Novoferm ISO45 sectional doors today.

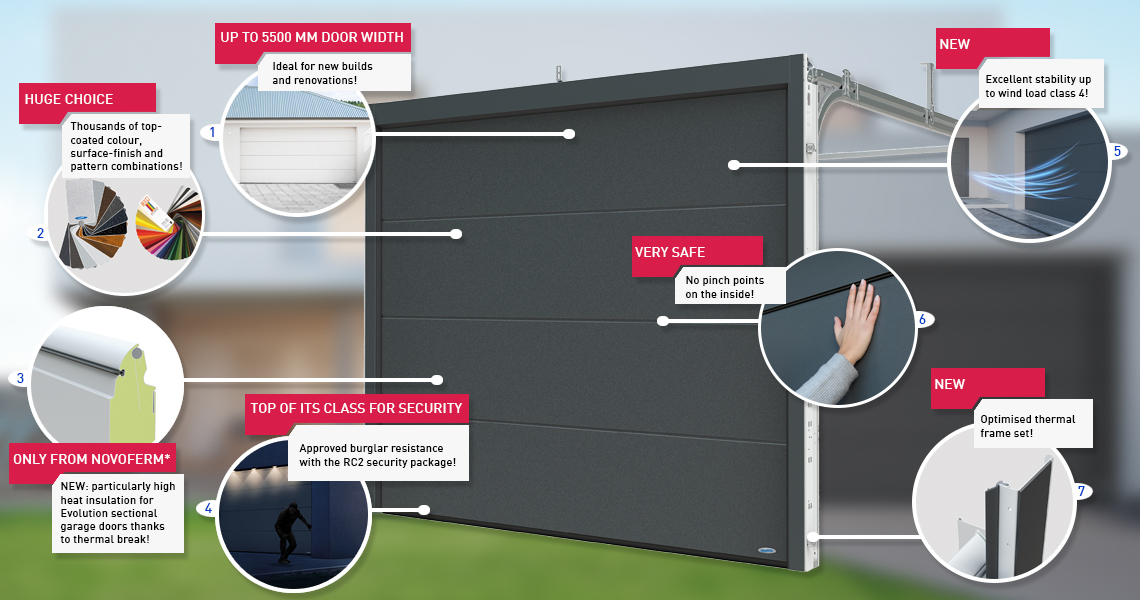

THE BENEFITS SUMMARISED

Compatible with Private Garages Measuring Between 2084 and 5500mm Wide
Warranties of Up To Ten Years Available
Operation That is Smooth and Stable
Superbly Durable and Sturdy – Distortion Resistant
STS 202 BRI Burglar Resistance (excluding optional extras)
Additional Secured by Design features available as an optional extra which focuses on added crime prevention features
Anti-Pinch Feature Inside and Outside (according to EN 12604) – Maximum Personal Safety
Torsion Spring with Spring Break Safety Feature – Functional Reliability and Easy Operation
Fully Customisable
Available with Automatic Patented NovoPort® Operating System

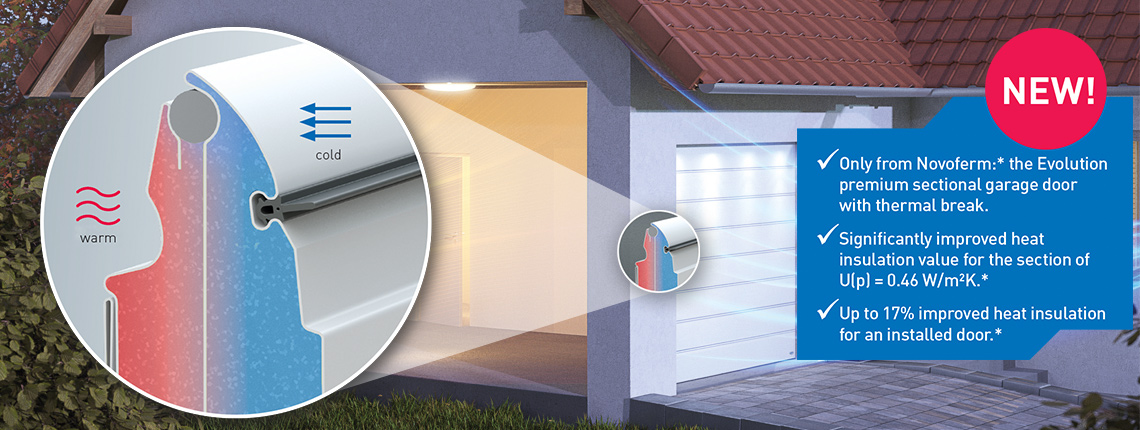

THE BEST THERMAL AND ACOUSTIC INSULATION AROUND

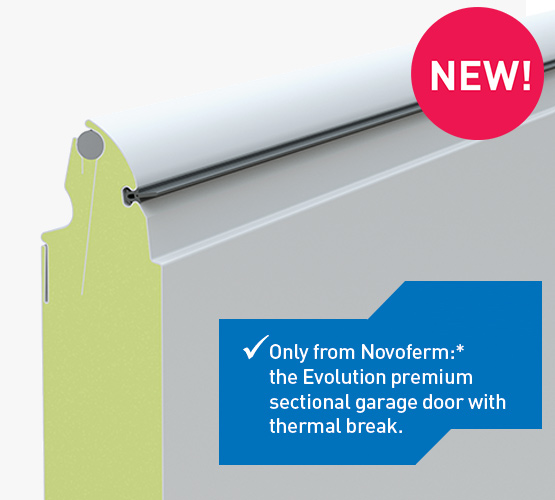

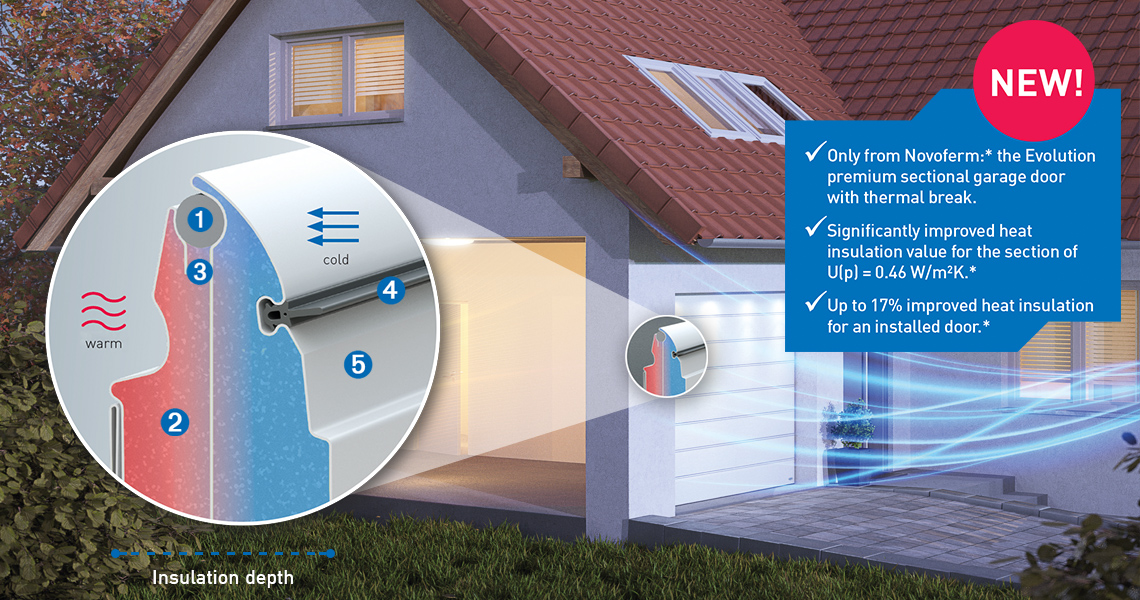

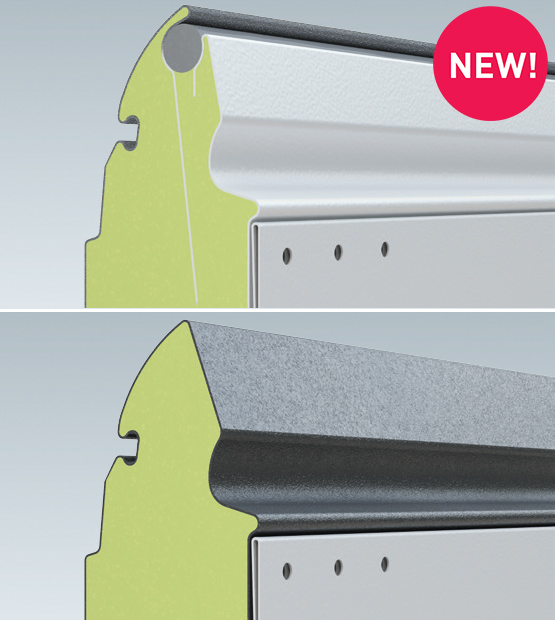

Here at Novoferm, we manufacture our ISO45 sectional doors with a double-skinned sandwich construction. Inside, there’s an insulating rigid PUR foam core that provides maximum heat-insulating and soundproofing qualities. With this build-quality, customers will also note that these doors feature a quieter operation when compared to single-skinned options.

Plus, further heat loss and sound bleed are prevented by the addition of flexible lip seals which maintain a tight seal, even in low temperatures. These seals also help to keep dust out too keeping the internal environment neat and tidy. What sets our ISO45 sectional doors apart from our ISO20 option is the addition of a 45mm rigid PUR foam core. The acoustic and thermal performance of this core is outstanding (heat insulation value K = 0.5 W/m²K).

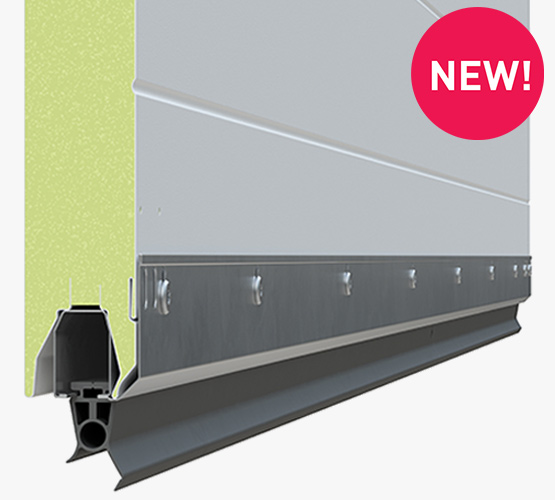

Another feature of our ISO45 doors is the inclusion of a frost-proof floor seal. This rubber profile is fitted along the bottom edge of the garage door and helps to provide optimal protection from water and dirt. It also serves to even out slight floor unevenness, preventing damage to the door and injuries. Every floor seal is comprised of high-quality EPDM (ethylene propylene diene monomer), renowned for its exceptional elasticity, weather resistance, and long lifespan.

In addition, our ISO45 doors boast outstanding weather resistance thanks to the excellent stainless-steel frame base. Water and impeded drainage can drain off freely, ensuring no water or damp accumulates and that no rust starts to form on the frame over time. As for the frame base, it remains sturdy even at low temperatures where other bases would become brittle. It forms a clean visual seal.

Keeping Out the Weather

When compared to up and over garage doors, the ISO45 doors offer increased drive length of up to 3ft. This is thanks to the way they open vertically into the garage with zero ‘kick out’. All this is made possible by the individual sections that comprise the door leaf. Every single door is manufactured using the highest quality materials. And every door incorporates the latest innovations in fabrication technology and comes with a variety of aesthetic options, so your customers can pick the door that suits their home.

Combine this with the built-in insulation features mentioned above, and you have a door built for both aesthetics and performance. The ISO45 will keep out the weather, help control energy bills, reduce noise, and possibly even your carbon footprint.

DISCOVER OUR WIDE SELECTION OF MODELS AND EQUIPMENT

If your intention is to add your own personal touch, you’ll be pleased to hear that our ISO45 option is available in any of the following five patterns. There are also numerous top-coated surfaces available too, as well as a wide selection of colours from the Novoferm range.

Patterns for single and double garages

Horizontal rib

Microline (flush)

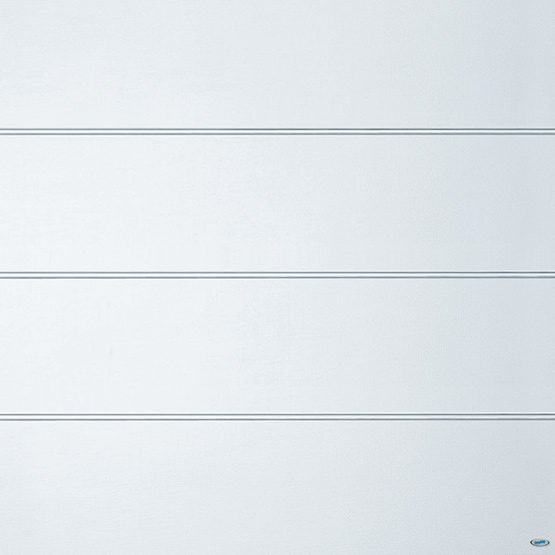

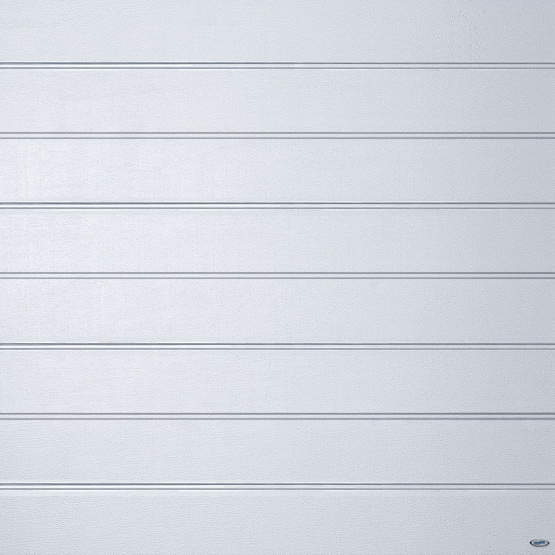

Large rib

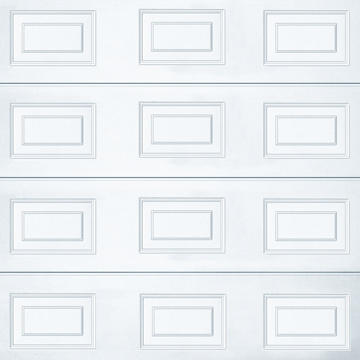

Georgian Panelled

Flush

Illustrations show garage leaf door size 2500 x 2125 mm for single garages and garage leaf door size 4500 x 2125 mm for double garages. Other garage door sizes can deviate from the illustration shown.

Door leaf

Inside:	Polyester-based prime coat, grey white, similar to RAL 9002
Outside (standard):	Traffic white, similar to RAL 9016 (prime coated)
Outside:	Super Color or RAL of your choice at additional cost (top coated)

Premium sectional garage doors that match the architecture of your home!

DISCOVER SIX DELIGHTFUL SATIN SURFACE FINISHES

Modern satin surfaces with a low tendency to soil

You’ll enjoy our incredible satin surface finishes as they provide an outstanding aesthetic for six doors. Our range of ISO45 sectional doors is available in these highly decorative top-coated matt satin finishes. These finishes have a low tendency to stain and stand up well in all weather conditions.

Satin white
similar to RAL 9016

Satin Dark grey
similar to RAL 7016

Satin Window grey
similar to RAL 7040

Satin brown
similar to RAL 8014

Satin grey
composite shade

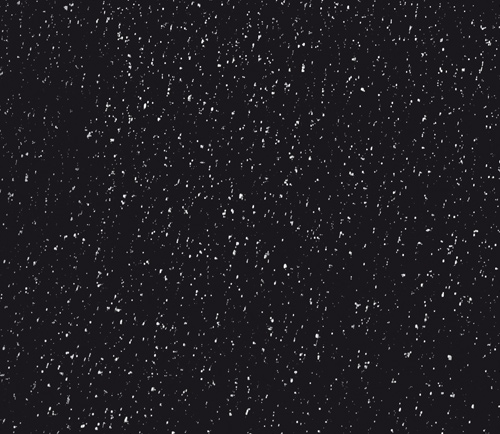

Satin Black
composite shade

TWO OUTSTANDING MICROPROFILED TEXTURED SURFACE FINISHES

Microline Patterns

Available in satin white and satin grey, our Microline (flush) pattern finishes are a popular choice. Perfect for our ISO45 sectional doors, this exclusive option provides a profiled wave texture that looks modern and offers a striking light and shade effect.

Microline (flush)
Satin white, similar to RAL 9016

Microline (flush)
Satin grey (composite shade)

TWO SURFACE FINISHES – NUMEROUS RAL COLOURS

More Colour and Individuality

If you desire something a little more specific, say an eye-catching woodgrain wood texture effect or an elegant, smooth Noblesse surface finish; we can cater to your needs. These surface options look magnificent and are great for repelling dust and moisture. With 11 top-coated Super Colors and a wide assortment of RAL colours available; the options really are limitless.

Surface finishes

Wood grain

Noblesse (smooth)

Super Colors/preferred colours or RAL of your choice

Black,
similar to RAL 9005

Grey aluminium,
similar to RAL 9007

RAL colours
of your choice

Steel blue,
similar to RAL 5011

Anthracite grey,
similar to RAL 7016

Moss green,
similar to RAL 6005

Ochre brown,
similar to RAL 8001

Fir green,
similar to RAL 6009

Light grey,
similar to RAL 7035

Window grey,
similar to RAL 7040

Sepia brown,
similar to RAL 8014

White aluminium,
similar to RAL 9006

Nut brown,
similar to RAL 8011

Would you like anything else?

At Novoferm, we charge a modest surcharge for those who desire a door in a RAL colour of their choice. If you’d like help in choosing the right colour for your doors, our advisors will be more than happy to assist you.

... in four wood decors

Authentic wood effects

Very little beats the wonderful aesthetics of wood, and so it’s only natural that we’d offer our ISO45 sectional garage doors with the option of four different weather-resistant, top-coated film laminates. Each of these laminate surfaces sports an authentic-looking wood effect that is smooth to the touch. As well as the large rib pattern, all wood effects can be requested for flush and some raised panel patterns (excluding Winchester).

Golden oak

Dark oak

Winchester

Night oak

… with matching Wicket door

Sectional garage doors with pass doors

ALL GLAZING STYLES CATERED TO

From classic to modern glazing styles

Choosing the right pattern and colour for your doors is only half the process. You also need to choose the right glazing option for your property, and our team are more than happy to help. Glazing doesn’t just let light in; it also enhances the aesthetics of the door as a whole. Our Novoferm glazing panels are made from weather-resistant acrylic glass. You can also choose ones made from impact-resistant polycarbonate. Both options will let in plenty of light for brighter interiors.

Also, it is worth mentioning that being double-glazed panes, customers can expect our glazing options to boast excellent heat retention properties.

Window

Plain clear / frosted

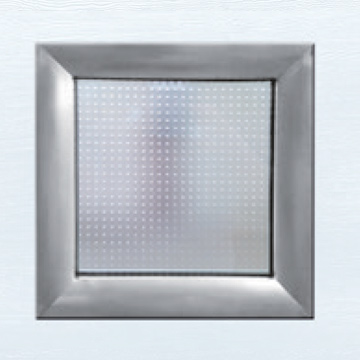

Square clear / frosted

Diamond clear / frosted

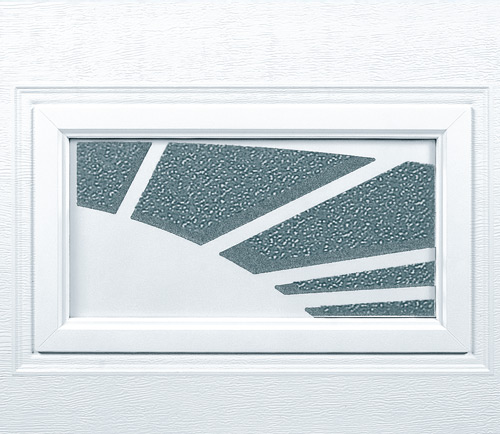

Sunrise pattern

Dimensions:
inside: approx. 392 x 192 mm
outside: approx. 460 x 260 mm

Window thicknesses:

Horizontal rib, large rib and flush: 25 mm acrylic double glazing, transparent or crystal
Raised panel pattern: 20 mm acrylic double glazing, transparent or crystal

Window cutouts

Rectangular, wide,
with transparent acrylic double glazing*

Dimensions:
inside: approx. 651 x 251 mm
outside: approx. 726 x 326 mm

Rectangular, narrow,
with transparent acrylic double glazing*

Dimensions:
inside: approx. 568 x 135 mm
outside: approx. 638 x 205 mm

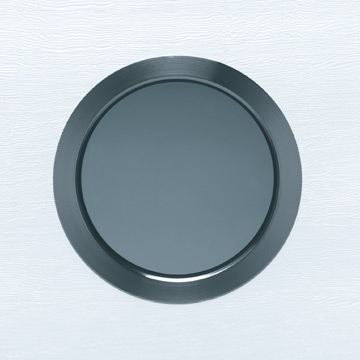

Porthole with stainless steel frame,
with 10 mm acrylic double glazing**

Dimensions:
inside: diameter approx. 290 mm
outside: diameter approx. 350 mm

* Only for horizontal rib, large rib and flush garage door patterns.
** Only for large rib and flush garage door patterns.

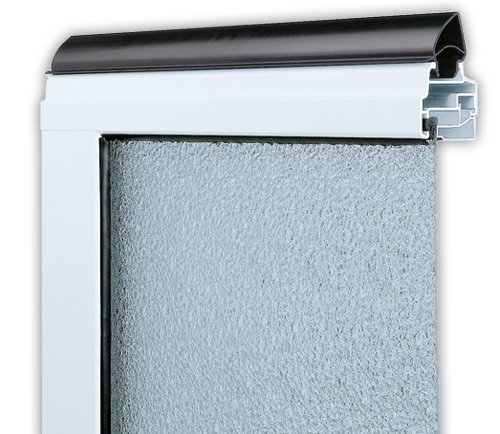

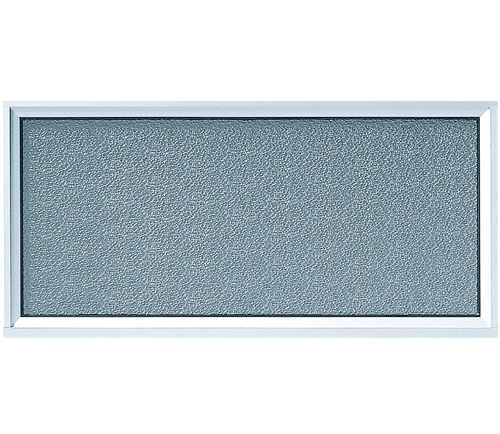

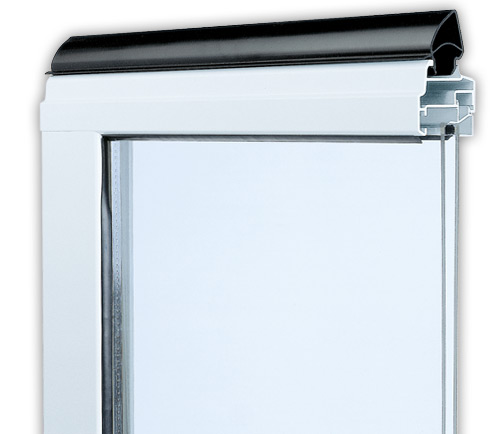

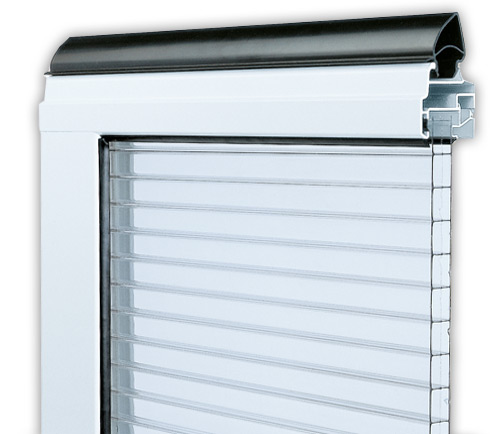

The light strip is also available in expanded grating format with PVC coating.

Note:
Windows and light strips for doors in foil colours and with textured finishes are matched in a corresponding colour.

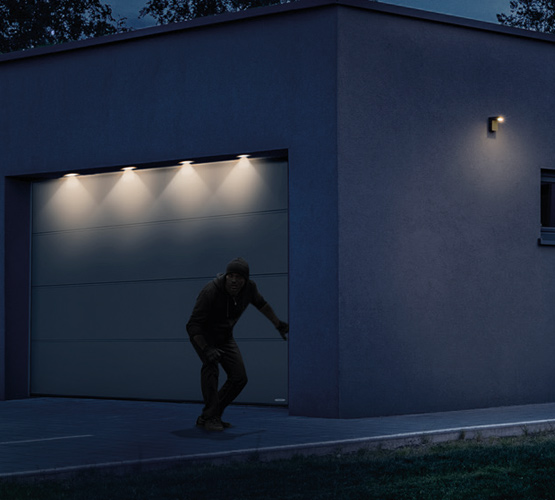

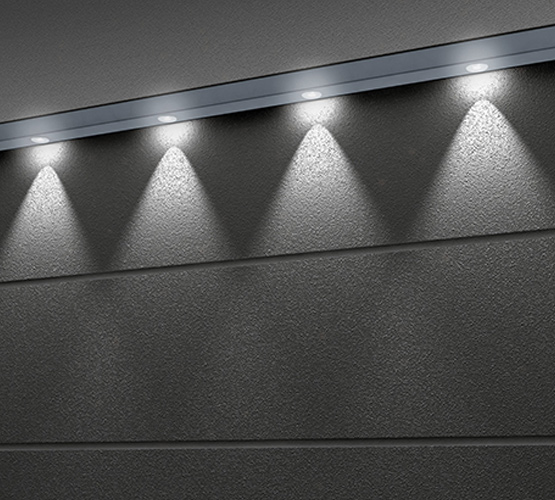

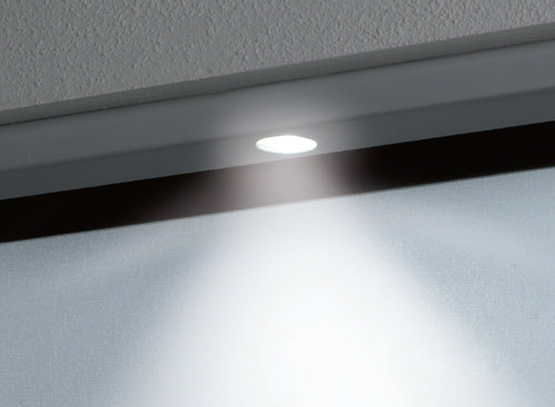

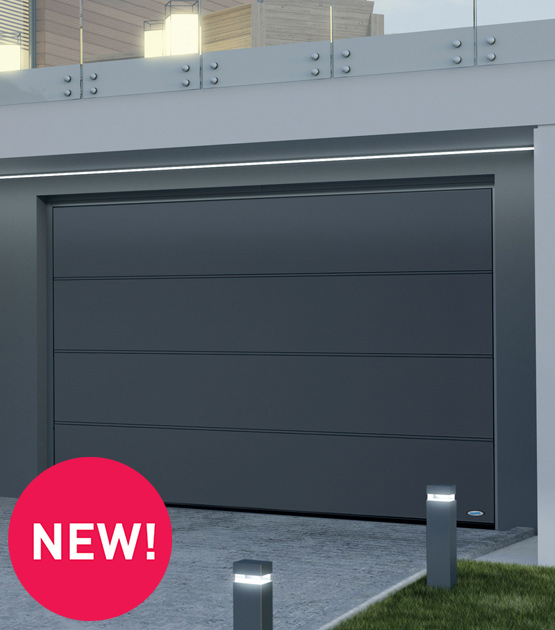

LIGHTING KIT

The Led Lighting Kit

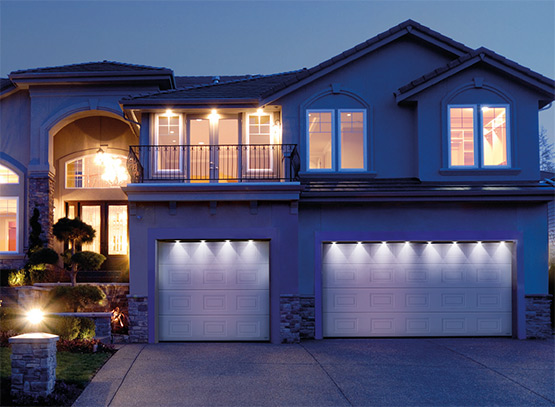

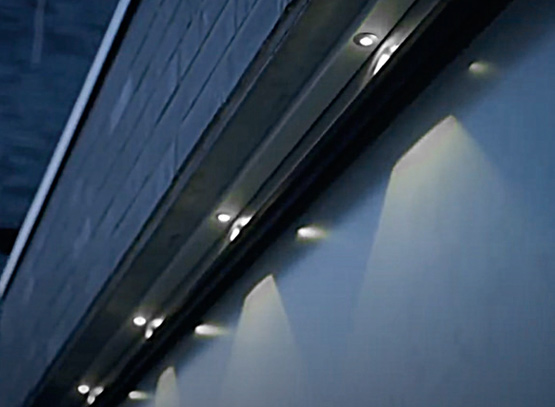

Whether you’re looking to showcase your new door in all its glory or keep intruders at bay, you’ll want to consider investing in the LED lighting kit. These lights are designed to blend seamlessly with other light sources. They comprise four, six or eight LEDs which are evenly spread for the best possible distribution of light. These lights can be operated using the remote control, the operator or set on a timer or motion trigger.

The kit itself is designed to be as compact as possible to not detract from the space-saving properties of these sectional doors. All our kits utilise long-life LEDs which are bright yet consume very little energy. The units can be shortened to size on both sides for those looking to achieve a more precise, symmetrical illumination.

LED FEATURES SUMMARISED

Weather-Protected Lighting
Space-Saving Assembly
Even Distribution of LEDs
Two-Channel Remote
Multiple Operating Modes
Bright Illumination/ Low Power Consumption
Long Service Life
Incl. Mains Transformer 230V/ 12V

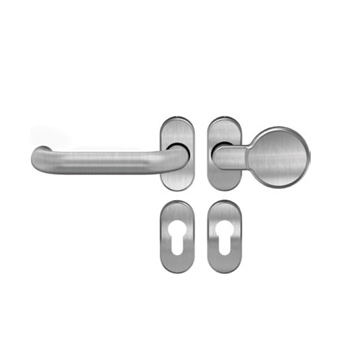

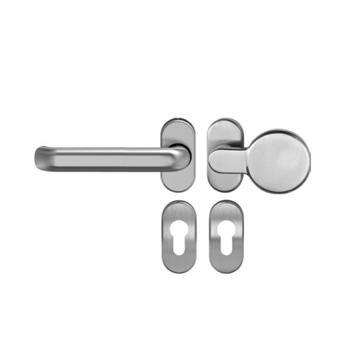

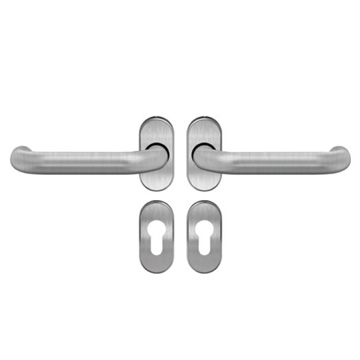

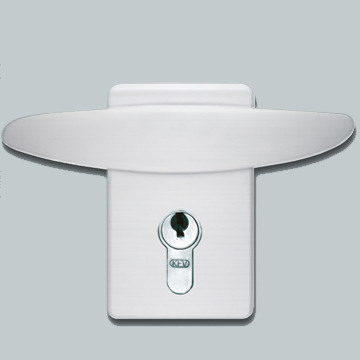

Plastic and aluminium handles

Plastic-coated handles

Handle
Coated,
in Super Color or RAL colour

Handle
Coated,
black (optional)

Available in all 11 Super Colors and numerous RAL colours

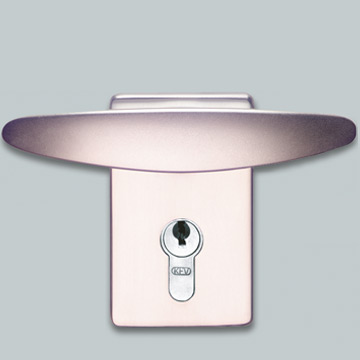

Aluminium handles

Aluminium
silver coloured anodized

Aluminium
new silver coloured anodized

Aluminium
brass coloured anodized

Aluminium
with rustic textured effect

Aluminium

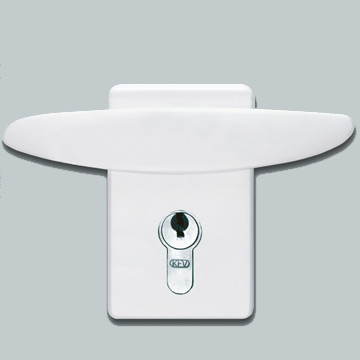

plastic
coated, traffic white

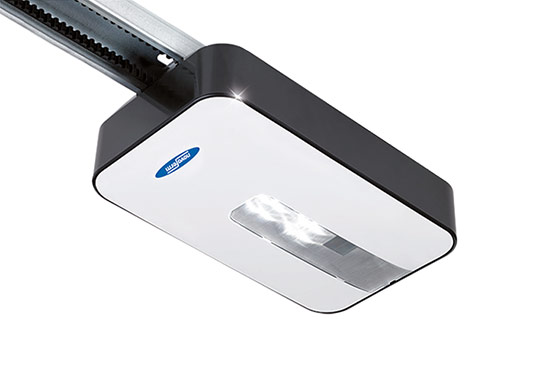

… garage door operators and accessories

Videos

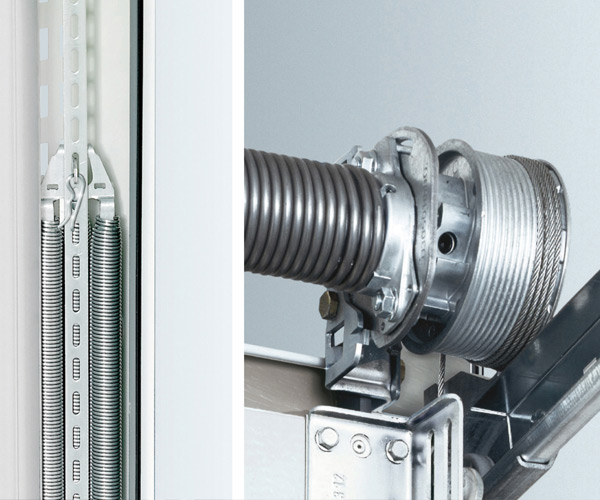

UPGRADE YOUR DOORS WITH TENSION SPRING TECHNOLOGY

When you invest in our ISO45 sectional garage doors, you’ll have the option to upgrade your doors with vertical tension spring technology or sturdy torsion springs. Our ISO45 doors (up to 3000 x 2750 mm (WxH))* can be equipped with torsion springs. These springs feature a maintenance-free spring fracture safety device which is certified to EN 12604. This service can be provided at an extra cost.

For all larger versions of our ISO45 doors, torsion springs are equipped, ensuring that these doors remain in place and can be pushed back up, even if a spring fails.

This applies to woodgrain finish models only. The size restriction for smooth surface models is set lower at 3000 x 2500 mm*

TENSION SPRING – THE SPECIFICS

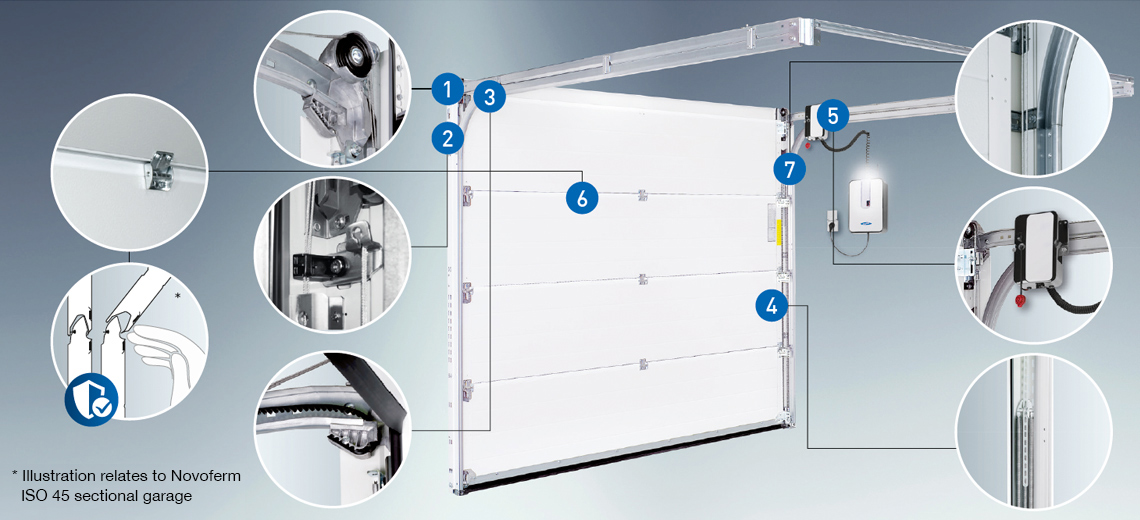

At Novoferm, we believe in innovation. This is why we’re making sure that all our ISO20 and ISO45 doors measuring 3000mm x 2500mm (2750mm for woodgrain) come equipped with a standard vertical tension spring system.

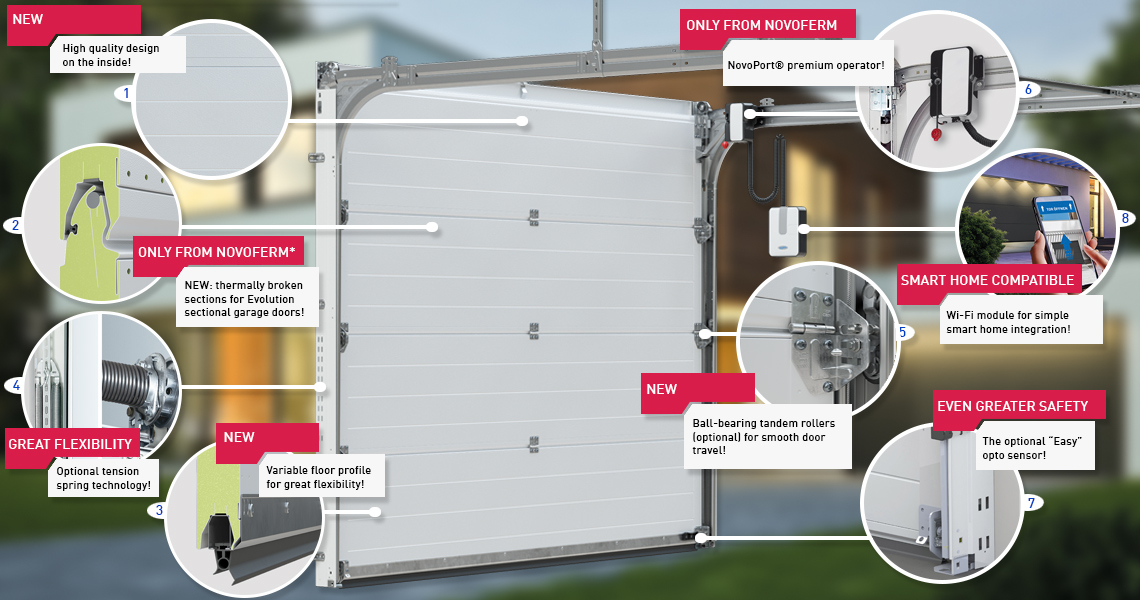

1. Interference-Protected Deflection Pulley

On interference-protected deflection pulleys mounted on ball bearings with U-shaped roller holders, you’ll find steel cables. These run vertically into the angular frame. The idea is to reduce the height requirement as opposed to opting for a front-mounted torsion spring.

2. New Cable Mount

In order to keep the steel cables running smoothly, we’ve included a newly designed cable mount. This mount comes with an integrated door guide which keeps everything running as it should inside the angular frame. It also prevents the cables from touching the sections.

3. Integrated Belt Fastening

These doors feature a maintenance-free NovoPort® belt that is securely fastened in the holder by a fastener housed inside the newly designed moulded end piece.

4. Multiple Tension Spring Assemblies

Multiple study tension spring assemblies can be found equipped to the tension spring garage doors. At the top of the assembly is a part that allows for these to be adjusted, and the vertical tension springs require less installation depth.

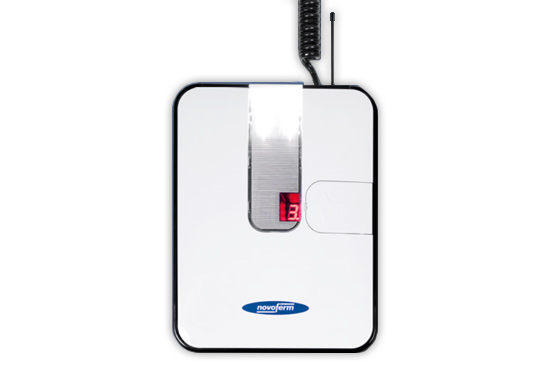

5. NovoPort® - Unique and Flexible

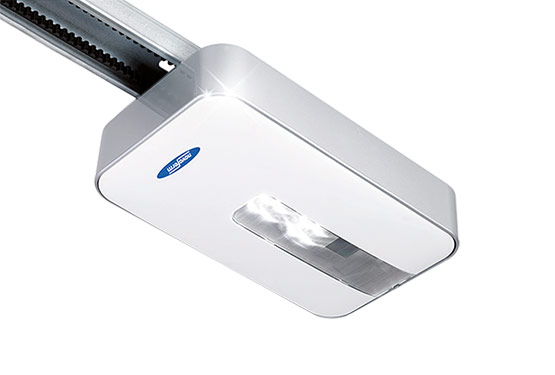

If you’re looking for maximum convenience during both the installation and operation, look no further than the NovoPort® operator system. The motor is integrated into the side garage track either on the left or right-hand side. As a result, no ceiling assembly is required providing greater versatility.

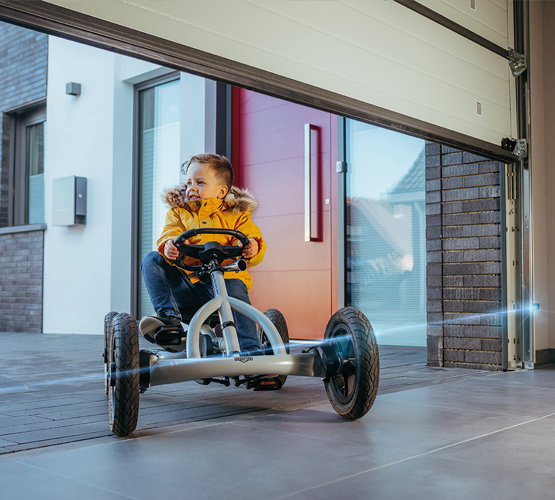

6. Anti-Pinch Inside and Out

There’s nothing worse than having to contend with pinching on the door leaf. The idea of the anti-pinch mechanism is to prevent this from occurring. With Novoferm ISO45 sectional garage doors, such problems will be a thing of the past.

7. Interference Protection and Cables Channelled Down the Inside

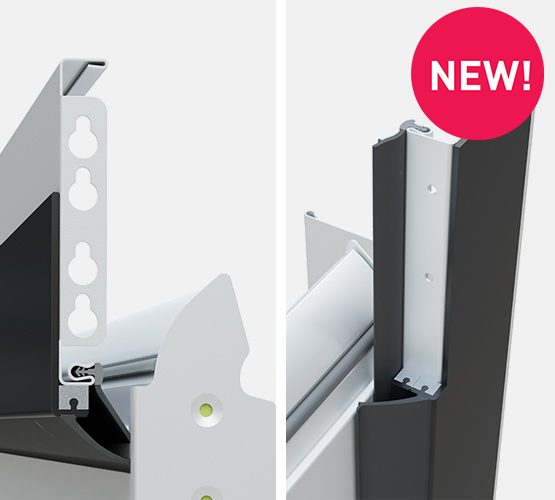

To minimise the risk of injury and ensure the best possible reliability, suspensions cables are arranged inside. With the angular frames, reaching between the door leaf and the frame becomes virtually impossible.

The advantages at a glance

Easy to Install
Low Height Clearance
Adjustable Spring
Horizontal Tracks (shorter, so require less space)
NovoPort® - Easy and Quick to Install

Torsion Springs for ISO45 Sectional Garage Doors

For a small charge, our ISO45 sectional garage doors can be supplied with torsion springs tested and certified to EN 12604 standards. All larger versions are equipped with torsion springs, so if a spring breaks, the door can be held firmly in position and even raised.

Torsion springs for iso 45

Insulated Sectional Matching Side Doors – The Perfect Accompaniment

The beauty of our ISO45 doors is that they can be paired with insulated sectional matching side doors. Whether you’re getting your bike out, nipping in to grab a tool or fetching the lawnmower, you won’t need to open the main door. As with our ISO doors, our side doors are manufactured with the same double-skinned, galvanised sheet steel design, complete with CFC-free PUR rigid foam core. They are also available in solid wood if preferred and come with a handle set and security lock as standard.

Every door is bespoke – please note that robust steel is used for the door leaf frame and corner door frame for the ISO20 type. For the ISO45 variant, we use high-quality aluminium for the door leaf frame and block door frame. Whatever option you choose, you’re assured of precise processing and smooth running. Every door offers maximum weather resistance and robust hinges provide long-term dimensionally accurate opening and closing. On the ISO45 variant, the hinges are three-way adjustable allowing for more precise adjustments during assembly.

Exclusive convenience: the NovoPort® system

Learn more about the NovoPort® system here!
