Garage door modernization / renovation

Thinking of replacing your garage door? Novoferm makes renovating much easier and faster!

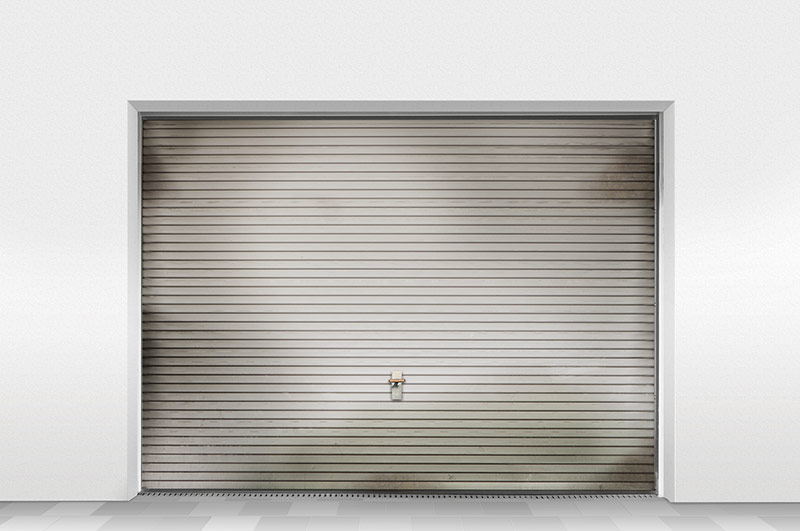

There’s no denying that a lot of garages still have old up-and-over doors. Often installed decades ago, most of them really do look their age nowadays. Generally, these garage doors are no longer particularly attractive, not very user friendly and do not meet today’s safety requirements! Although appearance and user friendliness might be negligible initially, keeping friends and family safe and ensuring functional reliability should be given top priority!

Safety check

Check the safety of your garage door!

We have compiled a check list below to help you ascertain whether your up-and-over or sectional garage door meets today’s safety requirements.

Safety check list for up-and-over doors

How safe is your old up-and-over garage door?

Does it have a safety distance of 25 mm between frame and lever arm?	(3)	Yes	No	Don’t know
Does a reliable guide mechanism prevent uncontrolled movement?		Yes	No	Don’t know
Does the design of the top track ensure the rollers cannot slip out?		Yes	No	Don’t know
Is the door leaf fitted with a reliable fall safeguard?	(4)	Yes	No	Don’t know
If a spring breaks, is the ensuing imbalance guaranteed less than 200 N?	(4)	Yes	No	Don’t know
Are the counterbalancing springs secured against breaking away (screwed in tight top and bottom)?	(4)	Yes	No	Don’t know
Are several springs installed on each side (multiple spring assemblies)?	(4)	Yes	No	Don’t know
Are the coils on the individual springs wound tightly enough to prevent fingers getting trapped between them?	(4)	Yes	No	Don’t know
Is there a label on the door confirming that it complies with the applicable product standard EN 13241-1??		Yes	No	Don’t know
Are the bars that lock the door in place horizontal and made of solid steel?	(2) (5)	Yes	No	Don’t know
Maximum closing force on up-and-over doors with operators: Is compliance with EN 13241-1 assured?	(1)	Yes	No	Don’t know

If you answered “No” more than once or “Don’t know” several times, we recommend engaging a Novoferm expert to inspect and service your garage door.

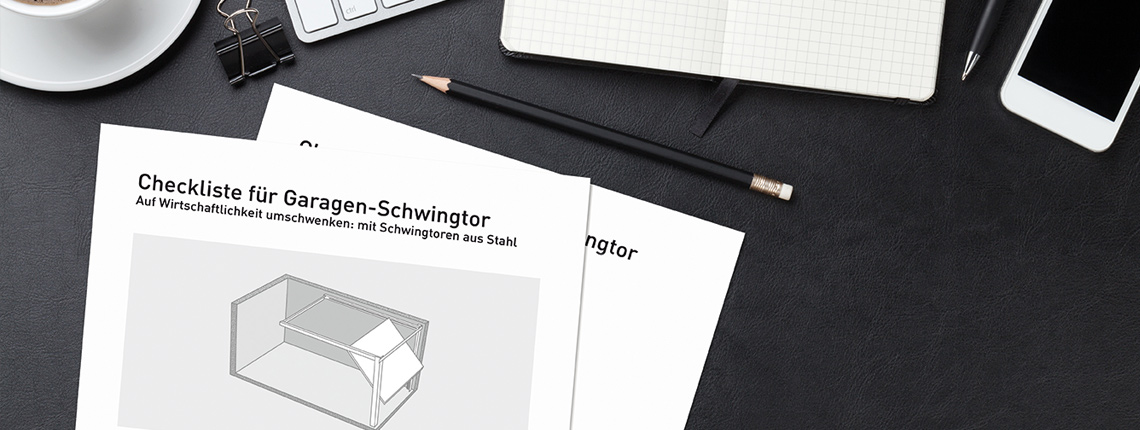

PDF download:Safety check for old up-and-over doors

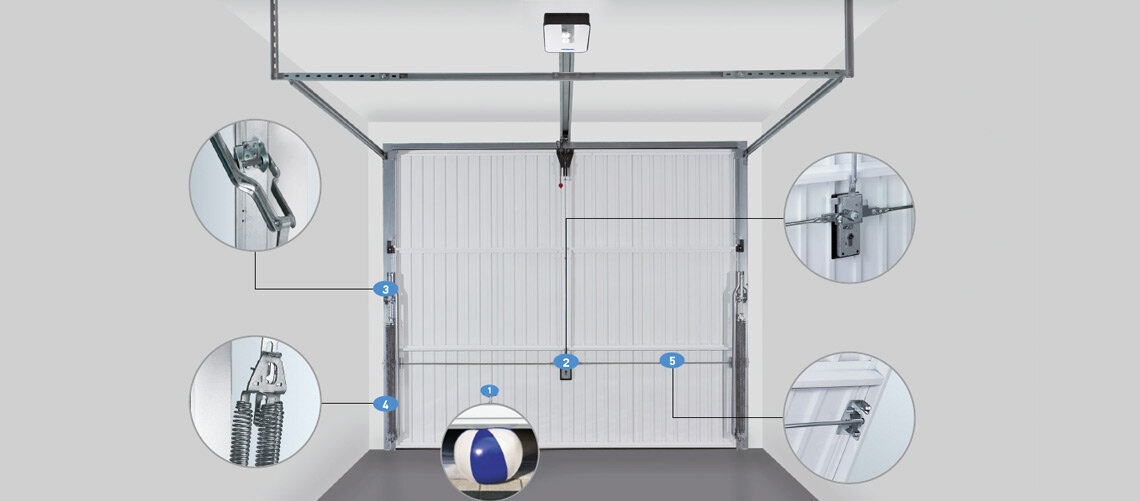

Improved safety for you and your family

Novoferm up-and-over garage doors comply with all requirements of EN 13241-1.

1. Protects people: The garage door that monitors itself
The Novoferm up-and-over garage door with operator is equipped with self-monitoring automatic cut-off. As soon as the garage door encounters an obstacle when closing – regardless of whether person or object – it stops and opens immediately at the slightest resistance.

2. Protects property: Exemplary burglar resistance
The Novoferm up-and-over garage door with operator and 3-point lock (incl. BDIP track) protects your property using the safe principle. Locks on both sides with solid bolts in the frame, and additional locking mechanism provided by the operator, which self-locks at the upper edge of the door leaf.

3. Convenient opening and closing
Specially designed lever arm bearings allow for easy opening and closing of your garage door – easy to operate manually and even easier by electrical operator.

4. Maximum operational reliability
Powerful triple spring assemblies ensure maximum functional reliability and superb ease of operation. Even if a spring should actually break, it can’t break off, because it is screwed in tightly at the top and the bottom. And all the remaining springs would keep the garage door securely in place, anyway.

5. Additional property protection
The floor-independent horizontal locking device with solid bolts in the side frames is guaranteed tamper proof as it cannot be reached from the outside with tools.

Safety check list for sectional garage doors

How safe is your old sectional garage door?

Does your sectional garage door have anti-pinch protection inside and out between the sections (gaps of less than 4 mm)?	(6)	Yes	No	Don’t know
Do the leaf hinges protect against fingers getting trapped?	(6)	Yes	No	Don’t know
Does your door protect against crushing, cutting, shearing and trapping at all closing edges?	(6) (7)	Yes	No	Don’t know
Does the design of the tracks ensure the rollers cannot slip out?	(3)	Yes	No	Don’t know
Is the door leaf fitted with a reliable fall safeguard?	(4)	Yes	No	Don’t know
Are the counterbalancing springs secured against breaking away?	(4)	Yes	No	Don’t know
Does your door with torsion spring technology stop after max. 300 mm if a spring breaks?		Yes	No	Don’t know
If a spring or cable breaks on your door with tension spring technology, is the ensuing imbalance guaranteed less than 200 N?	(4)	Yes	No	Don’t know
Are the steel cables guided between leaf and angular frame on the inside to prevent injuries?	(2)	Yes	No	Don’t know
Is there a label on the door confirming that it complies with the applicable product standard EN 13241-1??		Yes	No	Don’t know
Maximum closing force on sectional garage doors with operators: Is compliance with EN 13241-1 assured?	(5)	Yes	No	Don’t know

If you answered “No” more than once or “Don’t know” several times, we recommend engaging a Novoferm expert to inspect and service your garage door.

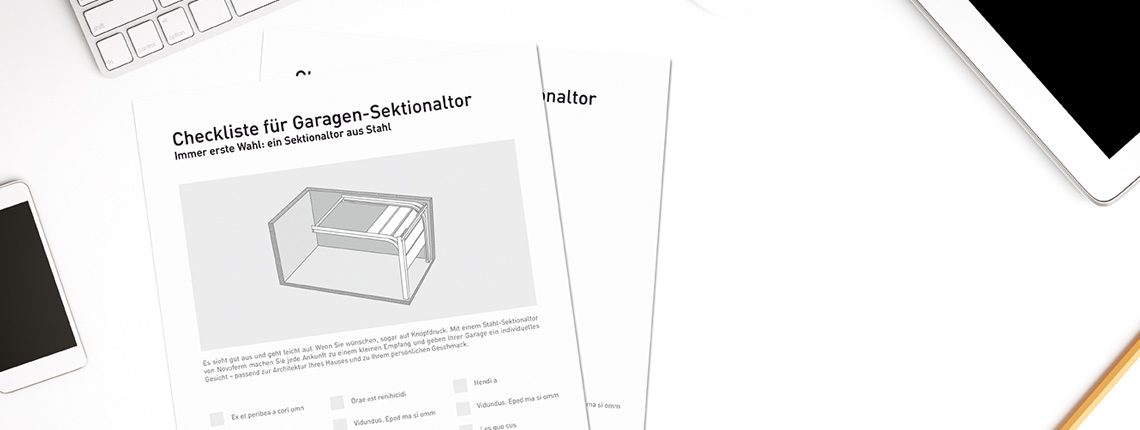

PDF download:Safety check for old sectional garage doors

Improved safety for you and your family

Novoferm sectional garage doors comply with all requirements of EN 13241-1.

1. Interference-protected deflection pulley
The steel cables run vertically into the angular frame on interference-protected deflection pulleys mounted on ball bearings with U-shaped roller holders. This reduces the height requirement compared to a front-mounted torsion spring.

2. New cable mount
Together with the new steel cable holder, the newly designed cable mount with integrated door guide keeps the steel cables running smoothly in the angular frame without them touching the sections.

3. Integrated belt fastening
The newly designed moulded end piece contains an integrated fastener for the NovoPort® belt. The maintenance-free belt is fastened securely in the holder.

4. Multiple tension spring assemblies
The tension spring garage doors are equipped with sturdy multiple tension spring assemblies. The springs are adjusted at the top end of the assembly. The vertical tension springs require less installation depth and open up new possibilities when space is confined.

5. NovoPort® - unique & flexible
The NovoPort® operator system not only offers maximum convenience during operation, but also during installation. After all, the motor is not fixed to the ceiling like conventional operators, but simply integrated into the side garage door track – either on the left or the right depending on the structural conditions. So no ceiling assembly is required.

6. Anti-pinch inside and out
The special design of the sections and hinges prevents pinching on the door leaf from the outset. Pinching is not a risk on the inside of Novoferm doors either.

7. Interference protection and cables channelled down the inside
The angular frames make it almost impossible to reach between the door leaf and the frame. Suspension cables arranged inside minimize the risk of injury and guarantee maximum operational reliability.

Time for a new garage door!

Did your garage door fail the safety check?

Do you open your garage door by hand? Does the appearance of your garage door no longer match the façade/architecture of your home? Are you fed up with looking at the old garage door?

Why not paint it again and carry on with the old technology? No! After all, the benefits of a new and modern sectional garage door are clear:

Warum Garagen-Sektionaltore von Novoferm?

Wertigkeit und Langlebigkeit unserer Oberflächen

Alle Garagen-Sektionaltore und Garagen-Sektionaltornebentüren mit lackierten Oberflächen (Super-Color oder RAL nach Wahl) und Holz-Optiken (Golden oak, Dark oak, Winchester und Night oak) sowie unseren Satin-Oberflächen (Satin white, Satin Window grey, Satin grey, Satin Dark grey, Satin black und Satin brown) sind bei Novoferm endbeschichtet.

Die wertigen Oberflächen sind unempfindlicher gegenüber äußeren Einflüssen und verleihen Ihrer Garage eine edle Optik, so dass Sie lange Freude an Ihrem Garagentor haben.

Hochwertige Qualität mit Garantie

Unsere Garagen-Sektionaltore tragen das Novoferm Qualitätssiegel. Alle Tore und Antriebe entsprechen der DIN ISO 9001 und den Sicherheitsanforderungen der europäischen Tore-Produktnorm DIN EN 13241.

Stahltore erhalten zehn Jahre Garantie auf Funktionssicherheit und Durchrostung von innen nach außen. Fünf Jahre Garantie gibt es auf endbeschichtete Farben und Oberflächen, Holztorblätter, Verschleißteile, Mechanik sowie auf Antriebsmotoren und -steuerungen.

Detaillierte Garantiebestimmungen finden Sie unter www.novoferm.de/garantiebestimmungen.

Dämmung und Energieeffizienz

Dank PUR-Hartschaumkern (20, 45 bis 67 mm) und Thermozargenset* sind unsere Garagen-Sektionaltore optimal wärmegedämmt. Für geringen Stromverbrauch sorgen u.a. unsere energiesparenden Antriebe, die im Stand-by-Betrieb nur 0,5 Watt verbrauchen und unsere ebenso effiziente Zusatzausstattung. Hierzu gehören z.B. LED-Lichtleisten, die besondere Helligkeit bei gleichzeitiger Wirtschaftlichkeit gewährleisten.

* Abhängig von Tormotiv und -größe bis zu 15 % bessere Wärmedämmung möglich.

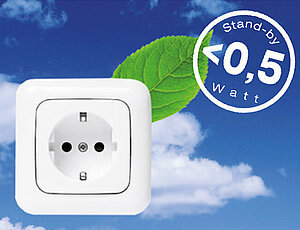

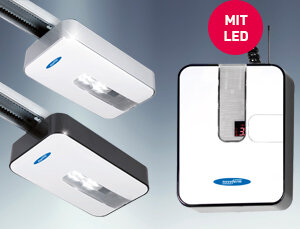

Innovativ und leistungsstarke Antriebe

Die Novoferm Garagentor-Antriebe kombinieren modernste Technik mit hoher Energieeffizienz und optimiertem Design, zeitgemäßer LED-Technik, Stabilität sowie erhöhter Druck- und Zugkraft.

Viele unserer Garagentor-Antriebe sind in Verbindung mit einem Sektionaltor über die Homematic IP App oder die TYDOM-App von Delta Dore über Ihr Smartphone steuerbar.
Die Apps können Sie kostenlos im App Store oder in Google Play herunterladen.

Geprüfte Sicherheit

Das ist Sicherheit:
Die neue RC 2 geprüfte und zertifizierte Einbruchhemmung* nach der neuen DIN/TS 18194:2020-07. Optional für iso 45 und für iso 70 Premium-Plus im Standard. Fingerklemmschutz (innen/ außen), bruchsichere Torsionsfederwellen (iso 45 und iso 70). Die elektronische Aufschubsicherung, das selbsthemmende Getriebe des Antriebes und manipulationssichere Handsender mit mehrstelligen, wechselnden Codes und AES 128 bit-Verschlüsselung sorgen für Sicherheit.

* Für alle iso 45 und iso 70 Tore in Verbindung mit einem geprüften Novomatic Deckenantrieb (ohne Extras wie Schlupftür, Notentriegelung, Fenster usw.)

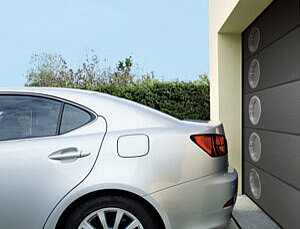

Komfort serienmäßig

Mehr Platz vor der Garage, große Durchfahrtshöhe, doppelwandige Isolierung und Schalldämmung, hohe Laufruhe, einfache Bedienung durch Mehrfach-Zugfederpakete oder Torsionsfedern usw. Flexible Tor- und Beleuchtungssteuerungen, menügeführte Programmier- und Servicefunktionen sowie Zubehör wie Taster und Handsender zeichnen unsere automatischen Tore aus.

Mehr Farbe und Individualität erleben

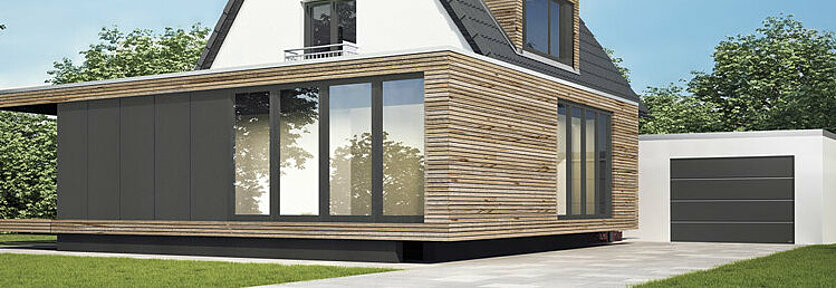

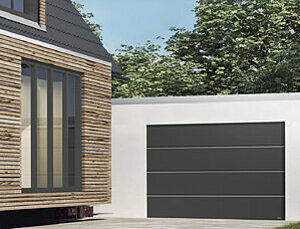

Modernisierung mit automatischen Garagen-Sektionaltor-Systemen

Ob Massiv- oder Fertiggarage:
Da Novoferm Renovierungstore auf die meisten alten Tormaße abgestimmt sind, können sie viele Tore problemlos ersetzen, ohne dass die Garagenöffnung umgebaut oder eine Sonderanfertigung bestellt werden muss. Wird das neue Sektionaltor hinter der Garagenöffnung montiert, verbreitert sich die Durchfahrt. Bei Montage vor der Garagenöffnung liefern wir Ihnen zur Einfassung ein hochwertiges Alu-Blendrahmen-Set.

Preiskompass

Garagen-Sektionaltore von Novoferm sind in jedem Fall eine lohnende Investition. Ob im Neubau oder bei der Renovierung, es gibt Lösungen für nahezu jede bauliche Situation.

Und das Beste ist – Garagen-Sektionaltore müssen nicht teuer sein!

Garagen-Sektionaltore bekommen Sie schon ab 1.200 Euro* (UVP des Herstellers).

* Preis inklusive MwSt., ohne Montage.

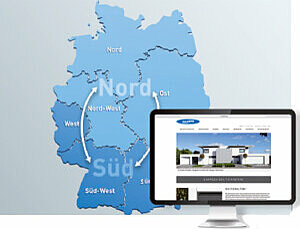

Novoferm Partner-Netzwerk

Novoferm arbeitet mit einem breiten Netzwerk an Fachhändlern in Deutschland – in Ihrer Nähe – zusammen. Unsere autorisierten Novoferm Fachhändler stehen für fachgerechte Beratung, Verkauf, Aufmaß, Montage sowie Demontage und umweltgerechte Entsorgung Ihres Garagentores zu günstigen Komplettpreisen. Nutzen Sie hierzu einfach unsere Online-Formulare auf www.novoferm.de zur direkten Kontaktaufnahme.

Wir leiten Ihre Anfrage an einen Novoferm Vertriebspartner in Ihrer Nähe zur Bearbeitung weiter.

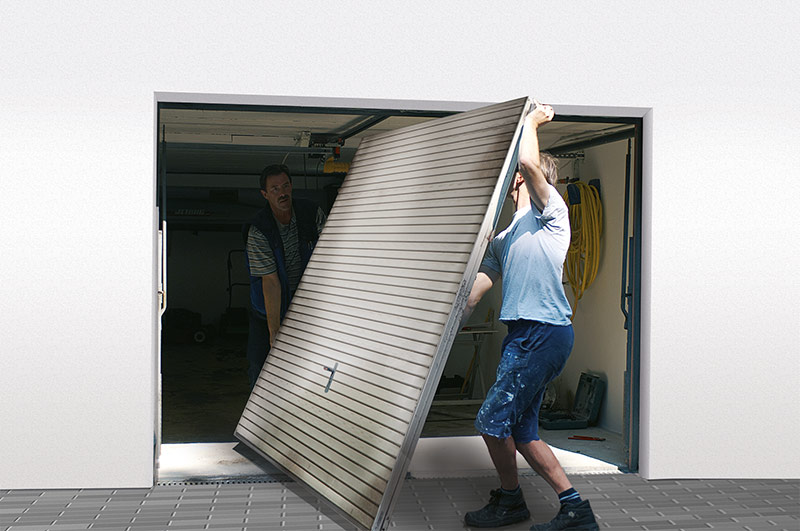

Replacing a garage door

Novoferm – your expert partner for renovations

Out with the old. In with the new. Regardless of whether your garage is brick or concrete!
Novoferm makes renovating much easier and faster.

Whether you have a brick or concrete garage, Your Novoferm partner can replace the old door with an automatic sectional garage door. How can they do it so quickly?

Well, since Novoferm renovation garage doors are precisely matched to the most common old door sizes, there is no need for extensive modifications to the garage opening, nor for expensive, tailor-made doors.

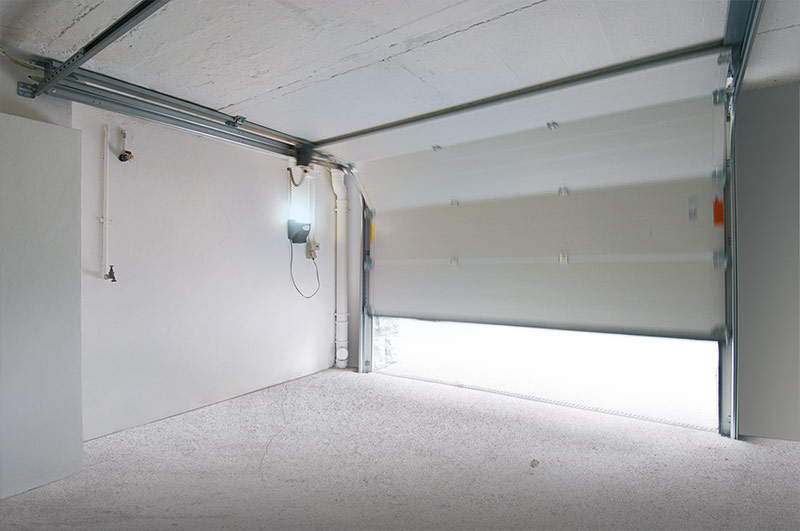

And if the new sectional door is installed behind the garage opening, you have a larger passage width than before. Is a “No” still feasible in the face of all these advantages?

Your advantages at a glance

Expert advice and replacement of your garage door by one of Novoferm’s professional partners
Affordable standard and renovation sizes can usually be used
Novoferm sectional garage doors are the perfect choice for renovations with their narrow rebate width of just 80 mm on each side
The uniform colour and surface finish of the entire garage door looks good
Uneven walls can be flexibly treated
Clean renovation solutions, right down to the tiniest detail (e.g. trim profiles on angular frames, stepped renovation frame, variable floor profiles, etc.)
Use of aluminium panel frames on ceiling sectional garage doors made by Novoferm

Renovation solutions right down to the tiniest detail

Set of aluminium panel frames

Outside rebate panels for ceiling sectional garage doors

To overcome space constraints, sectional garage doors are frequently positioned in front of the opening of ready-made garages or when renovating old garages. The set of aluminium panel frames is a high quality solution developed by Novoferm that can be used on all sectional garage doors.

Set of aluminium panel frames

Your advantages at a glance

Suitable for all Novoferm sectional garage doors
Top quality aluminium finish

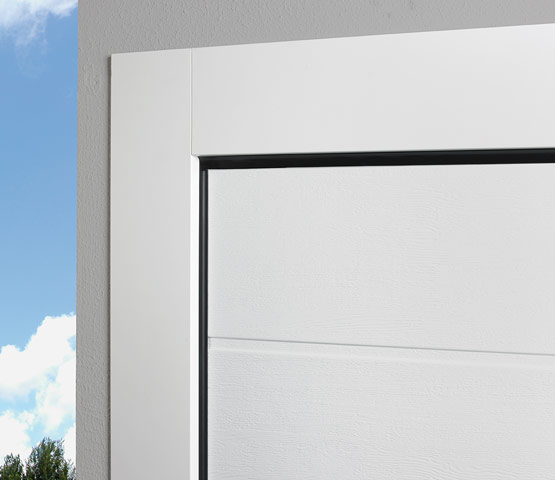

Standard traffic white, similar to RAL 9016
Available in door leaf colour on request (at additional cost)
Profiles cut to measure at the factory. No need to shorten them on site
No loss of passage width
Elegant trim profile, just 7 mm high
Profile overlaps by up to 44 mm to cover any masonry damage during preparation
...

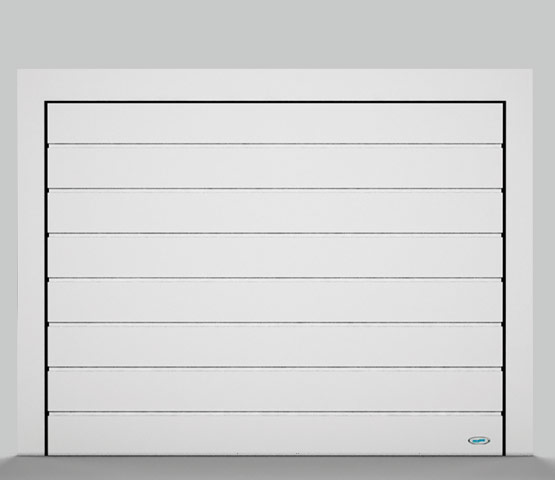

Overall external appearance

Anchor fastening inside

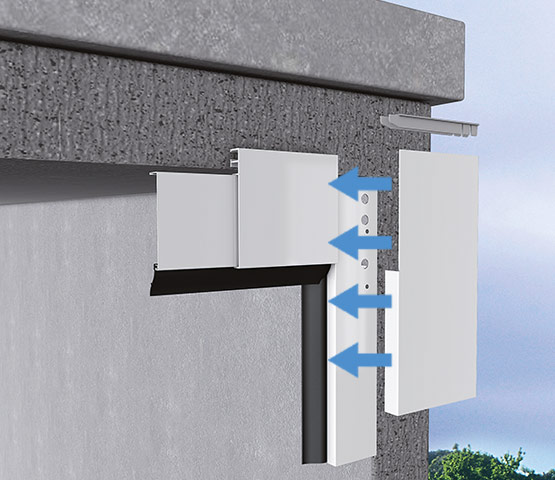

Universal panel solution, view from the outside

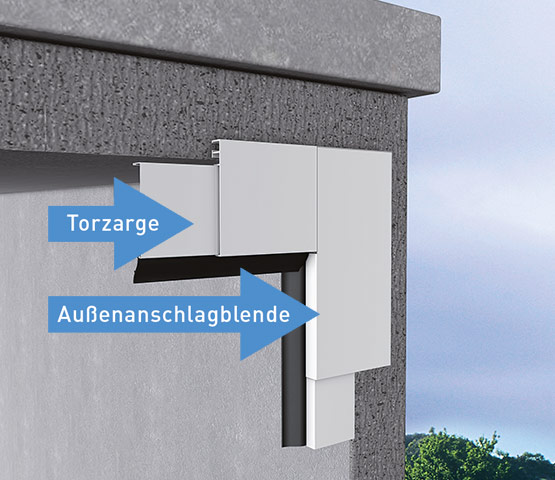

The panel solution for an attractive appearance

Angular frame trim profiles

Standard white coated angular frames are covered
Uniform appearance of colour and coated door leaves
20.5 x 50 mm trim profile for partially visible angular frame
20.5 x 80 mm trim profile for fully visible angular frame (e.g. installation in the opening)

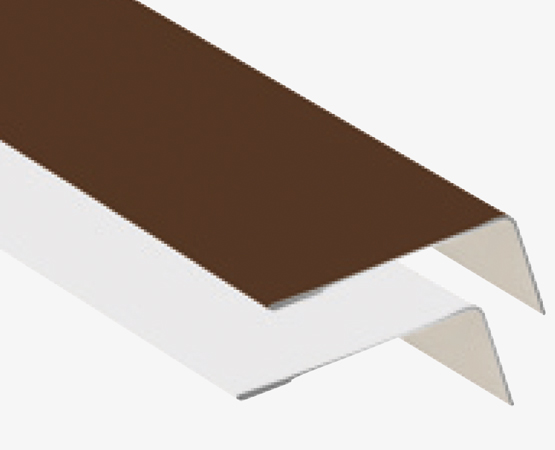

20.5 x 50 mm trim profile for visible side frame

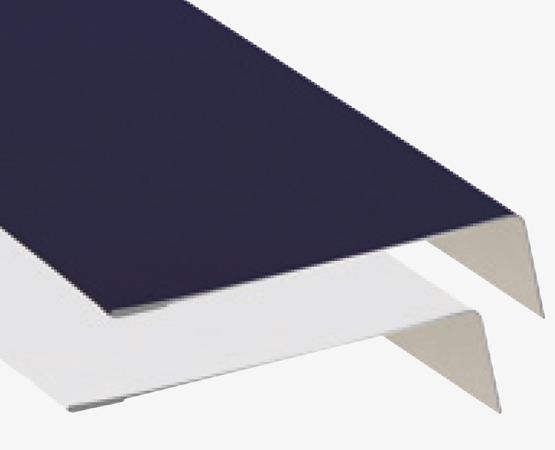

20.5 x 80 mm trim profile for garage door installation in the opening

Variable iso 20 floor profile

Evens out floors that slope up to 15 mm on one side
The track of the rubber bottom profile has long holes for adjustment
Standard for all iso 20 sectional garage doors

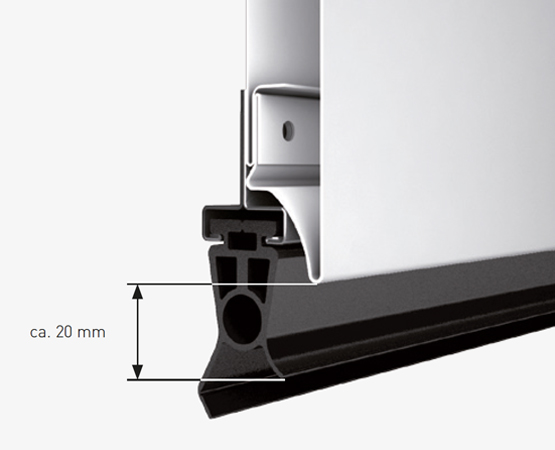

Profile when inserted

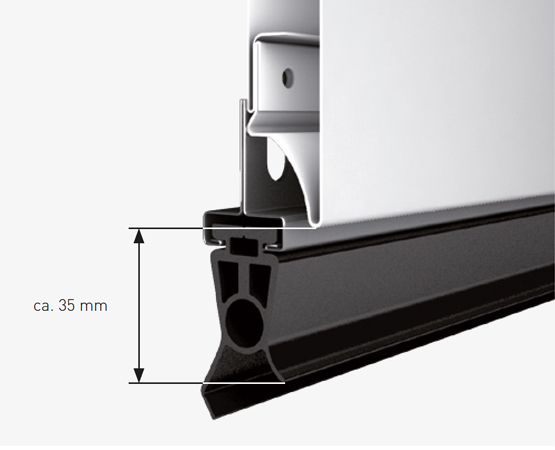

Profile when extended

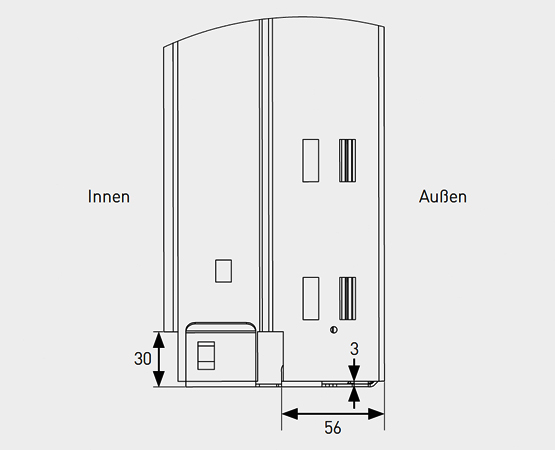

Stepped renovation frame

Ideal renovation solution when replacing an up-and-over door with a sectional garage door
No need to remove the screed track
Sectional garage door leaf completely seals the opening

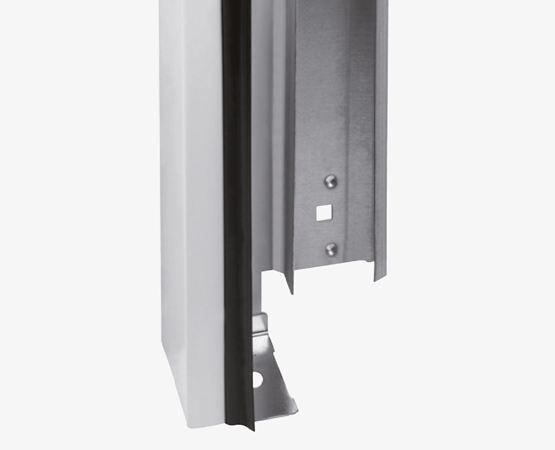

Without floor track

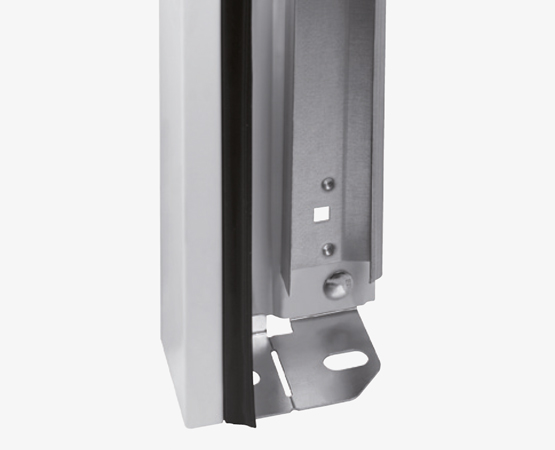

With floor track

Stepped renovation frame for bridging floor tracks

Frequently asked questions / Tips

The guide to the garage door of your dreams!

... to the guide to buying a garage door!

... to the guide to help you decide on buying a garage door!

Sie suchen ein Garagentor? Wir machen das Tor!

Novoferm bietet Ihnen ein breites Spektrum an Garagentortypen mit unterschiedlichen Funktionsweisen, mit und ohne Antrieb, verschiedenen Materialien und zahlreichen Designmöglichkeiten.

Wir wollen Ihnen mit dem folgenden Leitfaden anhand von 7 Fragestellungen die Entscheidung für Ihr Novoferm Wunschtor vereinfachen. Hierdurch erfahren Sie, worüber Sie sich im Vorfeld eines Garagentorkaufes Gedanken machen sollten.

Der Leitfaden hilft Ihnen bei Auswahl des passenden Tores für Ihre Garage!

What products and services does your professional Novoferm partner offer?

Products and services

Approved Novoferm partners near you can provide the following products and services

Qualified counselling
On site measurement
Delivery and installation of your new garage door
Dismantling and disposal of the old garage door
Regular servicing of your garage door

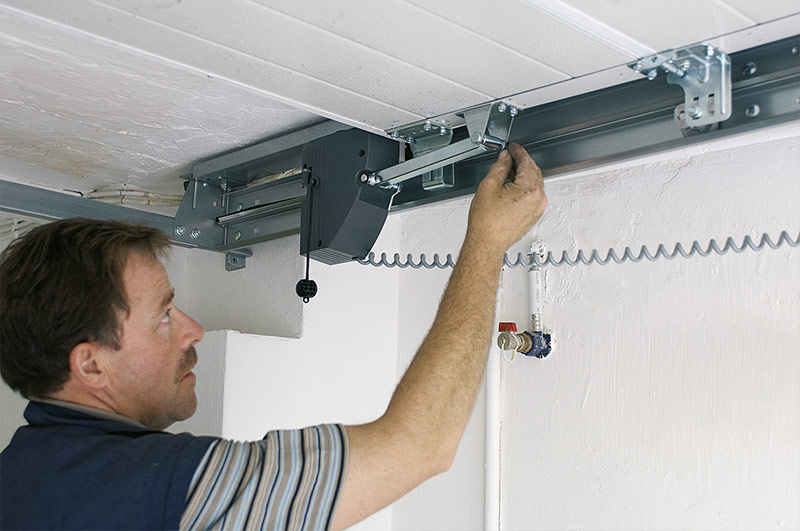

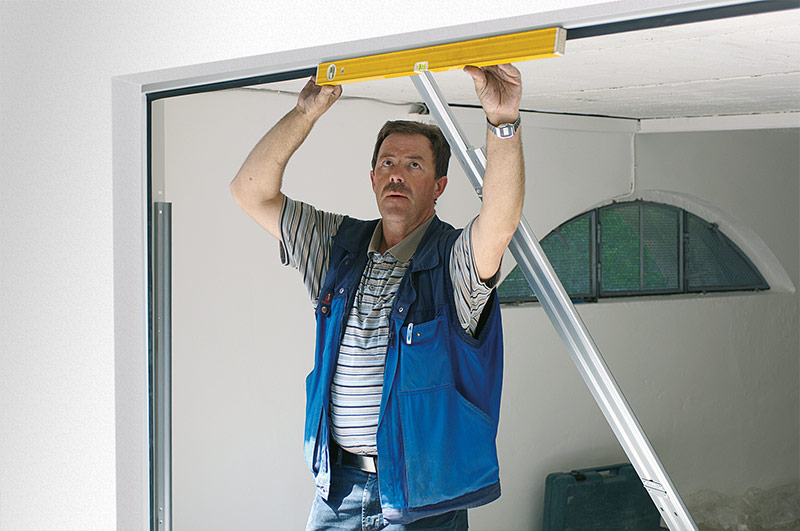

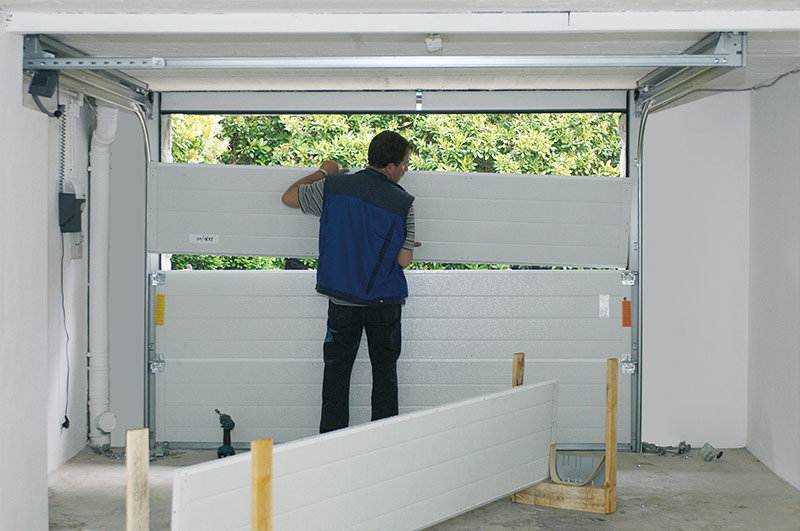

How long will it take to replace my garage door?

Duration / Steps involved in replacing a garage door

Novoferm’s professional partners can generally replace your garage door within a day! A visual explanation of the individual steps involved in replacing a garage door is offered below!

Done! Installed quickly, works reliably
Fully pre-assembled for fast installation, fits any shape of garage, all parts work together perfectly – in compliance with the latest European safety standards.

DOOR TIP

Novoferm renovation doors are supplied "all-inclusive" for installation. And our professional partners even take your old garage door away!

How much does a sectional garage door / installation of a garage door cost?

Cost of garage doors

A sectional garage door from Novoferm is always a worthwhile investment. Regardless of whether you are building a new or renovating an existing garage, solutions are available for practically every type of structure. And best of all, a sectional garage door doesn't need to be expensive. Sectional garage doors start at around 1,000 euros* (manufacturer's RRP).

In addition, depending on the work involved, it will cost a couple of hundred euros to replace/install the garage door, and to dismantle and properly dispose of the old door.

*Price incl. VAT, without installation

Where can I find a professional Novoferm partner for advice and installation of a garage door?

Contact

Novoferm works with an extensive network of dealers across Germany – close to where you are. Our authorized Novoferm dealers are available to offer advice on, sell, measure, and install your garage door, as well as disassembling and disposing of your old door in line with environmental protection rules – at affordable all-inclusive prices.

Simply contact us directly using our online forms. We will forward your enquiry to a Novoferm sales partner near you who will then get in touch with you!
